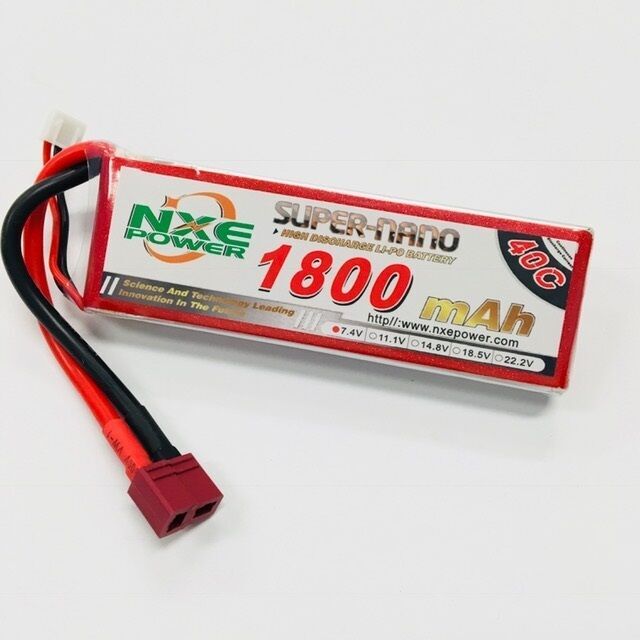

NXE 1800mAh 2S 7.4V 40C Soft Case LiPo Battery with Deans – 1800SC402SDEAN

The NXE 1800mAh 2S 7.4V 40C Soft Case LiPo Battery (1800SC402SDEAN) is a compact and lightweight battery designed for RC models requiring a relatively small 2S power pack. With 1800mAh capacity, a 40C discharge rating and factory-fitted Deans / T-Plug connector, it's a versatile option for compatible RC aircraft and other electric models.

Compact 2S LiPo Power

The battery uses a standard 2S LiPo configuration, providing a nominal voltage of 7.4V.

Its 1800mAh capacity provides a useful increase in runtime compared with smaller 1100mAh, 1300mAh and 1500mAh packs while still maintaining a compact physical size.

The 40C discharge rating gives the pack a theoretical continuous current capability of up to 72A (1.8Ah × 40C), making it suitable for compatible power systems requiring stronger current delivery than lower-C batteries.

Slim Soft Case Design

One of the main advantages of this battery is its slim construction. Australian NXE listings specify dimensions of approximately 104–105 x 34 x 14mm, making it particularly useful where battery height is restricted.

Deans / T-Plug Connection

The battery is supplied with a factory-fitted Deans / T-Plug main connector, making it ready to connect directly to compatible ESCs and models.

A JST-XH balance connector is also fitted for monitoring and balancing the individual cells during charging.

Features

• 1800mAh capacity
• 2S / 7.4V LiPo configuration
• 40C discharge rating
• Compact soft case construction
• Factory-fitted Deans / T-Plug connector
• JST-XH balance connector
• Slim 14mm battery profile
• Lightweight construction
• Suitable for compatible RC aircraft and other electric RC models
• Good balance between capacity, size and weight
• Rechargeable lithium polymer chemistry

Specifications

• Brand: NXE Batteries
• Part Number: 1800SC402SDEAN
• Battery Chemistry: LiPo
• Capacity: 1800mAh
• Voltage: 7.4V
• Cell Count: 2S
• Discharge Rating: 40C
• Case Type: Soft Case
• Configuration: Flat
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Length: Approx. 104–105mm
• Width: 34mm
• Height: 14mm
• Weight: Approx. 100g
• Application: Air / General RC
• Barcode / EAN: 6925780561142

What's Included

• 1 x NXE 1800mAh 2S 7.4V 40C Soft Case LiPo Battery with Deans / T-Plug connector

Please Note

This is a standard 2S 7.4V LiPo battery and requires a suitable LiPo balance charger. Always use the correct 2S LiPo charging program and connect the balance lead when balance charging.

Before purchasing, check that your model supports 2S LiPo power, uses a compatible Deans/T-Plug connection and has sufficient battery space for the approximately 105 x 34 x 14mm pack.

The 1800SC402SDEAN is the 2S version; NXE also offers 1800SC403SDEAN, which increases the voltage to 3S / 11.1V while retaining the 1800mAh capacity and 40C rating
