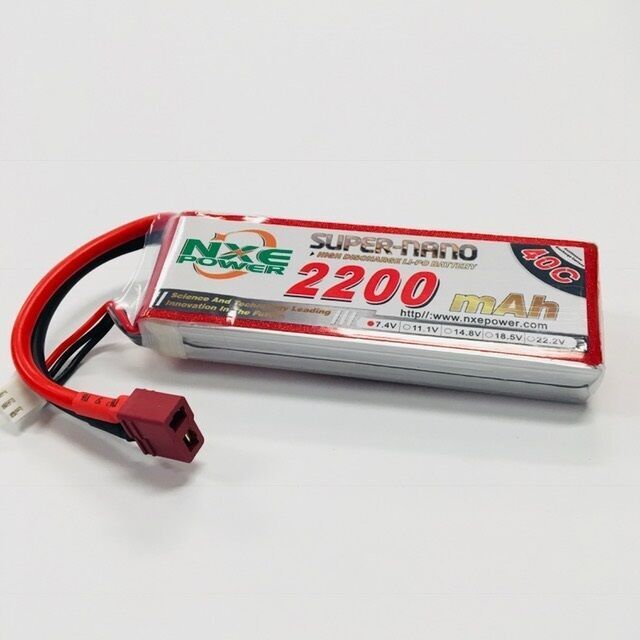

NXE 2200mAh 2S 7.4V 40C Soft Case LiPo Battery with Deans – 2200SC402SDEAN

The NXE 2200mAh 2S 7.4V 40C Soft Case LiPo Battery (2200SC402SDEAN) is a versatile, lightweight battery designed for RC models requiring a compact 2S power source. With a popular 2200mAh capacity, 40C discharge rating and factory-fitted Deans / T-Plug connector, it's particularly well suited to RC aircraft and other electric models where battery size and weight are important.

Popular 2S 2200mAh Configuration

The battery uses a standard 2S LiPo configuration, providing a nominal voltage of 7.4V.

Its 2200mAh capacity provides a good balance between runtime and overall battery size, making this capacity popular across a wide range of smaller and medium-sized electric RC applications.

The 40C discharge rating equates to a theoretical continuous output of 88A (2.2Ah × 40C), although actual suitability will depend on the current requirements of the model's power system.

Slim Soft Case Design

One of the main advantages of this NXE pack is its relatively slim profile. Multiple Australian NXE retailers list the pack at approximately 102–104mm long, 34mm wide and 16–16.5mm high, with a weight of approximately 125–127g.

This makes it particularly useful for RC aircraft and other models where a larger hardcase battery may not fit.

Deans / T-Plug Connector

The battery comes factory fitted with a Deans / T-Plug main power connector, allowing direct connection to compatible ESCs without requiring an adapter.

A JST-XH balance connector is also fitted, allowing the individual cells to be monitored and correctly balanced when using a suitable LiPo balance charger.

Features

• 2200mAh capacity
• 2S / 7.4V LiPo configuration
• 40C discharge rating
• Compact soft case construction
• Factory-fitted Deans / T-Plug connector
• JST-XH balance connector
• Slim battery profile
• Lightweight construction
• Suitable for compatible RC aircraft
• Suitable for other electric RC applications requiring a compact 2S battery
• Standard LiPo chemistry
• Good balance of capacity, size and weight

Specifications

• Brand: NXE Batteries
• Part Number: 2200SC402SDEAN
• Battery Chemistry: LiPo
• Capacity: 2200mAh
• Voltage: 7.4V
• Cell Count: 2S
• Discharge Rating: 40C
• Case Type: Soft Case
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Length: Approx. 102–104mm
• Width: Approx. 34mm
• Height: Approx. 16–16.5mm
• Weight: Approx. 125–127g
• Application: Air / General RC
• Barcode / EAN: 6925780561166

What's Included

• 1 x NXE 2200mAh 2S 7.4V 40C Soft Case LiPo Battery with Deans / T-Plug connector

Please Note

This is a standard 2S 7.4V LiPo battery and must be charged using a suitable LiPo balance charger with the correct 2S LiPo program selected.

Always check your model's required battery voltage, connector and battery compartment dimensions before use.

There are some small dimensional differences between Australian retailer listings for this SKU. The most consistently published dimensions are around 102–104 x 34 x 16–16.5mm, so I would avoid stating a more precise measurement unless you physically measure your current stock.
