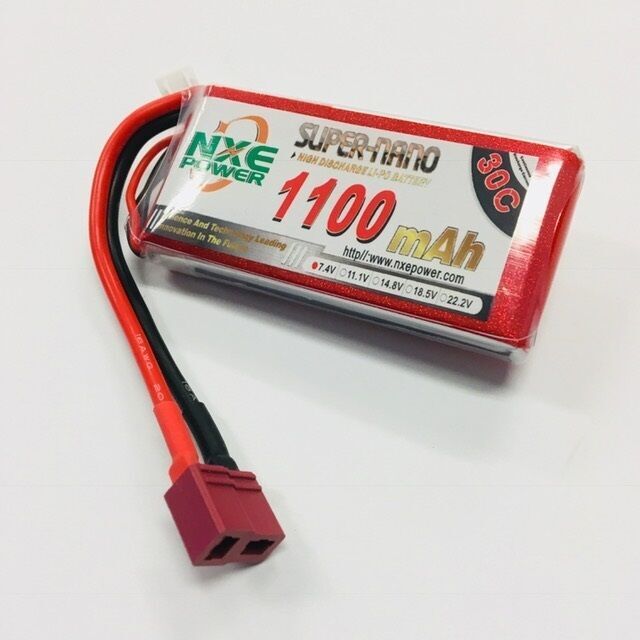

NXE 1100mAh 2S 7.4V 30C Soft Case LiPo Battery with Deans – 1100SC302SDEAN

The NXE 1100mAh 2S 7.4V 30C Soft Case LiPo Battery (1100SC302SDEAN) is a compact and lightweight battery designed for RC applications where space and weight are important. With a 1100mAh capacity, 30C discharge rating and factory-fitted Deans / T-Plug connector, it's a practical replacement or upgrade battery for compatible RC models.

Its slim soft-case construction makes it particularly useful for smaller RC aircraft and other models with limited battery compartment space. Australian distributor listings classify this pack primarily for air applications.

Compact 2S LiPo Power

The battery uses a 2S LiPo configuration, providing a nominal voltage of 7.4V. Its 1100mAh capacity offers a good balance between runtime, physical size and weight for smaller models.

The 30C discharge rating allows the battery to deliver up to approximately 33A theoretically at its stated continuous C-rating (1.1Ah × 30C), making it suitable for compatible power systems that remain within the battery manufacturer's operating limits.

Lightweight Soft Case Design

Unlike a hardcase surface battery, the NXE 1100mAh pack uses a lightweight soft case construction.

The pack measures approximately 72 x 34 x 12–13mm, with Australian listings showing a weight of approximately 58–64g. The small variation appears to come from different published measurements, so checking your actual battery compartment dimensions is recommended where space is particularly tight.

Deans / T-Plug Connector

A Deans-style T-Plug is fitted to the main power leads, allowing direct connection to compatible ESCs and models without needing to change the connector.

A JST-XH balance connector is also fitted for cell balancing when charging on a suitable LiPo balance charger.

Features

• 1100mAh capacity
• 2S LiPo configuration
• 7.4V nominal voltage
• 30C discharge rating
• Lightweight soft case construction
• Factory-fitted Deans / T-Plug main connector
• JST-XH balance connector
• Compact dimensions
• Suitable for smaller RC applications
• Particularly suited to compatible RC aircraft
• Rechargeable lithium polymer chemistry

Specifications

• Brand: NXE Batteries
• Part Number: 1100SC302SDEAN
• Battery Chemistry: LiPo
• Capacity: 1100mAh
• Voltage: 7.4V
• Cells: 2S
• Discharge Rating: 30C
• Case Type: Soft Case
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Length: Approx. 72mm
• Width: Approx. 34mm
• Height: Approx. 12–13mm
• Weight: Approx. 58–64g
• Application: Air / General RC
• Barcode: 6925780561319

What's Included

• 1 x NXE 1100mAh 2S 7.4V 30C Soft Case LiPo Battery
• Factory-fitted Deans / T-Plug connector
• JST-XH balance lead
