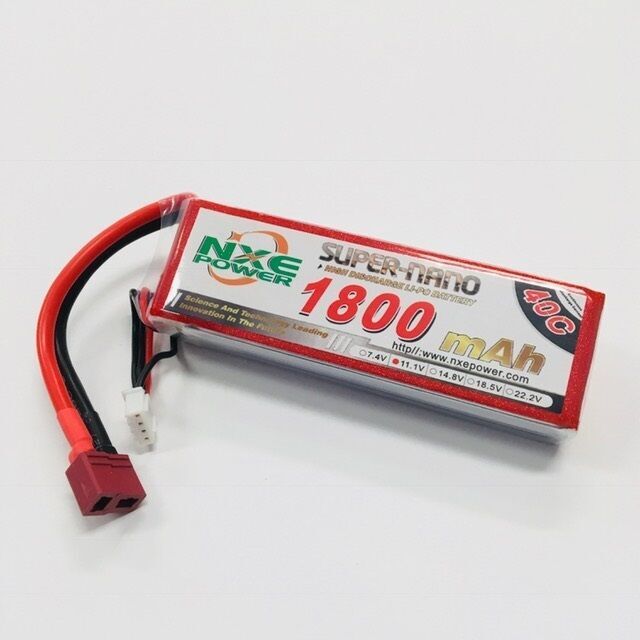

NXE 1800mAh 3S 11.1V 40C Soft Case LiPo Battery with Deans – 1800SC403SDEAN

The NXE 1800mAh 3S 11.1V 40C Soft Case LiPo Battery (1800SC403SDEAN) is a compact and lightweight power pack designed primarily for RC aircraft and other electric models requiring a reliable 3S LiPo battery.

With a 1800mAh capacity, 40C discharge rating and factory-fitted Deans / T-Plug connector, this battery provides a useful balance of power, runtime and compact dimensions. Australian NXE listings specify the pack at approximately 105 x 34 x 20mm, making it particularly suitable for models where battery compartment space is limited.

3S 11.1V LiPo Power

The three-cell configuration provides a nominal voltage of 11.1V, making this battery suitable for models designed to operate on standard 3S LiPo power.

Its 1800mAh capacity offers increased runtime compared with smaller 1100mAh, 1300mAh and 1500mAh packs while remaining relatively compact and lightweight.

40C Discharge Performance

NXE rates this battery at 40C, providing the current delivery required by many small-to-medium electric aircraft and other compatible RC applications.

For a 1800mAh battery, a 40C rating equates to a theoretical maximum continuous current of 72A (1.8Ah × 40C), although actual suitability should always be determined by the requirements of the model and power system.

Compact Soft Case Construction

The lightweight soft case design helps minimise overall battery weight while keeping the pack compact.

At approximately 105mm long, 34mm wide and 20mm high, it can fit into many applications where a larger conventional 3S pack would be unsuitable. Published weight is approximately 156g.

Deans / T-Plug Connector

The battery comes factory fitted with a Deans / T-Plug main connector, allowing direct connection to compatible ESCs without requiring an adapter.

A JST-XH balance connector is also fitted for individual cell monitoring and balancing when charging with a suitable LiPo balance charger.

Features

• 1800mAh capacity
• 3S / 11.1V configuration
• 40C discharge rating
• Compact soft case construction
• Factory-fitted Deans / T-Plug connector
• JST-XH balance connector
• Lightweight design
• Approximately 105mm long
• Suitable for compatible RC aircraft
• Suitable for other electric RC applications requiring a compact 3S pack
• Standard LiPo chemistry

Specifications

• Brand: NXE Batteries
• Part Number: 1800SC403SDEAN
• Battery Chemistry: LiPo
• Capacity: 1800mAh
• Voltage: 11.1V
• Cell Count: 3S
• Cell Voltage: 3.7V nominal
• Discharge Rating: 40C
• Case Type: Soft Case
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Length: 105mm
• Width: 34mm
• Height: 20mm
• Weight: Approx. 156g
• Application: Air / General RC
• Barcode / EAN: 6925780561159

What's Included

• 1 x NXE 1800mAh 3S 11.1V 40C Soft Case LiPo Battery with Deans / T-Plug connector

Please Note

This is a standard 3S 11.1V LiPo battery and requires a LiPo-compatible balance charger. Always select the correct 3S LiPo charging program and balance charge the battery.

Before use, confirm that your model's ESC and motor are rated for 3S operation, uses a compatible Deans/T-Plug connection and has sufficient space for the approximately 105 x 34 x 20mm battery.
