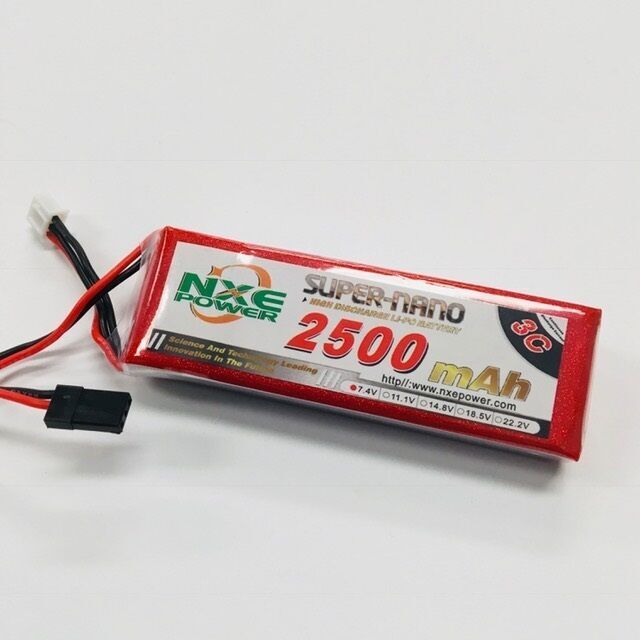

NXE 2500mAh 2S 7.4V 3C Soft Case LiPo Receiver Battery with JR Plug – 2500SC32SJR

The NXE 2500mAh 2S 7.4V LiPo Receiver Battery (2500SC32SJR) is a high-capacity receiver pack designed to power RC receivers, servos and onboard electronics in compatible RC aircraft, helicopters and surface models.

Unlike a conventional drive battery, this pack is specifically designed as an RX receiver battery. Its 3C discharge rating, compact soft-case construction and factory-fitted JR/Hitec-style servo connector make it ideal for models that use a dedicated receiver power supply. Australian NXE distributors list this exact SKU as a 7.4V 2500mAh RX pack.

Dedicated Receiver Battery

The 2500SC32SJR uses a 2S LiPo configuration, providing a nominal voltage of 7.4V.

With a generous 2500mAh capacity, it provides extended operating time for receivers and servos compared with many smaller traditional receiver packs. It's particularly useful in larger models where multiple servos and other onboard electronics require a dedicated power source.

3C Discharge Rating

This battery is rated at 3C, which is appropriate for its intended use as a receiver pack rather than as a high-current motor battery.

At 2500mAh, a 3C rating corresponds to a theoretical maximum output of 7.5A. For this reason, the pack should be used for its intended receiver/electronics application and not as a main propulsion battery for an electric motor.

JR / Hitec Style Connector

The battery comes factory fitted with a JR/Hitec-style servo connector, allowing it to connect to compatible receivers, switches and receiver power systems.

This makes it a convenient replacement for compatible RC aircraft and other models already configured to accept a JR-style receiver battery connection.

Soft Case Construction

The lightweight soft-case design keeps the battery compact and easy to position inside a model.

Features

• 2500mAh capacity
• 2S / 7.4V LiPo configuration
• 3C discharge rating
• Specifically designed as an RX receiver battery
• Powers compatible receivers, servos and onboard electronics
• Factory-fitted JR/Hitec-style connector
• JST-XH balance connection
• Lightweight soft-case construction
• Flat battery configuration
• Suitable for compatible RC aircraft and helicopters
• Can be used in compatible surface models requiring a separate receiver pack
• High capacity for extended operating time

Specifications

• Brand: NXE Batteries
• Part Number: 2500SC32SJR
• Battery Type: Receiver / RX Battery
• Battery Chemistry: LiPo
• Capacity: 2500mAh
• Voltage: 7.4V
• Cell Count: 2S
• Configuration: 2S1P / Flat
• Discharge Rating: 3C
• Main Connector: JR / Hitec-style servo plug
• Balance Connector: JST-XH
• Case Type: Soft Case
• Application: Receiver / Servo / Onboard Electronics
• Barcode / EAN: 6925780561388

What's Included

• 1 x NXE 2500mAh 2S 7.4V LiPo Receiver Battery with JR connector

Please Note

This battery supplies 7.4V nominal (8.4V when fully charged). Before connecting it directly to a receiver or servos, make sure all connected electronics are rated for a 2S LiPo receiver supply, or use a suitable voltage regulator/BEC.

This pack is intended as a receiver battery, not as a main motor/drive battery.

A suitable LiPo balance charger is required. Always use the correct 2S LiPo charging program and balance connection when charging.
