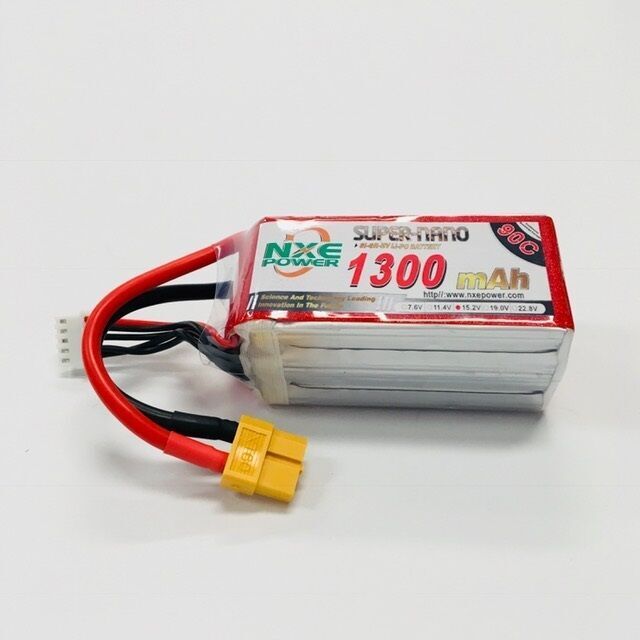

NXE 1300mAh 4S 15.2V HV 90C Drone LiPo Battery with XT60 – 1300SC904SXT60

The NXE 1300mAh 4S 15.2V HV 90C LiPo Battery (1300SC904SXT60) is a compact, high-output battery developed for FPV drones, racing drones and other high-performance RC applications where maximum power needs to be delivered from a small and lightweight pack.

Unlike a conventional 4S LiPo, this is a High Voltage (LiHV) battery, providing a nominal voltage of 15.2V when used as intended. Combined with a high 90C discharge rating and factory-fitted XT60 connector, it's designed for applications requiring strong acceleration and high current delivery from a compact battery.

4S High Voltage Performance

The NXE 1300 uses four High Voltage lithium-polymer cells for a nominal pack voltage of 15.2V.

When charged using a compatible LiHV charging program, HV cells can be charged to a higher maximum cell voltage than conventional LiPo cells. This provides additional available voltage at the beginning of a run or flight compared with a standard 14.8V 4S pack.

Because of this, the model's ESC and electronics should be suitable for a fully charged 4S LiHV battery before use.

High 90C Discharge Rating

With its 90C discharge rating, the 1300SC904SXT60 is designed for demanding applications where a compact battery needs to supply substantial current.

This makes it particularly suited to FPV and racing drones, where rapid throttle response, high power and low battery weight are important. NXE's Australian distributor specifically identifies this model as a 4S HV 1300mAh 90C drone battery.

Compact Soft Case Construction

The soft case construction keeps the battery compact and lightweight while allowing it to fit into applications where a conventional hardcase battery would be too bulky.

The pack measures approximately 75 x 34 x 33–34mm and weighs approximately 167–173g. There is a small variation between published Australian specifications: one retailer lists 167g and another lists 173g, so I'd use approximately 170g for the website rather than claiming an exact weight.

XT60 Connector

The battery comes factory fitted with the popular XT60 main power connector, commonly used on FPV drones, aircraft and other high-current RC applications.

This eliminates the need for an adapter when used with an XT60-equipped model and provides a secure connection suitable for the battery's high-output capability.

Features

• High-performance NXE LiHV battery
• 1300mAh capacity
• 4S High Voltage configuration
• 15.2V nominal voltage
• High 90C discharge rating
• Compact soft case construction
• Factory-fitted XT60 connector
• Designed primarily for FPV and racing drone applications
• High power-to-weight ratio
• Compact dimensions for space-restricted installations
• Suitable for other compatible high-performance RC applications

Specifications

• Brand: NXE Batteries
• Part Number: 1300SC904SXT60
• Battery Chemistry: LiPo HV / LiHV
• Capacity: 1300mAh
• Cell Count: 4S
• Nominal Voltage: 15.2V
• Discharge Rating: 90C
• Case Type: Soft Case
• Main Connector: XT60
• Length: Approx. 75mm
• Width: Approx. 34mm
• Height: Approx. 33–34mm
• Weight: Approx. 170g
• Application: Drone / FPV / General RC
• Barcode / EAN: 6925780561104

What's Included

• 1 x NXE 1300mAh 4S 15.2V HV 90C Soft Case LiPo Battery with XT60 connector

Please Note

This is a High Voltage LiPo (LiHV) battery, not a conventional 14.8V 4S LiPo. A charger with the correct LiHV charging program is required to charge the battery to its full HV voltage.

Always confirm that your model's ESC, motor and other electronics are suitable for the maximum voltage of a fully charged 4S LiHV battery.

The 1300SC904SXT60 should also not be confused with 1300SC954SXT60. The 1300SC904SXT60 is the 15.2V HV 90C version, while the 1300SC954SXT60 is the conventional 14.8V 95C version.
