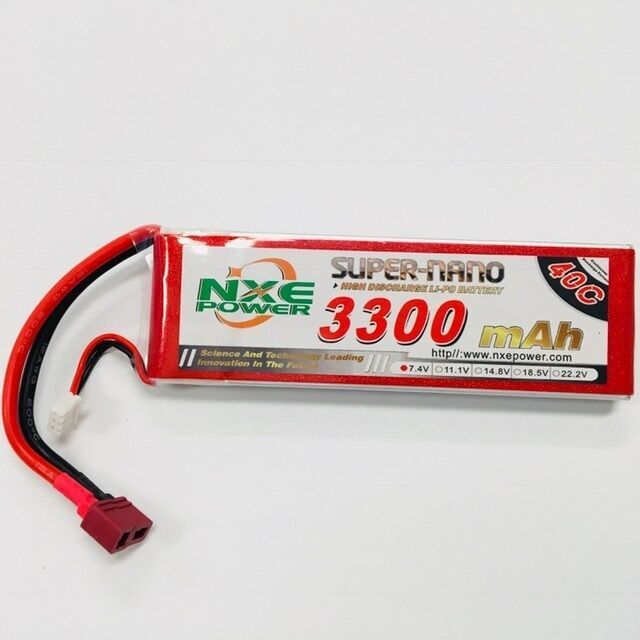

NXE 3300mAh 2S 7.4V 40C Soft Case LiPo Battery with Deans – 3300SC402SDEAN

The NXE 3300mAh 2S 7.4V 40C Soft Case LiPo Battery is a lightweight, high-capacity battery designed primarily for RC aircraft and other electric models requiring a slim 2S LiPo power source.

With a 3300mAh capacity, 40C discharge rating and factory-fitted Deans / T-Plug connector, this pack provides a useful combination of runtime, power delivery and low weight. Its soft-case construction keeps the battery considerably slimmer than many equivalent hard-case packs, making it particularly useful where battery compartment height is limited.

3300mAh 2S Performance

The battery uses a standard 2S LiPo configuration, providing 7.4V nominal voltage and reaching 8.4V when fully charged.

Its 3300mAh capacity offers increased runtime compared with smaller 2200mAh and 2600mAh packs while retaining a relatively lightweight configuration.

The 40C discharge rating equates to a theoretical continuous current capability of approximately 132A (3.3Ah × 40C), providing strong current delivery for compatible electric RC power systems.

Slim Soft Case Construction

Unlike the 3300mAh hard-case NXE batteries we did previously, the 3300SC402SDEAN uses a soft outer construction, reducing both weight and overall thickness.

Current Australian listings show some variation in the measurements. NXE distributor-linked listings give approximately 138 × 44 × 15mm and 196g, while other established listings show 135 × 43 × 14mm and 182g.

For your website, I would use Approx. 138 × 44 × 15mm / 196g, as that specification appears across several current Australian NXE listings.

Deans / T-Plug Connector

The battery comes factory fitted with a Deans / T-Plug main power connector, allowing direct connection to compatible ESCs without requiring an adapter.

A JST-XH balance connector is also fitted, allowing the individual cells to be monitored and balanced correctly by a compatible LiPo balance charger.

Features

• 3300mAh capacity
• 2S / 7.4V LiPo configuration
• 40C discharge rating
• Lightweight soft-case construction
• Slim, low-profile battery design
• Factory-fitted Deans / T-Plug connector
• JST-XH balance connector
• Suitable for compatible RC aircraft
• Suitable for other electric RC models requiring a slim 2S battery
• Higher capacity than typical 2200mAh and 2600mAh packs
• Standard LiPo chemistry
• Good combination of capacity, power and low weight

Specifications

• Brand: NXE Batteries
• Part Number: 3300SC402SDEAN
• Battery Chemistry: LiPo
• Capacity: 3300mAh
• Voltage: 7.4V
• Fully Charged Voltage: 8.4V
• Cell Count: 2S
• Discharge Rating: 40C
• Case Type: Soft Case
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Length: Approx. 138mm
• Width: Approx. 44mm
• Height: Approx. 15mm
• Weight: Approx. 196g
• Application: Air / General RC
• ROAR Approved: No
• Barcode / EAN: 6925780561210

What's Included

• 1 x NXE 3300mAh 2S 7.4V 40C Soft Case LiPo Battery with Deans / T-Plug

Please Note

This is a standard 2S 7.4V LiPo battery, not a LiHV battery. It requires a suitable LiPo balance charger set to the correct 2S LiPo charging program.

Always check that your model supports 2S LiPo power, has a compatible Deans/T-Plug connection and has sufficient battery compartment space before installation.
