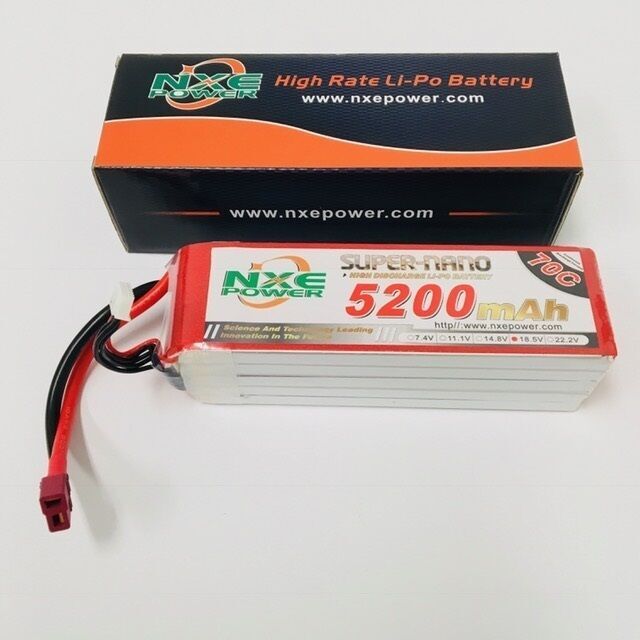

NXE 5200mAh 5S 18.5V 70C Soft Case LiPo Battery with Deans – NXE5200SC705SDEAN

The NXE 5200mAh 5S 18.5V 70C Soft Case LiPo Battery is a high-performance battery designed for demanding RC applications requiring the additional power of a 5S LiPo system.

Combining a substantial 5200mAh capacity, high 70C discharge rating, soft-case construction and factory-fitted Deans / T-Plug connector, this pack delivers an excellent combination of power, capacity and runtime for compatible high-performance RC models. The exact SKU and configuration are confirmed by NXE's Australian distributor listings.

Powerful 5S LiPo Performance

The battery uses a 5S LiPo configuration, providing 18.5V nominal voltage and reaching 21.0V when fully charged.

Sitting between conventional 4S and 6S battery systems, a 5S pack can be useful in applications where additional voltage and performance are required without moving all the way to a 6S setup.

The large 5200mAh capacity also provides plenty of stored energy, making the battery suitable for models where both strong performance and useful runtime are important.

High 70C Discharge Rating

The 70C discharge rating is designed to support the substantial current demands of powerful brushless motor and ESC combinations.

This makes the NXE5200SC705SDEAN suitable for demanding electric RC applications where a lower-discharge battery may struggle to maintain voltage under heavy acceleration and sustained loads.

High-Capacity Soft Case Construction

The battery uses a soft-case construction, helping minimise unnecessary casing weight while accommodating the large 5200mAh 5S cell configuration.

Distributor specifications give dimensions of approximately 155 × 49 × 45.3mm and a weight of approximately 696g.

Because this is a relatively large battery, checking the available battery compartment dimensions before purchase is particularly important.

Deans / T-Plug Connector

The NXE5200SC705SDEAN comes factory fitted with a Deans / T-Plug main power connector, allowing direct connection to compatible electronic speed controllers.

The Deans connection is widely used across RC applications, although the model's connector, voltage rating and current requirements should always be checked before installation.

Features

• High-capacity 5200mAh LiPo battery
• 5S / 18.5V configuration
• High-performance 70C discharge rating
• Soft-case construction
• Factory-fitted Deans / T-Plug connector
• Powerful 5S performance
• Excellent potential runtime from the 5200mAh capacity
• Strong current delivery for demanding brushless systems
• Suitable for compatible high-performance RC applications
• Standard LiPo chemistry

Specifications

• Brand: NXE Batteries
• Part Number: NXE5200SC705SDEAN
• Battery Chemistry: LiPo
• Capacity: 5200mAh
• Nominal Voltage: 18.5V
• Fully Charged Voltage: 21.0V
• Cell Count: 5S
• Discharge Rating: 70C
• Case Type: Soft Case
• Main Connector: Deans / T-Plug
• Length: Approx. 155mm
• Width: Approx. 49mm
• Height: Approx. 45.3mm
• Weight: Approx. 696g
• Application: High-Power / General RC

What's Included

• 1 x NXE 5200mAh 5S 18.5V 70C Soft Case LiPo Battery with Deans / T-Plug

Requires to Complete

• Suitable LiPo balance charger capable of charging 5S LiPo batteries

Please Note

This is a standard 5S 18.5V LiPo battery, not a LiHV battery. It should be charged using the appropriate LiPo balance charging program to a maximum of 21.0V (4.2V per cell).

Before use, confirm that your model's ESC and motor are rated for 5S LiPo operation, that the Deans / T-Plug connection is compatible, and that there is sufficient room for the battery.
