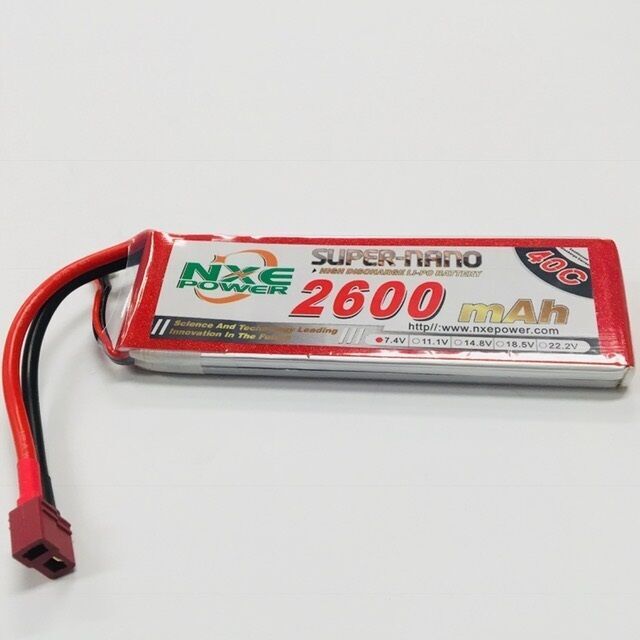

NXE 2600mAh 2S 7.4V 40C Soft Case LiPo Battery with Deans – 2600SC402SDEAN

The NXE 2600mAh 2S 7.4V 40C Soft Case LiPo Battery is a lightweight, slim-profile battery designed for electric RC models requiring a compact 2S power source. With 2600mAh capacity, a 40C discharge rating and factory-fitted Deans / T-Plug connector, it provides a practical balance of runtime, power delivery and low weight.

Its particularly thin soft-case design makes it well suited to RC aircraft and other applications where battery space and weight are important. Australian NXE listings classify this pack primarily for aircraft use.

2600mAh 2S Power

The pack uses a standard 2S LiPo configuration, providing a nominal voltage of 7.4V and a fully charged voltage of 8.4V.

The 2600mAh capacity offers additional runtime compared with smaller 1800mAh and 2200mAh packs while retaining a relatively lightweight and slim form factor.

With its 40C discharge rating, the pack has a theoretical continuous current capability of approximately 104A (2.6Ah × 40C), making it suitable for compatible electric power systems within the manufacturer's operating limits.

Ultra-Slim Soft Case Design

A key feature of the 2600SC402SDEAN is its long, thin battery configuration.

NXE's Australian distributor lists the pack at approximately 138 × 44 × 12mm and 134g, while other retailers quote around 137 × 43 × 11mm and 147g.

For the website, I would use approximately 138 × 44 × 12mm and approximately 134–147g, as there appears to be some variation between production batches or measurement methods.

Deans / T-Plug Connection

The battery comes factory fitted with a Deans / T-Plug main power connector, making it ready to connect directly to compatible ESCs without requiring an adapter.

A separate JST-XH balance connector allows each individual cell to be monitored and balanced correctly during charging.

Features

• 2600mAh capacity
• 2S / 7.4V LiPo configuration
• 40C discharge rating
• Slim soft-case construction
• Factory-fitted Deans / T-Plug connector
• JST-XH balance connector
• Lightweight design
• Long, low-profile battery configuration
• Suitable for compatible RC aircraft
• Can be used in other RC applications where voltage, dimensions and connector are suitable
• Standard LiPo chemistry
• Good balance of capacity, power and weight

Specifications

• Brand: NXE Batteries
• Part Number: 2600SC402SDEAN
• Battery Chemistry: LiPo
• Capacity: 2600mAh
• Voltage: 7.4V
• Cell Count: 2S
• Discharge Rating: 40C
• Case Type: Soft Case
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Length: Approx. 138mm
• Width: Approx. 44mm
• Height: Approx. 12mm
• Weight: Approx. 134–147g
• Application: Air / General RC
• Barcode / EAN: 6925780561180

What's Included

• 1 x NXE 2600mAh 2S 7.4V 40C Soft Case LiPo Battery with Deans / T-Plug

Please Note

This is a standard 2S 7.4V LiPo battery, not a LiHV battery. A suitable LiPo balance charger is required and the charger should be set to the correct 2S LiPo program.
