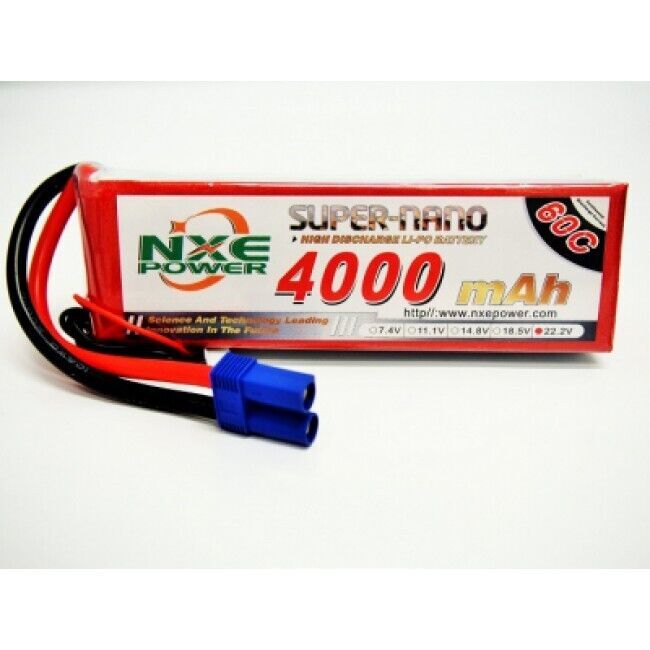

NXE 4000mAh 6S 22.2V 60C Soft Case LiPo Battery with EC5 – 4000SC606SEC5

The NXE 4000mAh 6S 22.2V 60C Soft Case LiPo Battery is a high-performance battery designed for demanding RC applications requiring the additional power and voltage of a 6S LiPo system.

Combining a 4000mAh capacity, 60C discharge rating, heavy-duty 10AWG wiring and a factory-fitted EC5 connector, this pack is well suited to compatible high-powered RC cars, boats, aircraft and other electric models.

High-Power 6S Performance

The 4000SC606SEC5 uses a 6S LiPo configuration, providing 22.2V nominal voltage and reaching 25.2V when fully charged.

Its 4000mAh capacity provides a good balance between runtime, physical size and weight, while the 60C continuous discharge rating allows the pack to supply the high current demands of powerful brushless systems.

The 60C rating equates to a theoretical continuous output of up to 240A based on the battery's stated capacity and C-rating.

60C Discharge with 120C Burst

In addition to its 60C continuous rating, published specifications for this battery list a 120C burst discharge rating, giving the pack additional short-duration current capability when required under hard acceleration or heavy load.

The pack is also equipped with substantial 10AWG main power wiring, appropriate for the higher current demands associated with a 6S power system.

Soft Case Construction

The battery uses a soft-case construction, helping minimise unnecessary case weight while providing a high-capacity 6S pack in a relatively compact format.

Published dimensions vary slightly between suppliers. Current listings range from approximately 155 × 46 × 41mm to 155 × 49 × 43.2mm, with weight listed between approximately 678g and 687g.

EC5 High-Current Connector

The battery comes factory fitted with an EC5 main power connector, a high-current connector commonly used in larger RC cars, boats and other high-powered electric models.

This allows the battery to connect directly to compatible EC5-equipped ESCs without requiring an additional connector to be fitted.

Features

• 4000mAh capacity
• 6S / 22.2V LiPo configuration
• 60C continuous discharge rating
• Up to 120C burst discharge rating
• High-performance 6S power delivery
• Lightweight soft-case construction
• Factory-fitted EC5 connector
• Heavy-duty 10AWG main power wiring
• Suitable for high-powered brushless RC applications
• Suitable for compatible RC cars, boats, aircraft and other electric models
• Standard LiPo chemistry
• Good balance of capacity, power and overall size

Specifications

• Brand: NXE Batteries
• Part Number: 4000SC606SEC5
• Battery Chemistry: LiPo
• Capacity: 4000mAh
• Voltage: 22.2V
• Fully Charged Voltage: 25.2V
• Cell Count: 6S
• Continuous Discharge Rating: 60C
• Burst Discharge Rating: 120C
• Case Type: Soft Case
• Main Connector: EC5
• Main Wire: 10AWG
• Length: Approx. 155mm
• Width: Approx. 48mm
• Height: Approx. 43mm
• Weight: Approx. 687g
• Application: High-Power / General RC
• Barcode / EAN: 6925780561005

What's Included

• 1 x NXE 4000mAh 6S 22.2V 60C Soft Case LiPo Battery with EC5 Connector

Please Note

This is a standard 6S 22.2V LiPo battery, not a LiHV battery. A suitable LiPo balance charger capable of charging 6S batteries is required.
