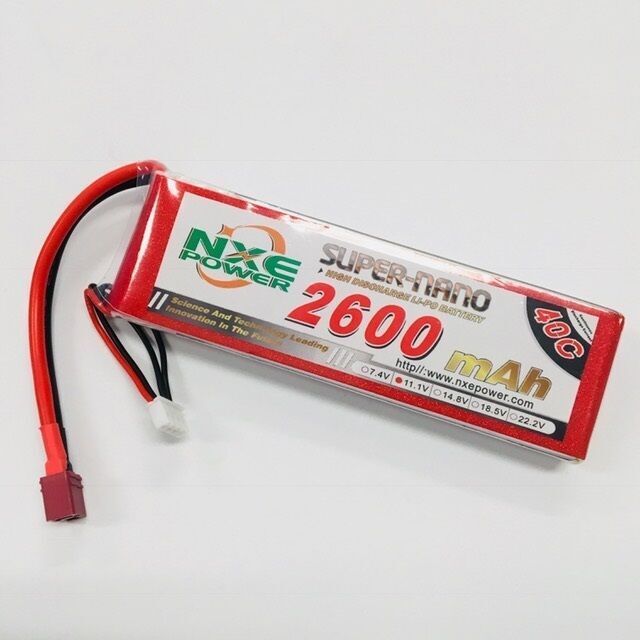

NXE 2600mAh 3S 11.1V 40C Soft Case LiPo Battery with Deans – 2600SC403SDEAN

The NXE 2600mAh 3S 11.1V 40C Soft Case LiPo Battery is a versatile power pack designed primarily for electric RC aircraft and other models requiring a lightweight, slim-profile 3S LiPo battery.

With a 2600mAh capacity, 40C discharge rating and factory-fitted Deans / T-Plug connector, this pack offers a useful combination of power, runtime and compact dimensions. Australian NXE listings classify this particular battery primarily for RC aircraft applications.

3S 11.1V Performance

The 2600SC403SDEAN uses a 3S LiPo configuration, providing a nominal voltage of 11.1V and a fully charged voltage of 12.6V.

Its 2600mAh capacity provides additional runtime over smaller 1800mAh and 2200mAh packs while remaining relatively compact and lightweight.

The 40C discharge rating corresponds to a theoretical continuous output of approximately 104A (2.6Ah × 40C), providing strong power delivery for compatible electric RC power systems.

Slim Soft Case Construction

The battery uses a soft case design to minimise unnecessary weight and bulk. Its long, slim profile makes it particularly useful in RC aircraft where battery compartment dimensions and overall flying weight are important.

Australian listings generally place the dimensions at approximately 138–140mm long, 42–45mm wide and 16–17mm high. A commonly published specification is 138 × 42 × 16mm with a weight of approximately 208g.

Deans / T-Plug Connector

The battery comes factory fitted with a Deans / T-Plug main power connector, allowing direct connection to compatible ESCs without requiring an adapter.

A separate JST-XH balance connector is fitted for monitoring and balancing the individual cells during charging.

Features

• 2600mAh capacity
• 3S / 11.1V LiPo configuration
• 40C discharge rating
• Lightweight soft case construction
• Slim battery profile
• Factory-fitted Deans / T-Plug connector
• JST-XH balance connector
• Flat battery configuration
• Suitable for compatible electric RC aircraft
• Suitable for other RC applications requiring a compact 3S battery
• Standard LiPo chemistry
• Good balance between capacity, power and physical size

Specifications

• Brand: NXE Batteries
• Part Number: 2600SC403SDEAN
• Battery Chemistry: LiPo
• Capacity: 2600mAh
• Voltage: 11.1V
• Cell Count: 3S
• Discharge Rating: 40C
• Case Type: Soft Case
• Configuration: Flat
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Length: Approx. 138mm
• Width: Approx. 42mm
• Height: Approx. 16mm
• Weight: Approx. 208g
• Application: Air / General RC
• ROAR Approved: No
• Barcode / EAN: 6925780561197

What's Included

• 1 x NXE 2600mAh 3S 11.1V 40C Soft Case LiPo Battery with Deans / T-Plug

Please Note

This is a standard 3S 11.1V LiPo battery, not a LiHV pack. It must be charged using a suitable LiPo balance charger with the charger set to the correct 3S LiPo program.

Always confirm that your model's ESC and motor are suitable for 3S LiPo power, and check the battery dimensions and Deans connector compatibility before installation.
