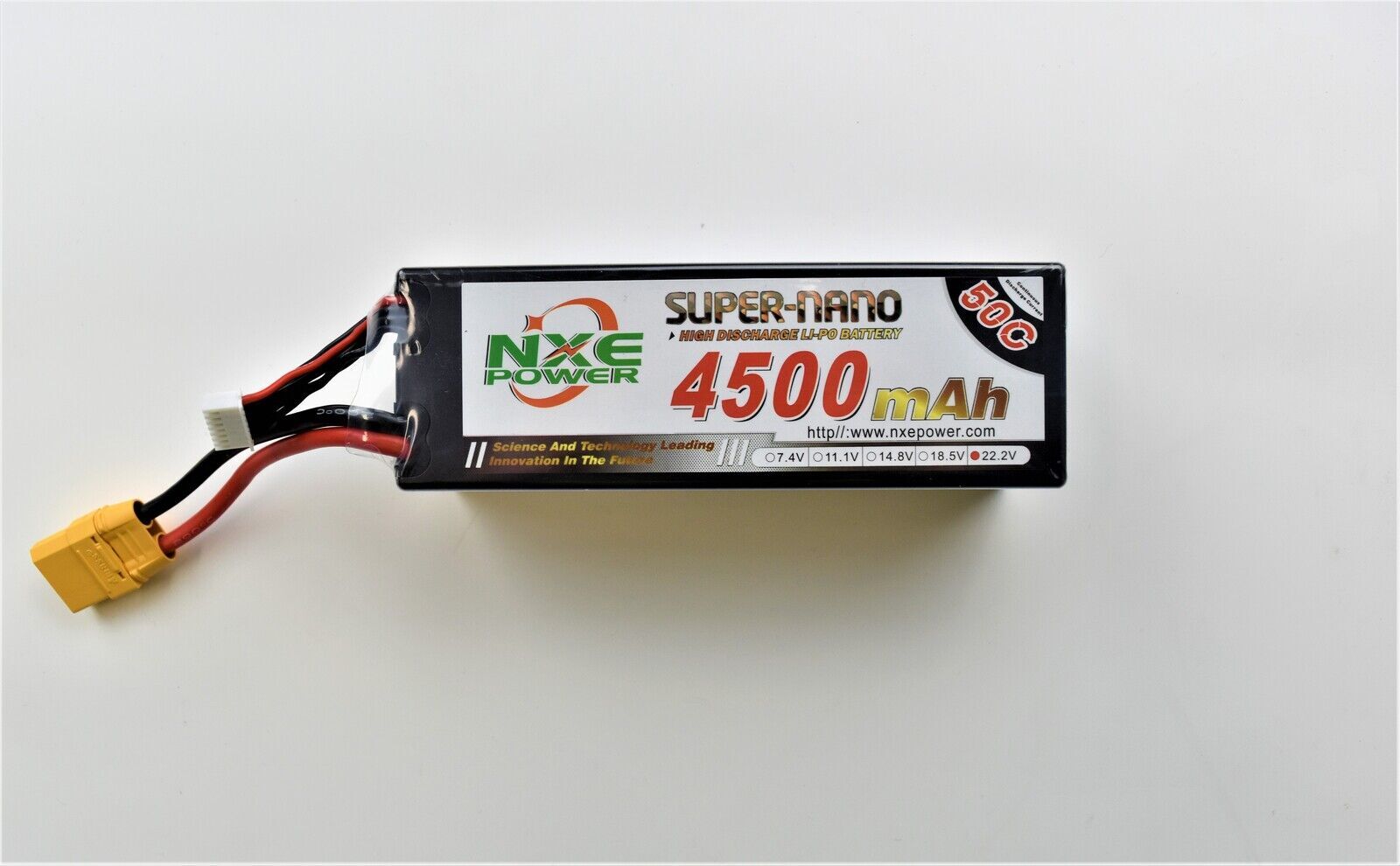

NXE 4500mAh 6S 22.2V 50C Hard Case LiPo Battery with XT90 – 4500HC506SXT90

The NXE 4500mAh 6S 22.2V 50C Hard Case LiPo Battery is a high-performance battery designed for powerful RC applications requiring the voltage and current delivery of a 6S LiPo system.

Featuring a 4500mAh capacity, 50C discharge rating, protective hard-case construction and a factory-fitted XT90 connector, this battery is well suited to compatible high-powered RC cars, trucks, boats and other electric models.

High-Power 6S Performance

The 4500HC506SXT90 uses a 6S LiPo configuration, providing 22.2V nominal voltage and reaching 25.2V when fully charged.

The 4500mAh capacity provides a good balance between runtime and overall battery size, while the 50C discharge rating provides strong current delivery for demanding brushless power systems.

Based on the stated capacity and discharge rating, the pack has a theoretical continuous current capability of up to 225A.

Protective Hard Case Construction

Unlike a soft-case LiPo, this NXE battery features a rigid hard case surrounding the cells. This provides additional protection against impacts, vibration and debris, making it particularly suitable for powerful surface RC applications.

The battery uses a compact rectangular format measuring approximately 138 × 46.5 × 48mm. NXE distributor data lists a weight of approximately 593g.

XT90 High-Current Connector

The 4500HC506SXT90 comes factory fitted with an XT90 connector, a robust high-current connector commonly used in larger and more powerful electric RC models.

A JST-XH balance connector is also fitted, allowing each of the six cells to be individually monitored and balanced during charging.

This is the XT90-equipped version of the NXE 4500mAh 6S hard-case battery. The 4500HC506SDEAN version uses a Deans/T-Plug instead.

Features

• 4500mAh capacity
• 6S / 22.2V LiPo configuration
• 50C discharge rating
• High-power 6S performance
• Protective hard-case construction
• Factory-fitted XT90 connector
• JST-XH balance connector
• Compact rectangular battery format
• Suitable for demanding brushless power systems
• Suitable for compatible high-powered RC cars, trucks and other electric models
• Standard LiPo chemistry
• Excellent combination of capacity, power and durability

Specifications

• Brand: NXE Batteries
• Part Number: 4500HC506SXT90
• Battery Chemistry: LiPo
• Capacity: 4500mAh
• Voltage: 22.2V
• Fully Charged Voltage: 25.2V
• Cell Count: 6S
• Discharge Rating: 50C
• Case Type: Hard Case
• Main Connector: XT90
• Balance Connector: JST-XH
• Length: Approx. 138mm
• Width: Approx. 46.5mm
• Height: Approx. 48mm
• Weight: Approx. 593g
• Barcode / EAN: 6925780561685

What's Included

• 1 x NXE 4500mAh 6S 22.2V 50C Hard Case LiPo Battery with XT90 Connector

Please Note

This is a standard 6S 22.2V LiPo battery, not a LiHV battery. A suitable LiPo balance charger capable of charging 6S LiPo batteries is required.

Always check that your model's ESC and motor are rated for 6S LiPo operation before use. Also confirm that the battery compartment can accommodate the approximately 138 × 46.5 × 48mm hard-case pack and that your model uses a compatible XT90 connector.
