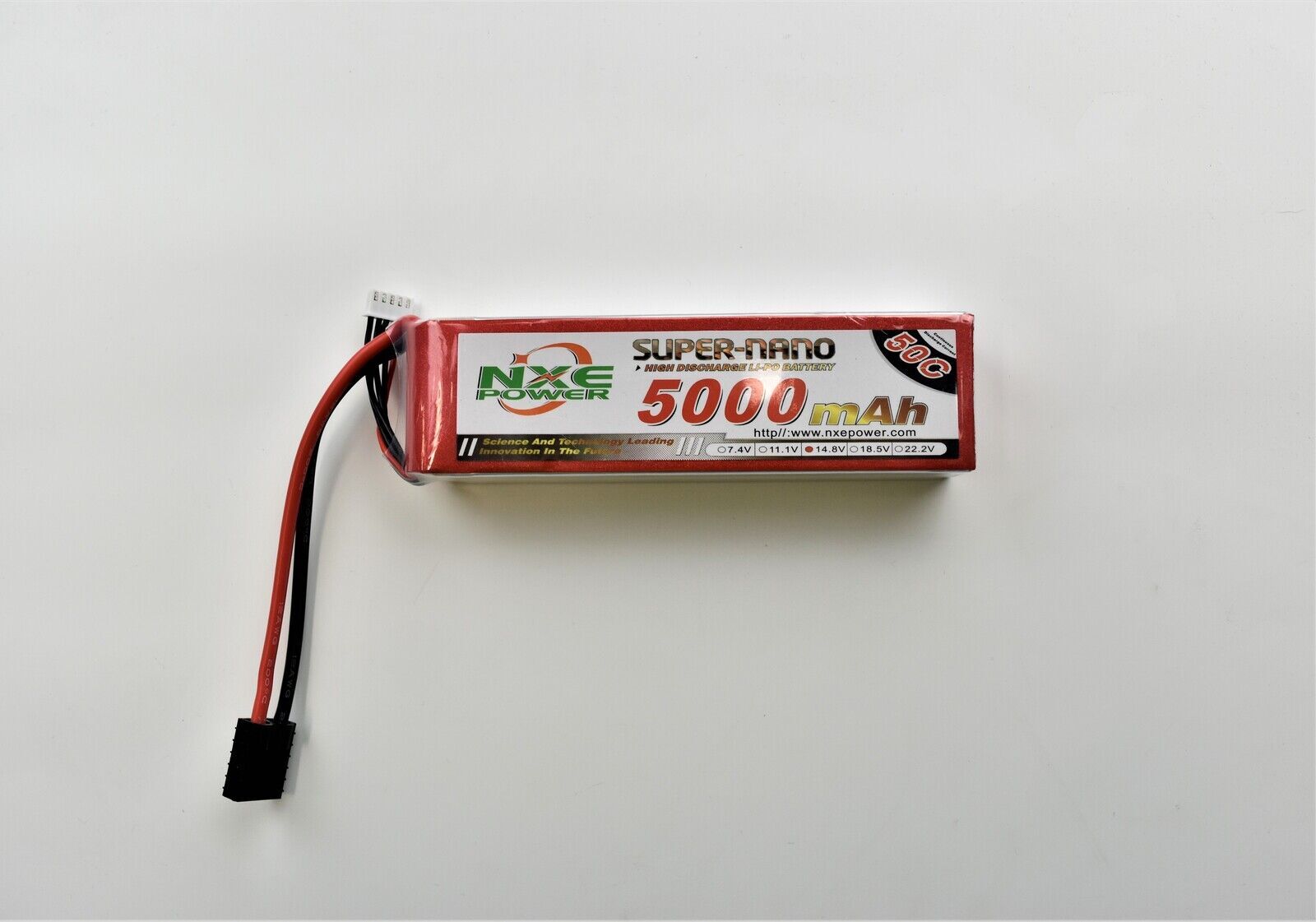

NXE 5000mAh 4S 14.8V 50C Soft Case LiPo Battery with Traxxas Plug – 5000SC504STRX

The NXE 5000mAh 4S 14.8V 50C Soft Case LiPo Battery is a high-capacity performance battery designed for powerful RC models requiring 4S LiPo power and a Traxxas-compatible connector.

With a 5000mAh capacity, 50C discharge rating and soft-case construction, this pack delivers a strong combination of power and runtime while maintaining dimensions suitable for compatible high-performance RC vehicles. It is specifically marketed as a suitable battery option for the Traxxas Maxx 4S.

Powerful 4S Performance

The 5000SC504STRX uses a 4S LiPo configuration, providing 14.8V nominal voltage and reaching 16.8V when fully charged.

Its substantial 5000mAh capacity provides useful runtime for larger and more powerful RC vehicles, while the 50C discharge rating is designed to handle the higher current demands of performance brushless systems.

Based on its stated 5000mAh capacity and 50C rating, the pack has a theoretical continuous current capability of up to 250A.

Designed to Suit the Traxxas Maxx

One of the main applications for this battery is the Traxxas Maxx 4S. Multiple Australian retailers specifically identify the 5000SC504STRX as Maxx-compatible, making it a useful alternative to the original Traxxas battery for owners wanting a 5000mAh 4S pack.

It measures approximately 155 × 44.5 × 31.5mm, allowing it to fit the battery compartment of compatible Maxx models. One retailer's physical measurement is slightly larger at 158 × 46 × 30mm, so minor measurement variation should be allowed for.

Traxxas-Compatible Connector

The battery comes fitted with a Traxxas-style non-iD power connector, allowing connection to compatible Traxxas ESCs without changing the main connector.

Importantly, this is not a Traxxas iD battery. It uses a separate JST-XH balance connector, so charging requires a charger capable of connecting to the main Traxxas-style power plug and separate JST-XH balance lead.

Soft Case Construction

The pack uses a soft-case construction, helping keep unnecessary case bulk down while providing a substantial 5000mAh capacity.

Heavy-duty 12AWG main power wiring is used to support the current demands of larger 4S brushless systems.

Features

• 5000mAh high-capacity LiPo battery
• 4S / 14.8V configuration
• 50C discharge rating
• Soft-case construction
• Traxxas-compatible non-iD connector
• Separate JST-XH balance connector
• Heavy-duty 12AWG main power wiring
• High capacity for extended potential runtime
• Designed to suit compatible high-powered brushless RC models
• Suitable for the Traxxas Maxx 4S
• Standard LiPo chemistry
• Excellent alternative for compatible Traxxas applications

Specifications

• Brand: NXE Batteries
• Part Number: 5000SC504STRX
• Battery Chemistry: LiPo
• Capacity: 5000mAh
• Voltage: 14.8V
• Fully Charged Voltage: 16.8V
• Cell Count: 4S
• Discharge Rating: 50C
• Case Type: Soft Case
• Configuration: Flat
• Main Connector: Traxxas-Compatible Non-iD
• Balance Connector: JST-XH
• Main Wire: 12AWG
• Length: Approx. 155mm
• Width: Approx. 44.5mm
• Height: Approx. 31.5mm
• Weight: Approx. 460g
• Application: RC Car / Truck
• Compatible Model: Traxxas Maxx 4S
• Barcode / EAN: 6925780561661

What's Included

• 1 x NXE 5000mAh 4S 14.8V 50C Soft Case LiPo Battery with Traxxas-Compatible Connector

Please Note

This is a standard 4S 14.8V LiPo battery, not a LiHV battery. A suitable LiPo balance charger capable of charging 4S batteries is required.

The fitted Traxxas-style connector is non-iD. Because the battery has a separate JST-XH balance lead, it does not provide the automatic battery identification and integrated balance connection found on genuine Traxxas iD batteries.

Always confirm that your vehicle's ESC and motor are rated for 4S LiPo operation and that the battery dimensions are suitable before installation.
