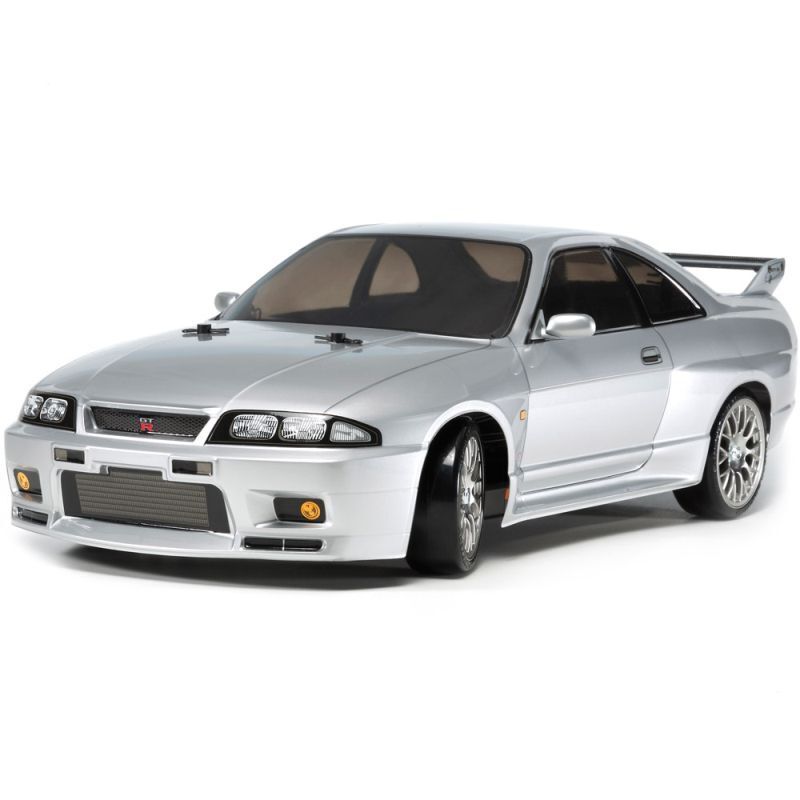

Tamiya Nissan Skyline GT-R R33 Drift Spec 1/10 4WD RC Kit – 58604

The Tamiya Nissan Skyline GT-R R33 Drift Spec combines one of Nissan's most iconic performance cars with Tamiya's popular TT-02D drift-spec 4WD chassis.

Tamiya 58604 faithfully recreates the muscular R33 Skyline GT-R with a durable clear polycarbonate body, separate mirrors and rear wing, while underneath sits a purpose-built TT-02D chassis equipped with drift tyres, oil-filled shocks, full ball bearings and a Sport-Tuned 540 motor.

Nissan Skyline GT-R R33

Unveiled in production form during the mid-1990s, the R33 Skyline GT-R followed the legendary R32 with a larger and more refined body while continuing Nissan's high-performance GT-R heritage.

Tamiya accurately captures the R33's distinctive proportions, including its wide stance, characteristic front end and large rear wing.

The body is manufactured from durable clear polycarbonate, with separate door mirrors and rear wing components for additional scale detail. The rear wing can also be assembled with different wing angles.

TT-02D Drift Spec Chassis

Underneath the Skyline body is Tamiya's TT-02D, the drift-specific version of the popular TT-02 chassis.

The TT-02D retains the TT-02's straightforward construction, easy maintenance and balanced shaft-driven 4WD layout while adding a range of factory drift upgrades.

This makes it a great choice for drivers wanting to get into RC drifting while still enjoying the experience of building and setting up their own car.

Shaft-Driven 4WD

The TT-02D uses a shaft-driven four-wheel-drive system, distributing motor power to both the front and rear wheels.

Front and rear 4-bevel resin differentials provide smooth drivetrain operation, while the balanced chassis layout helps produce predictable handling that's particularly useful when learning to control a drift.

Drift Tyres & Metal-Plated Wheels

Purpose-designed 24mm drift tyres are included as standard equipment.

They're fitted to stylish matte-finish metal-plated wheels, giving the R33 an aggressive street and drift appearance while providing the low-grip characteristics required for controlled sliding.

CVA Oil-Filled Shocks

Unlike the basic TT-02, the TT-02D comes standard with Tamiya CVA oil-filled shock absorbers.

Combined with the independent double-wishbone suspension at all four corners, the oil shocks provide smoother and more controlled suspension movement and offer greater tuning potential.

Sport-Tuned Motor Included

Another major TT-02D upgrade is the included Tamiya Sport-Tuned 540 brushed motor.

The Sport-Tuned motor provides increased performance compared with Tamiya's standard silver-can motor and gives the Skyline plenty of power for drift driving.

Full Ball Bearings

The TT-02D also comes equipped with full ball bearings as standard.

These reduce drivetrain friction compared with basic plastic or metal bushings, helping provide smoother and more efficient operation.

An aluminium motor heat sink is also included to assist with motor cooling.

Strong Drift-Spec Suspension

Tamiya equips the TT-02D with reinforced resin uprights and damper stays to provide additional strength.

Four-wheel independent double-wishbone suspension gives the chassis predictable handling and provides plenty of opportunities for further tuning and upgrading.

Adjustable Gear Ratios

The standard gear ratio is 8.27:1.

With separately available pinion gears, Tamiya states that a further nine ratios between 11.38:1 and 7.28:1 can be achieved, allowing the drivetrain to be tuned to suit different motors and driving requirements.

Key Features

• Tamiya Nissan Skyline GT-R R33 Drift Spec
• Item Number: 58604
• 1/10 scale electric RC assembly kit
• TT-02D Drift Spec chassis
• Shaft-driven 4WD
• Clear polycarbonate R33 Skyline GT-R body
• Separate door mirrors
• Separate rear wing
• Adjustable rear wing angle
• 24mm drift tyres
• Matte-finish metal-plated wheels
• Tamiya Sport-Tuned 540 motor included
• CVA oil-filled shocks
• Four-wheel independent double-wishbone suspension
• Full ball bearing set
• Aluminium motor heat sink
• Reinforced resin uprights
• Reinforced damper stays
• Front and rear 4-bevel resin differentials
• Bathtub-style chassis
• Adjustable gearing
• Excellent platform for further TT-02 upgrades
• Assembly and painting required

Specifications

Brand: Tamiya
Part Number: 58604
Model: Nissan Skyline GT-R R33
Scale: 1/10
Chassis: TT-02D Drift Spec
Vehicle Type: Drift / On-Road
Drive: Shaft-Driven 4WD
Length: 464mm
Width: 184mm
Height: 136mm
Wheelbase: 257mm
Tyre Size: 24mm Wide x 63mm Diameter
Suspension: 4-Wheel Independent Double Wishbone
Shocks: CVA Oil-Filled
Differentials: Front & Rear 4-Bevel Resin
Standard Gear Ratio: 8.27:1
Motor: Tamiya Sport-Tuned Type 540 Brushed
Bearings: Full Ball Bearings
Body: Clear Polycarbonate
Completion Level: Assembly Kit

What's Included

• Tamiya Nissan Skyline GT-R R33 body
• ESC
• TT-02D 4WD chassis kit
• Tamiya Sport-Tuned 540 brushed motor
• CVA oil-filled shock absorbers
• Full ball bearing set
• Aluminium motor heat sink
• Drift tyres
• Matte-finish metal-plated wheels
• Decals
• Assembly instructions

Required to Complete

You'll need:

• 2-channel transmitter and receiver
• Steering servo
• Suitable 7.2V NiMH or compatible battery
• Compatible battery charger
• AA transmitter batteries
• Tamiya PS polycarbonate paint
• Basic assembly tools

Great R33 Drift Project

The Tamiya 58604 Skyline GT-R R33 is an excellent option for anyone wanting a build-it-yourself RC drift car with one of the most recognisable Japanese performance-car bodies.

The TT-02D is more than simply a TT-02 fitted with drift tyres. With its Sport-Tuned motor, CVA oil shocks, full ball bearings, aluminium motor heat sink and drift-specific wheels and tyres, many of the upgrades normally added to a basic TT-02 are already included.

It also retains the huge range of tuning and hop-up options available for the TT-02 platform, giving owners plenty of scope to personalise the car as their driving progresses.
