Tamiya Volkswagen Golf II GTI 16V 1/10 RC Kit – MB-01 – 58748

The Tamiya Volkswagen Golf II GTI 16V recreates one of the most iconic hot hatchbacks of the 1980s as a 1/10 scale RC assembly kit.

Tamiya 58748 combines a detailed polycarbonate Mk2 Golf GTI body with the versatile MB-01 chassis, configured in front-motor, front-wheel-drive (FF) form to closely replicate the drivetrain layout of the full-size Volkswagen.

Iconic Volkswagen Golf II GTI 16V

Volkswagen introduced the second-generation Golf in 1983, with the high-performance Golf II GTI 16V joining the range in 1986.

Powered by a 1,781cc inline-four DOHC 16-valve engine, the GTI 16V became one of the defining European performance hatchbacks of its era. Competition-prepared versions also enjoyed success in international rally competition.

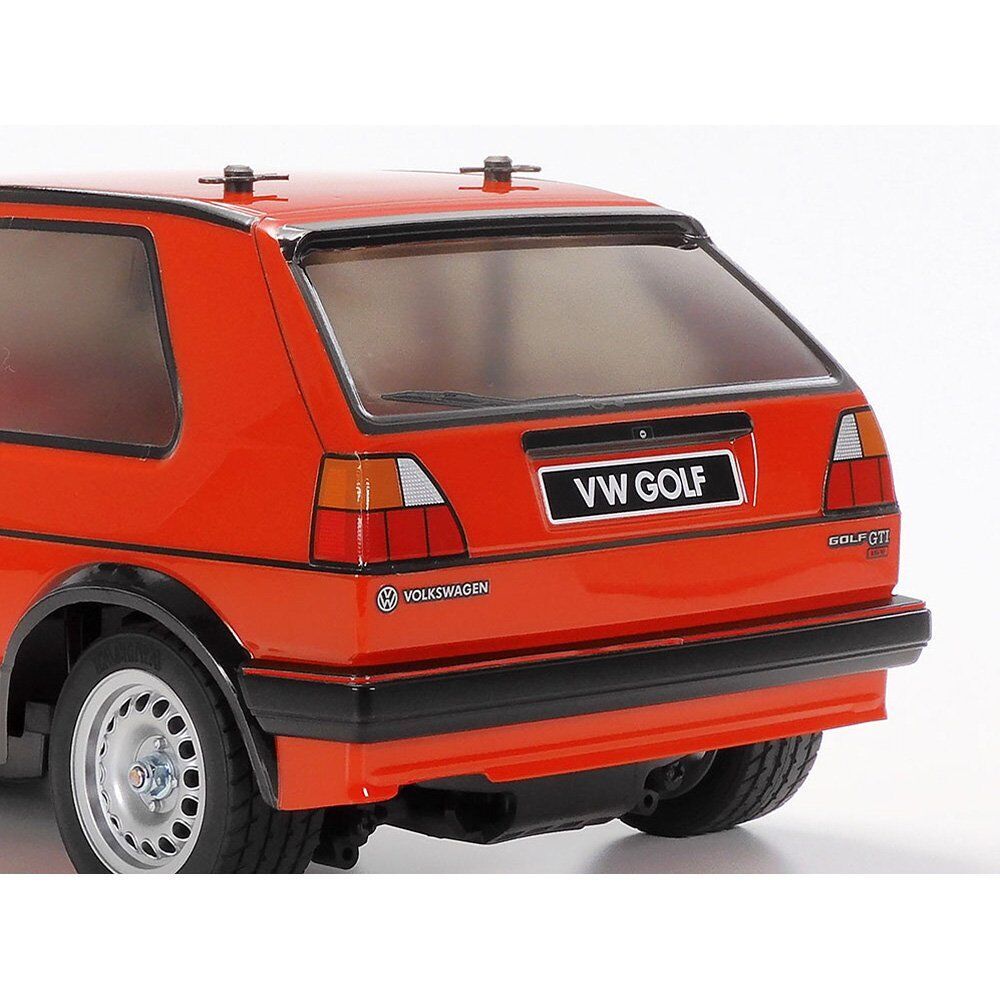

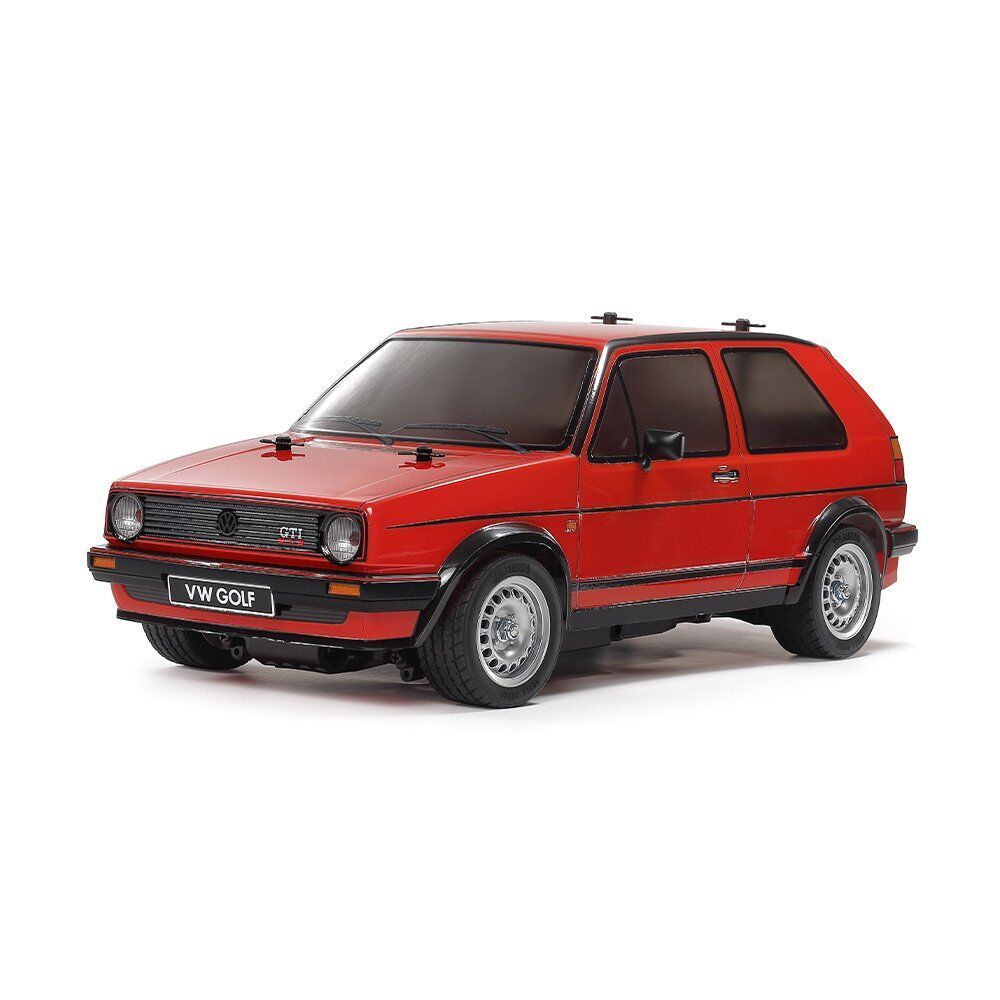

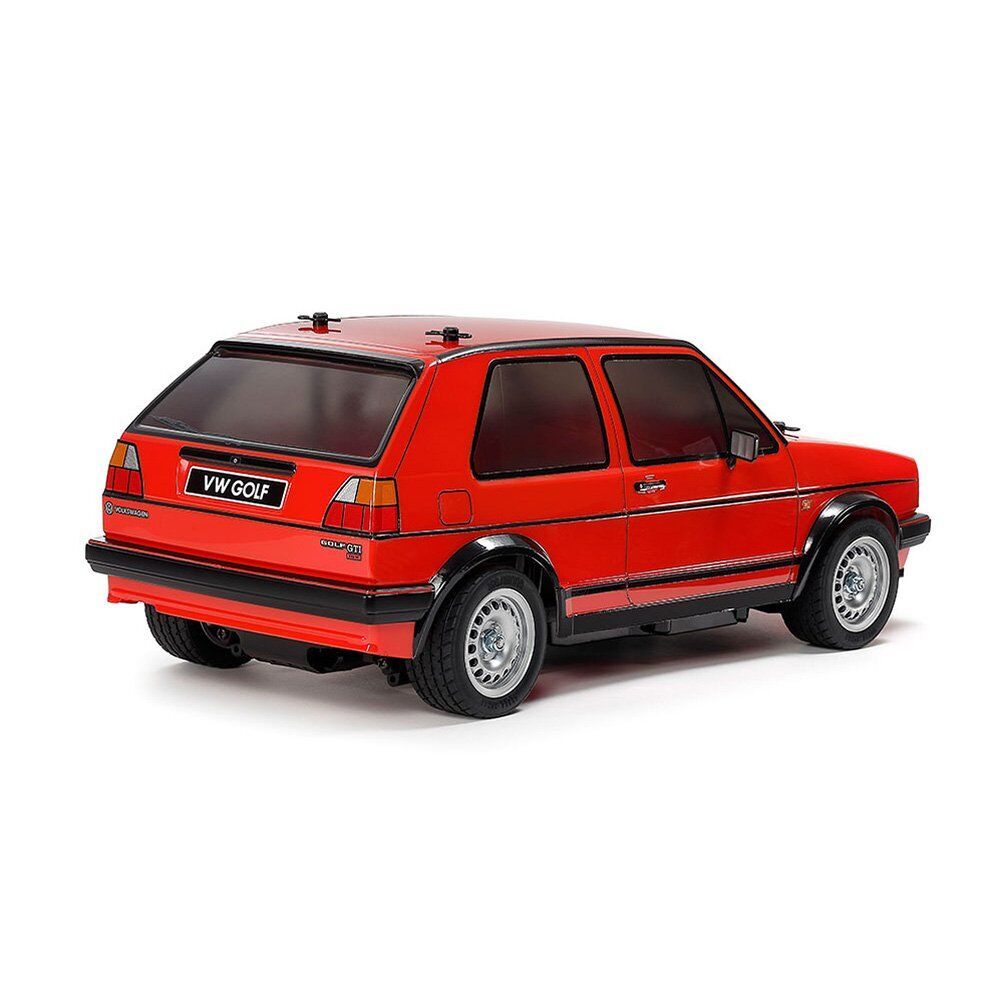

Tamiya captures the distinctive square-edged Mk2 Golf shape with a detailed lightweight polycarbonate body.

Detailed Polycarbonate Body

The Golf's classic shape is reproduced in polycarbonate, with separate moulded components adding extra scale realism.

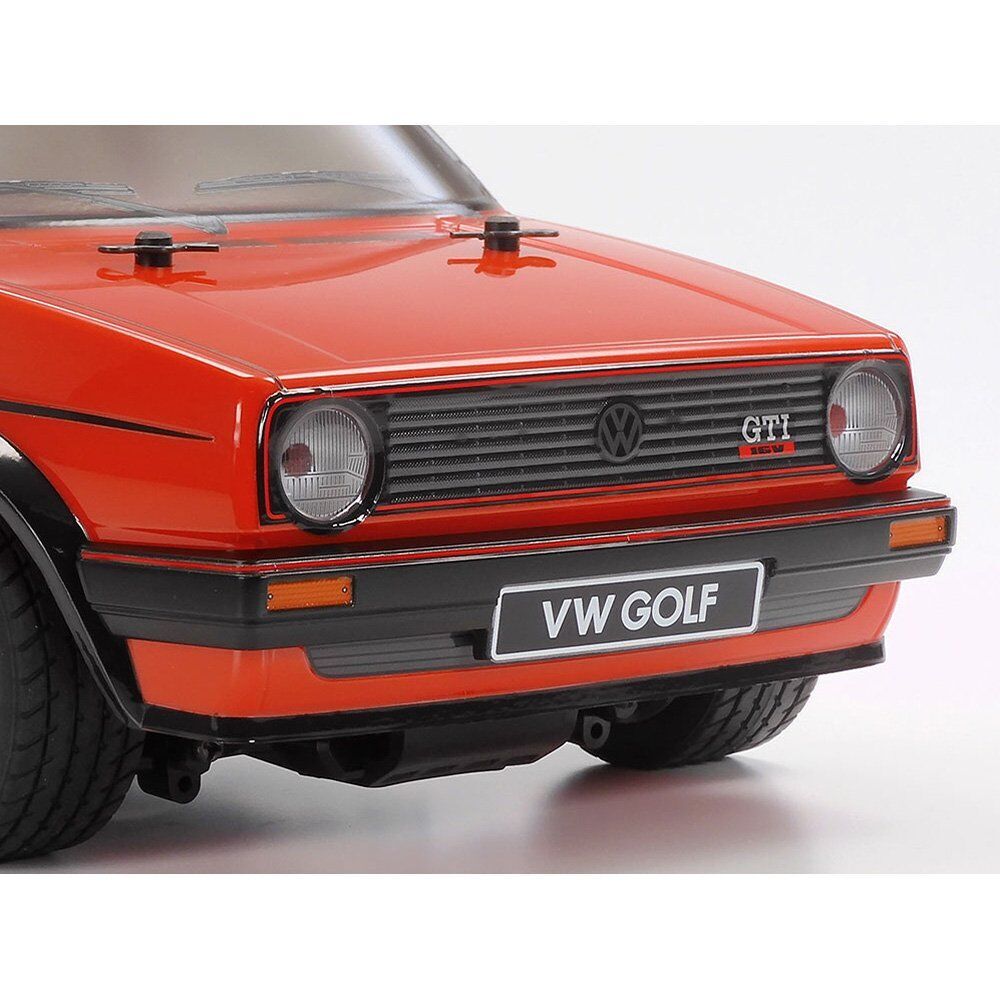

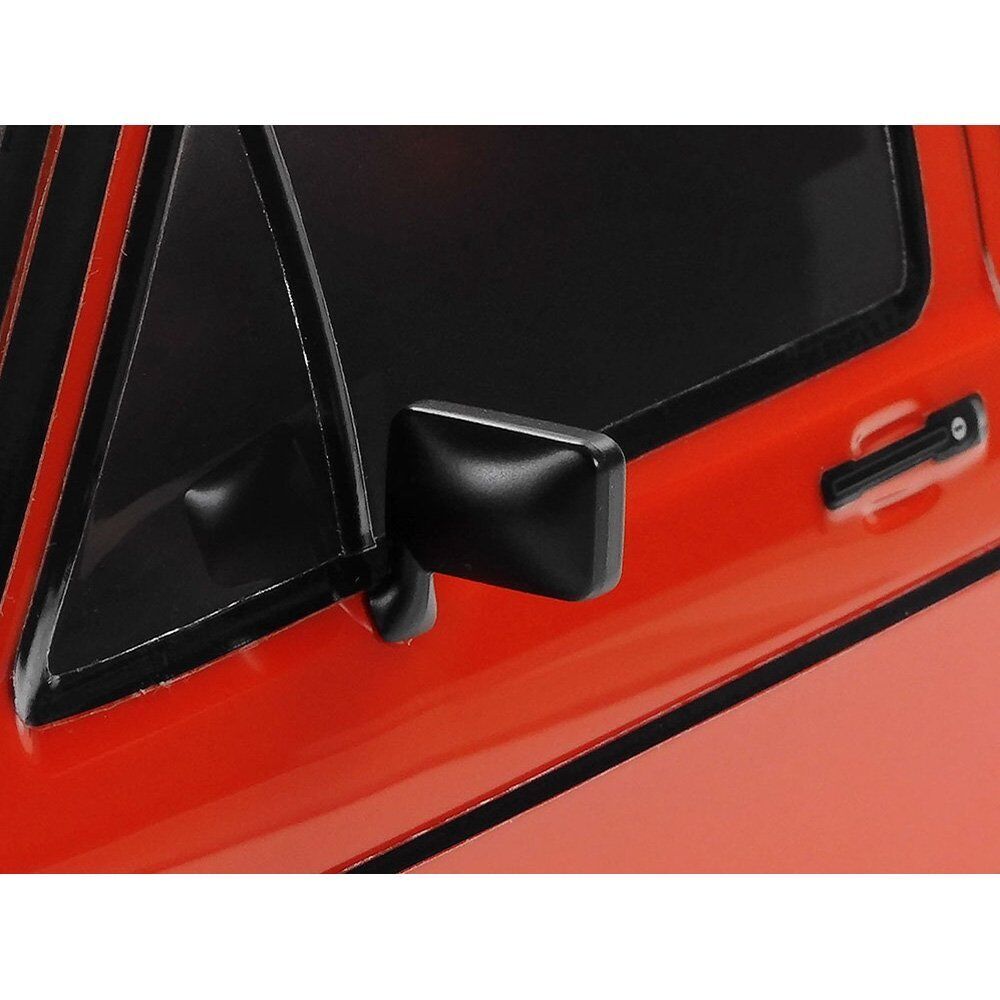

Separate black plastic parts recreate the side mirrors and bumpers, while transparent components are provided for the headlights and tail lights. A comprehensive sticker set adds the characteristic GTI details and exterior trim.

Unlike the special 47516 pre-painted version, 58748 is the standard kit version, allowing the builder to paint and finish the body themselves.

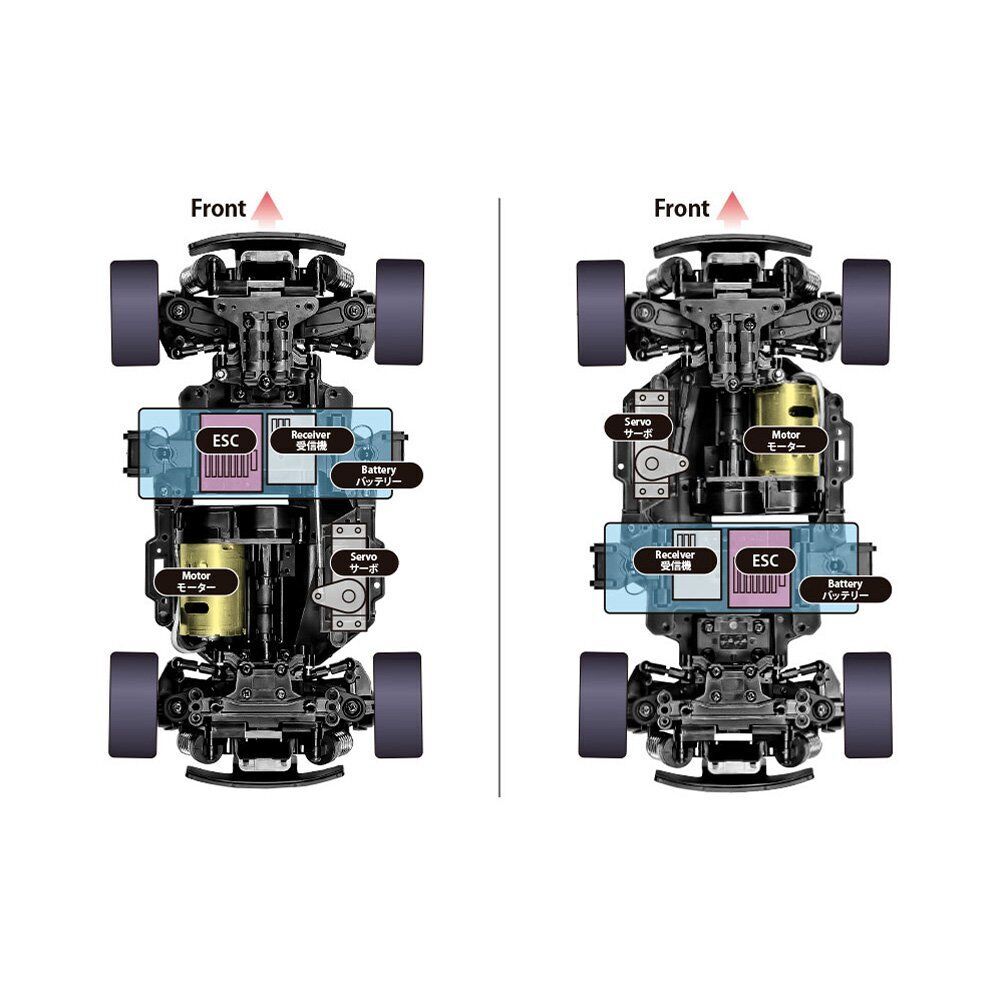

MB-01 Front-Wheel-Drive Chassis

The MB-01 is one of Tamiya's most versatile compact 2WD platforms.

For the Golf II GTI, it's assembled in a front-motor, front-wheel-drive configuration, appropriately matching the layout of the real Golf.

This gives the car a driving character quite different from a conventional rear-wheel-drive M-chassis or 4WD touring car.

239mm Long Wheelbase

The MB-01 can accommodate multiple wheelbase and drivetrain configurations. The Golf uses the 239mm Long wheelbase, which perfectly suits the proportions of the Mk2 body.

The completed model measures:

Length: 383mm
Width: 170mm
Height: 138mm
Wheelbase: 239mm
Front/Rear Track: 140mm

Independent Double-Wishbone Suspension

The MB-01 uses four-wheel independent double-wishbone suspension with friction dampers.

Its symmetrical suspension design and modular motor mount, final-drive and suspension sections help make the chassis straightforward to assemble and maintain.

4-Bevel Gear Differential

A 4-bevel gear differential provides smooth power delivery to the driven front wheels, allowing the inside and outside wheels to rotate at different speeds while cornering.

The kit's 29-tooth pinion provides an overall 5.83:1 gear ratio.

Radial Tyres & Dish Wheels

Period-style dish wheels are paired with 60D radial tyres, giving the Golf an understated appearance that suits the classic Mk2 body.

The tyres measure approximately 25mm wide and 59mm in diameter front and rear.

540 Motor & ESC Included

The kit includes a 540-size brushed motor and the Australian/export version is supplied with an Electronic Speed Controller (ESC).

This leaves the radio equipment, steering servo, battery and charger to be selected separately.

Key Features

• Tamiya Volkswagen Golf II GTI 16V
• Item Number: 58748 / 58748-600
• 1/10 scale electric RC assembly kit
• Officially licensed Volkswagen body
• Detailed Mk2 Golf GTI styling
• Clear polycarbonate body
• Separate black bumpers and side mirrors
• Transparent headlight and tail light components
• Detailed sticker set
• MB-01 chassis
• 2WD drivetrain
• Front-motor / front-wheel drive
• 239mm Long wheelbase
• Bathtub-style chassis
• Four-wheel independent double-wishbone suspension
• Friction dampers
• 4-bevel gear differential
• Three-piece steering tie rod
• 5.83:1 kit gear ratio
• Dish-style wheels
• 60D radial tyres
• 540 brushed motor included
• ESC included with Australian/export kit
• Assembly and body painting required

Specifications

Brand: Tamiya
Part Number: 58748 / 58748-600
Model: Volkswagen Golf II GTI 16V
Scale: 1/10
Chassis: MB-01
Vehicle Type: On-Road
Drive: 2WD / Front-Wheel Drive
Motor Position: Front
Length: 383mm
Width: 170mm
Height: 138mm
Wheelbase: 239mm – Long
Track: 140mm Front & Rear
Tyres: 25mm Wide x 59mm Diameter
Suspension: 4-Wheel Independent Double Wishbone
Shocks: Friction Dampers
Differential: 4-Bevel Gear Differential
Gear Ratio: 5.83:1 with Kit 29T Pinion
Motor: 540-Type Brushed – Included
ESC: Included with Australian/Export Kit
Body: Clear Polycarbonate
Completion Level: Assembly Kit

What's Included

• Tamiya Volkswagen Golf II GTI 16V body
• MB-01 chassis assembly kit
• Clear polycarbonate Golf body
• Separate bumpers and side mirrors
• Transparent light components
• Dish wheels
• Radial tyres
• 540 brushed motor
• Electronic Speed Controller
• Decal/sticker sheet
• Assembly instructions

Required to Complete

You'll need:

• 2-channel transmitter
• Receiver
• Steering servo
• Suitable 7.2–7.4V drive battery
• Compatible battery charger
• Transmitter batteries
• Tamiya PS polycarbonate paint
• Basic RC assembly tools

Classic GTI with Front-Wheel-Drive Handling

The Tamiya 58748 Volkswagen Golf II GTI 16V is a great choice for Volkswagen enthusiasts and anyone wanting something a little different from a conventional RC touring car.

The front-motor, front-wheel-drive MB-01 chassis gives the model a layout that reflects the real Golf, while its 239mm wheelbase and compact dimensions provide entertaining handling.

For customers deciding between 58748 and 47516, the main difference is the body finish: 58748 comes with the body ready for you to paint, while 47516 is the special version with the body factory painted Bright Red with Smoke windows.
