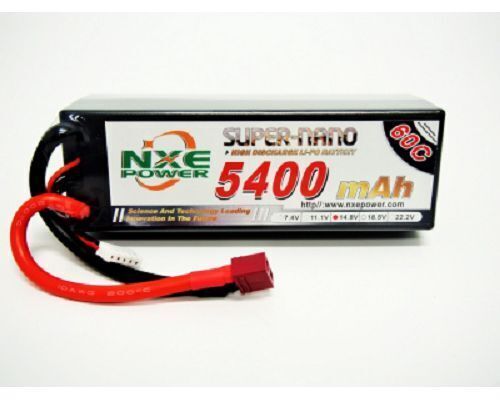

NXE 5400mAh 4S 14.8V 60C Hard Case LiPo Battery with Deans – 5400HC604SDEAN

The NXE 5400mAh 4S 14.8V 60C Hard Case LiPo Battery is a high-performance battery designed for powerful RC applications requiring strong 4S LiPo performance, high current delivery and useful runtime.

Combining a generous 5400mAh capacity, 60C discharge rating, durable hard-case construction and factory-fitted Deans / T-Plug connector, this pack is particularly well suited to compatible RC cars, monster trucks, truggies and other high-powered electric models.

High-Performance 4S Power

The 5400HC604SDEAN uses a 4S LiPo configuration, providing 14.8V nominal voltage and reaching 16.8V when fully charged.

Its substantial 5400mAh capacity provides plenty of potential runtime, while the 60C continuous discharge rating is designed to support the demands of powerful brushless systems.

Based on the stated capacity and C-rating, the battery has a theoretical continuous discharge capability of up to 324A, although actual usable current will depend on the complete electrical system and operating conditions.

Durable Hard Case Construction

A rigid hard case surrounds the LiPo cells, providing additional protection against impacts, vibration and debris. This makes the pack particularly well suited to surface RC applications where batteries can be exposed to considerable physical stress.

The battery uses a rectangular format measuring approximately 138 × 47 × 46mm, making it suitable for many larger battery trays found in powerful RC cars and trucks.

Deans / T-Plug Connector

The battery comes factory fitted with a Deans / T-Plug main power connector, allowing straightforward connection to compatible electronic speed controllers.

A separate XH balance connector allows all four cells to be individually monitored and balanced during charging, while heavy-duty 10AWG main power wiring is used to handle the demands of higher-powered applications.

Ideal for High-Powered RC Models

The combination of 4S voltage, 5400mAh capacity and a 60C discharge rating makes this battery a strong option for performance-oriented RC applications.

It is particularly suitable for compatible 1/8 scale RC cars, monster trucks and truggies, as well as other electric models designed around a 4S LiPo system.

Features

• 5400mAh high-capacity LiPo battery
• 4S / 14.8V configuration
• High-performance 60C discharge rating
• Durable hard-case construction
• Factory-fitted Deans / T-Plug connector
• XH balance connector
• Heavy-duty 10AWG main power wiring
• High capacity for extended potential runtime
• Strong current delivery for demanding brushless systems
• Suitable for compatible 1/8 scale RC vehicles
• Ideal for RC cars, monster trucks and truggies
• Standard LiPo chemistry
• Excellent combination of capacity, performance and durability

Specifications

• Brand: NXE Batteries
• Part Number: 5400HC604SDEAN
• Battery Chemistry: LiPo
• Capacity: 5400mAh
• Voltage: 14.8V
• Fully Charged Voltage: 16.8V
• Cell Count: 4S
• Configuration: 4S1P
• Discharge Rating: 60C
• Case Type: Hard Case
• Main Connector: Deans / T-Plug
• Balance Connector: XH
• Main Wire: 10AWG
• Length: Approx. 138mm
• Width: Approx. 47mm
• Height: Approx. 46mm
• Weight: Approx. 565g
• Application: RC Car / Truck / Truggy / General RC
• Barcode / EAN: 6925780561043

What's Included

• 1 x NXE 5400mAh 4S 14.8V 60C Hard Case LiPo Battery with Deans / T-Plug

Please Note

This is a standard 4S 14.8V LiPo battery, not a LiHV battery. A suitable LiPo balance charger capable of charging 4S LiPo batteries is required.

Always confirm that your model's ESC and motor are rated for 4S LiPo operation and that the battery compartment can accommodate the pack before installation.
