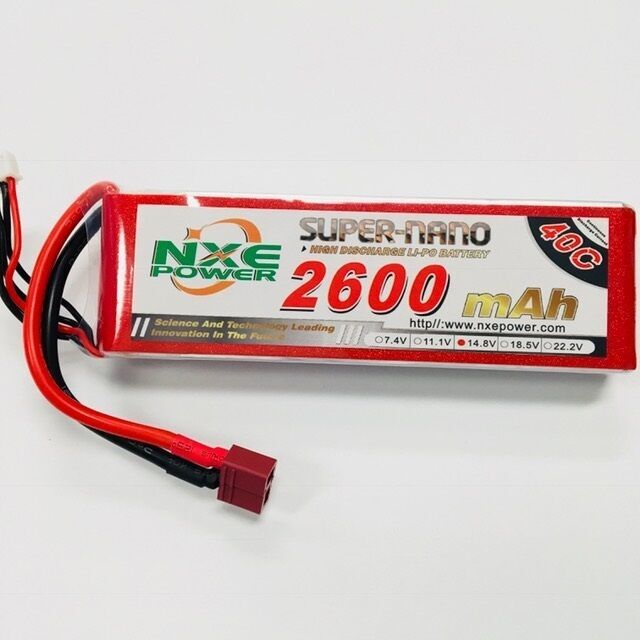

NXE 2600mAh 4S 14.8V 40C Soft Case LiPo Battery with Deans – 2600SC404SDEAN

The NXE 2600mAh 4S 14.8V 40C Soft Case LiPo Battery is a compact, lightweight power pack designed primarily for RC aircraft and other electric models requiring a 4S LiPo battery.

Combining a 2600mAh capacity, 14.8V 4S configuration and 40C discharge rating, this battery provides a strong balance between power output, flight time and overall weight. It comes factory fitted with a Deans / T-Plug connector for easy installation into compatible models.

4S 14.8V Performance

The 2600SC404SDEAN uses four LiPo cells connected in series, producing a nominal voltage of 14.8V and a fully charged voltage of 16.8V.

Moving to 4S provides considerably higher voltage than equivalent 2S or 3S packs, making this battery suitable for models specifically designed around a 4S power system.

The 40C discharge rating equates to a theoretical continuous current capability of approximately 104A (2.6Ah × 40C), providing plenty of power for compatible brushless setups.

Lightweight Soft Case Construction

The soft-case construction keeps weight and bulk to a minimum, an important consideration in RC aircraft where battery weight can have a significant effect on overall performance and handling.

Australian listings vary slightly on the exact dimensions. One established listing gives 136 × 43 × 20mm and 269g, while others measure approximately 138–140mm long and 21–23mm thick.

For the website, I would use approximately 136 × 43 × 20mm and 269g, as these figures are consistent with the Australian distributor-linked catalogue listing.

Deans / T-Plug Connector

The battery comes factory fitted with a Deans / T-Plug main connector, making it ready to connect directly to compatible ESCs.

A separate JST-XH balance connector allows a compatible LiPo balance charger to monitor and balance all four cells during charging.

Features

• 2600mAh capacity
• 4S / 14.8V LiPo configuration
• 40C discharge rating
• Compact soft-case construction
• Factory-fitted Deans / T-Plug connector
• JST-XH balance connector
• Lightweight design
• Flat battery configuration
• Suitable for compatible electric RC aircraft
• Suitable for other RC applications designed for 4S LiPo power
• Standard LiPo chemistry
• Good balance of capacity, voltage and weight

Specifications

• Brand: NXE Batteries
• Part Number: 2600SC404SDEAN
• Battery Chemistry: LiPo
• Capacity: 2600mAh
• Voltage: 14.8V
• Fully Charged Voltage: 16.8V
• Cell Count: 4S
• Discharge Rating: 40C
• Case Type: Soft Case
• Configuration: Flat
• Main Connector: Deans / T-Plug
• Balance Connector: JST-XH
• Length: Approx. 136mm
• Width: Approx. 43mm
• Height: Approx. 20mm
• Weight: Approx. 269g
• Application: Air / General RC

What's Included

• 1 x NXE 2600mAh 4S 14.8V 40C Soft Case LiPo Battery with Deans / T-Plug

Please Note

This is a standard 4S 14.8V LiPo battery, not a LiHV battery. A suitable LiPo balance charger capable of charging 4S batteries is required.
