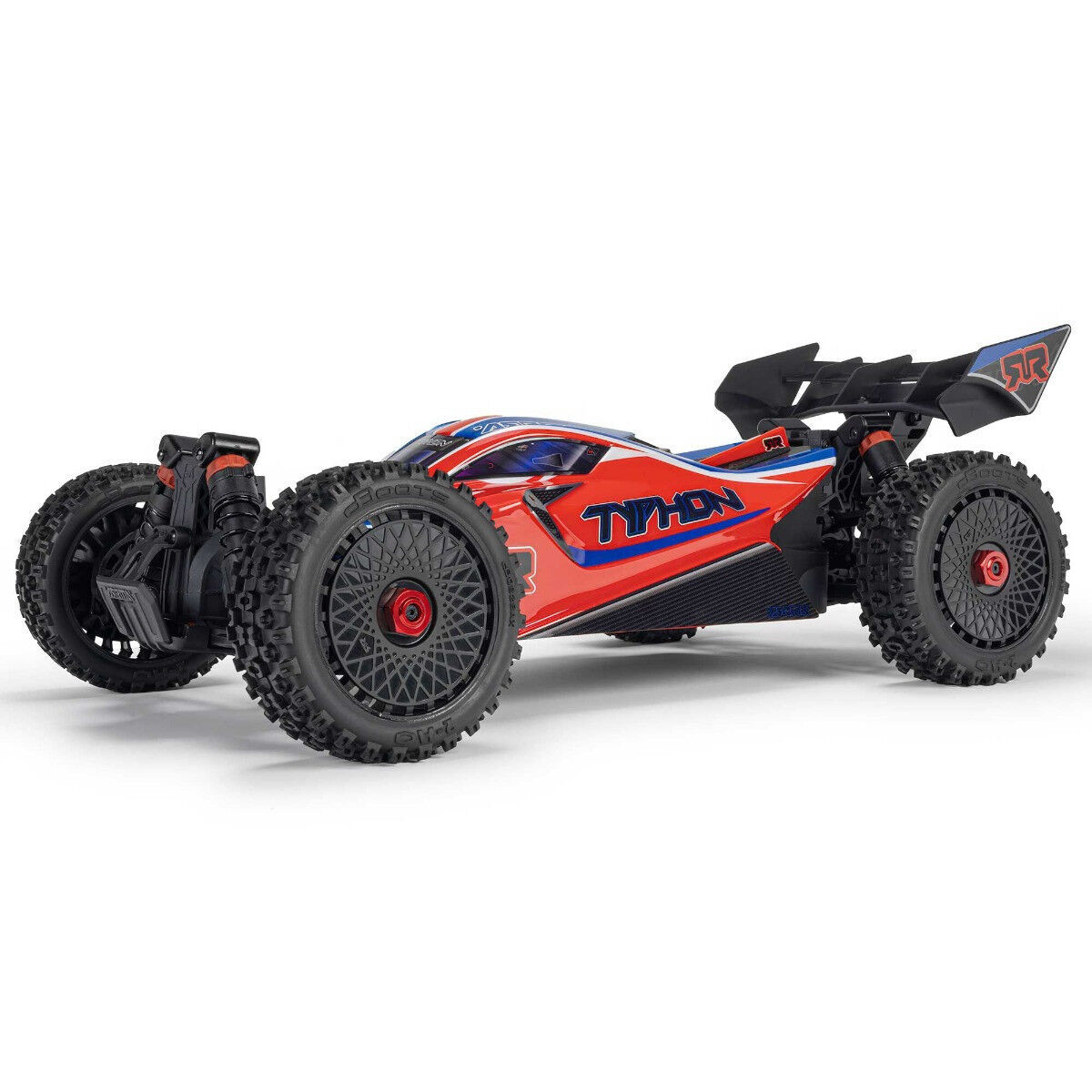

ARRMA TYPHON 223S 4X4 1/8 RTR Brushless Buggy

The ARRMA TYPHON 223S 4X4 is a high-performance 1/8 scale 4WD brushless buggy designed for high-speed off-road driving, jumps, rough terrain and serious RC bashing.

The ARA4306V4 combines the aggressive, aerodynamic styling of the TYPHON buggy with ARRMA's durable 4WD platform and the latest Spektrum 223S brushless power system.

With a powerful brushless motor, adjustable Smart ESC, oil-filled coil-over shocks and large dBoots tyres, the TYPHON 223S delivers 50+ mph / 80+ km/h performance with a suitable 3S LiPo battery.

Spektrum 223S Brushless Power

The TYPHON 223S features the Spektrum 223S Smart brushless power system, providing strong acceleration and high-speed performance.

The system is compatible with 2S and 3S LiPo batteries, allowing the driver to choose between more manageable 2S performance or the full power of 3S.

The Smart electronics provide telemetry capability when used with compatible Spektrum Smart equipment.

50+ MPH Performance

With a suitable 3S LiPo battery, the TYPHON 223S is capable of 50+ mph / 80+ km/h.

Its low-profile buggy body, wide stance and rear wing provide stability at high speed while the 4WD drivetrain delivers strong traction across dirt, grass, gravel and other suitable off-road surfaces.

4WD Drivetrain

The TYPHON uses a robust 4WD drivetrain designed to efficiently transfer brushless power to all four wheels.

The drivetrain is built around durable composite components and oil-filled gear differentials to provide reliable power delivery during high-speed driving and aggressive bashing.

Oil-Filled Coil-Over Shocks

The TYPHON 223S features oil-filled coil-over shocks with independent suspension.

The long-travel suspension helps the buggy absorb jumps, bumps and rough terrain while maintaining traction.

The suspension can be tuned for different driving conditions by changing shock oil, springs and mounting positions.

Tough Composite Chassis

The vehicle uses a strong composite chassis designed to provide a durable foundation for the drivetrain and suspension.

The chassis is supported by protective side guards that help shield the internal components from dirt and debris.

ARRMA also offers replacement body mounts, side guards and other service parts specifically for the ARA4306V4.

dBoots Off-Road Tyres

The TYPHON 223S is fitted with dBoots off-road tyres designed to provide traction across a variety of surfaces.

The tyres are suitable for dirt, grass, gravel and other appropriate off-road terrain.

The vehicle uses 17 mm wheel hexes, providing a strong and secure connection between the wheels and drivetrain.

Large Rear Wing

The TYPHON features a durable composite rear wing designed to improve stability at speed and provide consistent handling when cornering.

ARRMA's replacement wing is moulded from tough nylon material and is designed specifically for the TYPHON 4X4 platform.

Spektrum Radio System

The TYPHON 223S includes a Spektrum 2.4GHz radio system with Smart technology.

The radio system provides reliable control and allows access to Smart telemetry functions when paired with compatible equipment.

Smart Technology

The 223S platform incorporates Spektrum Smart technology.

When paired with compatible Smart batteries and transmitters, the system can provide useful information such as battery voltage, current, temperature and other telemetry data.

This makes it easier to monitor the vehicle's performance during operation.

Key Features

• 1/8 scale ARRMA TYPHON 223S
• ARA4306V4
• 4WD brushless buggy
• Ready-to-Run
• Spektrum 223S Smart brushless power system
• 2S and 3S LiPo compatible
• 50+ mph / 80+ km/h potential top speed
• Spektrum Smart technology
• 4WD drivetrain
• Oil-filled gear differentials
• Independent suspension
• Oil-filled coil-over shocks
• Tough composite chassis
• Protective side guards
• dBoots off-road tyres
• 17 mm wheel hexes
• Durable composite rear wing
• 2.4GHz radio system
• IC5 connector
• Water-resistant electronics

Specifications

• Brand: ARRMA
• Model: TYPHON 223S 4X4
• Part Number: ARA4306V4
• Scale: 1/8
• Vehicle Type: Buggy
• Drive: 4WD
• Power Type: Electric Brushless
• Completion Level: Ready-to-Run
• Power System: 223S
• Battery Compatibility: 2S or 3S LiPo
• Motor: Spektrum 223S Brushless
• ESC: Spektrum 223S Smart
• Radio: 2.4GHz
• Receiver: Included
• Drivetrain: 4WD
• Suspension: All-Terrain Independent
• Shock Type: Oil-Filled Coil-Over
• Tyres: dBoots
• Wheel Hex: 17 mm
• Chassis: Composite
• Connector: IC5
• Length: 511 mm
• Width: 306 mm
• Height: 195 mm
• Wheelbase: 328 mm
• Weight: 3.01 kg
• Top Speed: 50+ mph / 80+ km/h
• Maximum Battery Dimensions: 147 × 51 × 48 mm
• Water Resistant: Yes
• Surface: Off-Road

ARRMA's current specifications list the TYPHON at 511 mm long, 306 mm wide, 195 mm high, with a 328 mm wheelbase and 3.01 kg weight. The maximum battery size is 147 × 51 × 48 mm.

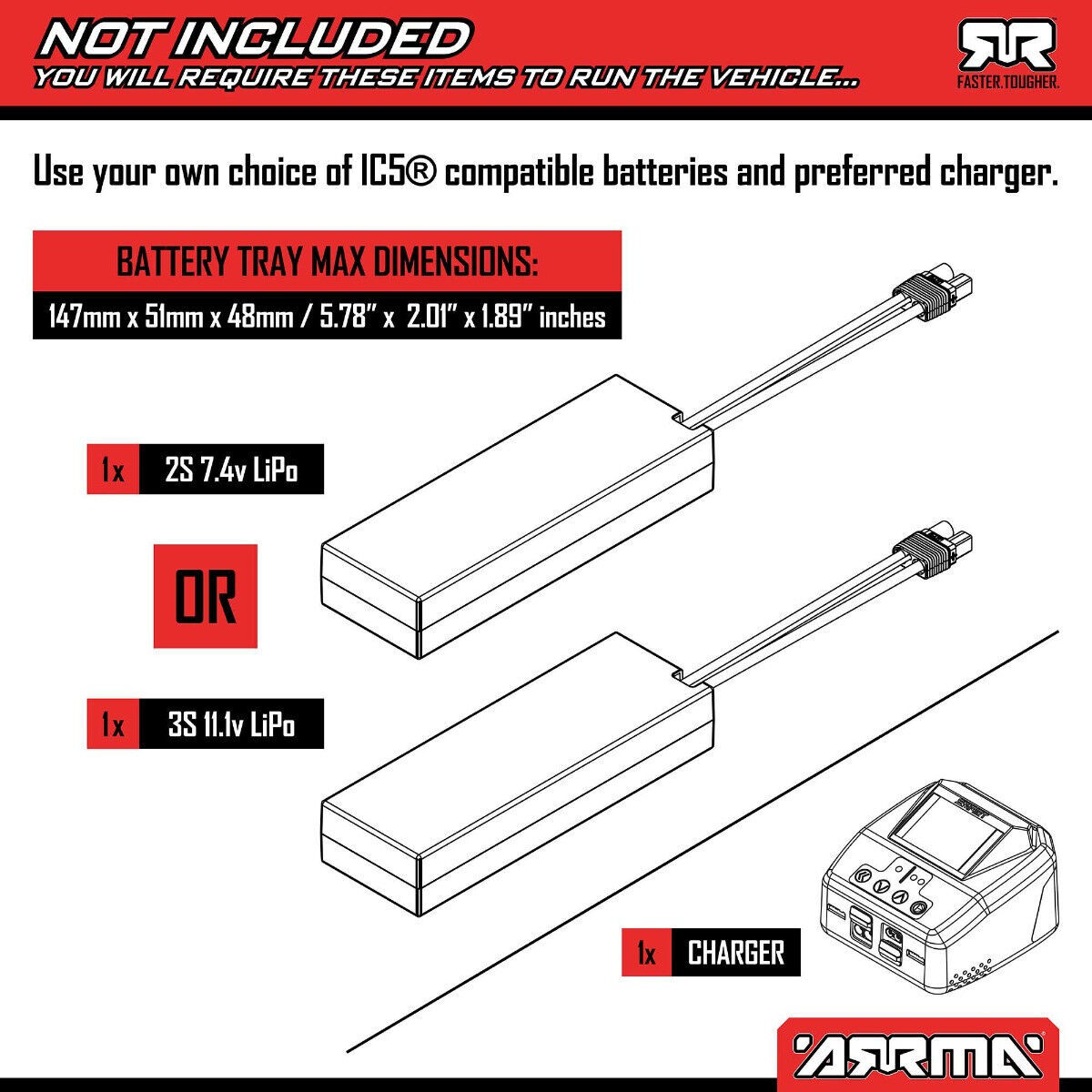

Battery & Charger Required

The TYPHON 223S is supplied Ready-to-Run, but battery and charger are sold separately.

Compatible battery options include:

• 1 × 2S LiPo
• 1 × 3S LiPo

For maximum performance, a suitable 3S LiPo battery is recommended.

The battery must fit within the available battery compartment of approximately 147 × 51 × 48 mm.

A compatible LiPo charger and LiPo charging bag are also recommended.

What's Included

• ARRMA TYPHON 223S 4X4 1/8 RTR Brushless Buggy
• Spektrum 223S brushless power system
• Spektrum Smart ESC
• Spektrum radio system
• Receiver
• Steering servo
• dBoots tyres
• Factory-finished body
• Rear wing
• Instruction manual

Built for High-Speed Bashing

The ARRMA TYPHON 223S 4X4 brings the aggressive looks and handling of a 1/8 scale buggy together with modern Spektrum Smart technology.

Its 4WD drivetrain, brushless power system, oil-filled suspension, large off-road tyres and aerodynamic rear wing make it an excellent choice for high-speed bashing, jumps and off-road driving.

Run it on 2S for more manageable performance or step up to 3S for the full 50+ mph / 80+ km/h experience.

Please note: This is a high-performance brushless RC vehicle. Always operate in a large, open and suitable area away from people, traffic and obstacles. Follow all manufacturer instructions regarding LiPo batteries, charging and safe operation.
