ARRMA GRANITE 223S 4X4 1/10 RTR Brushless Monster Truck

The ARRMA GRANITE 223S 4X4 is a powerful and durable 1/10 scale 4WD brushless monster truck built for high-speed off-road driving, jumps, wheelies and serious RC bashing.

The ARA4302V4 features ARRMA's latest 223S brushless platform, allowing drivers to run either 2S or 3S LiPo batteries. With a suitable 3S LiPo, the GRANITE is capable of 50+ mph / 80+ km/h in optimum conditions.

The GRANITE's combination of aggressive styling, large all-terrain tyres, long-travel suspension and tough 4WD drivetrain makes it an excellent choice for everything from backyard bashing to high-speed off-road driving.

Spektrum 223S Brushless Power

The GRANITE 223S is powered by a Spektrum 3100Kv brushless motor and Spektrum SLT 80A 2-in-1 waterproof ESC and receiver.

The power system supports both 2S and 3S LiPo batteries, allowing the vehicle to grow with the driver's experience.

Run 2S for more manageable performance or step up to 3S for speeds of 50+ mph / 80+ km/h.

Dynamic Stability Control

The GRANITE 223S includes Spektrum Dynamic Stability Control (DSC).

DSC helps maintain control when driving over loose or slippery surfaces by automatically making steering corrections.

The system can be adjusted or switched off depending on the driver's preference.

The included SLT3 transmitter also provides adjustable throttle limiting, allowing drivers to select reduced power while learning.

Heavy-Duty 4WD Drivetrain

The GRANITE features a robust 4WD drivetrain designed to handle the torque produced by the 3100Kv brushless motor.

The drivetrain uses durable gear differentials and strong composite components to provide reliable power delivery during aggressive driving.

The modular design also makes routine servicing and maintenance easier.

Oil-Filled Coil-Over Shocks

The GRANITE 223S uses independent suspension with oil-filled coil-over shocks.

The shocks provide controlled damping over rough terrain, jumps and bumps while helping maintain traction.

The suspension can be tuned using different shock oils, springs and mounting positions.

Large dBoots Fortress MT Tyres

The GRANITE is fitted with aggressive dBoots Fortress MT multi-terrain tyres.

The large tyres provide excellent traction on dirt, grass, gravel and other suitable off-road surfaces.

Their size and tread pattern also help the truck maintain momentum over rough terrain.

Wheelie Bar

The GRANITE includes an integrated wheelie bar to help control wheelies under hard acceleration.

With 3S power, the powerful brushless system can easily lift the front end, making the GRANITE particularly entertaining for stunt and freestyle driving.

Clipless Body System

The GRANITE 223S features a convenient clipless body retention system.

The body can be removed without traditional body clips, making battery changes and maintenance quick and easy.

The clipless design also gives the truck a clean appearance while reducing the chance of losing body clips during bashing.

Tough Composite Chassis

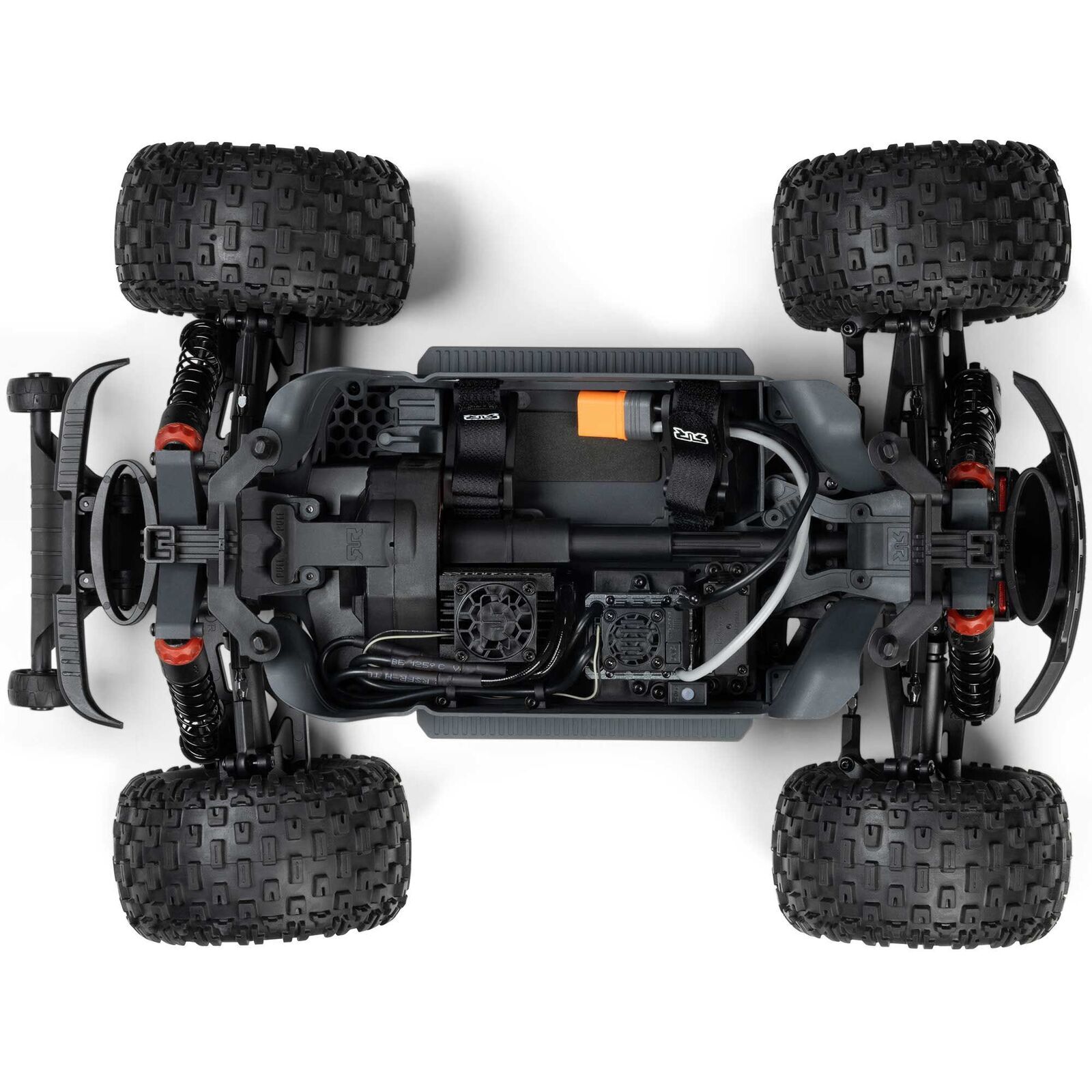

The GRANITE uses a rugged moulded composite chassis designed to withstand hard off-road use.

The chassis incorporates improved dirt management and protective side guards to help keep debris away from the drivetrain and electronics.

Spektrum SLT3 Radio System

The included Spektrum SLT3 2.4GHz transmitter provides reliable control and useful adjustments.

Features include:

• 50% throttle limit
• 75% throttle limit
• 100% throttle
• Adjustable steering rate
• DSC adjustment
• Ergonomic grip
• Foam steering wheel

Spektrum S662 Steering Servo

The GRANITE 223S includes a Spektrum S662 metal-geared waterproof digital steering servo.

The metal gear train provides increased durability and steering strength for high-speed off-road driving.

Key Features

• 1/10 scale ARRMA GRANITE 223S
• ARA4302V4
• 4WD brushless monster truck
• Ready-to-Run
• Spektrum 3100Kv brushless motor
• Spektrum SLT 80A 2-in-1 waterproof ESC/receiver
• Spektrum Dynamic Stability Control
• 2S and 3S LiPo compatible
• 50+ mph / 80+ km/h on 3S
• Heavy-duty 4WD drivetrain
• Oil-filled coil-over shocks
• dBoots Fortress MT multi-terrain tyres
• Integrated wheelie bar
• Clipless body retention system
• Rugged composite chassis
• Protective side guards
• Spektrum SLT3 transmitter
• Spektrum S662 metal-geared steering servo
• 17 mm wheel hexes
• IC5 connector
• Water-resistant electronics

Specifications

• Brand: ARRMA
• Model: GRANITE 223S 4X4
• Part Number: ARA4302V4
• Scale: 1/10
• Vehicle Type: Monster Truck
• Drive: 4WD
• Power Type: Electric Brushless
• Completion Level: Ready-to-Run
• Power System: 223S
• Motor: Spektrum 3100Kv Brushless
• ESC/Receiver: Spektrum SLT 80A 2-in-1 Waterproof
• Radio: Spektrum SLT3 2.4GHz
• Steering Servo: Spektrum S662 Metal-Geared Digital
• Technology: Spektrum DSC
• Battery Compatibility: 2S or 3S LiPo
• Drivetrain: 4WD
• Suspension: Independent All-Terrain
• Shock Type: Oil-Filled Coil-Over
• Chassis: Composite
• Tyres: dBoots Fortress MT
• Wheel Hex: 17 mm
• Connector: IC5
• Length: 470 mm
• Width: 340 mm
• Height: 204 mm
• Wheelbase: 284 mm
• Weight: 3.47 kg
• Battery Tray: 139 × 51 × 48 mm
• Top Speed: 50+ mph / 80+ km/h
• Water Resistant: Yes
• Surface: Off-Road

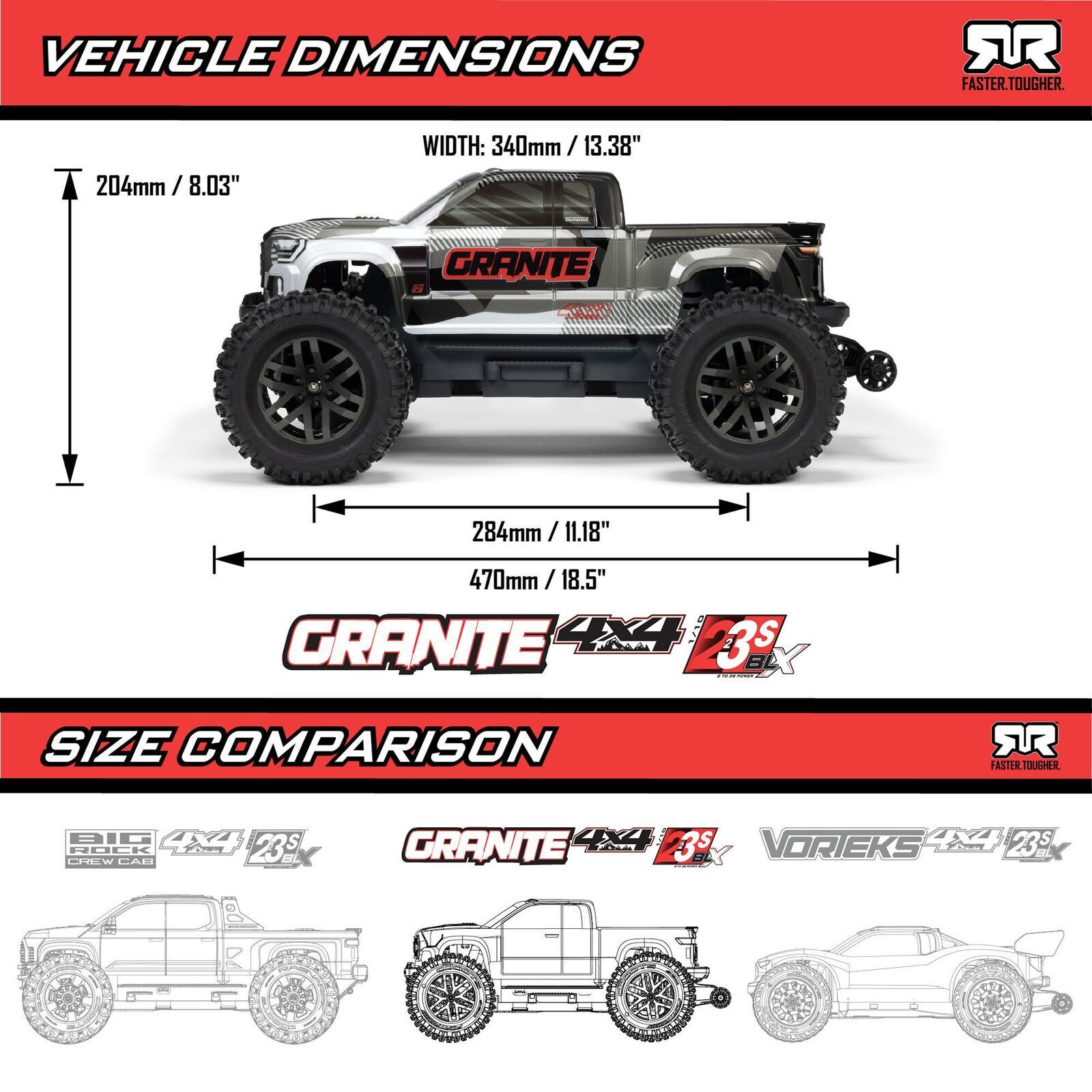

ARRMA's current specifications confirm the 470 mm length, 340 mm width, 204 mm height, 284 mm wheelbase and 3.47 kg weight. The battery tray accommodates batteries up to 139 × 51 × 48 mm.

Battery & Charger Required

The GRANITE 223S is supplied Ready-to-Run, but battery and charger are sold separately.

Compatible batteries:

• 1 × 2S LiPo
• 1 × 3S LiPo

For maximum performance, a suitable 3S LiPo battery is recommended.

The battery must fit within the maximum tray dimensions of approximately 139 × 51 × 48 mm.

The vehicle uses an IC5 connector and is compatible with EC5 connectors.

What's Included

• ARRMA GRANITE 223S 4X4 1/10 RTR Monster Truck
• Spektrum 3100Kv Brushless Motor
• Spektrum SLT 80A 2-in-1 Waterproof ESC/Receiver
• Spektrum S662 Metal-Geared Waterproof Steering Servo
• Spektrum SLT3 2.4GHz Transmitter
• dBoots Fortress MT Tyres
• Factory-finished body
• Wheelie bar
• Instruction manual
• 4 × AA transmitter batteries

Built for High-Speed Bashing

The ARRMA GRANITE 223S 4X4 is an excellent all-round brushless monster truck for drivers looking for speed, durability and plenty of stunt potential.

Its 3100Kv brushless motor, 80A electronics, 4WD drivetrain, large Fortress MT tyres, oil-filled suspension and wheelie bar make it ideal for high-speed bashing, jumps, wheelies and off-road driving.

Run it on 2S for more manageable performance or step up to 3S for the full 50+ mph / 80+ km/h experience.

Please note: This is a high-performance brushless RC vehicle. Always operate in a large, open and suitable area away from people, traffic and obstacles. Follow all manufacturer instructions regarding LiPo batteries, charging and safe operation.
