ARRMA QUAKE 223S BLX 1/10 2WD Brushless Monster Truck RTR Purple - ARA3537T3

The ARRMA QUAKE 223S BLX is a tough and powerful 1/10 scale 2WD brushless monster truck built for wheelies, jumps and high-speed off-road bashing.

ARRMA's versatile 223S platform lets you start with a 2S LiPo battery for manageable 35+ mph performance. When you're ready for more speed, simply install a suitable 3S LiPo battery to unleash 50+ mph / 80+ km/h performance — with no motor, ESC or drivetrain upgrades required.

With huge monster truck tyres, oil-filled suspension, a heavy-duty transmission, Spektrum Dynamic Stability Control and tough ARRMA construction, the QUAKE delivers serious performance while remaining accessible to newer RC drivers.

The ARA3537T3 comes Ready-to-Run in the striking Purple colour scheme with matching Purple wheels.

2S or 3S – Grow Into the Performance

The ARRMA 223S concept makes the QUAKE an excellent choice for drivers who want a truck they won't quickly outgrow.

Run a 2S LiPo and the QUAKE delivers speeds exceeding 35mph, providing plenty of performance while remaining easier for less experienced drivers to control.

When you're ready for more, install a 3S LiPo to unlock speeds exceeding 50mph / 80km/h.

No expensive power-system upgrades are required — the QUAKE is designed for both 2S and 3S power straight from the factory.

Spektrum Dynamic Stability Control

The QUAKE features Spektrum Dynamic Stability Control (DSC) to help keep its powerful rear-wheel-drive performance under control.

DSC automatically applies steering corrections when required, helping the truck maintain its intended direction during hard acceleration and when driving on loose or slippery surfaces.

Four selectable DSC settings are available:

• High – Maximum assistance, ideal for beginners
• Medium – Great for lower-grip surfaces
• Low – Ideal for higher-grip surfaces
• Off – Full driver control

As your driving skills improve, simply reduce the assistance or switch DSC off completely.

Adjustable Throttle Limiting

The included Spektrum SLT2 2.4GHz transmitter provides throttle limiting, allowing newer drivers to reduce the maximum available performance while learning.

Combine 2S power, reduced throttle and DSC assistance for an easy-to-manage starting point, then progressively increase the performance as your skills improve.

Spektrum 4000Kv Brushless Power

The QUAKE is powered by a Spektrum Firma 4000Kv brushless motor matched with a Spektrum SLT 45A waterproof 2-in-1 ESC and receiver.

This compact system supports both 2S and 3S LiPo batteries while also integrating the DSC stability system into the receiver.

Heavy-Duty 2WD Transmission

The QUAKE's heavy-duty rear-wheel-drive transmission is designed to handle serious brushless power.

The 2WD layout gives the truck the lively handling, wheelies and loose-surface action that make a powerful monster truck so entertaining to drive.

Factory gearing consists of a 16T metal pinion and 61T spur gear with 0.8Mod gear pitch and an 11.93:1 final drive ratio.

Tough Composite Chassis

A strong moulded composite chassis provides a durable foundation for hard bashing.

The modern mid-motor layout and short wheelbase give the QUAKE its lively monster truck handling and make it perfect for wheelie-popping fun.

Tough moulded front and rear protection helps absorb impacts, while the body is supported by a moulded roll hoop during rollovers.

Oil-Filled Suspension

The QUAKE features independent suspension with oil-filled shock absorbers designed to soak up bumps, jumps and rough terrain.

The suspension combines with the truck's huge monster tyres to provide excellent capability across dirt, gravel, grass and other off-road surfaces.

Huge dBoots Cut Chevron Tyres

The QUAKE gets its aggressive monster truck stance from massive 127mm / 5-inch dBoots Cut Chevron tyres.

The tyres are vented for increased durability and use foam inserts for additional support. Their aggressive tread provides massive traction across a variety of off-road surfaces.

The ARA3537T3 features Purple wheels, perfectly matching the Purple body graphics.

Clipless Monster Truck Body

The detailed Purple monster truck body comes painted, trimmed and fully finished from the factory.

ARRMA's convenient clipless body mounting system eliminates traditional body clips for a cleaner appearance while still allowing quick access when required.

Bottom-Loading Battery Tray

Battery changes are quick and easy thanks to the bottom-loading battery tray.

There's no need to remove the body. Simply access the battery compartment from underneath, change the pack and get straight back to driving.

The battery tray accepts compatible packs measuring up to 140 x 50 x 35mm.

Factory-Installed Wheelie Bar

Put 3S brushless power through the rear wheels and the QUAKE is more than happy to lift the front end.

The tough factory-installed wheelie bar helps control the truck during hard acceleration and makes wheelie action even more fun.

Key Features

• 1/10 scale monster truck
• Product Code: ARA3537T3
• Purple colour scheme
• Matching Purple wheels
• Ready-to-Run
• Rear-wheel drive 2WD
• ARRMA 223S BLX brushless platform
• 2S and 3S LiPo compatible
• 35+ mph on 2S
• 50+ mph on 3S
• Spektrum Firma 4000Kv brushless motor
• Spektrum SLT 45A waterproof 2-in-1 ESC/receiver
• Spektrum Dynamic Stability Control – DSC
• Four selectable DSC modes
• Spektrum SLT2 2.4GHz transmitter
• Throttle limiting
• Spektrum S681 metal-geared waterproof digital servo
• Heavy-duty 2WD transmission
• Durable moulded composite chassis
• Mid-motor layout
• Oil-filled shock absorbers
• Independent suspension
• Bottom-loading battery tray
• Clipless body mounting
• Moulded body support roll hoop
• dBoots Cut Chevron monster truck tyres
• 127mm / 5-inch tyre diameter
• 2.8-inch monster truck wheels
• 14mm wheel hexes
• Factory-installed wheelie bar
• IC5 battery connector
• 4 × AA transmitter batteries included

Specifications

Brand: ARRMA
Model: QUAKE 223S BLX
Part Number: ARA3537T3
Scale: 1/10
Vehicle Type: Monster Truck
Colour: Purple
Drive: 2WD
Power: Electric Brushless
Motor: Spektrum Firma 4000Kv Brushless
ESC/Receiver: Spektrum SLT DSC 45A Waterproof 2-in-1
Servo: Spektrum S681 Metal Gear
Radio: Spektrum SLT2 2.4GHz
Battery Compatibility: 2S or 3S LiPo
Maximum Speed: 50+ mph on 3S
Differential: Gear Differential
Chassis: Moulded Composite
Shock Oil: 100cSt Silicone
Tyres: dBoots Cut Chevron MT
Tyre Diameter: 127mm / 5"
Wheel Size: 2.8"
Wheel Colour: Purple
Wheel Hex: 14mm
Pinion Gear: 16T Metal
Spur Gear: 61T Composite
Gear Pitch: 0.8Mod
Final Drive Ratio: 11.93:1
Maximum Battery Size: 140 x 50 x 35mm
Length: 456mm
Width: 325mm
Height: 170mm
Wheelbase: 286mm
Weight: Approx. 2.51kg
Completion Level: Ready-to-Run

What's Included

• ARRMA QUAKE 223S BLX 1/10 2WD Monster Truck RTR – Purple
• Spektrum 4000Kv brushless motor
• Spektrum SLT 45A waterproof 2-in-1 ESC/receiver with DSC
• Spektrum S681 metal-geared digital steering servo
• Spektrum SLT2 2.4GHz transmitter
• 4 × AA transmitter batteries
• 2mm hex driver
• 2.5mm hex driver
• Wheel wrench/shock tool
• Instruction manual

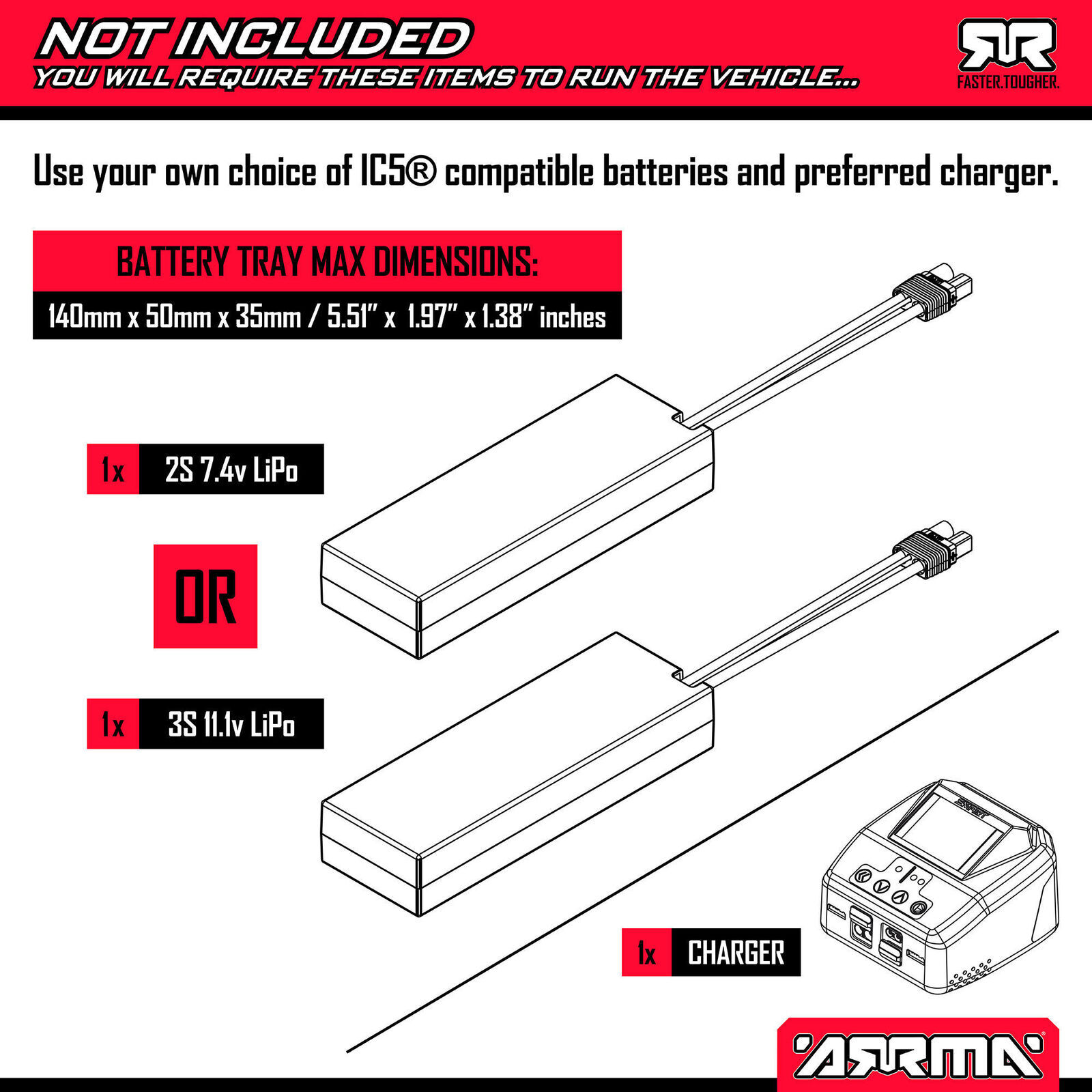

Required to Complete

• 1 × 2S or 3S LiPo battery
• Compatible LiPo battery charger
• LiPo charging/safety bag

Maximum battery dimensions are 140 x 50 x 35mm.

A Monster Truck You Can Grow Into

The ARRMA QUAKE 223S BLX gives newer drivers an excellent way to get into serious brushless RC without buying a truck they'll quickly outgrow.

Start with 2S power, DSC assistance and reduced throttle for easier handling. As your skills improve, increase the available performance and reduce the stability assistance. When you're ready, move to 3S and unleash the QUAKE's 50+ mph performance.

With huge monster truck tyres, powerful Spektrum brushless electronics, tough ARRMA construction and entertaining rear-wheel-drive handling, the QUAKE is built for wheelies, jumps and serious off-road fun.
