electric

• hobby wing 150a esc/ 4s~6s / pair xt90 connectors/ cooling fan/ program card
• motor: brushless/ 2000kv/ 4 poles/ outer diameter 40mm/ shaft diameter 5mm
• servo: 32kg-cm, 7. 4v high torque and; high speed / coreless digital / waterproof
• radio: 3-channel 2. 4ghz fhss with dual rate steering and throttle

[features]

• chassis: havey duty alum 7075 monocoque chassis frame
• ball bearings: full set included
• all metal transmission gears
• drive: awd, heavy duty driveshaft
• front and; rear differentials: steel bevel gear/ anti-leakage differential housing/ hardened steel cups
• center differential: steel bevel gear/ alum anti-leakage differential housing
• pinion and ring gear: 9t/ 29t (mod 1)
• spur gear: 36t (mod 1)
• motor gear: 15t (mod 1)
• motor mount: adjustable
• new shocks
  †⻠oil-filled 17mm big bore and long stroke, 4mm diameter shafts
  †⻠height adjustable shock spring perches
  †⻠new shock piston with 3 x 1. 6mm holes / configure option op-0135 /new top end and rod end strengthen the shock sustainability
  †⻠shock shaft: special surface treatment improves the shock performance

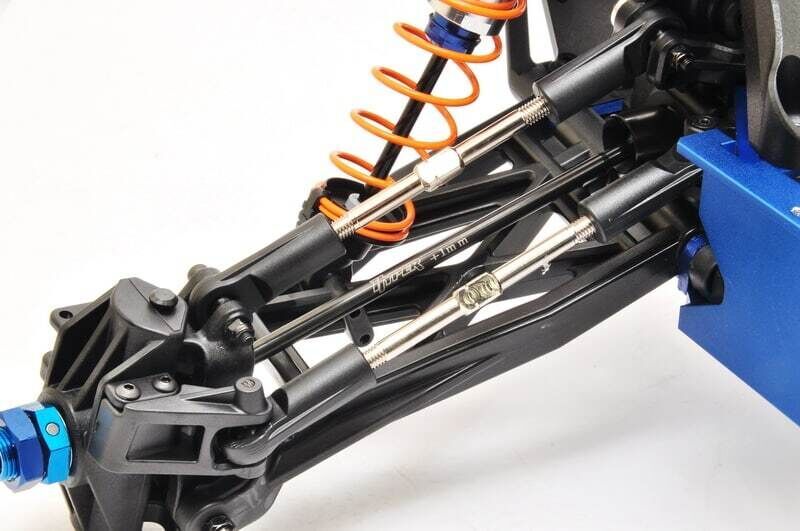

• suspension: reinforced composite lower arms
• front/rear high torque universal joints with differential outdrive cups
• new servo saver and; steering rack and; hard spring

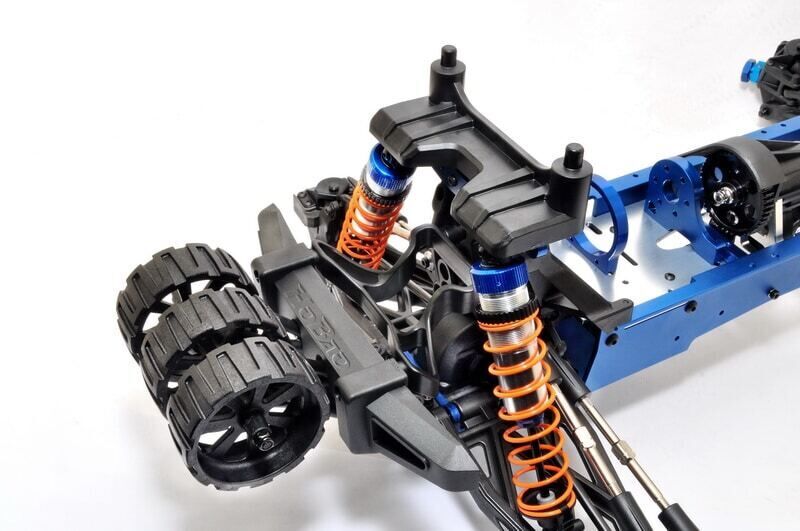

• new shock top cap protector with body post
• alum wheel hub and nuts
  †⻠17mm hex/ alum anti-loose wheel nut

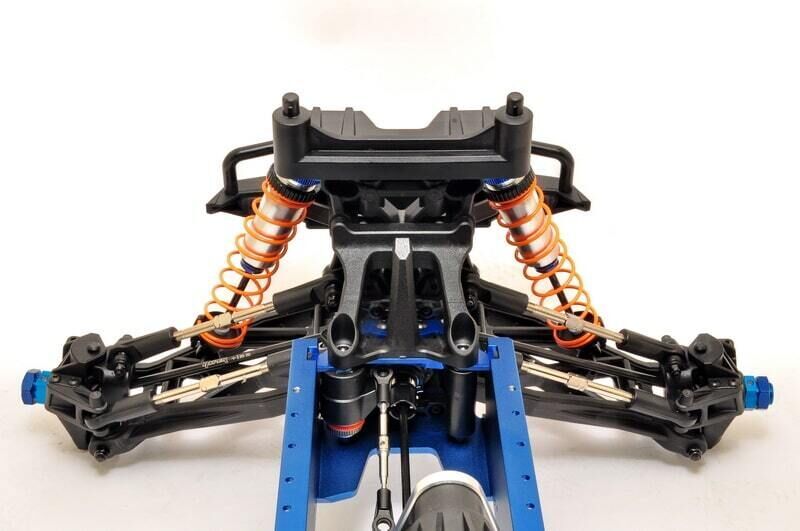

• new front and rear shock tower brace

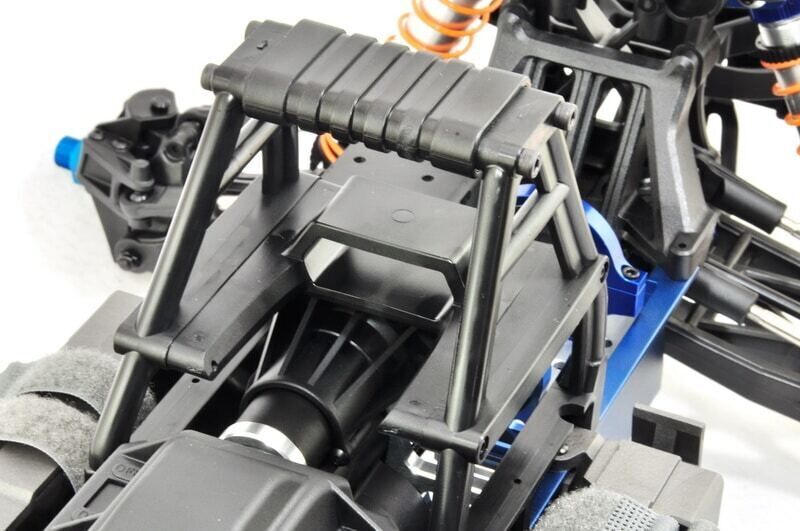

• new center roll bar with wire pass through
• new alum shocks stiffener plate

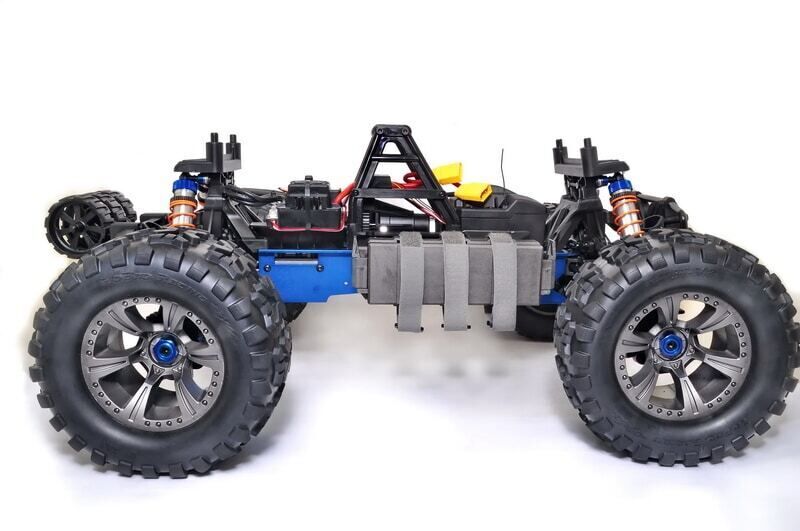

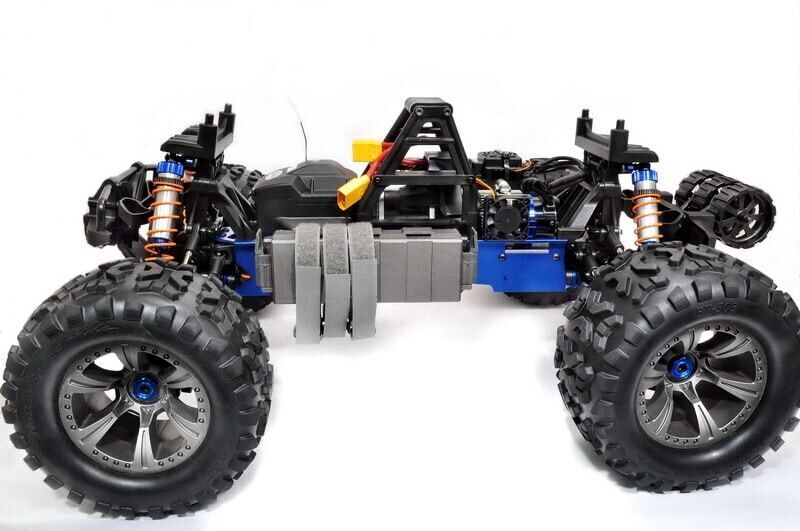

• battery holders: large capacity box with quick release design
• motor heatsink with fan

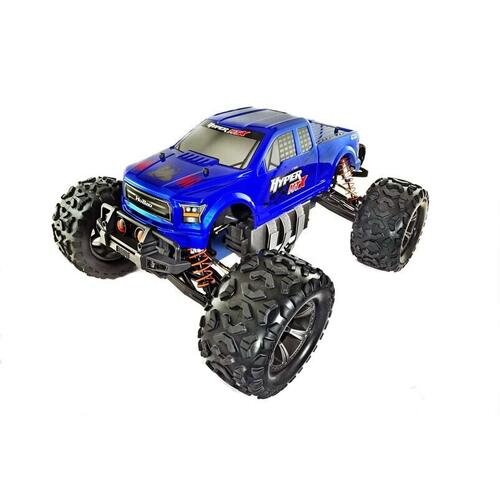

• body: 1/8 scale painted

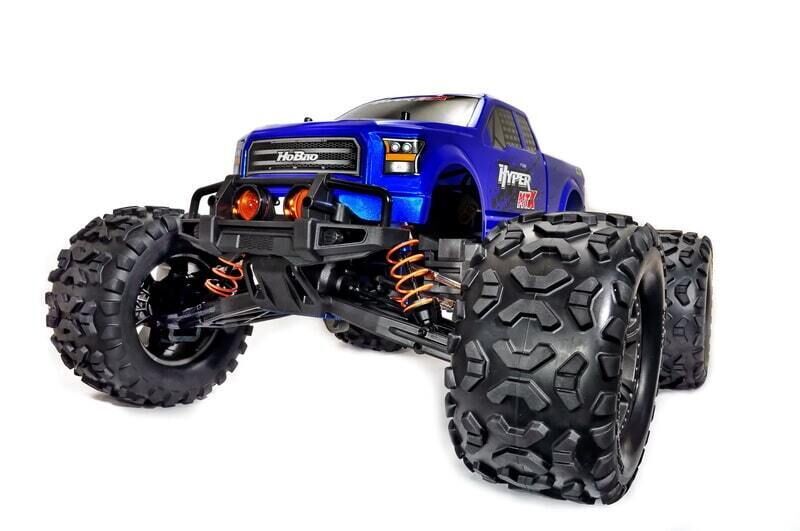

• tyres: monster truck tyres
• wheels: 6 spoke monster wheels, grey, 17mm hex

[requirements]

• lipo batteries with pair xt90 plug connector
• battery charger
• aa batteries for transmitter (4)
