The ARRMA INFRACTION 6S BLX V2 is a high-performance 1/7 scale 4WD all-road street bash truck designed for extreme speed, drifting, high-speed cornering and aggressive driving across paved, dirt and oval surfaces.

The ARA7615V2T1 is the striking Blue version of the INFRACTION 6S BLX V2. It combines powerful Spektrum brushless electronics, AVC stability control, Smart telemetry, a mechanical rear handbrake and a purpose-built aerodynamic chassis to deliver an exciting high-speed driving experience straight from the box.

With a claimed top speed of 80+ mph / 128+ km/h in optimum conditions using a suitable 6S LiPo battery and the included speed pinion, the INFRACTION is built for experienced RC drivers looking for serious all-road performance.

Spektrum 6S Brushless Power

The INFRACTION is powered by a Spektrum FIRMA 4074 2050Kv 4-pole brushless motor paired with a Spektrum FIRMA 150A Smart ESC.

The power system is compatible with 3S, 4S and 6S LiPo batteries, with 6S providing the maximum performance available from the vehicle.

The Spektrum Smart ESC provides telemetry capabilities when paired with compatible Spektrum Smart equipment and uses a reliable IC5 connector, which is also compatible with EC5 connections.

The ESC features an integrated cooling fan, low-voltage cutoff, thermal overload protection and programmable settings for punch, braking, BEC, reverse speed and motor timing.

80+ MPH High-Speed Performance

The INFRACTION has been designed specifically for high-speed all-road driving.

With the included 25T speed pinion and suitable 6S LiPo power, ARRMA rates the vehicle at 80+ mph / 128+ km/h under optimum conditions.

The low-profile chassis, aerodynamic splitter, rear diffuser, adjustable wing and dBoots Hoons tyres work together to provide stability and traction during high-speed runs.

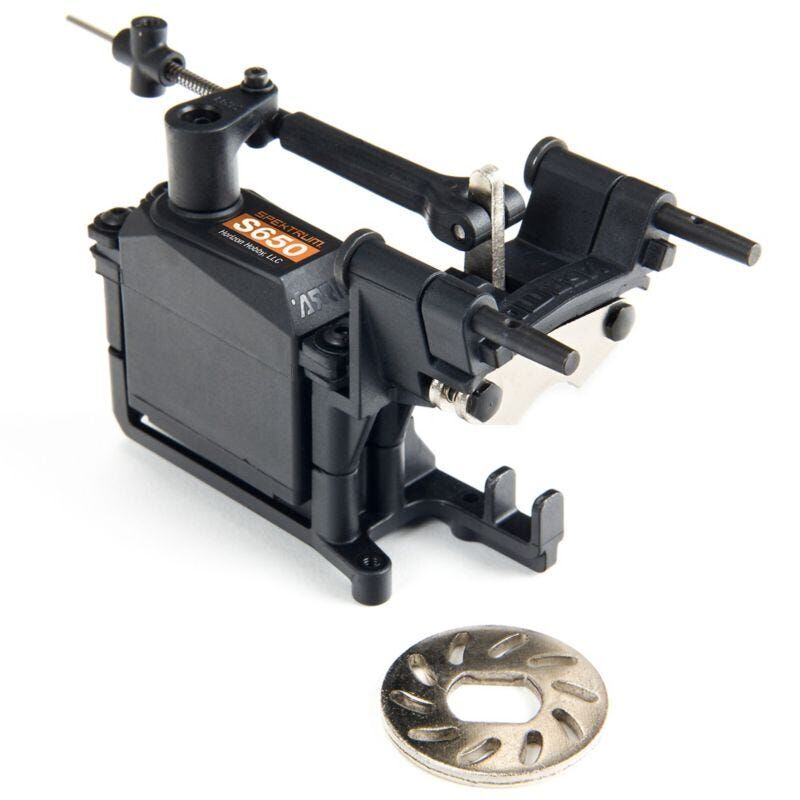

Mechanical Rear Handbrake

A major feature of the INFRACTION V2 is its mechanical rear handbrake system.

The handbrake is operated using a dedicated thumb switch on the included Spektrum DX3 transmitter, allowing the driver to lock the rear brake on demand.

This provides additional control for initiating slides, performing handbrake turns and creating controlled drifts.

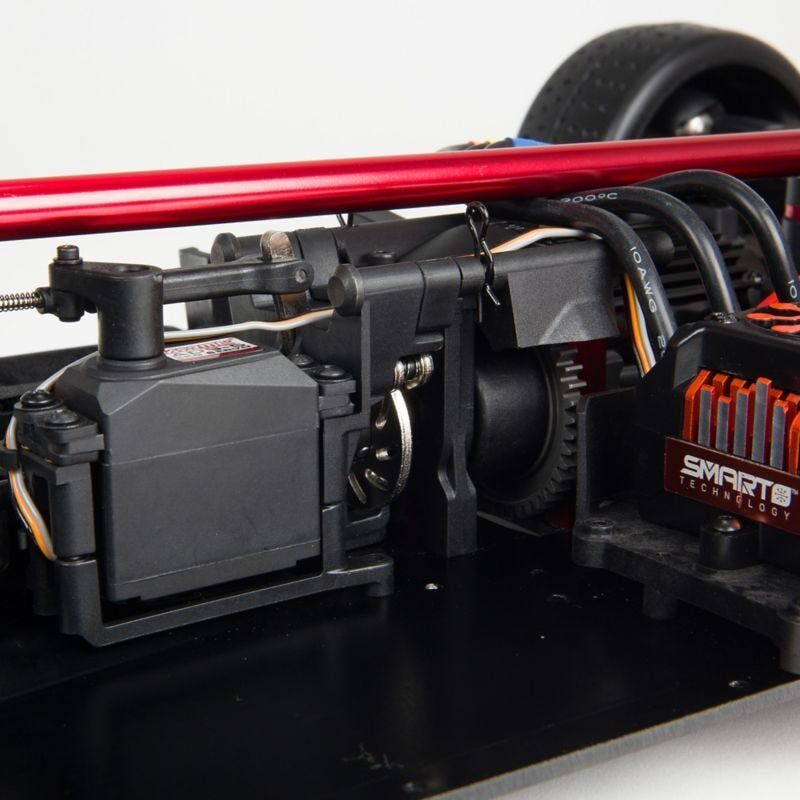

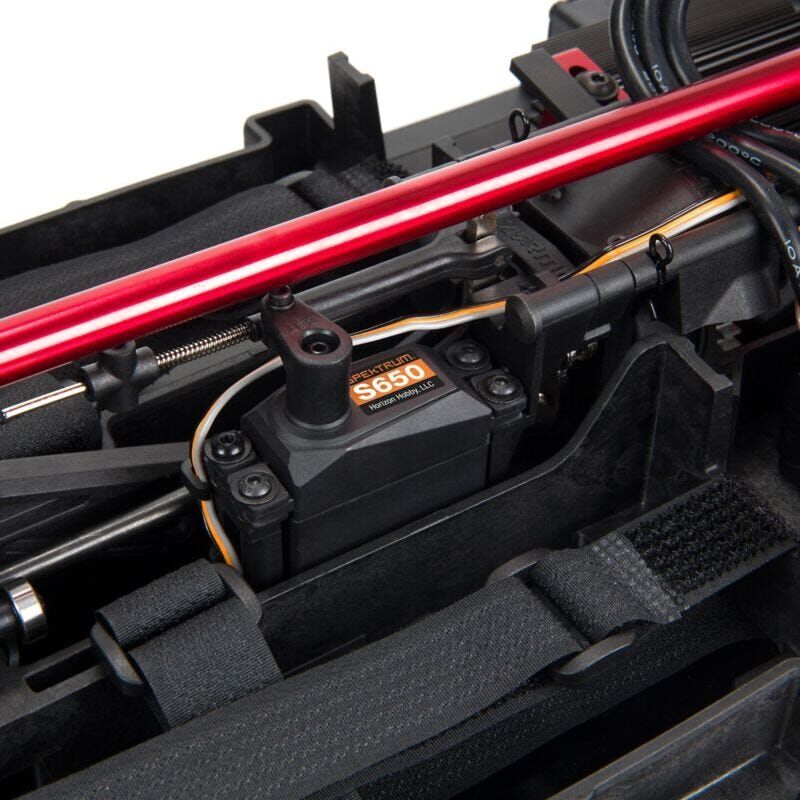

A dedicated Spektrum SPMS650 waterproof brake servo operates the mechanical rear disc brake system.

Spektrum AVC Stability Control

The included Spektrum SR6110AT receiver features Active Vehicle Control (AVC) technology.

AVC continuously makes small steering corrections to help maintain stability and traction, particularly during high-speed driving and on loose surfaces.

AVC gain can be adjusted directly from the DX3 transmitter, allowing the driver to choose the preferred level of electronic assistance.

The radio system also provides compatibility with the Spektrum Dashboard app for additional telemetry information when used with compatible equipment.

Heavy-Duty 4WD Drivetrain

The INFRACTION uses a mid-motor 4WD configuration with a 50/50 torque split.

The drivetrain features three oil-filled metal gear differentials, all-metal differential outdrives and durable steel driveshafts throughout.

The updated gearbox uses a revised internal gear tooth profile for increased strength, while a lower internal gear ratio helps reduce centre driveshaft RPM and resonance.

A high-speed centre driveshaft support further improves drivetrain durability during high-RPM operation.

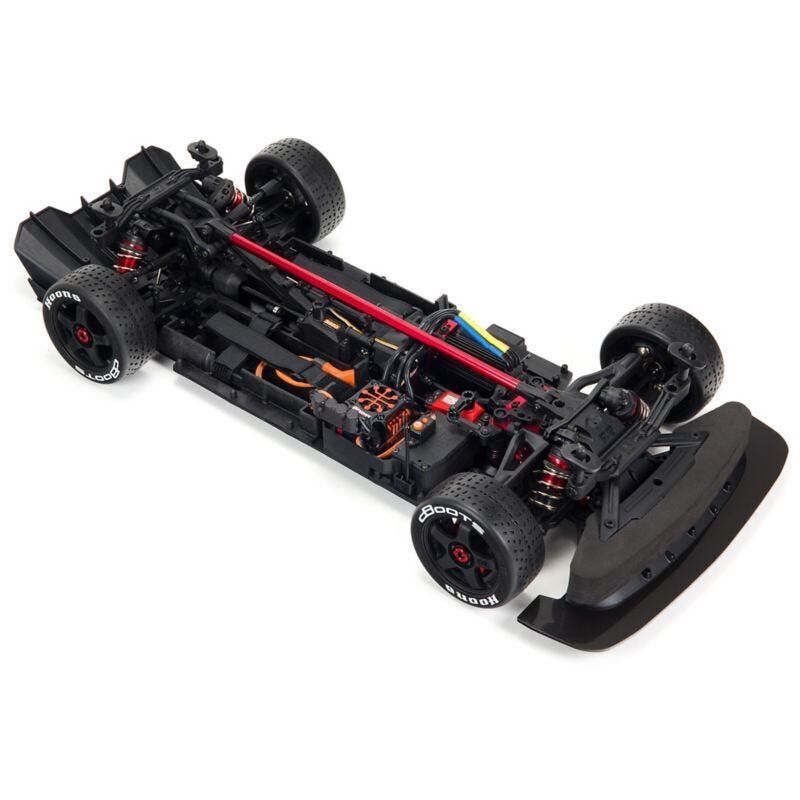

6061-T6 Aluminium Chassis

The INFRACTION is built around a 3 mm 6061-T6 anodised aluminium chassis plate.

A centre chassis brace adds rigidity and helps the chassis withstand the loads generated during high-speed driving and hard impacts.

The updated electronics module provides improved organisation and easier access to the vehicle's electronics.

Aerodynamic Design

The INFRACTION features a purpose-designed aerodynamic package.

A full-width front splitter helps balance downforce distribution, while the rear diffuser increases downforce and rear grip for improved cornering stability.

The rear wing is adjustable, allowing the driver to tune aerodynamic performance to suit different driving conditions.

Adjustable front and rear body mounts provide additional setup flexibility.

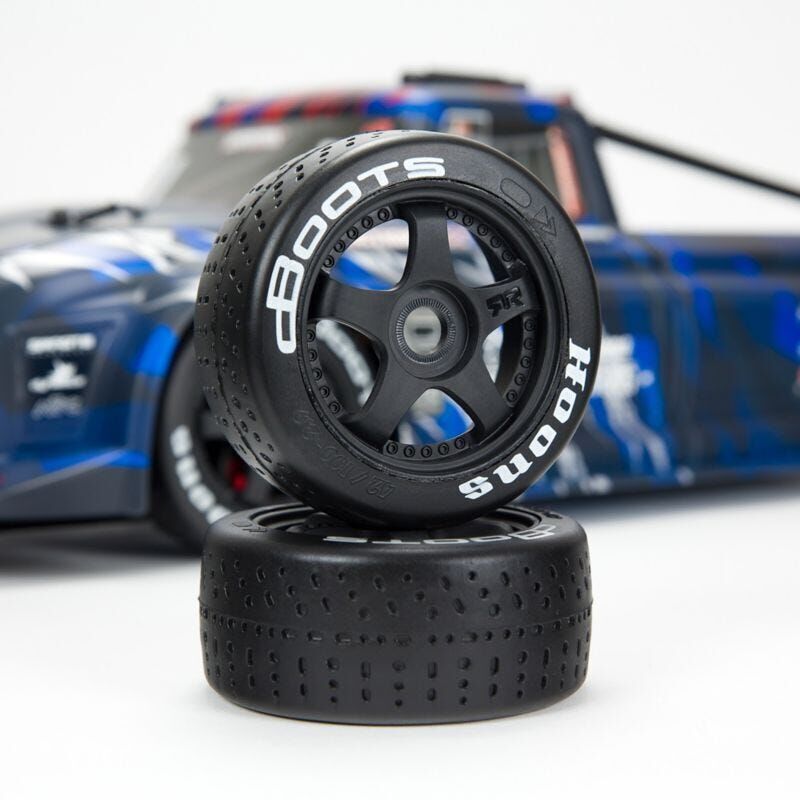

dBoots Hoons All-Road Tyres

The INFRACTION is fitted with dBoots Hoons all-road tyres mounted on classic five-spoke wheels.

The tyres are designed for high-speed driving across paved, dirt and oval surfaces.

Durable wheel hubs and 17 mm wheel hexes provide a strong connection between the wheels and heavy-duty drivetrain.

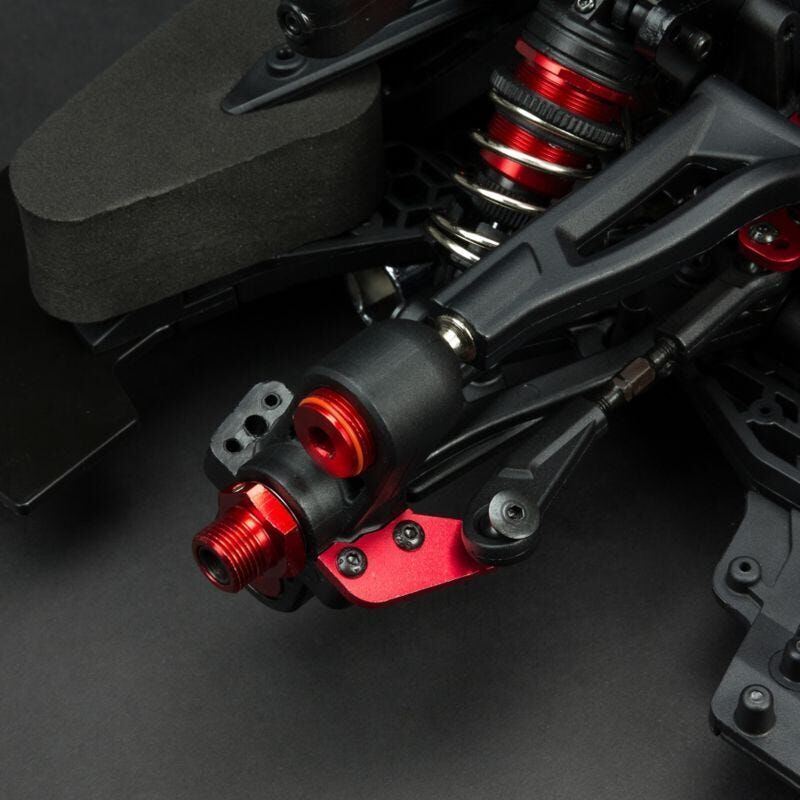

Adjustable Aluminium Shocks

The INFRACTION uses oil-filled, adjustable aluminium shocks with black-anodised aluminium front and rear shock towers.

The front shocks are approximately 77 mm long, while the rear shocks are approximately 87 mm long.

The independent suspension helps maintain traction and control across uneven surfaces while providing the suspension travel needed for aggressive street bashing.

Spektrum DX3 Radio System

The included Spektrum DX3 3-channel DSMR transmitter provides reliable 2.4GHz control.

The DX3 features:

• Adjustable AVC gain
• Dedicated handbrake control
• 3-channel operation
• DSMR 2.4GHz technology
• Spektrum Smart compatibility
• Ergonomic steering wheel and controls

The included SR6110AT receiver provides AVC and full-range telemetry capability.

Key Features

• 1/7 scale ARRMA INFRACTION 6S BLX V2
• ARA7615V2T1 Blue version
• 4WD mid-motor all-road street bash truck
• Ready-to-Run configuration
• Spektrum FIRMA 4074 2050Kv 4-pole brushless motor
• Spektrum FIRMA 150A Smart ESC
• 3S, 4S and 6S LiPo compatible
• 80+ mph / 128+ km/h potential top speed
• Spektrum DX3 3-channel DSMR transmitter
• Spektrum SR6110AT AVC receiver
• Active Vehicle Control
• Spektrum Smart telemetry
• Mechanical rear handbrake
• Spektrum SPMS650 waterproof brake servo
• ARRMA ADS-15M waterproof metal-gear steering servo
• Three oil-filled metal gear differentials
• Heavy-duty steel driveshafts
• High-speed centre driveshaft support
• All-metal differential outdrives
• Updated internal gear profile
• 3 mm 6061-T6 aluminium chassis
• Centre chassis brace
• Adjustable aluminium oil-filled shocks
• Black-anodised aluminium shock towers
• dBoots Hoons all-road tyres
• 17 mm wheel hexes
• Adjustable rear wing
• Full-width front splitter
• Rear diffuser
• Adjustable front and rear body mounts
• Large battery trays
• Waterproof electronics

Specifications

• Brand: ARRMA
• Model: INFRACTION 6S BLX V2
• Part Number: ARA7615V2T1
• Colour: Blue
• Scale: 1/7
• Vehicle Type: All-Road / Resto-Mod Street Bash Truck
• Drive: 4WD
• Power Type: Electric Brushless
• Build Status: Ready-to-Run
• Power System: 6S
• Motor: Spektrum FIRMA 4074 2050Kv
• Motor Type: 4-Pole Brushless
• ESC: Spektrum FIRMA 150A Smart
• Radio: Spektrum DX3 3-Channel DSMR
• Receiver: Spektrum SR6110AT AVC
• Steering Servo: ARRMA ADS-15M Waterproof Metal Gear
• Brake Servo: Spektrum SPMS650 Waterproof
• Differentials: 3 Oil-Filled Metal Gear
• Gear Pitch: 1.0 MOD
• Standard Pinion: 15T
• Speed Pinion: 25T
• Spur Gear: 46T
• Internal Gear Ratio: 2.8:1
• Final Drive Ratio: 8.58:1
• Torque Split: 50/50
• Chassis: 3 mm 6061-T6 Aluminium
• Suspension: Independent
• Shock Type: Aluminium Oil-Filled
• Front Shock Length: 77 mm
• Rear Shock Length: 87 mm
• Tyres: dBoots Hoons All-Road
• Wheel Hex: 17 mm
• Front Track: 308 mm
• Rear Track: 305 mm
• Length: 695 mm
• Width: 310 mm
• Height: 200 mm
• Wheelbase: 406 mm
• Ground Clearance: 15 mm
• Weight: Approximately 5 kg without battery
• Top Speed: 80+ mph / 128+ km/h
• Battery Compatibility: 3S, 4S or 6S LiPo
• Maximum Battery Dimensions: 180 × 55 × 70 mm
• Connector: IC5
• Water Resistant: Yes
• Surface: All-Road

ARRMA's current specifications confirm the 695 mm length, 406 mm wheelbase, 5 kg weight, 308 mm front track, 305 mm rear track, 15 mm ground clearance and 80+ mph top speed.

Battery & Charger Required

The INFRACTION is supplied Ready-to-Run, but batteries and charger are sold separately.

Compatible battery configurations include:

• 2 × 2S LiPo batteries
• 2 × 3S LiPo batteries
• 1 × 4S LiPo battery
• 1 × 6S LiPo battery

For the dual-battery setup, batteries should use compatible EC5 or IC5 connectors.

The vehicle's large battery trays accommodate batteries up to approximately 180 × 55 × 70 mm. ARRMA recommends a minimum 35C 5000mAh LiPo, with 100C 5000mAh recommended for high-performance use.

What's Included

• ARRMA INFRACTION 6S BLX V2 1/7 4WD RTR
• Spektrum FIRMA 4074 2050Kv Brushless Motor
• Spektrum FIRMA 150A Smart ESC
• Spektrum DX3 3-Channel DSMR Transmitter
• Spektrum SR6110AT AVC Receiver
• ARRMA ADS-15M Waterproof Metal-Gear Steering Servo
• Spektrum SPMS650 Waterproof Brake Servo
• dBoots Hoons All-Road Tyres
• Mechanical rear handbrake system

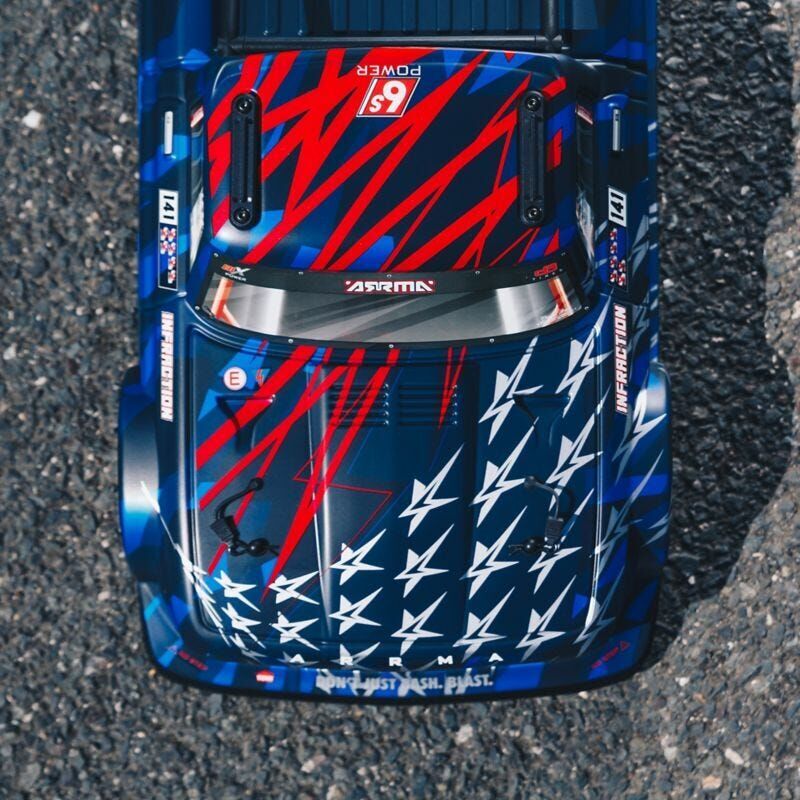

• Blue factory-finished body
• 25T speed pinion
• IC5 loop connector
• Cross wrenches
• Hex wrenches
• Instruction manual

Built for High-Speed Street Bashing

The ARRMA INFRACTION 6S BLX V2 combines extreme brushless performance with the versatility of an all-road platform.

Its 4WD drivetrain, AVC stability control, mechanical handbrake, aerodynamic package, Hoons tyres and powerful 6S brushless system make it capable of high-speed runs, controlled drifting, aggressive cornering and spectacular street-bashing action.

The ARA7615V2T1 Blue version features the same proven V2 performance and equipment as the Silver T2, with a distinctive Blue Resto-Mod body finish.

Please note: This is a high-performance RC vehicle designed for experienced drivers. Always operate in a large, open and suitable area away from people, traffic and obstacles. Follow all manufacturer instructions regarding LiPo batteries, charging and safe operation.
