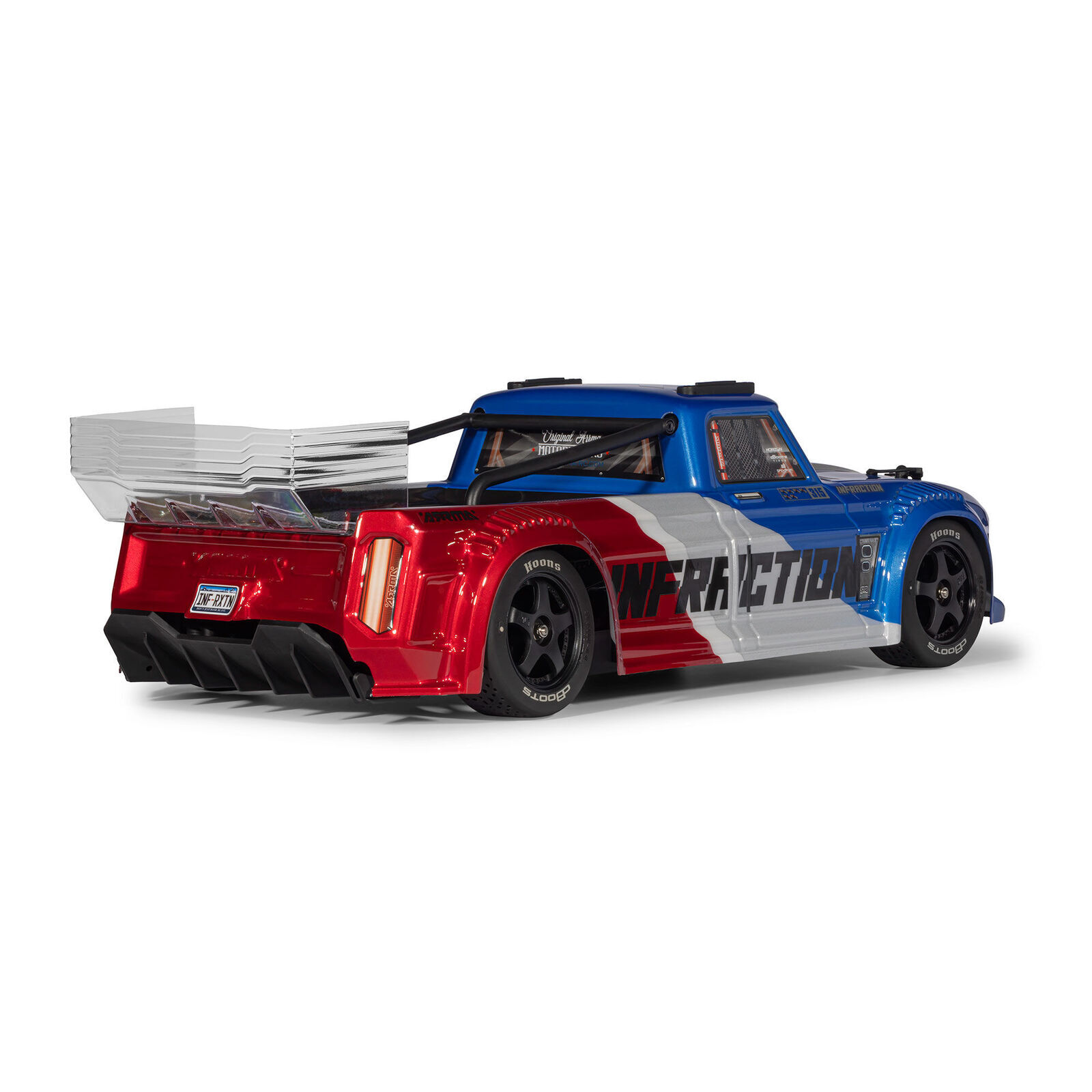

ARRMA INFRACTION 223S DSC 4X4 1/8 RTR Brushless All-Road Street Bash Truck

The ARRMA INFRACTION 223S 4X4 is a high-performance 1/8 scale all-road street bash truck designed for high-speed runs, aggressive launches, drifting, cornering and serious RC bashing.

The ARA4315V4 combines ARRMA's proven 4WD platform with a powerful Spektrum FIRMA 3660 3400Kv brushless motor, Spektrum FIRMA 100A V2 Smart ESC and Spektrum Dynamic Stability Control (DSC).

With the optional high-speed pinion installed, the INFRACTION 223S is capable of 65+ mph / 105+ km/h on suitable 3S LiPo power. The vehicle is also fully compatible with 2S LiPo batteries for more manageable performance.

Powerful 223S Brushless System

The INFRACTION 223S is powered by a Spektrum FIRMA 3660 3400Kv brushless motor paired with a Spektrum FIRMA 100A V2 Smart waterproof and dustproof ESC.

The power system is designed for:

• 2S LiPo operation
• 3S LiPo operation
• Smart telemetry
• IC5 battery connections
• High-speed street running

The integrated cooling fan helps control temperatures during extended high-speed operation.

65+ MPH High-Speed Performance

The INFRACTION is built specifically for high-speed all-road driving.

With the included optional speed pinion, the truck can reach 65+ mph / 105+ km/h under suitable conditions.

The low-profile street truck body, rear diffuser, wide stance and dBoots HOONS tyres work together to provide stability and grip during high-speed runs.

Spektrum Dynamic Stability Control

The INFRACTION 223S features Spektrum Dynamic Stability Control (DSC).

DSC automatically applies steering correction to help maintain control during high-speed driving and stunts.

The transmitter provides four DSC modes:

• High – ideal for beginners and maximum stability
• Medium – suited to lower-grip surfaces
• Low – designed for high-grip surfaces
• Off – maximum driver control

The DSC system can be adjusted directly from the transmitter.

4WD All-Road Drivetrain

The INFRACTION uses a robust 4WD drivetrain designed to handle the high torque generated by the 3400Kv brushless motor.

The drivetrain features metal internal differential gears and all-metal differential pinion gears derived from ARRMA's tougher 4S platforms.

Heavy-duty composite slider driveshafts provide efficient power transfer while helping absorb drivetrain shock loads.

Overload Coupling

An integrated overload coupling helps protect the drivetrain from sudden shock loads.

The sealed, maintenance-free design provides additional protection during hard launches and aggressive driving.

Gear Differentials

The INFRACTION uses front and rear gear differentials.

Factory differential oil specification is:

• Front: 10,000 cSt
• Rear: 10,000 cSt

The differentials use metal internal gears for increased durability.

Easy Gear Mesh Adjustment

The INFRACTION features convenient access windows for motor adjustment.

The grommeted access points make it easier to adjust the motor position and gear mesh without extensive disassembly.

The vehicle is supplied with a 19T pinion, with a 28T optional speed pinion available for maximum speed.

dBoots HOONS Tyres

The INFRACTION is fitted with dBoots HOONS street tyres.

These tyres are designed specifically for high-speed pavement driving and provide the grip needed for launches, cornering and drifting.

They are durable enough to handle repeated high-speed passes and hard acceleration.

Oil-Filled Shocks

The INFRACTION features oil-filled composite shocks designed to absorb bumps, cracks and uneven sections of pavement.

Factory shock oil is 2,000 cSt.

The suspension can be tuned using different shock oils, springs and mounting positions to suit different surfaces.

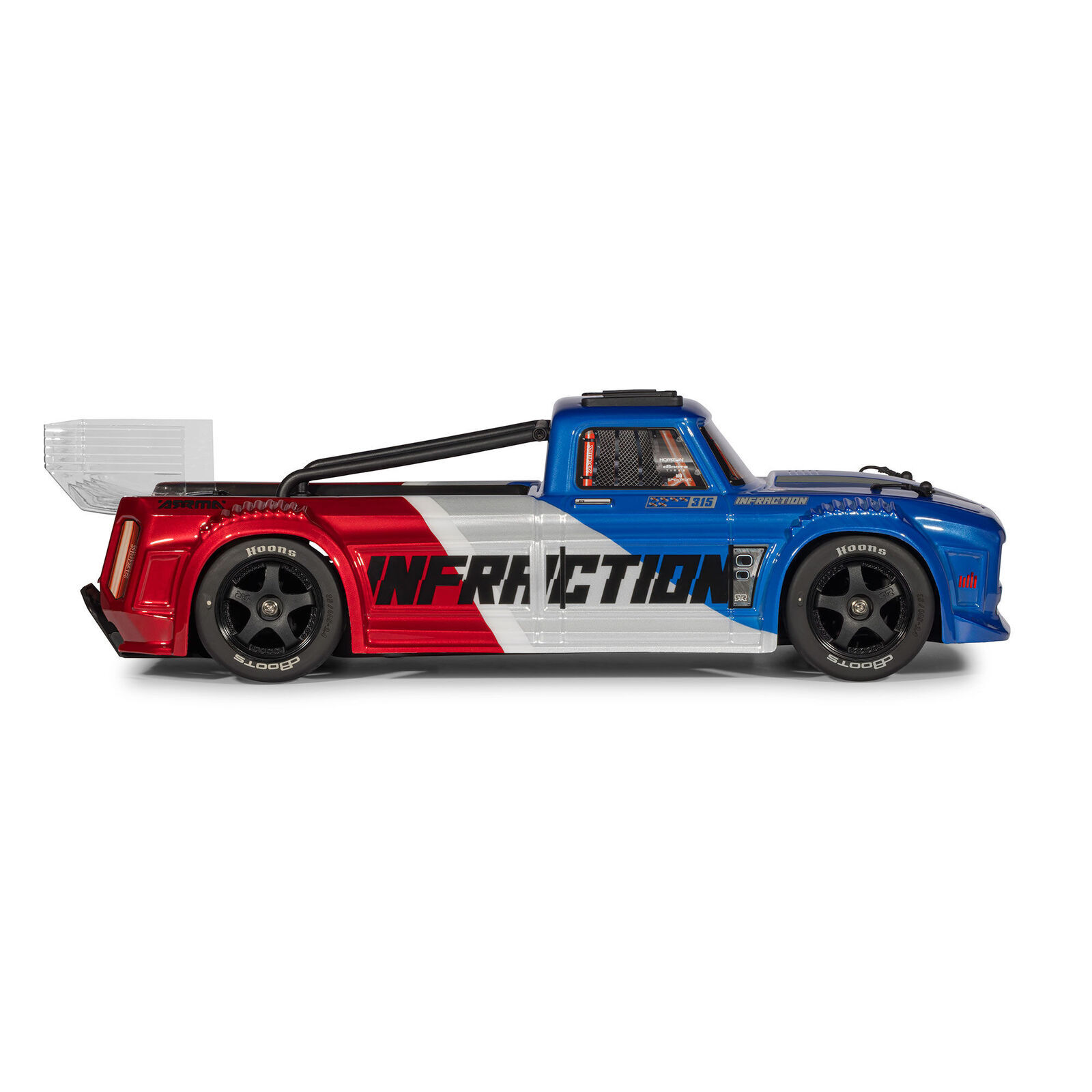

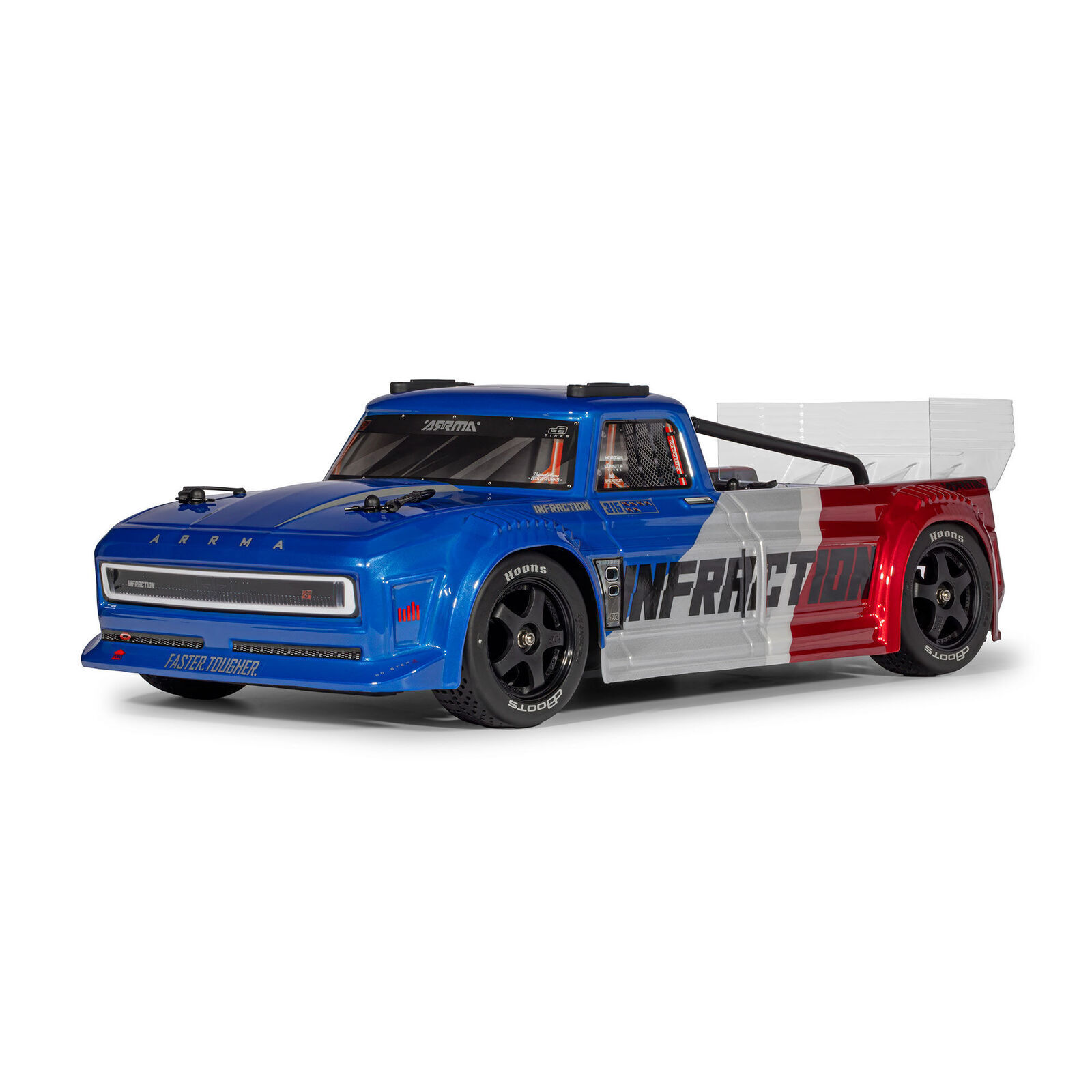

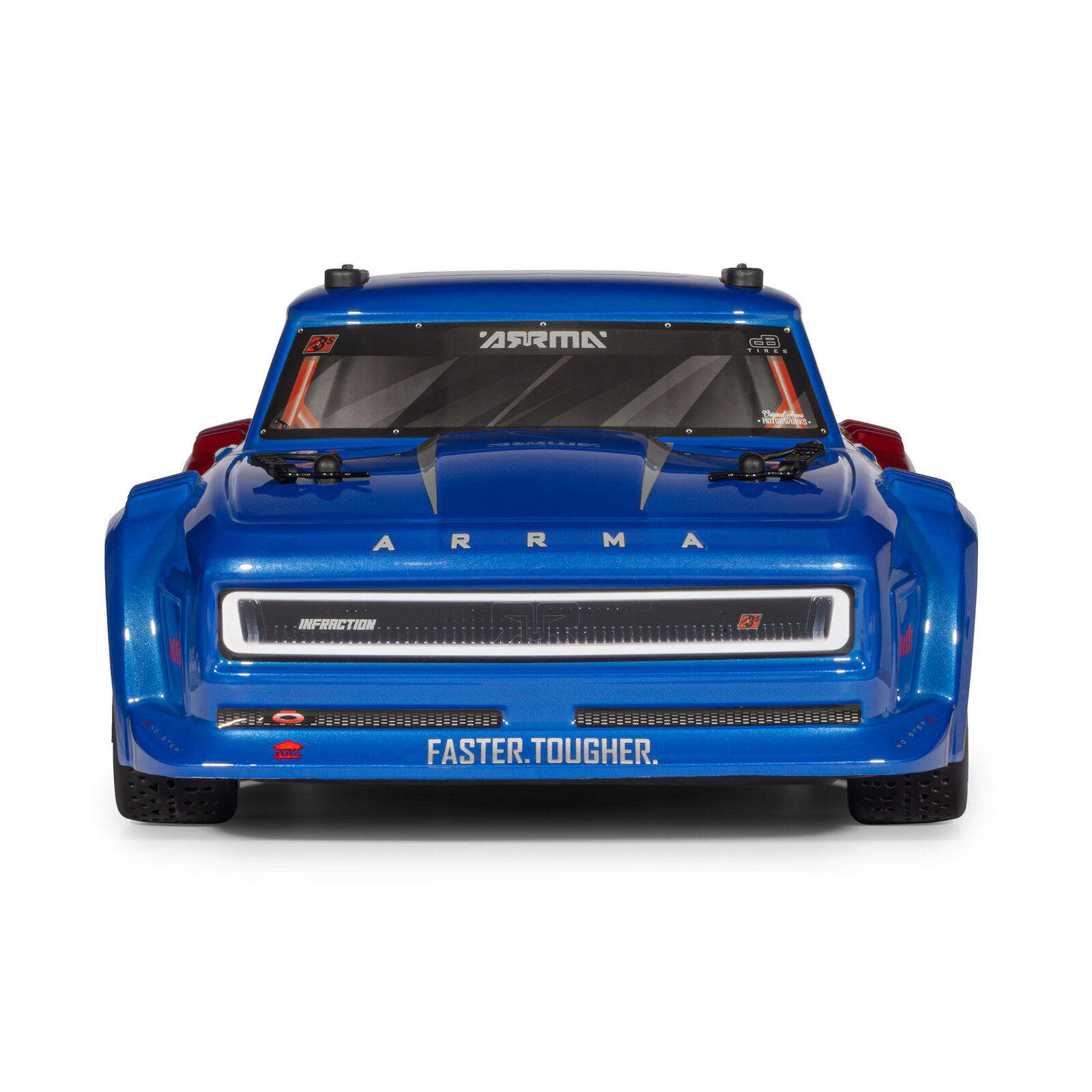

Detailed Street Body

The INFRACTION features an aggressive street-inspired body with detailed styling and aerodynamic features.

The body incorporates:

• Rear diffuser
• Integrated stone guard
• Roof protection
• Aggressive street styling
• Durable composite roof skids

The rear diffuser helps provide additional stability at speed.

Durable Composite Chassis

The rugged composite chassis is designed specifically for high-speed all-road use.

An integrated stone guard helps protect the centre driveshaft from stones and other debris thrown up by the tyres.

The chassis also uses captured hinge pins and durable suspension components for increased reliability.

Spektrum SLT3 Transmitter

The included Spektrum SLT3 3-channel 2.4GHz transmitter provides reliable control and simple adjustment of the vehicle's driving characteristics.

Features include:

• 50% throttle limit
• 75% throttle limit
• 100% throttle
• Adjustable steering rate
• DSC mode adjustment
• Ergonomic grip
• Foam steering wheel

The throttle limiter is particularly useful for newer drivers before progressing to full 3S performance.

Spektrum S662 Steering Servo

The INFRACTION is equipped with a Spektrum S662 metal-geared steering servo.

The servo provides:

• 17 kg / 236 oz-in torque
• 0.15 sec / 60° speed
• Steel gears
• 25T output spline
• Alloy centre case
• Improved heat dissipation

Key Features

• 1/8 scale ARRMA INFRACTION 223S
• ARA4315V4
• 4WD brushless all-road street bash truck
• Ready-to-Run
• Spektrum FIRMA 3660 3400Kv brushless motor
• Spektrum FIRMA 100A V2 Smart waterproof ESC
• 2S and 3S LiPo compatible
• 65+ mph / 105+ km/h potential top speed
• Spektrum Dynamic Stability Control
• Four selectable DSC modes
• Metal internal differential gears
• All-metal differential pinion gears
• Heavy-duty composite slider driveshafts
• Overload drivetrain coupling
• dBoots HOONS street tyres
• Oil-filled composite shocks
• Rear diffuser
• Integrated stone guard
• Composite roof skids
• 14 mm wheel hexes
• Spektrum S662 metal-geared servo
• Spektrum SLT3 transmitter
• IC5 connector
• Waterproof and dustproof electronics

Specifications

• Brand: ARRMA
• Model: INFRACTION 223S DSC 4X4
• Part Number: ARA4315V4
• Scale: 1/8
• Vehicle Type: All-Road Street Bash Truck
• Drive: 4WD
• Power Type: Electric Brushless
• Completion Level: Ready-to-Run
• Power System: 223S
• Motor: Spektrum FIRMA 3660 3400Kv Brushless
• ESC: Spektrum FIRMA 100A V2 Smart
• Receiver: Spektrum SLR370 3-Channel DSC
• Radio: Spektrum SLT3 3-Channel 2.4GHz
• Steering Servo: Spektrum S662 Metal Gear
• Servo Torque: 17 kg / 236 oz-in
• Differentials: Front and Rear Gear
• Front Diff Oil: 10,000 cSt
• Rear Diff Oil: 10,000 cSt
• Shock Oil: 2,000 cSt
• Pinion: 19T
• Optional Speed Pinion: 28T
• Spur Gear: 50T
• Gear Pitch: Mod 0.8
• Internal Gear Ratio: 2.85:1
• Final Drive Ratio: 7.50:1
• Chassis: Rugged Composite
• Suspension: Independent
• Shock Type: Oil-Filled Composite
• Tyres: dBoots HOONS
• Wheel Hex: 14 mm
• Connector: IC5
• Length: 562 mm
• Width: 256 mm
• Height: 161 mm
• Wheelbase: 335 mm
• Ground Clearance: 15 mm
• Weight: 2.91 kg
• Battery Compatibility: 2S or 3S LiPo
• Maximum Battery Dimensions: 147 × 51 × 48 mm
• Top Speed: 65+ mph / 105+ km/h with speed gearing
• Water Resistant: Yes
• Surface: All-Road / Street

ARRMA's current specifications confirm the 562 mm length, 256 mm width, 161 mm height, 335 mm wheelbase and 2.91 kg weight. The battery compartment accepts packs up to 147 × 51 × 48 mm.

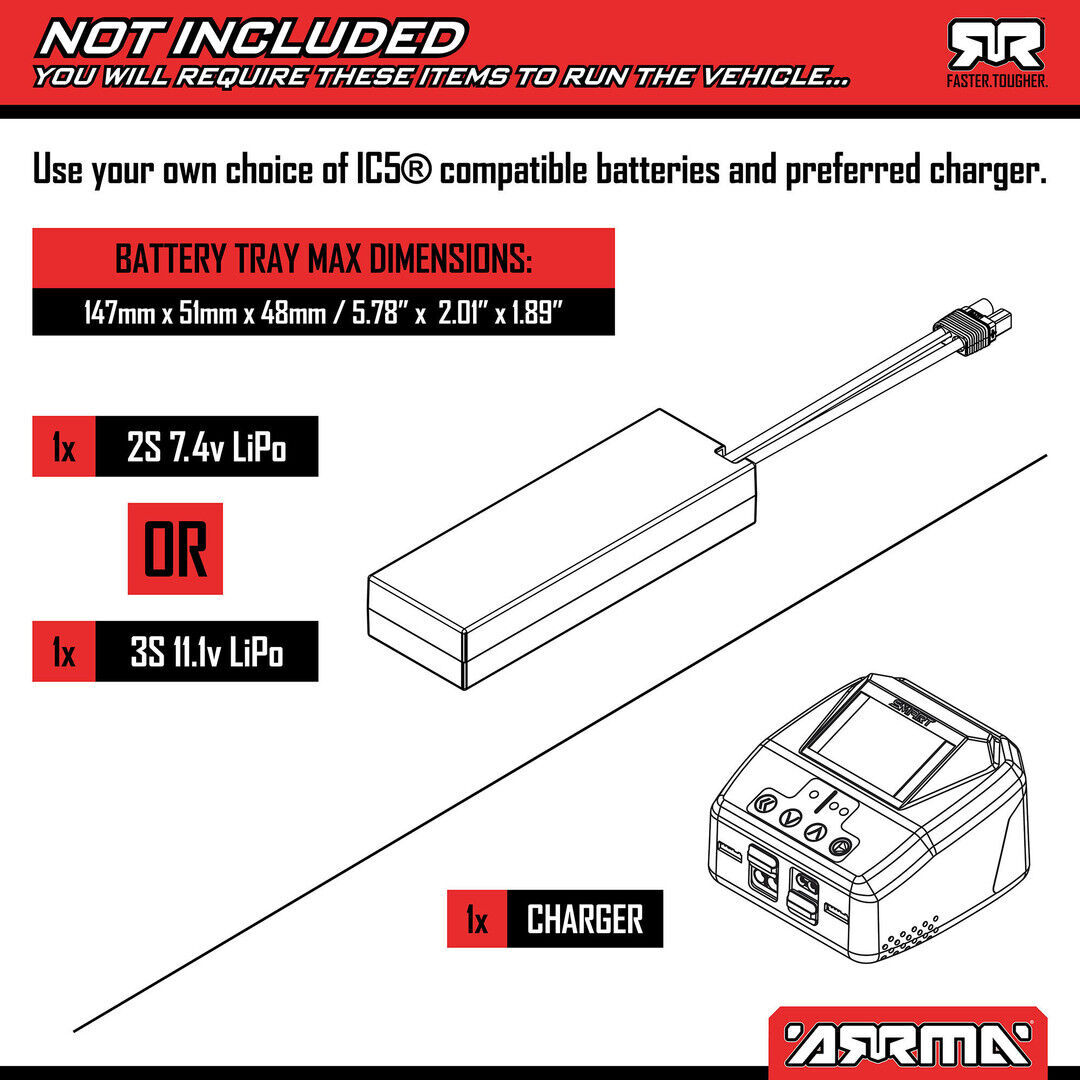

Battery & Charger Required

The INFRACTION 223S is supplied Ready-to-Run, but battery and charger are sold separately.

Compatible batteries:

• 1 × 2S LiPo
• 1 × 3S LiPo

For maximum speed, a suitable 3S LiPo is recommended.

The battery must fit within the maximum dimensions of approximately 147 × 51 × 48 mm.

The vehicle uses an IC5 connector.

ARRMA lists the Spektrum Smart G2 3S 5000mAh 50C IC5 battery as a suitable accessory.

What's Included

• ARRMA INFRACTION 223S 4X4 1/8 RTR Street Bash Truck
• Spektrum FIRMA 3660 3400Kv Brushless Motor
• Spektrum FIRMA 100A V2 Smart ESC
• Spektrum SLR370 DSC Receiver
• Spektrum S662 Metal-Geared Steering Servo
• Spektrum SLT3 3-Channel Transmitter
• dBoots HOONS Street Tyres
• Factory-finished body
• Rear diffuser
• Speed pinion
• Instruction manual
• Transmitter batteries

Built to Own the Asphalt

The ARRMA INFRACTION 223S 4X4 is designed for drivers who want serious street-bashing performance.

Its 3400Kv brushless motor, 100A Smart ESC, 4WD drivetrain, metal differential gears and dBoots HOONS tyres provide the performance needed for high-speed passes, hard launches, drifting and aggressive cornering.

With DSC stability control, selectable throttle limits and compatibility with both 2S and 3S LiPo batteries, the INFRACTION can be tailored to suit a wide range of driving abilities.

For experienced drivers, install the supplied high-speed gearing and unleash 65+ mph / 105+ km/h performance.

Please note: This is a high-performance brushless RC vehicle designed for use on suitable closed or private surfaces. Always operate in a large, open and appropriate area away from people, traffic and obstacles. Follow all manufacturer instructions regarding LiPo batteries, charging and safe operation.
