XRAY XRAY SCX'23 - 2WD 1/10 ELECTRIC SHORT COURSE TRUCK

Designed, developed, and fully manufactured in-house at the XRAY factory in Slovakia, Europe, using the most high-tech German and Swiss machines and premium European materials, crafted with XRAY's legendary attention to detail by our artistic production specialists. The SCX is truly a masterpiece.

XRAY € s dedicated staff produced the SCX using advanced German and Swiss CNC machines and premium European materials. Engineered and manufactured at the XRAY factory in Slovakia; the SCX is another example of the attention to detail the designers put into each of XRAY € s products.

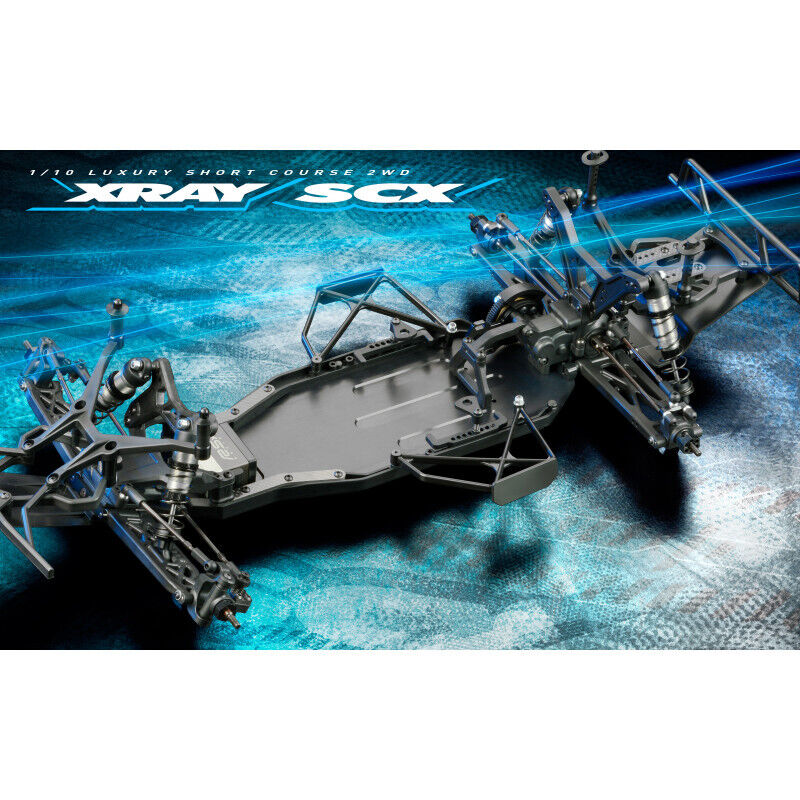

2023 All New Features:

• CNC-machined 2.5mm Swiss 7075 T6 aluminum lightweight chassis.
• Chassis features black coating, applied on Xray € s robotic coating line.
• Tweak-free fully adjustable battery holder
• Smart quick-release battery system
• LCG transmission with super-narrow, ultra-low CG gear box
• LCG gear box features a differential height adjustment.
• Motor mount brace ensures optimum flex via a pivot ball mount.
• LCG differential has greater internal oil volume to increase consistency of the diff action.
• Smooth gear diff with composite case and cover with internal satellite gears.
• Lightweight motor mount is machined from Swiss 7075 T6 aluminum and is designed to fit the LCG gear box design and spur gear protector.
• Both front AND; rear suspensions feature adjustable suspension holders with multiple roll center positions.
• SCX constant velocity drives are manufactured from world-renowned Hudy Spring Steel.
• Rear uprights feature aluminum roll center mounts with adjustable roll center positions.
• Aluminum suspension holders feature the Integrated Suspension Settings (I.S.S. „ ¢) which allows for quick AND; easy suspension geometry set-up.
• Three different suspension arms available: medium (included), hard (optional), and graphite (optional), each suitable for certain track conditions.
• Ultra-lightweight 12mm wheel hex-drive hubs are CNC-machined from Swiss 7075 T6 black-coated aluminum.
• Three different steering blocks available for various track conditions: medium (included), hard (optional) and graphite (optional.)
• Two different chassis braces available € “ medium (optional) and hard (included).
• Two different upper decks available € “ medium (optional) and hard (included).

Required To Run:

• Radio System and (1) Servo
• Body and Polycarbonate Paint
• Motor and Electronic Speed Control
• Tires, Wheels AND; CA Glue
• 48 Pitch Pinion Gear
• 2S Shorty LiPo Battery and Compatible Charger
• Tools AND; Misc Accessories (see manual)
• Tires and Wheels
• CA Glue
• 48 Pitch Pinion Gear
• Tools
