Description

x-maxx toughness. Monster truck style.

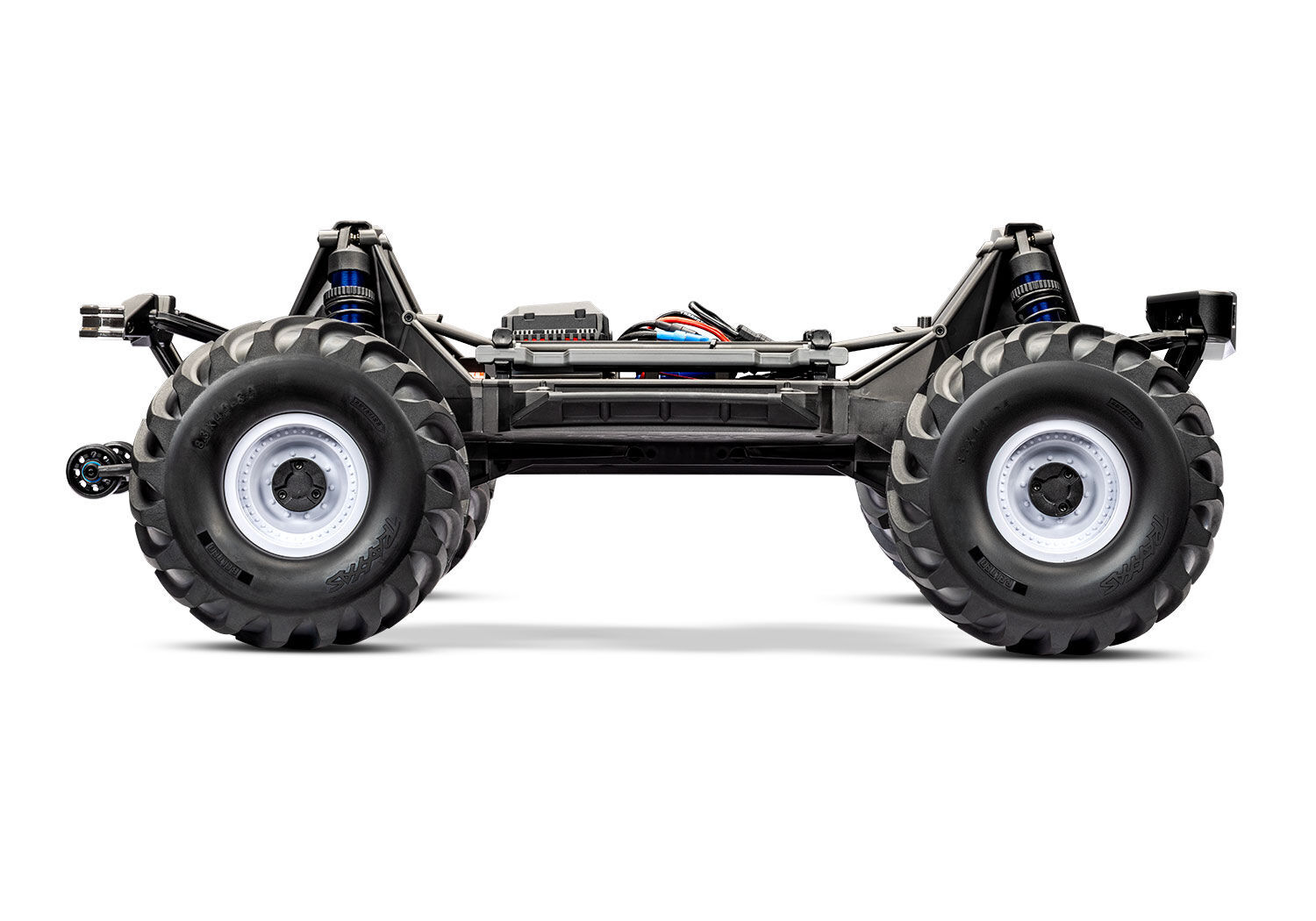

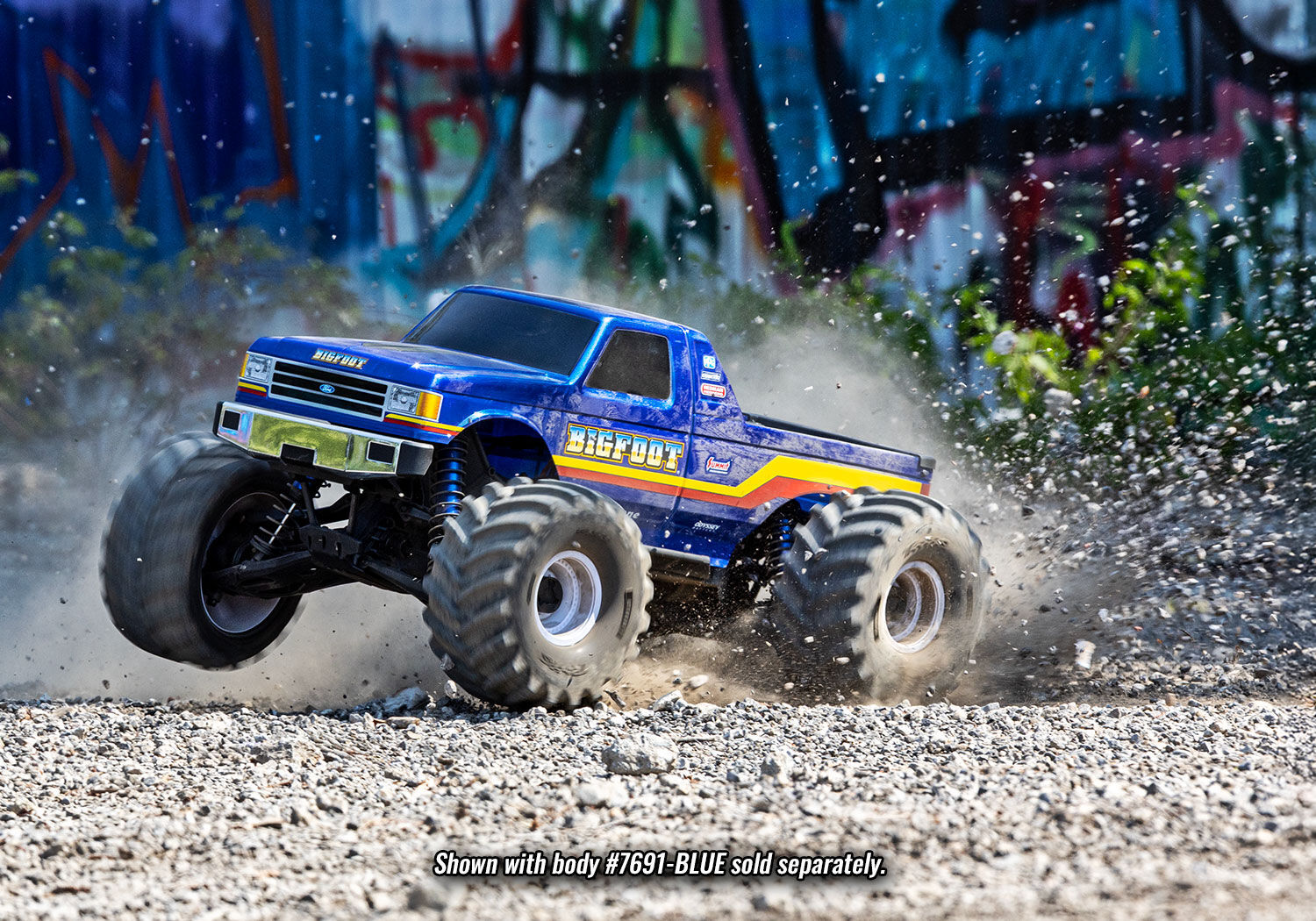

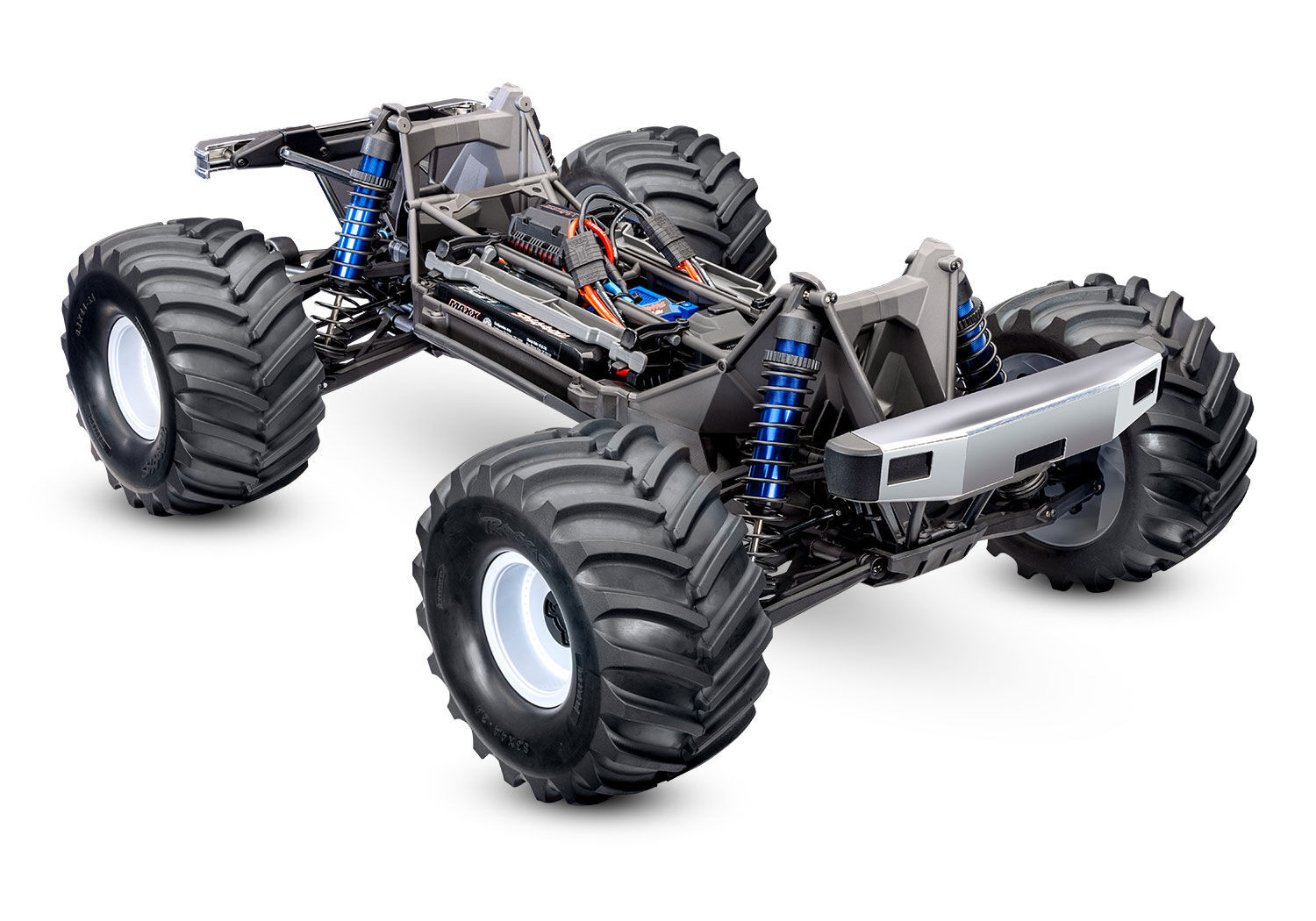

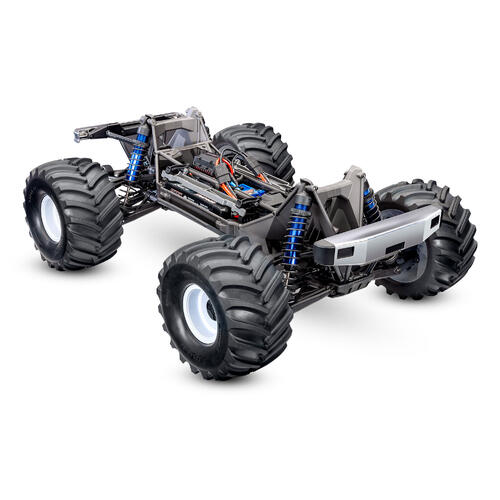

The new x-monster chassis combines the legendary power and durability of x-maxx with even more strength, larger size, and a new series of replica monster truck bodies. New belted chevron-pattern monster truck tires deliver outstanding traction for jaw-dropping acceleration and 50+ mph speed with the authentic scale looks of a real monster truck. Choose your favorite ford or chevy body (sold separately) and unleash 30+ volts of extreme 8s power!

model specs

name: x-monster chassis
type: monster truck
speed: 50+ mph with two 4s lipo batteries and optional speed gear (sold separately)
skill level: 6
scale: x-truck
weight: 19. 1 pounds (8. 66 kg)
length: 30. 67 inches (779 mm)
width: 21. 3 inches (540 mm)
front track: 21. 3 inches (540 mm)
height: 13. 99 inches (355 mm)
wheelbase: 18. 92 inches (480 mm)
center ground clearance: 4. 2 inches (107 mm)
drive system: shaft-driven 4wd
driveline: shaft-driven 4wd
transmission: single speed
differential type: sealed, hardened steel bevel, limited slip
gear pitch: 1. 0 metric pitch
steering servo: 2085xl metal gear ultra-high-torque waterproof
radio system: tqi 2. 4 ghz 2-channel
battery compartment specs: 197 mm x 52 mm x 44 mm

motor specs

name: velineon 1200xl
motor type: 1275 kv sensorless brushless
weight: 23. 44 ounces (665 g)
length: 4. 32 inches (110 mm)
diameter: 1. 88 inches (48 mm)
shaft size: 5 mm
connector type: 6. 5 mm bullet connectors

esc specs

name: velineon vxl-8s
esc type: brushless
case size: 2. 23 inches (58 mm) / 2. 83 inches (72 mm) / 1. 81 inches (46 mm)
weight: 7. 60 ounces (215. 5 g)
motor connectors: 6. 5 mm bullet connectors
battery connectors: traxxas high-current connectors
power wire: 10 gauge maxx cable



Features:

  • choose from several clipless monster truck bodies (sold separately)
    • quick one-hand installation and removal
    • pivoting rear latch mechanism
    • eliminates body posts and clips
    • reinforced for extra protection
  • vxl-8s waterproof electronic speed control
    • 8s lipo compatible
    • built-in cooling fan
    • machined heat sinks
    • 10-gauge silicone wire
    • integrated protection circuits
    • led status lights
  • velineon 1200xl brushless motor
    • 4-pole 1275 kv
    • 5 mm output shaft
    • aluminum slip-on heat sink
    • dual motor cooling fans
  • 50+ mph with two 4s lipo batteries and included optional pinion gear
  • traxxas stability management (tsm)
    • helps pr. 4 ghz high output radio system
      • traxxas link enabled
      • 2. 4 ghz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
      • automatically stores and loads settings for up to 30 traxxas link-enabled models
      • multi-function knob
      • adjustable steering and throttle percentage (dual rates)
      • adjustable steering and throttle sensitivity
      • bec voltage and motor temperature sensor installed
    • 8s driveline
      • steel pinion and spur gear
      • full-time shaft-driven 4-wheel drive
      • heavy-duty steel cv driveshafts
      • beefed-up steel differential output cups
      • splined aluminum center driveshaft
      • machined aluminum stub axles
      • torque-biasing center drive absorbs shocks and distributes power to all four wheels
      • 24 mm splined wheel hexes
      • sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • fixed motor. 2 mm damper shaft
    • lower seal cartridge includes integrated wiper seal combination
    • adjustable upper spring retainer
    • plastic shock caps with pivot balls
    • fixed shock locations
    • lower spring perches bolted on
  • wheels & tires
    • dual-profile white monster truck wheels
      • replica military-style axle hubs

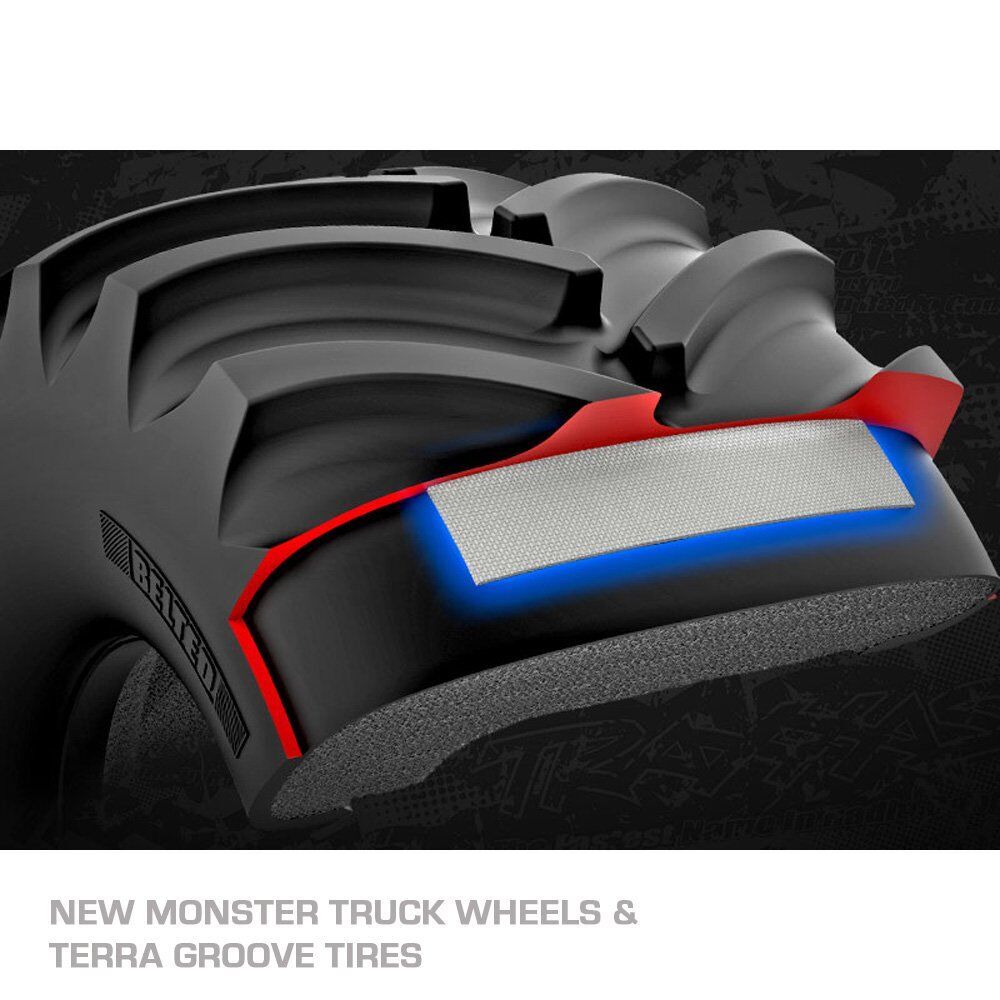

    • huge 8. 6" belted chevron-pattern monster truck tires
      • super-soft rubber compound for exceptional grip
      • internal belting virtually eliminates ballooning

What's included:

model 77036-4: fully assembled x-monster chassis with tqi 2. 4 ghz radio system, vxl-8s brushless power system, belted chevron tires. Requires mt body (sold separately).

whats in the box:

  • x-monster chassis with traxxas big block brushless motor
  • vxl-8s waterproof electronic speed control with integrated telemetry
  • optional high speed pinion gear
  • tqi 2. 4 ghz radio system
  • high quality maintenance tools

what youll need:

  • body

    Select your x-monster body from one of several available options.

  • batteries

    X-monster requires the use of lipo batteries equipped with traxxas high current connectors. Traxxas 4-cell, 6700 mah power cell lipo batteries with id are recommended for optimal performance (part 2890x).

  • charger

    Ez peak live dual 4s lipo charger with id

  • aa alkaline batteries

    Four aa alkaline batteries for the transmitter.

Read More
Specifications
SKU 77036-4
Barcode # 020334074232
Brand TRAXXAS
