Behold, RC4WD € s first ever Racing Monster Truck, the Carbon Assault! Created with premium parts and boundless customization, it uses proven suspension geometry and a light-weight carbon fiber chassis coupled with rugged CNC billet aluminum chassis components. The Carbon Assault has something for everyone from backyard basher to monster truck racer.

The Carbon Assault Monster Truck incorporates a chassis with multiple suspension mounts for various arrangements, suspension links that mimic dimensions of proven setups and a robust AX2 2-Speed transmission with hardened steel gears and a second gear for increased speed. The box includes 2 bodies, the first painted brilliant orange along with a complete sticker sheet featuring the epic Carbon Assault Logo, the second is an unpainted body so you can create your own racing scheme.

The Carbon Assault has components and features never seen on an RTR monster truck before. This truck is loaded with premium parts and will give hours of fun for the beginner monster truck driver and a solid platform for the advanced racer.

• RC4WD Wide D44 Front and Rear Axles
• CNC Billet Aluminum Axle Tubes and Trusses
• Axle Mounted Twister High Torque Servo
• 540 Brushed Motor 27T
• King Off-Road Racing Dual Spring Shocks
• The Rumble Monster Truck Racing Tires
• Ignitor 2.6" Monster Truck Racing Beadlock Wheels

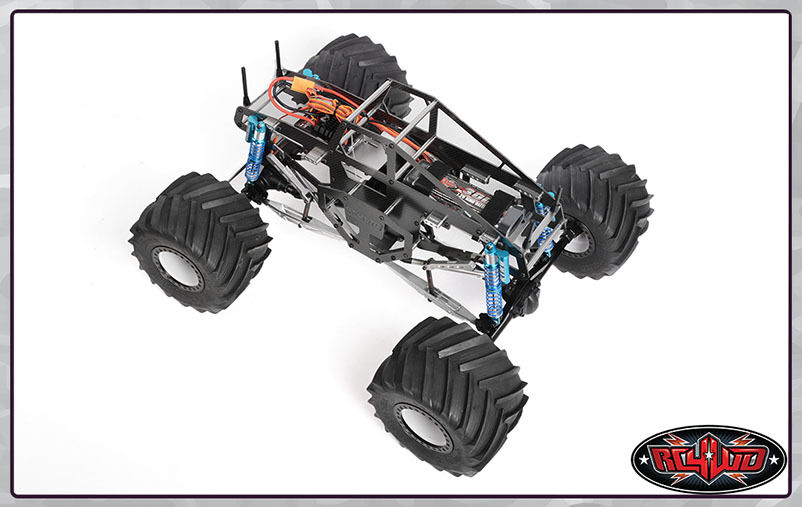

• Machine Cut 2mm Carbon Fiber Chassis
• CNC Billet Aluminum Chassis Braces and Skid Plate
• AX2 2-Speed Transmission with Twister Servo
• Outcry Extreme Speed Controller ESC w/ Program Card
• RC4WD Manticore Lexan Body Set
• Industry Standard Suspension Setup
• Adjustable Front and Rear Sway bars
• 6-Cell 3000MAH NIMH Battery Pack
• NIMH Peak Battery Charger

AX2 2 Speed Transmission Transmission

• CNC Machined Billet Aluminum
• 15T 32P Steel Pinion
• 60T 32P Delrin Spur
• Gear Ratio Pinion / Spur Ratio = 4:1
• 2 Speed
• Wide Steel 48 Pitch Internal Gears
• 1st Gear Ratio = 5.05:1
• 2nd Gear Ratio = 1.78:1
• Gears: Wide Steel, Delrin Spur, Slipper Clutch

D44 Wide Axle

• Ratio: 2.9 : 1
• Pinion Gear: 0.8 Mod 13T
• Hex Width: 242mm
• Hardened Steel Gears
• Case Material: Reinforced Nylon Plastic
• CNC Billet Aluminum Trusses and Tubes

Carbon Assault Suspension

• 4 Link Front and Rear Suspension

Shock Absorbers

• King Off-road Dual Spring Shocks (110mm) - Can Be Oil Filled

Wheels

• Ignitor 2.6" Monster Truck Racing Beadlock Wheels
• CNC Machined Billet Aluminum Beadlock Rings and 12mm Hex
• ABS Plastic Injection Molded Wheels and Center Cap
• Fits 2.6 Clod Tires
• OD: 3.08in / 78.3mm
• Width: 3.73in / 94.8mm
• Negative Offset: 1.39in / 35.4mm Each Weight: 7.16oz / 203.0g

Carbon Assault Dimensions

• Wheelbase: 358mm (14.1'')
• Width: 439mm (17.2'')
• Height: 304.5mm (11.9'')
• Ground Clearance: 85mm (3.3'')
• Final Drive Ratio: 2.9 : 1
• Weight: 10.0Lbs/4.54Kg

What's Included:

• 1x RC4WD Carbon Assault 1/10th Monster Truck w/ Manticore Lexan Body Set
