a new way to experience maxx fun

Overbuilt and over-the-top, the all-new mini maxxcaptures the engineering, unmatched power, and extreme durability that defines traxxas maxxperformance. Mini maxx is the perfect, take-anywhere size, delivering 30+ mph brushless speed and legendary maxx toughness that slides easily into a backpack.

maxx performance

Mini maxx does what the others cant, in a fast, fun, and compact form thats instantly recognizable and engineered to a zero-compromise standard for performance and durability. Its a whole new way to experience maxx-level fun in a powerful machine that continues the maxx legacy for speed and absolute toughness.

1/10 scale power system

The bl-2s brushless power system is already proven to deliver extreme power and wheel-standing torque in traxxas 1/10 scale vehicles. Installed in mini maxx, bl-2s power punches well above its weight for lightning-quick acceleration and 30+ mph top speed.

1/10 scale 4x4 driveline

Mini maxx is engineered to a higher standard with 1/10 scale 4x4 driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty u-joint driveshafts far exceed requirements for strength and long life.

maxx chassis technology

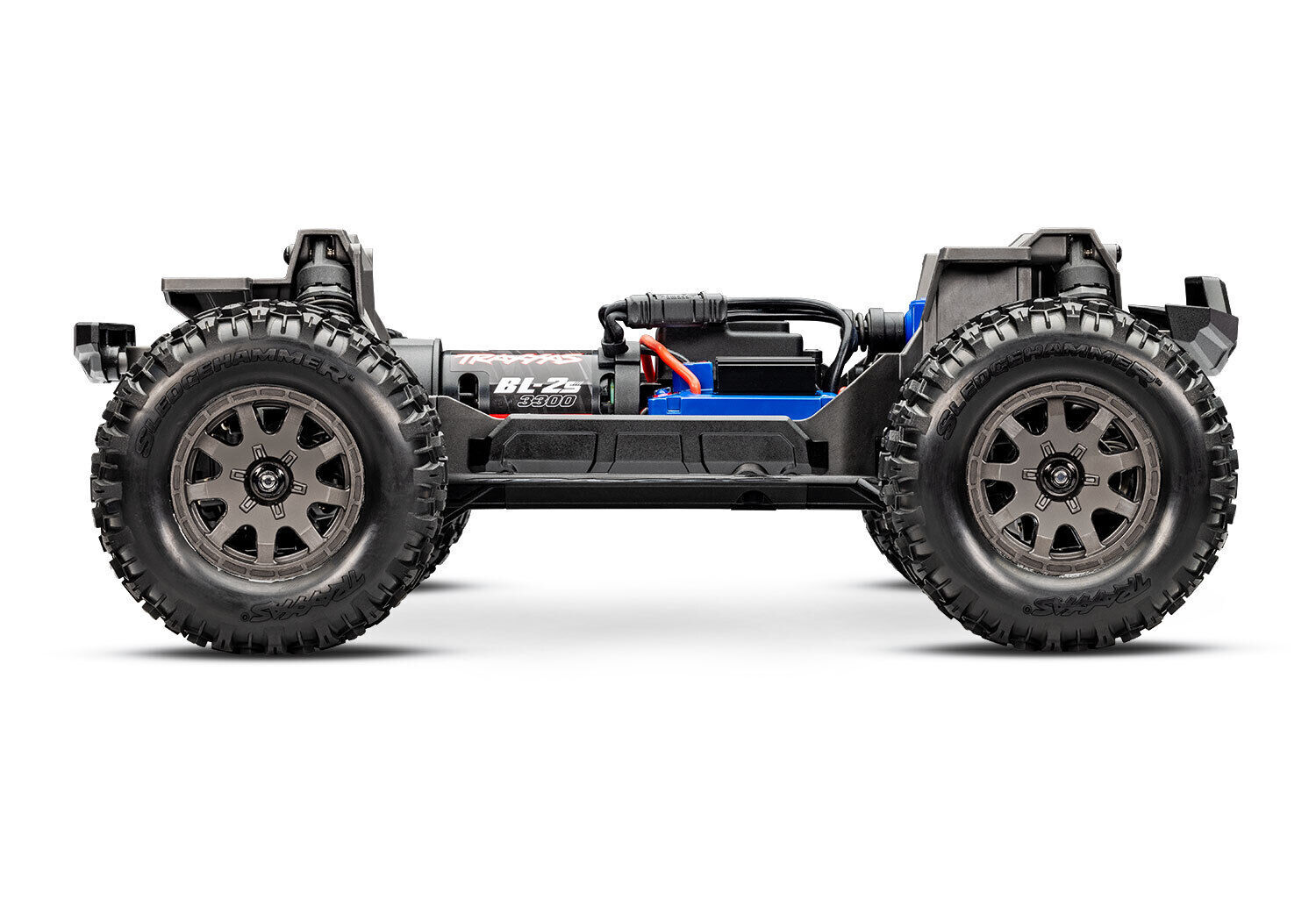

Mini maxx fits in a backpack but its built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know its a maxx. A maxx chassis is always engineered for ultimate strength, and mini maxx packs it all up in a supremely compact design.

clipless body

Mini maxxs innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When its time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.

long-travel suspension

1/10 scale ultra shocksand a long-travel independent suspension deliver widemaxxhandling and performance in a compact package. Mini maxxs beefy long travel suspension delivers superior strength and refined damping control to maintain composure over the roughest terrain.

features

30+ mph top speed

bl-2swaterproof electronic speed control

• heat sink accepts accessory cooling fan (3340)
• three programmable drive profiles
• sport mode - forward / brake / reverse
• race mode - forward / brake
• training mode- 50% forward / brake / 50% reverse
• traxxas ez-setone-button setup
• built-in two-stage low-voltage detection

bl-2sbrushless motor

• integrated cooling fan
• low-maintenance design
• efficient ball bearings
• 3300 kv

battery and charger included

• high-capacity 2-cell lipo battery
• 7. 4 volts
• 3500 mah for extended run time
• 2-amp usb-c charger
• idtechnology for faster, safer charging

tq2. 4 ghz transmitter

• full-size 2-channel transmitter
• all-day comfort with precise long-range control

clipless body mount system

• quick and easy installation and removal
• nerf bar channels for side body support
• reinforced for extra protection against tearing

1/10 scale 4x4 drivetrain

• full-time shaft-driven 4-wheel drive
• 1/10 scale extreme-duty telescoping driveshafts
• direct-drive (no transmission)
• fixed gear mesh system
• large 32-pitch gears
• sealed planetary steel-gear differentials
• fixed gear mesh system
• modular composite chassis

modular chassis with interlocking front and rear bulkheads

• absorbs and distributes impact energy
• easy to service and access components
• driveline is sealed in the chassis to keep out dirt

easy battery access

• battery is protected deep in the chassis
• battery hold-down pivots for easy access
• more secure than conventional retention systems

steering

• 1/10 scale 2056 waterproof high-torque servo
• heavy-duty double-shear bellcranks
• cam-style servo saver

suspension

• heavy-duty, double-shear suspension arms
• dual wishbone design
• extra tough outer suspension components

oil-filled ultra shocks

• full size 1/10 scale shocks
• large oil capacity
• easy to tune

bumpers and skid plates

• tough energy absorbing bumpers
• high-angle front skid plate
• rugged interlocking skid plates
• smooth undertray eliminates snags
• integrated nerf bars for side impact resistance

wheels and tires

• 2. 4³ black multi-spoke wheels
• 4³ sledgehammertires with foam inserts
• wide treadblock design
• multiple layers of biting edges

hex hardware with rust-resistant black oxide coating

sealed ball bearings

contents

• mini maxx ready-to-race monster truck
• bl-2s brushless power system
• 3500 mah 2-cell lipo battery
• 2-amp usb-c charger
• quick start guide
• tq 2. 4 ghz radio system
• high quality maintenance tools

requires

aa alkaline batteries

Four aa alkaline batteries for the transmitter

charging accessories

Power adapter 2912 and power cable 2916 recommended for peak charging performance

Specifications

• length : 13. 58 inches (345 mm)
• front track : 9. 94 inches (253 mm)
• rear track : 9. 94 inches (253 mm)
• ground clearance : 1. 06 inches (27 mm)
• weight : 3. 62 pounds (1. 64 kg)
• height : 5. 39 inches (137 mm)
• wheelbase : 8. 66 inches (220 mm)
• shock length : 3. 45 inches (88 mm)
• tire diameter : 3. 93 inches (100 mm)
• wheel diameter : 2. 6 (66 mm)
• speed control : bl-2s brushless esc
• motor (electric) : bl-2s sensorless brushless (3300 kv)
• transmission : direct-drive
• overall drive ratio : 9. 20:1
• differential type : planetary, steel gear
• gear pitch : 32
• chassis structure/material : composite modular tub
• brake type : electronic
• drive system : shaft-driven 4wd
• steering : double-shear bellcrank
• wheels and; tires : 2. 6³ wheels with pre-glued sledgehammertires
• radio system : tq2. 4 ghz (2-channel)
• servo : waterproof high-torque 2056
• top speed : 30+ mph
• skill level : 1
• battery tray : 113 mm l x 41 mm w x 22 mm h
• required batteries : 4œaa (transmitter)
