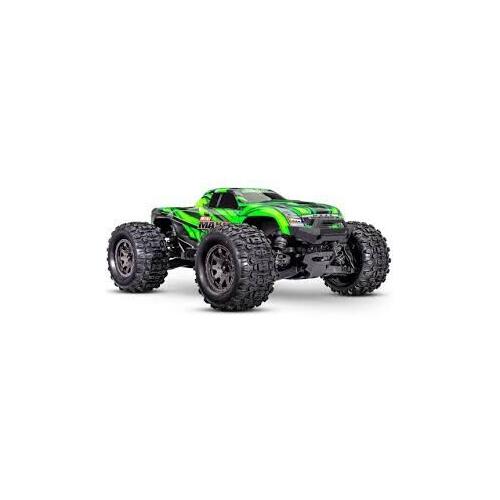

a new way to experience maxx fun

Overbuilt and over-the-top, the all-new mini maxx captures the engineering, unmatched power, and extreme durability that defines traxxas maxx performance. Mini maxx is the perfect, take-anywhere size, delivering 30+ mph brushless speed and legendary maxx toughness that slides easily into a backpack.

maxx performance

Mini maxx does what the others can € t, in a fast, fun, and compact form that € s instantly recognizable and engineered to a zero-compromise standard for performance and durability. It € s a whole new way to experience maxx-level fun in a powerful machine that continues the maxx legacy for speed and absolute toughness.

1/10 scale power system

The bl-2s brushless power system is already proven to deliver extreme power and wheel-standing torque in traxxas 1/10 scale vehicles. Installed in mini maxx, bl-2s power punches well above its weight for lightning-quick acceleration and 30+ mph top speed.

1/10 scale 4x4 driveline

Mini maxx is engineered to a higher standard with 1/10 scale 4x4 driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty u-joint driveshafts far exceed requirements for strength and long life.

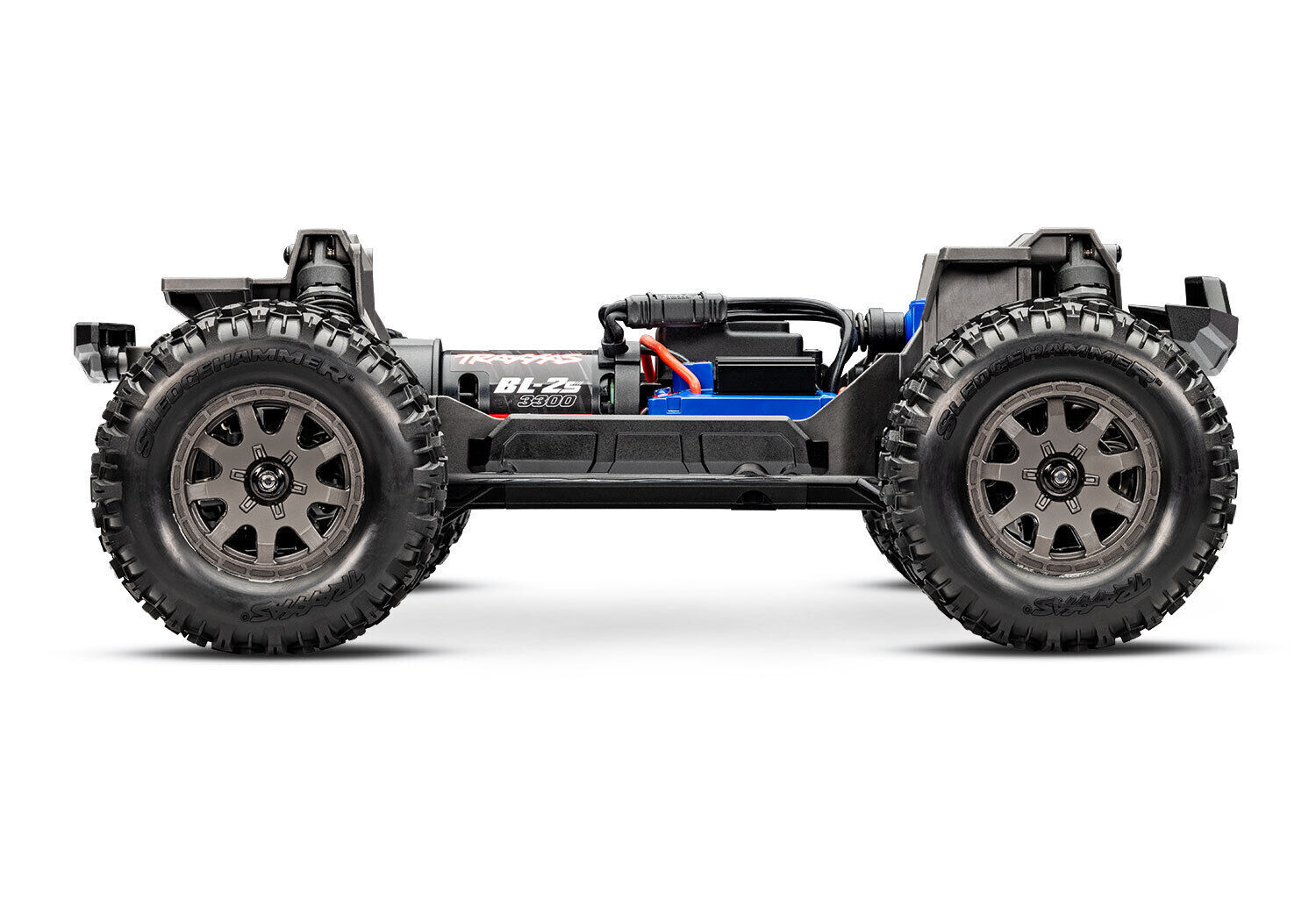

maxx chassis technology

Mini maxx fits in a backpack but it € s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know it € s a maxx. A maxx chassis is always engineered for ultimate strength, and mini maxx packs it all up in a supremely compact design.

clipless body

Mini maxx € s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it € s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.

long-travel suspension

1/10 scale ultra shocks „ and a long-travel independent suspension deliver widemaxx handling and performance in a compact package. Mini maxx € s beefy long travel suspension delivers superior strength and refined damping control to maintain composure over the roughest terrain.

features

30+ mph top speed

bl-2s „ waterproof electronic speed control

• heat sink accepts accessory cooling fan (3340)
• three programmable drive profiles
• sport mode - forward / brake / reverse
• race mode - forward / brake
• training mode „ - 50% forward / brake / 50% reverse
• traxxas ez-set one-button setup
• built-in two-stage low-voltage detection

bl-2s „ brushless motor

• integrated cooling fan
• low-maintenance design
• efficient ball bearings
• 3300 kv

battery and charger included

• high-capacity 2-cell lipo battery
• 7. 4 volts
• 3500 mah for extended run time
• 2-amp usb-c charger
• id technology for faster, safer charging

tq „ 2. 4 ghz transmitter

• full-size 2-channel transmitter
• all-day comfort with precise long-range control

clipless body mount system

• quick and easy installation and removal
• nerf bar channels for side body support
• reinforced for extra protection against tearing

1/10 scale 4x4 drivetrain

• full-time shaft-driven 4-wheel drive
• 1/10 scale extreme-duty telescoping driveshafts
• direct-drive (no transmission)
• fixed gear mesh system
• large 32-pitch gears
• sealed planetary steel-gear differentials
• fixed gear mesh system
• modular composite chassis

modular chassis with interlocking front and rear bulkheads

• absorbs and distributes impact energy
• easy to service and access components
• driveline is sealed in the chassis to keep out dirt

easy battery access

• battery is protected deep in the chassis
• battery hold-down pivots for easy access
• more secure than conventional retention systems

steering

• 1/10 scale 2056 waterproof high-torque servo
• heavy-duty double-shear bellcranks
• cam-style servo saver

suspension

• heavy-duty, double-shear suspension arms
• dual wishbone design
• extra tough outer suspension components

oil-filled ultra shocks „

• full size 1/10 scale shocks
• large oil capacity
• easy to tune

bumpers and skid plates

• tough energy absorbing bumpers
• high-angle front skid plate
• rugged interlocking skid plates
• smooth undertray eliminates snags
• integrated nerf bars for side impact resistance

wheels and tires

• 2. 4 € ³ black multi-spoke wheels
• 4 € ³ sledgehammer tires with foam inserts
• wide treadblock design
• multiple layers of biting edges

hex hardware with rust-resistant black oxide coating

sealed ball bearings

contents

• mini maxx ready-to-race monster truck
• bl-2s brushless power system
• 3500 mah 2-cell lipo battery
• 2-amp usb-c charger
• quick start guide
• tq 2. 4 ghz radio system
• high quality maintenance tools

requires

aa alkaline batteries

Four aa alkaline batteries for the transmitter

charging accessories

Power adapter 2912 and power cable 2916 recommended for peak charging performance

Specifications

• length : 13. 58 inches (345 mm)
• front track : 9. 94 inches (253 mm)
• rear track : 9. 94 inches (253 mm)
• ground clearance : 1. 06 inches (27 mm)
• weight : 3. 62 pounds (1. 64 kg)
• height : 5. 39 inches (137 mm)
• wheelbase : 8. 66 inches (220 mm)
• shock length : 3. 45 inches (88 mm)
• tire diameter : 3. 93 inches (100 mm)
• wheel diameter : 2. 6 (66 mm)
• speed control : bl-2s brushless esc
• motor (electric) : bl-2s sensorless brushless (3300 kv)
• transmission : direct-drive
• overall drive ratio : 9. 20:1
• differential type : planetary, steel gear
• gear pitch : 32
• chassis structure/material : composite modular tub
• brake type : electronic
• drive system : shaft-driven 4wd
• steering : double-shear bellcrank
• wheels and; tires : 2. 6 € ³ wheels with pre-glued sledgehammer tires
• radio system : tq „ 2. 4 ghz (2-channel)
• servo : waterproof high-torque 2056
• top speed : 30+ mph
• skill level : 1
• battery tray : 113 mm l x 41 mm w x 22 mm h
• required batteries : 4 € œaa €  (transmitter)
