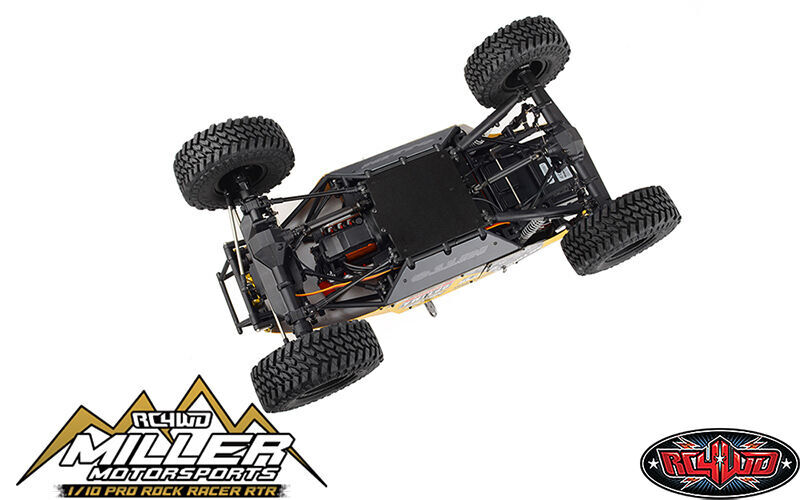

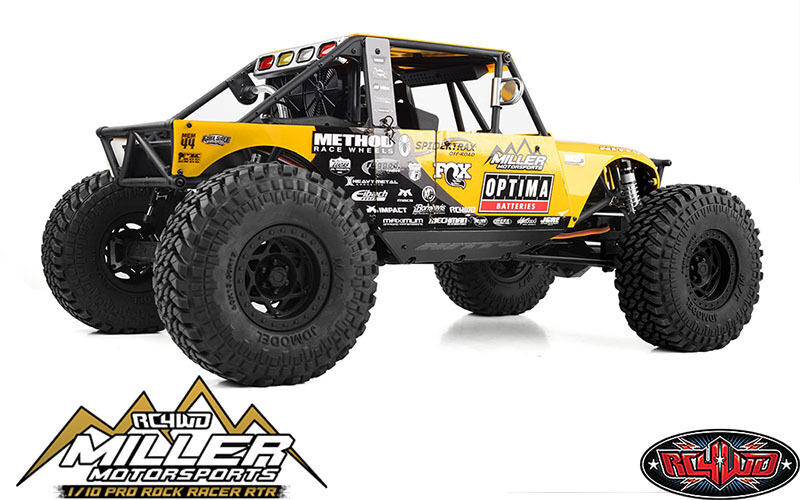

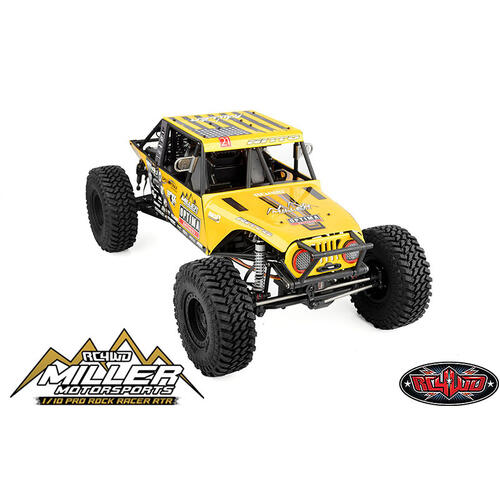

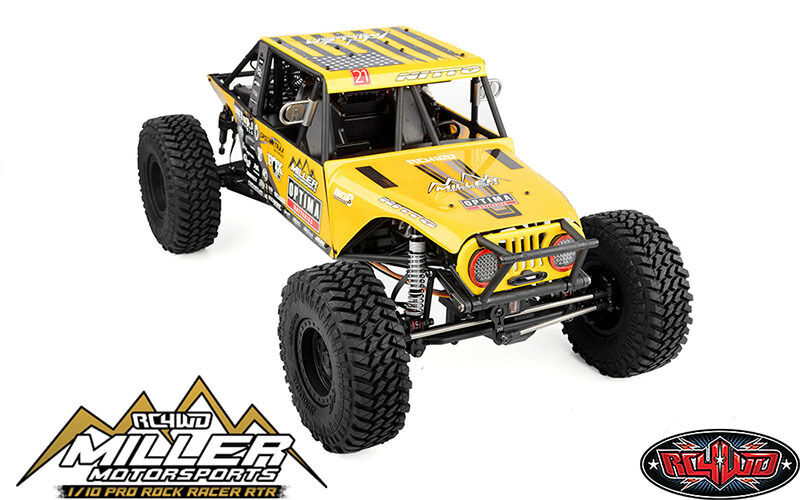

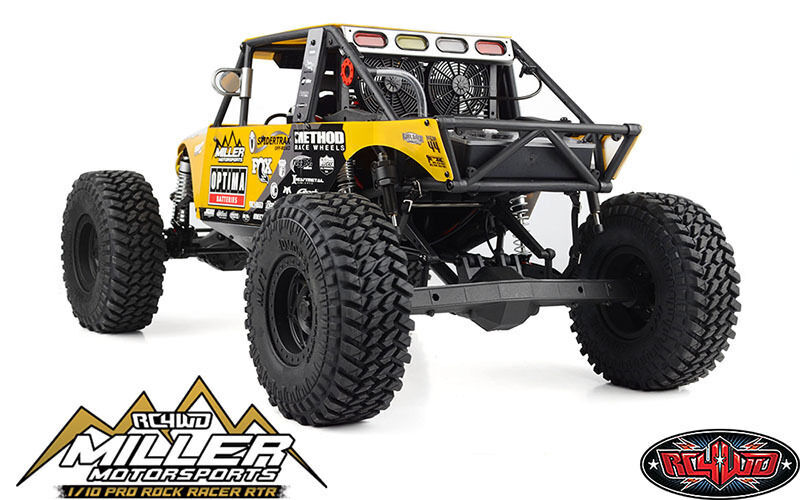

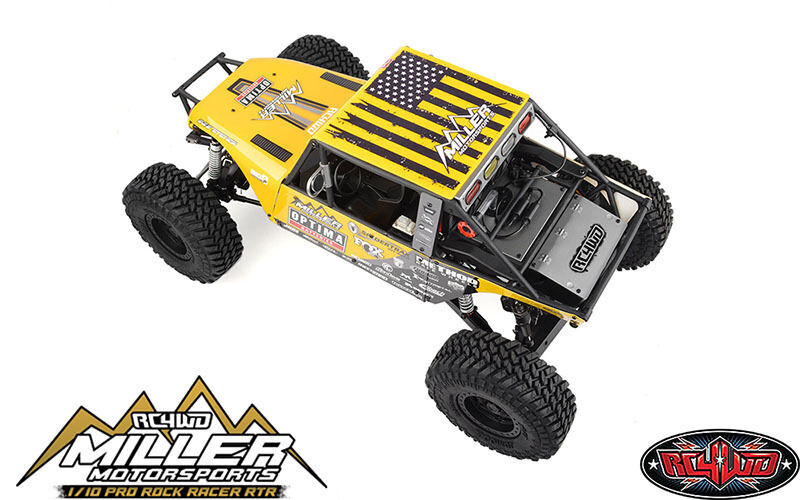

RC4WD Miller Motorsports 1/10 Pro Rock Racer RTR

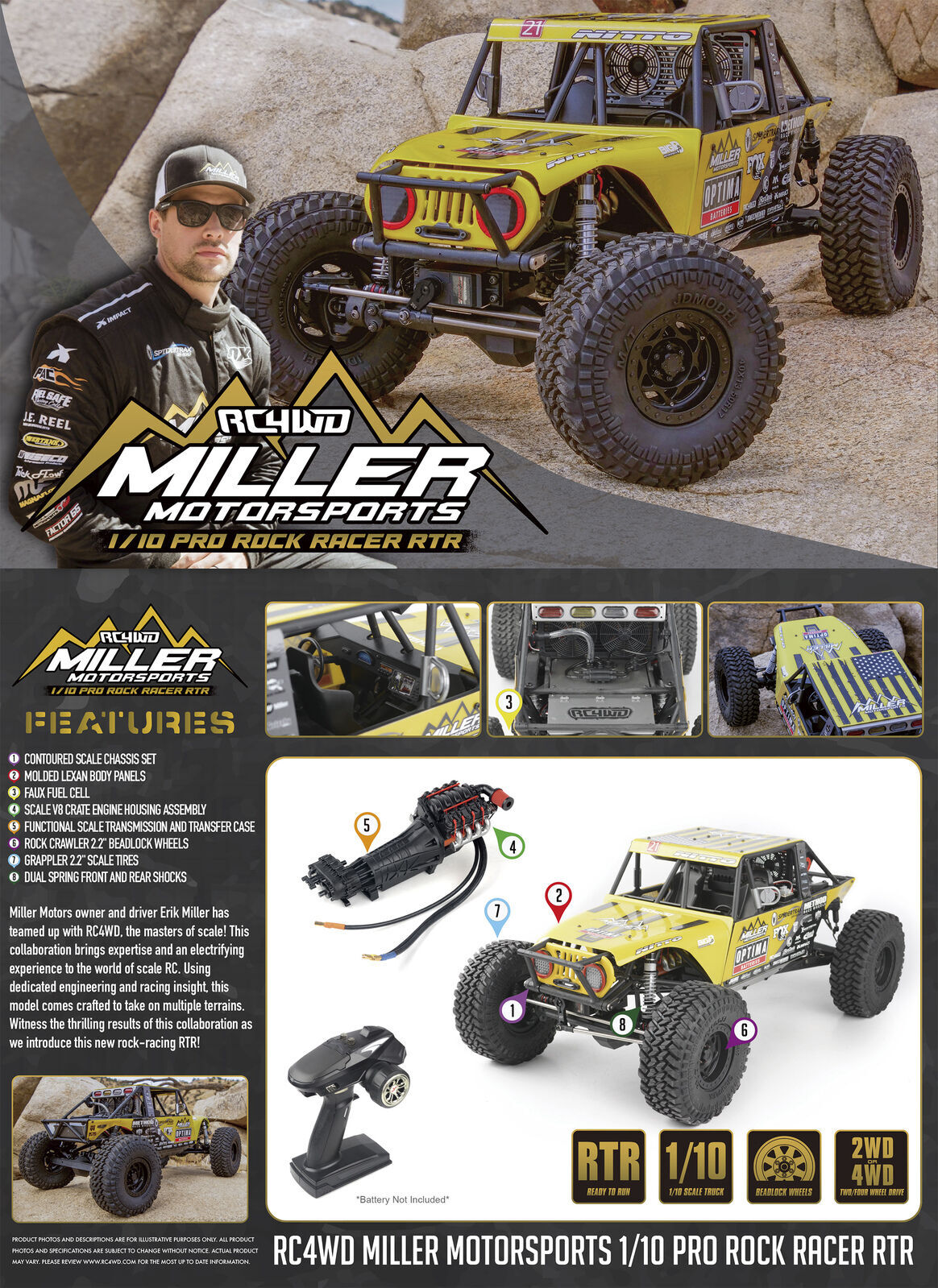

Miller Motors owner and driver Erik Miller has teamed up with RC4WD, the masters of scale! This collaboration brings expertise and an electrifying experience to the world of scale RC. Using dedicated engineering and racing insight, this model comes crafted to take on multiple terrains. Witness the thrilling results of this collaboration as we introduce this new rock-racing RTR!

Contoured Scale Chassis Set

Molded Lexan Body Panels

Faux Fuel Cell

Scale V8 Crate Engine Housing Assembly

Functional Scale Transmission and Transfer Case

Rock Crawler 2.2" Beadlock Wheels

Grappler 2.2" Scale Tires

Dual Spring Front and Rear Shocks

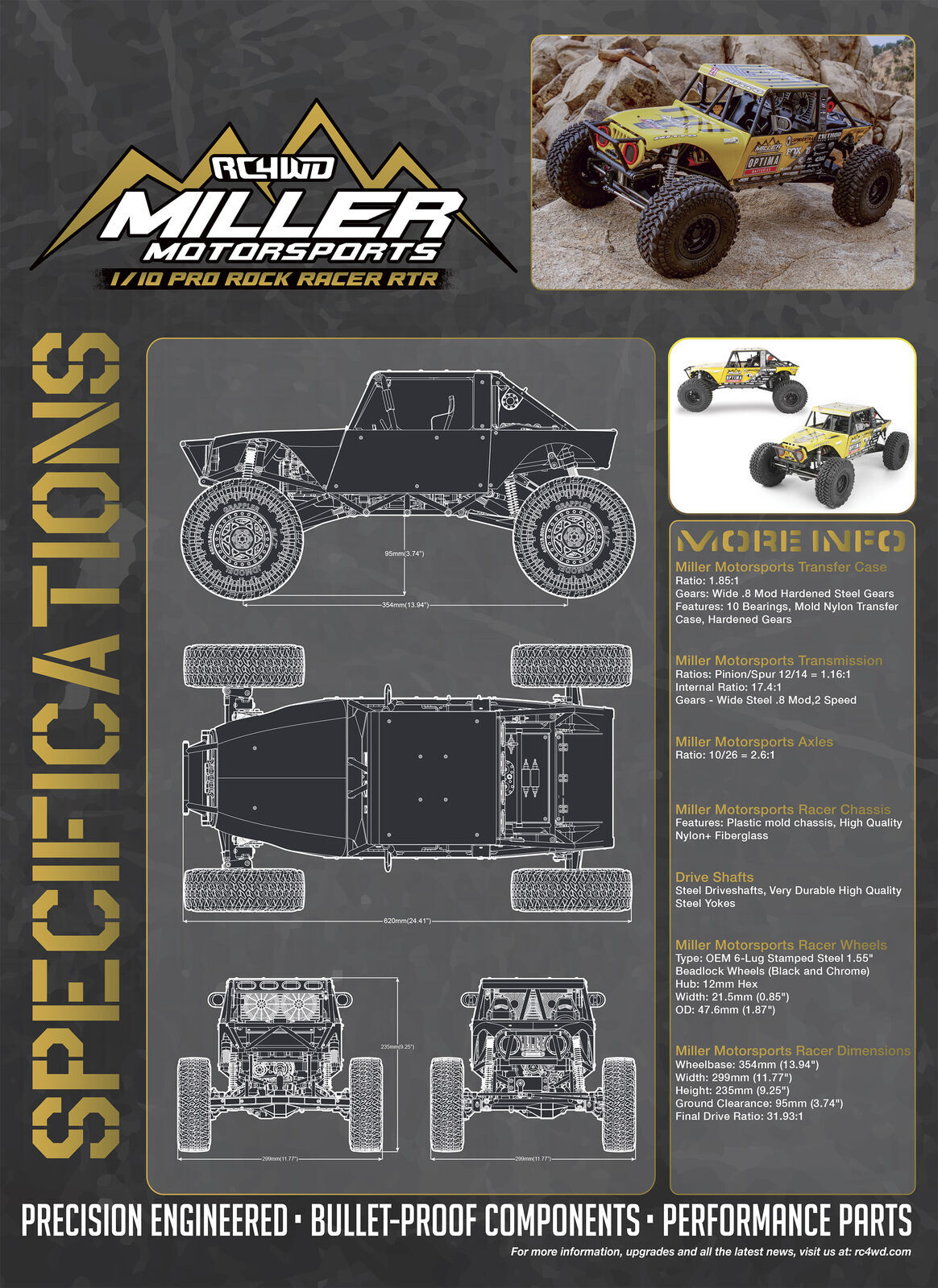

Miller Motorsports Transfer Case

Ratio: 1.85:1

Gears: Wide .8 Mod Hardened Steel Gears

Features: 10 Bearings, Mold Nylon Transfer Case, Hardened Gears

Miller Motorsports Transmission

Ratios: Pinion/Spur 12/14 = 1.16:1

Internal Ratio: 17.4:1

Gears - Wide Steel .8 Mod,2 Speed

Miller Motorsports Axles

Ratio: 10/26 = 2.6:1

Miller Motorsports Racer Chassis

Features: Plastic mold chassis, High Quality Nylon+ Fiberglass

Drive Shafts

Steel Driveshafts, Very Durable High Quality Steel Yokes

Miller Motorsports Racer Wheels

Type: OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Black and Chrome)

Hub: 12mm Hex

Width: 21.5mm (0.85")

OD: 47.6mm (1.87")

Miller Motorsports Racer Dimensions

Wheelbase: 354mm (13.94")

Width: 299mm (11.77")

Height: 235mm (9.25")

Ground Clearance: 95mm (3.74")

Final Drive Ratio: 31.93:1

Miller Motorsports Transfer Case

Ratio: 1.85:1

Gears: Wide .8 Mod Hardened Steel Gears

Features: 10 Bearings, Mold Nylon Transfer Case, Hardened Gears

Miller Motorsports Transmission

Ratios: Pinion/Spur 12/14 = 1.16:1

Internal Ratio: 17.4:1

Gears - Wide Steel .8 Mod,2 Speed

Miller Motorsports Axles

Ratio: 10/26 = 2.6:1

Miller Motorsports Racer Chassis

Features: Plastic mold chassis, High Quality Nylon+ Fiberglass

Drive Shafts

Steel Driveshafts, Very Durable High Quality Steel Yokes

Miller Motorsports Racer Wheels

Type: Rock Crawler 2.2" Plastic Beadlock Wheels

Hub: 12mm Hex

Width: 38.2mm (1.50")

OD: 62.6mm (2.46")

Miller Motorsports Racer Dimensions

Wheelbase: 354mm (13.94")

Width: 299mm (11.77")

Height: 235mm (9.25")

Ground Clearance: 95mm (3.74")

Final Drive Ratio: 31.93:1

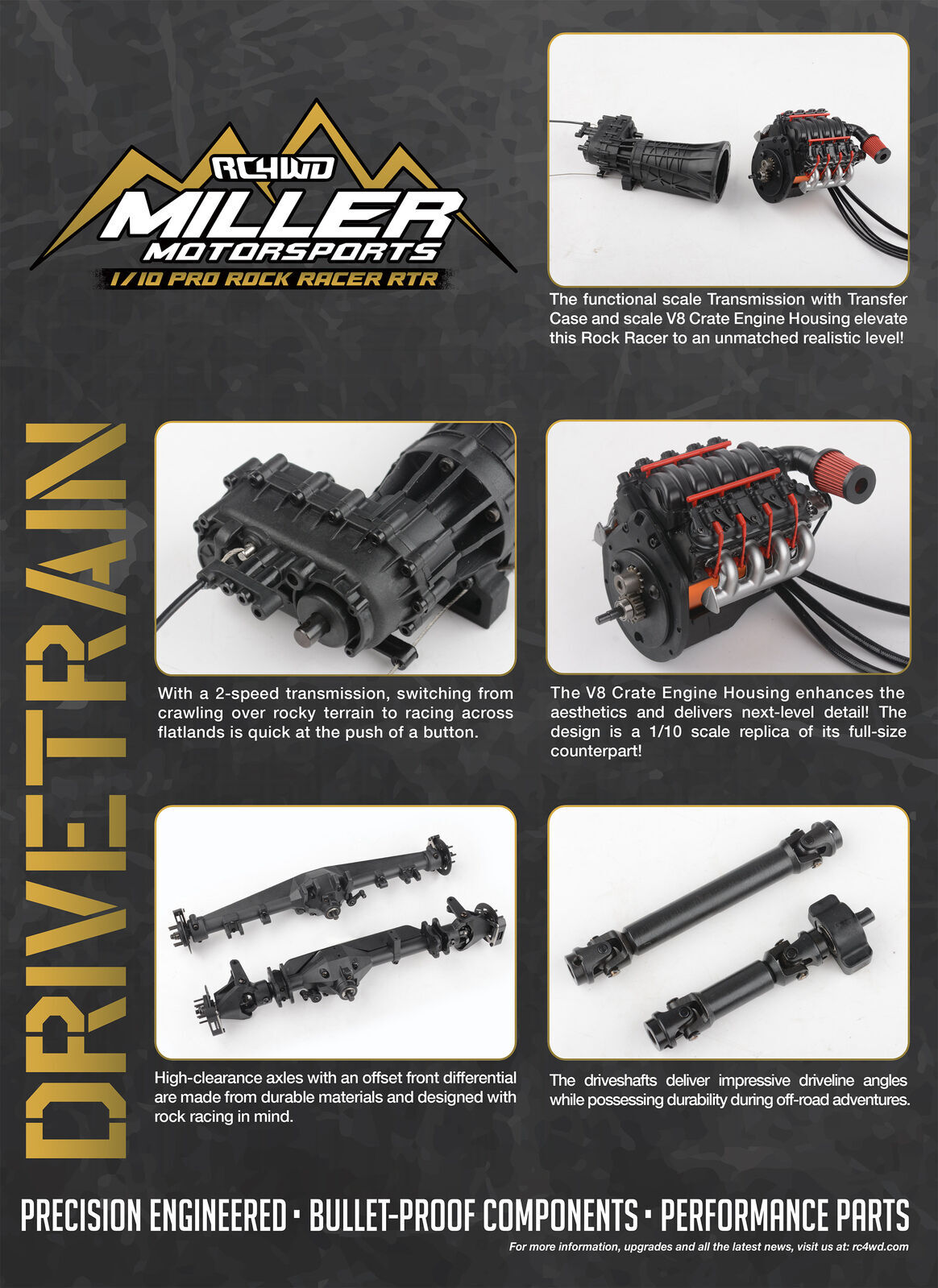

DRIVETRAIN

The functional scale Transmission with Transfer Case and scale V8 Crate Engine Housing elevate this Rock Racer to an unmatched realistic level!

With a 2-speed transmission, switching from crawling over rocky terrain to racing across flatlands is quick at the push of a button.

The V8 Crate Engine Housing enhances the aesthetics and delivers next-level detail! The design is a 1/10 scale replica of its full-size counterpart!

High-clearance axles with an offset front differential are made from durable materials and designed with rock racing in mind.

The driveshafts deliver impressive driveline angles while possessing durability during off-road adventures.

What's Included:

• 1x RC4WD Miller Motorsports 1/10 Pro Rock Racer RTR

Required:

• Battery (Consult your "ESC" manual) or 2S-3S Lipo Battery with XT60 Plug (Suggested Size: 155mm Length x 33mm Width x 44mm Height)
• Charger (Consult your battery guide)
