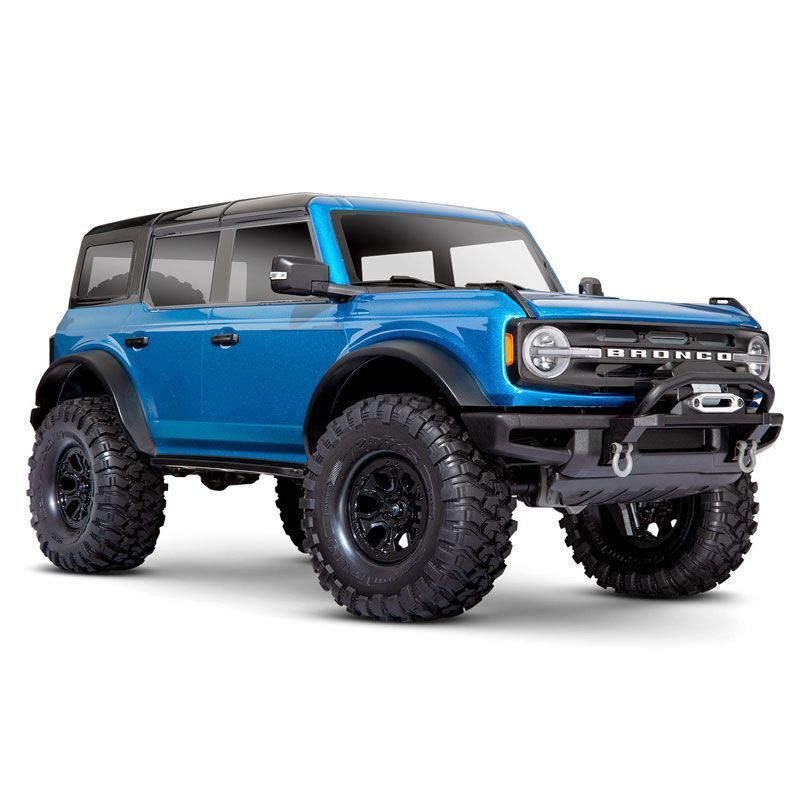

Traxxas trx4 2021 bronco - vblue

an off-road legend returns

The legend is back. After 25 years, the bronco has returned as fords top-performing 4x4 and americas most sought-after suv. Traxxas has captured the eagerly-anticipated bronco in exacting detail with all the capability and versatility of the award-winning trx-4. The traxxas bronco combines ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

innovation

Radically innovative technology combines with precision engineering to create a completely new breed of scale crawleronly from traxxas.

features

officially licensed 2021 ford bronco body

• two-tone paint with black roof and clear windows
• led-ready headlights and tail lights with multi-function capability

scale details

• black molded grille with white bronco logo
• replica hood cowl w/ wipers and folding mirrors
• replica spare tire mount
• replica door handles
• tough pvc fender flares, wheel wells, and floor pans
• front and rear bronco bumpers with skid plate and replica winch

clipless body mounting

• clipless design for smooth body appearance
• rugged internal body cage for added rigidity
• body details mount directly to internal frame

trail-tuned xl-5 hv waterproof electronic speed control

• fully waterproof design
• five drive profiles
• sport mode” forward / brake / reverse
• race mode” forward / brake / no reverse
• training mode” 50% forward / 100% brake / 50% reverse (patented)
• trail mode” forward / brake / reverse / with trail-tuned drag brake in neutral
• crawl mode” forward / instant reverse - no neutral with 100% hill holding brake
• traxxas ez-set one-button setup
• large, efficient heat sink
• wide voltage latitude 6“7 cell nimh (7. 2“8. 4v) and 2“3s lipo (7. 4“11. 1v)
• two stage low voltage protection (lvd)

motor

• powerful titan 21t reverse rotation motor with internal cooling fan
• precision, preset gear mesh adjustments
• motor retention separate from gear mesh

portal axles

• increase ground clearance
• eliminate torque twist
• steel gears
• improve axle geometry and reduce strain on driveshafts

rigid steel frame

• 1. 5mm thick steel frame rails increase torsional rigidity
• innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
• adjustable rear shock tower positions for swb and lwb configurations
• rugged rock rails adjust for width
• wire routing clips integrated into frame rails

drivetrain

• full-time shaft driven 4-wheel drive
• tough 6mm stub axles
• steel front cv driveshafts
• hardened steel rear axle shafts
• remote locking steel gear differentials with cable-actuation
• steel gear transfer case

innovative battery compartment

• hinged battery strap allows quick and easy battery access
• no pins to lose
• accommodates different height batteries
• accepts full-size long battery packs
• integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

transmission

• two speed high/low range with remote shifting
• dual horizontal shafts
• twin friction plate slipper clutch
• easily removed for servicing

steering

• chassis mounted 2075x metal gear digital servo
• superior 45 ° steering angle
• direct steering (no servo saver)
• steering geometry corrected for bump steer

suspension

• front” 3 link with panhard
• rear” triangulated 4 link
• heavy-duty rod ends with steel hollow balls
• 5mm diameter steel link rods with 4mm threaded ends

aluminum gts shocks

• oil-filled coilover gts shocks
• silver-anodized aluminum bodies
• threaded bodies with collars easily adjust ride height
• silky smooth damping for the toughest trails
• o-ring cap seal and dual x-ring shaft seals

wheels and tires

• replica black 2021 bronco wheels
• pre-mounted 1. 9 canyon trail tires with trail-tuned foam inserts
• trail tuned s1 rubber compound
• 12mm steel hex

transmitter

• tqi 2. 4ghz 4-channel transmitter
• traxxas link enabled
• telemetry ready 6533 5-channel micro receiver with failsafe
• automatically stores and loads settings for up to 30 traxxas link enabled models
• exclusive cruise control feature for extended trail driving
• adjustable steering and throttle sensitivity (exponential)
• adjustable steering and throttle endpoints

patented o-ring sealed watertight receiver box keeps the micro receiver dry

sealed ball bearings

hex hardware with rust-resistant black oxide coating

includes

• trx-4, ready-to-race model
• xl-5 hv waterproof electronic speed control
• titan 21t reverse rotation motor
• tqi 2. 4ghz radio system with cruise control
• high quality maintenance tools

requires

batteries

Trx-4 accepts a wide variety of nimh (4“7 cell) and lipo (2s“3s) batteries

charger

Traxxas ez-peak live charger is recommended for easy and fast charging performance (model 2971)

aa alkaline batteries

Four aa alkaline batteries for the transmitter
