Rc 4wd marlin crawlers trail finder 2 rtr mojave - z-rtr0034

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the tf2 rtr. Part scale truck, part adventurer, your tf2 rtr is ready for your mud kicking trail-loving lifestyle!

the tf2 rtr has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every tf2 rtr. Performance of the tf2 rtr is smooth and with its single speed transmission, 4wd drivetrain, bulletproof transfer case and quality metal components throughout. The tf2 rtr is truly a work of art in both appearance and performance.

every tf2 rtr is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck. The tf2 rtr.

your adventure awaits.

• yota ii ultimate scale cast axles
• custom designed for true to scale looks
• twister high torque metal gear digital servo
• chassis mounted steering servo
• 540 crawler brushed motor 45t
• super soft flex leaf springs for tf2
• interco irok 1. 7'' scale tires
• r3 single speed transmission

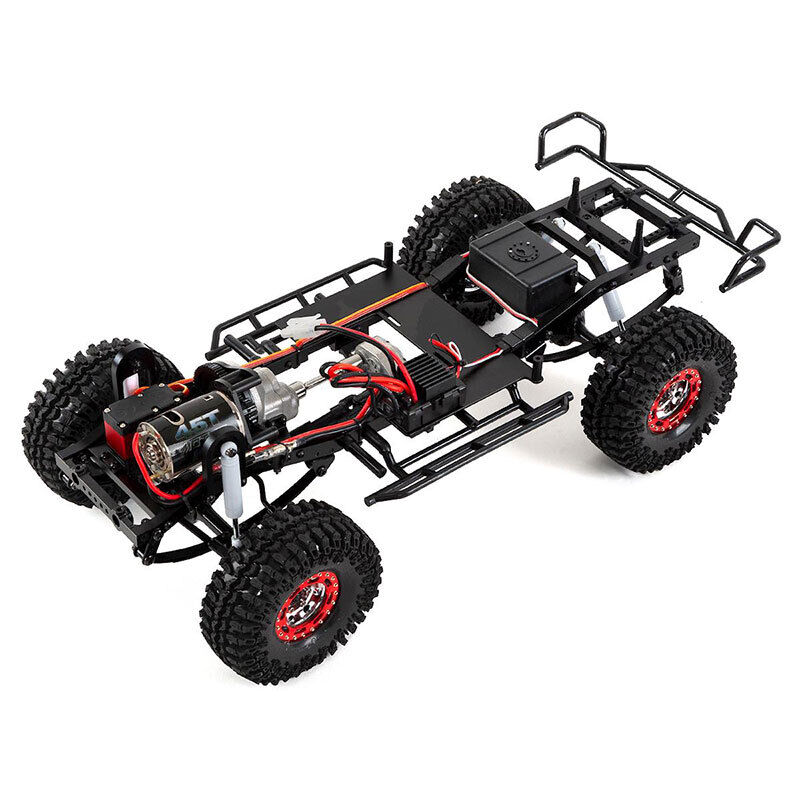

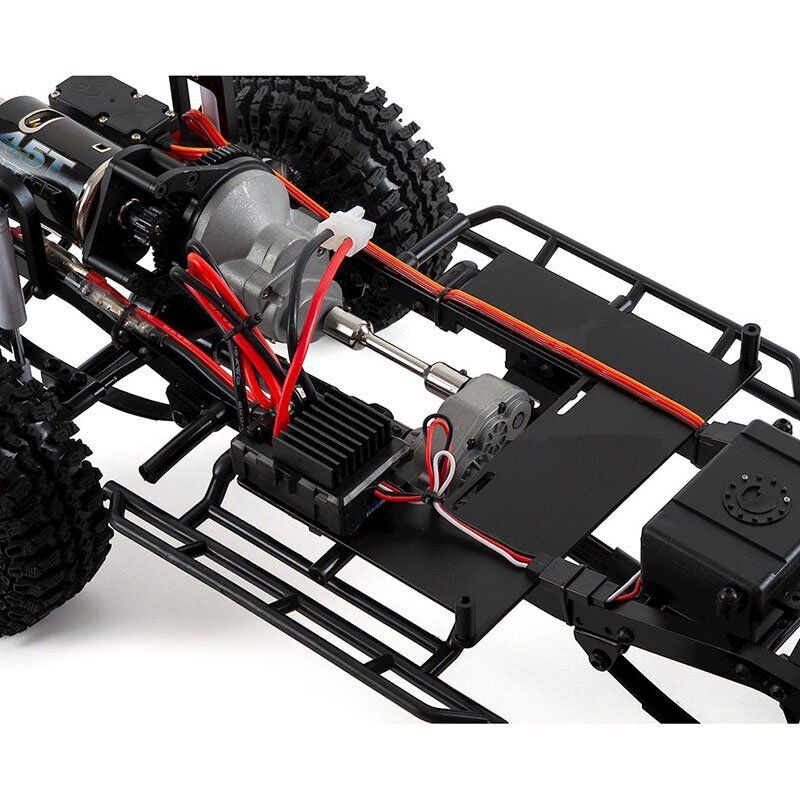

• realistic aluminum ladder frame chassis
• center mounted realistic 4x4 transfer case
• outcry ii waterproof esc
• plastic fuel cell receiver box
• superlift superide 80mm shock absorbers
• tro 1. 7" stamped steel beadlock wheels
• 6-cell 3000mah nimh battery pack
• nimh peak battery charger

Hammer transfer case

• ratio: 1. 47: 1
• gears: wide. 8 mod steel gears
• features: 8 bearings, cast casing, hardened gears

r3 single speed transmission

• ratios pinion/spur 14/64 = 4. 57:1
• internal ratio = 1. 78:1
• gears: wide steel. 8 mod, delrin spur, slipper clutch

cast yota ii axles

• ratio: 15/40 = 2. 67: 1
• width at hex: 180. 5mm

tf2 chassis

• features: billet aluminum construction, adjustable shock hoops

drive shafts

• high quality plastic material, very durable high quality steel yokes

wheels

• name: tro 1. 7" stamped steel beadlock wheels
• hub: 12mm hex
• width: 25mm
• od: 50mm
• features: stamped steel, aluminum hubs, internal beadlock, very scale looking, 6 lug design

truck dimensions

• wheelbase: 287mm (11. 3")
• width: 221mm (8. 7")
• height: 230mm (9")
• ground clearance: 72mm (2. 83")
• final drive ratio: 31. 9:1
• weight: 6. 45lbs/2. 93kg

Electronics

the tf2 rtr includes a high quality xr3 3 channel 2. 4ghz radio system. Use the third channel to control a winch and add even more fun to your scale adventure!

the tf2 rtr is powered by the rc4wd 45 turn crawler motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!

the tf2 rtr features the popular rc4wd outcry ii waterproof esc brushed speed controller with built-in drag brake for reliable, constant power on demand. Anytime.

a great truck needs a great servo to get you out of those tough spots and the tf2 rtr features the twister. A high torque metal gear digital servo to handle all your steering duties.

it's all in the box. Everything you need is provided to get you on the trails today!
