10PXR

Futaba's range-topping competition steer wheel set has no less than 10 channels, an expandable 40 model memories, a full colour TFT-LCD wide angle touchscreen and a whole lot more. Feature rich, it offers FHSS, T-FHSS, T-FHSS SR, Mini-Z and Futaba's new F-4G ultra fast response transmission modes.

Race winning drivers will fully appreciate Futaba's T10PXR for this is a truly top-tier surface radio that's engineered for performance while offering complete customisation. Designed for those who seek the competitive edge, the 10PXR fuses cutting-edge technology with Futaba's renowned reliability, delivering unrivalled precision for anyone with a podium place in their sights.

Powered by Futaba’s ultra-fast 4th generation F-4G telemetry system, the PXR offers lightning-fast response and near-zero latency – giving a critical edge on the track. Meanwhile, its 10-channel capability is paired with an impressive 40 model memory, allowing you to manage all the vehicles you need with total ease, from 1/8 nitro buggies to electric touring cars, trucks, tanks and and everything in between. But, of course, there's more. Boasting 4.3 inches of vibrant full-colour, the transflective touchscreen delivers an intuitive and highly responsive interface, giving you full control over advanced settings such as throttle curves, dual rates and telemetry readouts. Among its standout features are dedicated truck and track mix menus, designed specifically for managing multi-axle trucks or dual-motor crawlers, as well as fine-tuning of traction and balance over different surfaces – ideal for competitive off-roaders who demand adaptability across disciplines.

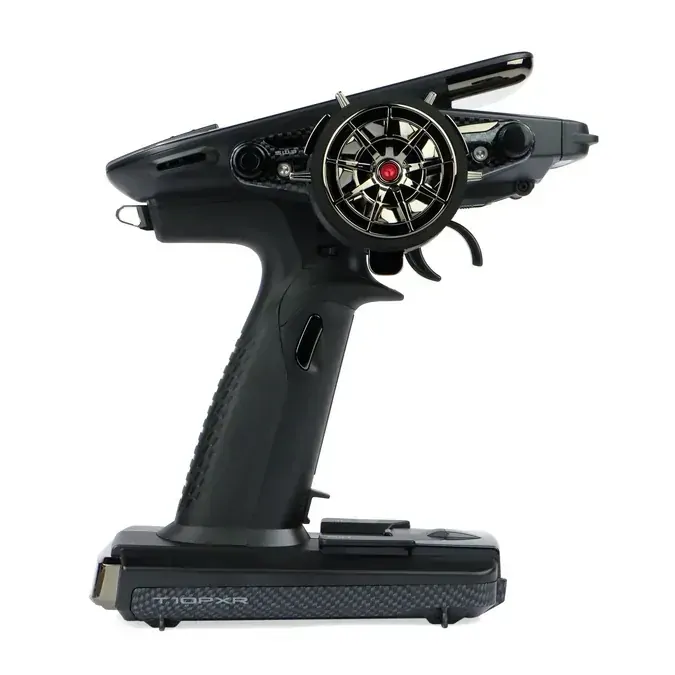

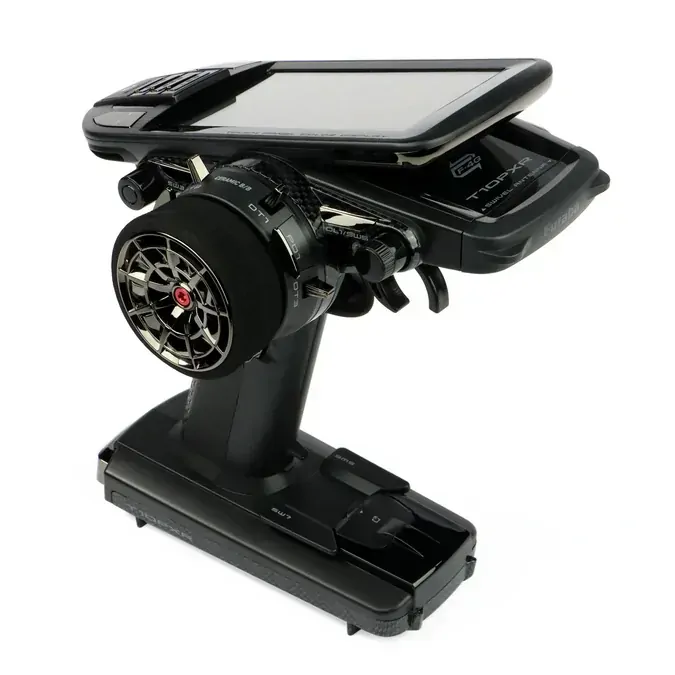

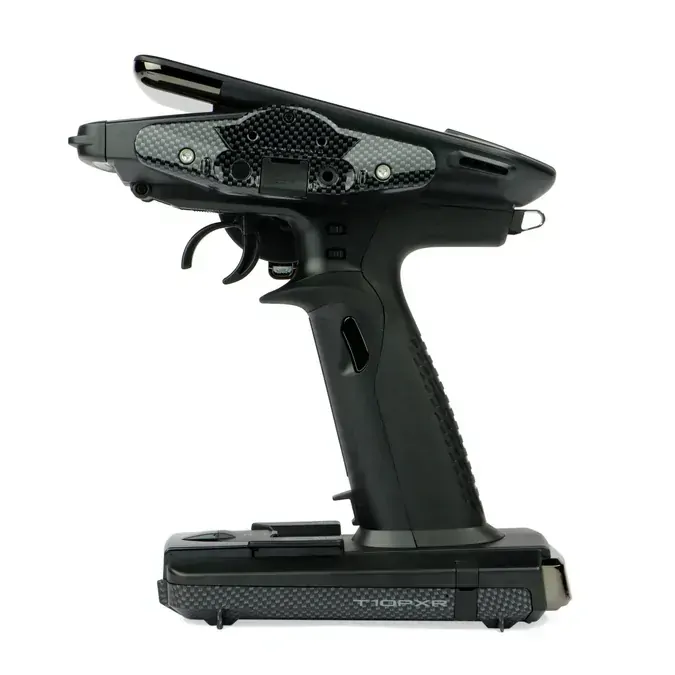

Ergonomically refined, the T10PXR features precision ceramic bearings on both trigger and wheel, along with adjustable steering angles, wheel and trigger adjustment, tension adjustment and even an alternative (narrower) grip. And, of course, it can quickly be converted to left-hand operation, all the above ensuring a perfectly tailored feel in the hand. USB connectivity, voice feedback and vibration alerts further enhance its capabilities making this radio as smart as it is powerful. As with the T10XCR new steering trim functionality memorises steering trim settings and allows you toggle between them to counter tyre wear during a long race.

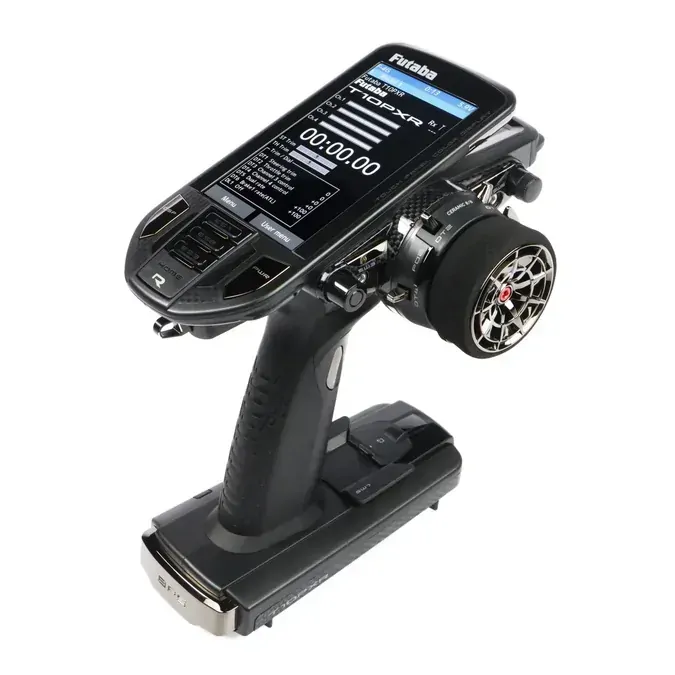

Full colour touch screen
The T10PXR has an HVGA 4.3 inch transflective screen, which enables both indoor and outdoor visibility.

F-4G system and telemetry
The F-4G system enables 30% faster response with UR servos.

10 channels
Enjoy full control with 10 channel availability.

T-FHSS Mini-Z system
By setting the Mini-Z system you can pair with compatible Kyosho Mini-Z models.

Updateable software
Software can be updated by microSD card. Model data and telemetry data can also be saved on a microSD card.

40 model memory
Model names can use up to 15 letters, number and symbols.

Response adjustment (feeling)
Smooth out the steering and throttle response using a 15-point scale.

Switch availability
Assign functions to 10 switches and alter the operating direction.

LiPo battery option
For extended running times the optional LT2F2000B LiPo battery can be used as the transmitter's power supply.

Brake mixing
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.

Steer mixing
Smoother cornering can be achieved using the independent left and right steering servo setting.

4WS mixing
For use with crawlers and other 4-wheel steering type vehicles.

Dual ESC mixing for crawlers
ESCs at the front and rear can be controlled independently.

Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T10PXR.

Tank mixing
For tanks, excavators and all tracked vehicles.

CPS mixing
LED lighting / flashing control can be matched to steering and throttle operation.

S.BUS servo
A handy function that allows the setting of S.Bus servo parameters.

MC-Link
A dedicated function allowing Futaba speed controller data changes to be made via a PC.

Throttle speed
Sudden trigger operation on a slippery road surface can cause tyres to spin. Setting the throttle speed allows the operation to be performed smoothly and easily.

Non-telemetry LED
Confirms when the telemetry function is OFF.

Dial select function
This assigns functions to dials. The step amount and operating direction can also be adjusted.

Wheel & Trigger adjustment
Adjustment of wheel offset, mounting angle and throttle trigger position.

Trim/dial lock functions
The lock functions prohibit the setting and operation of the transmitter trims and dials.

Steering trim memory
Memorises steering trim settings and allows you toggle between them to counter tyre wear during a long race.

Vibration warning
Vibration alert can be applied to the grip and linked to the the timer, battery level and a variety of other warnings.
