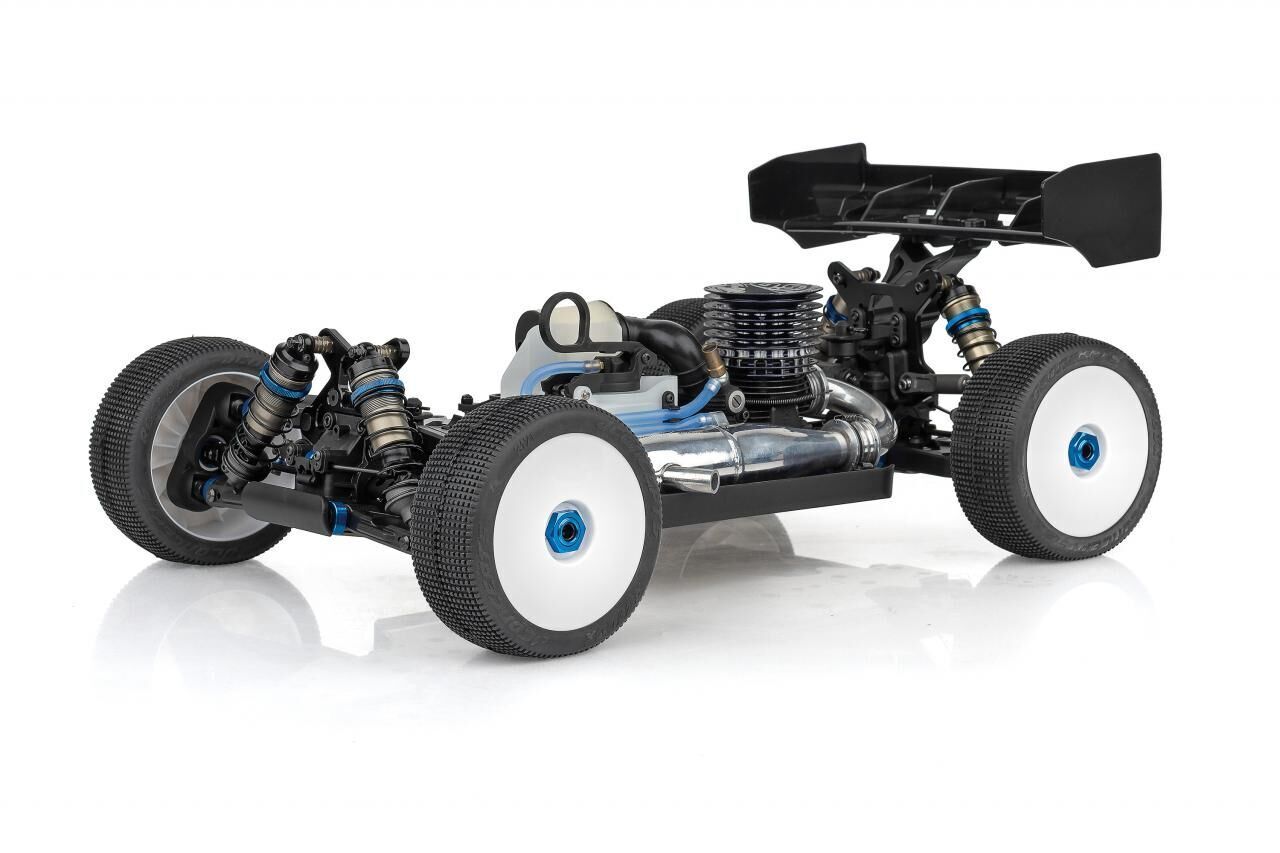

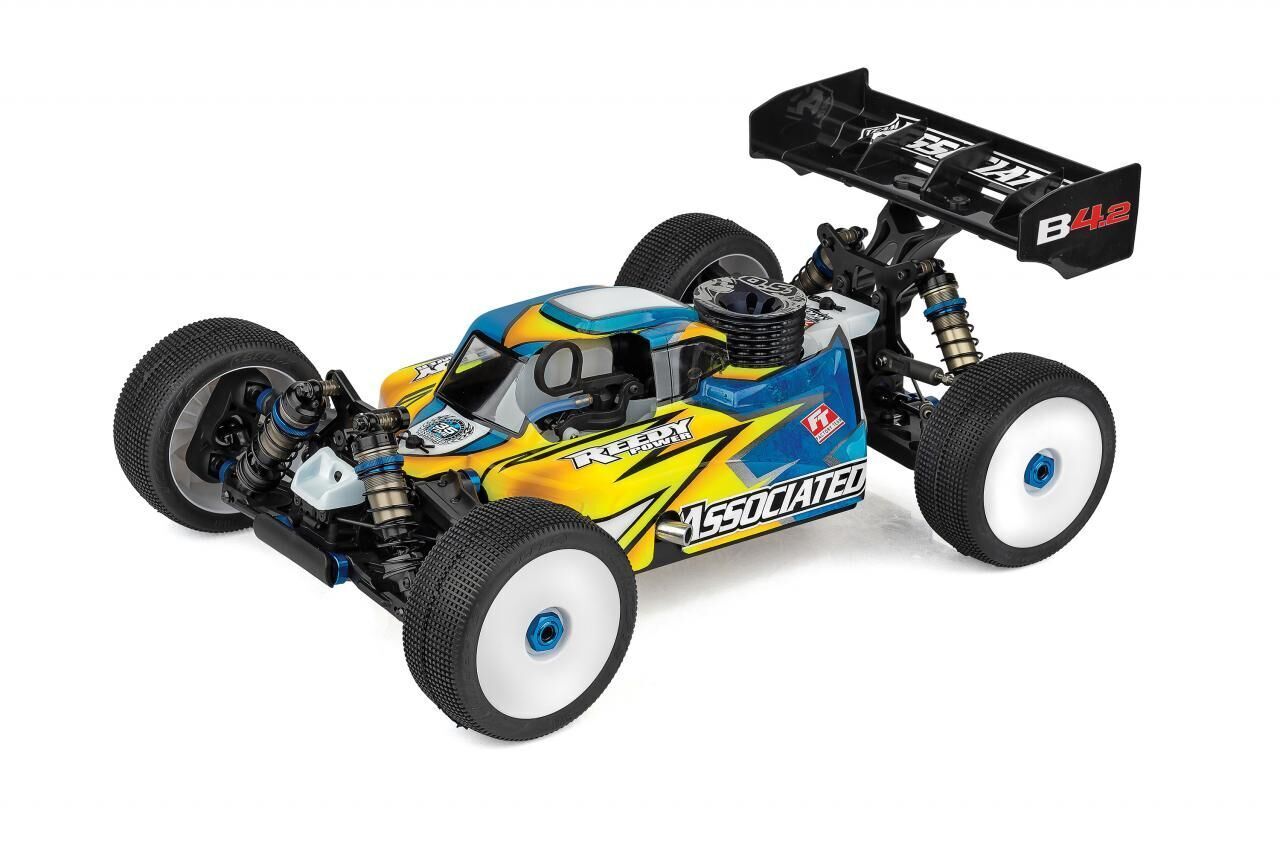

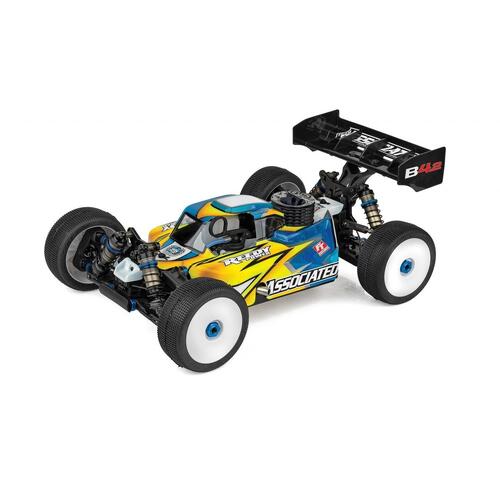

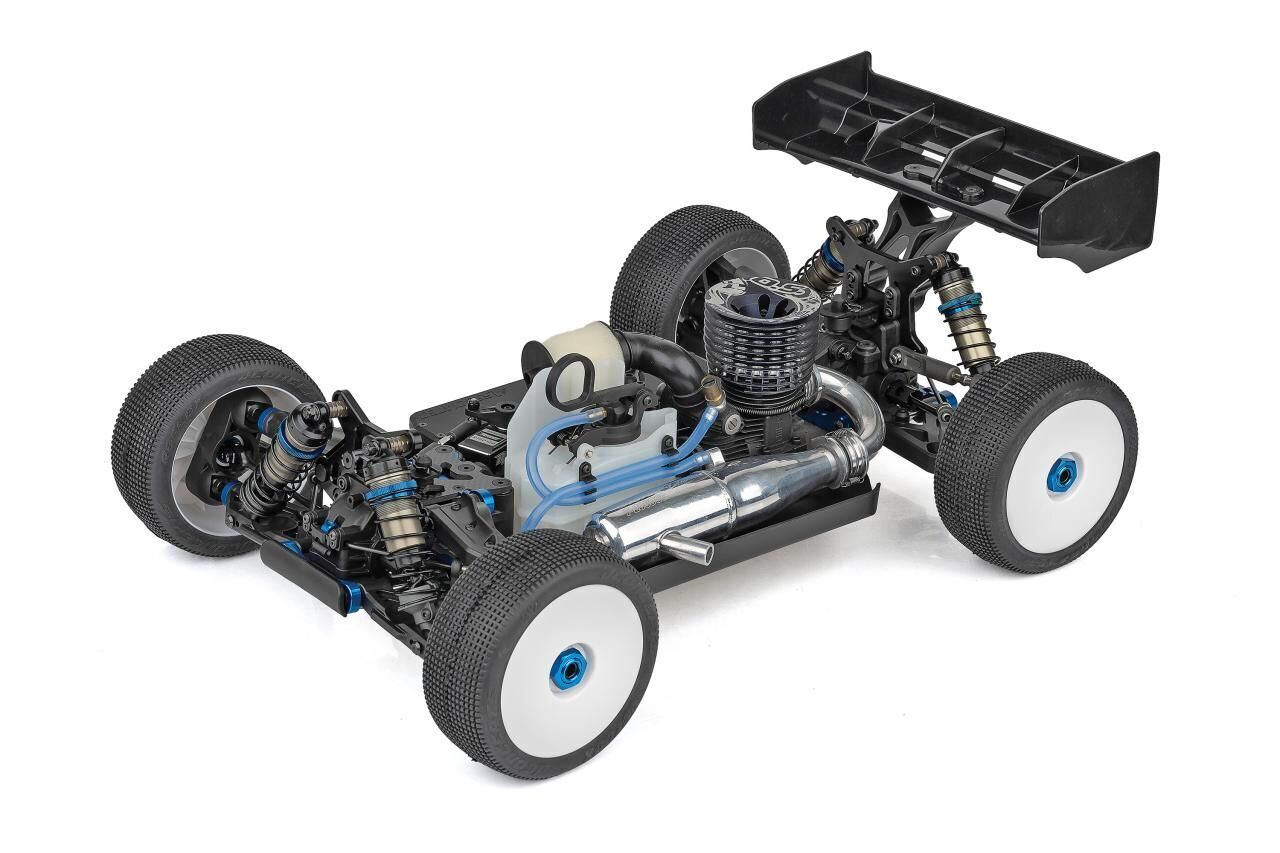

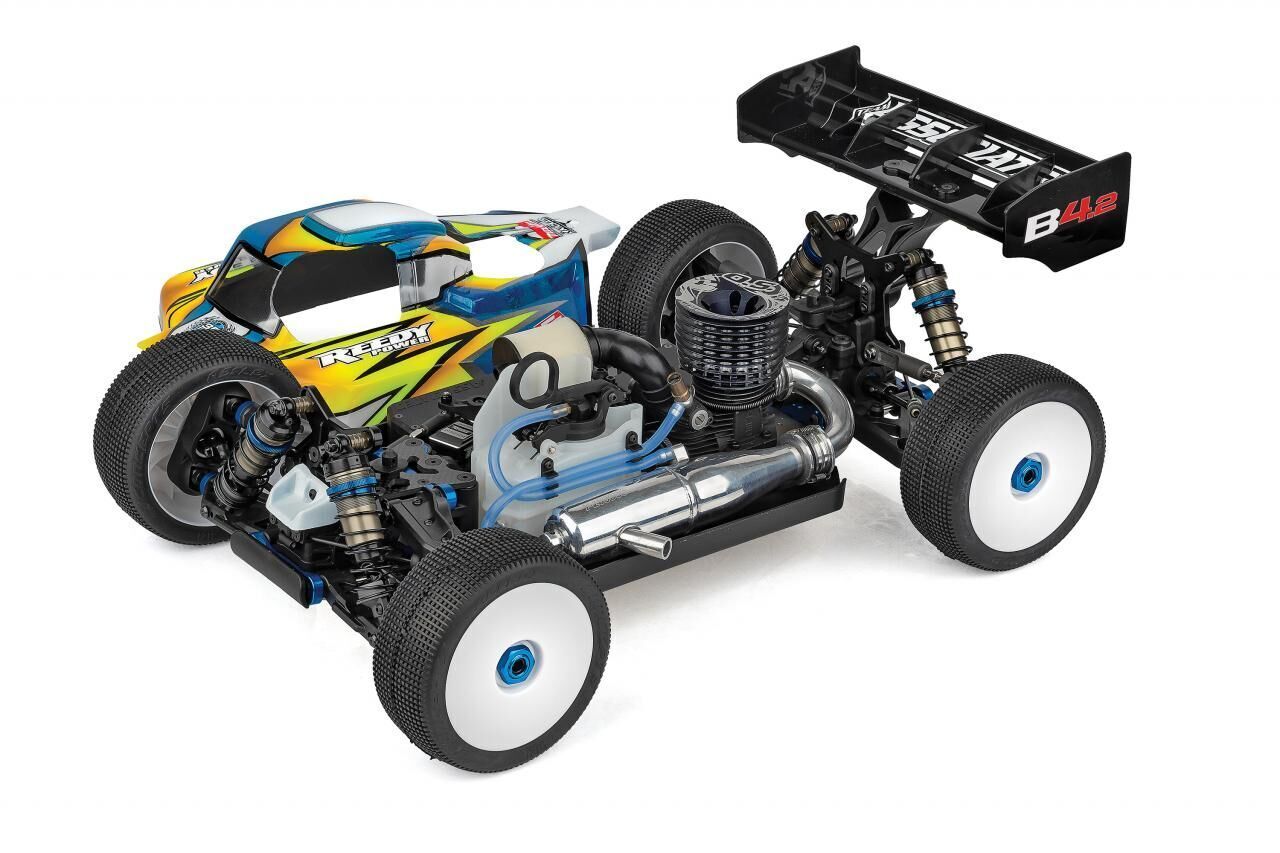

Team Associated RC8B4.2 Team Kit Euro Edition 1/8 4WD Nitro Buggy

The Team Associated RC8B4.2 Team Kit Euro Edition is the latest evolution of Associated Electrics’ championship-winning 1/8 scale nitro buggy platform. Developed by the Area 51 engineering team, the RC8B4.2 Euro Edition builds on the proven RC8 platform with significant updates to the chassis, suspension geometry, drivetrain and differential system.

The Euro Edition has been specifically configured for the high-speed, high-grip conditions commonly encountered on European-style 1/8 off-road tracks. Its combination of revised weight distribution, updated suspension geometry and extensive setup options gives serious racers a highly tunable platform capable of adapting to changing track conditions.

One of the major updates is the introduction of new moulded height-adjustable front and rear gearboxes. This allows racers to alter the gearbox height and drivetrain geometry to fine-tune handling characteristics for different grip levels and track surfaces.

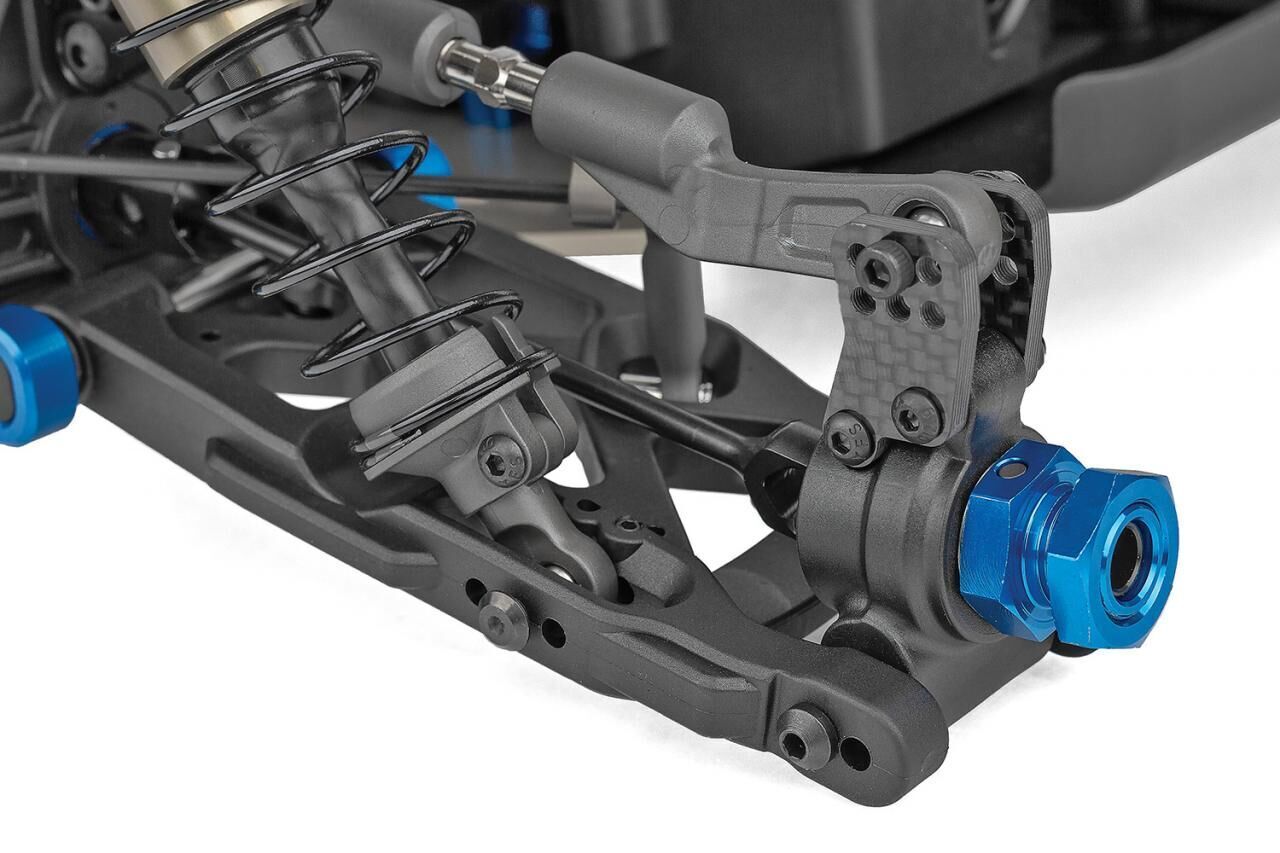

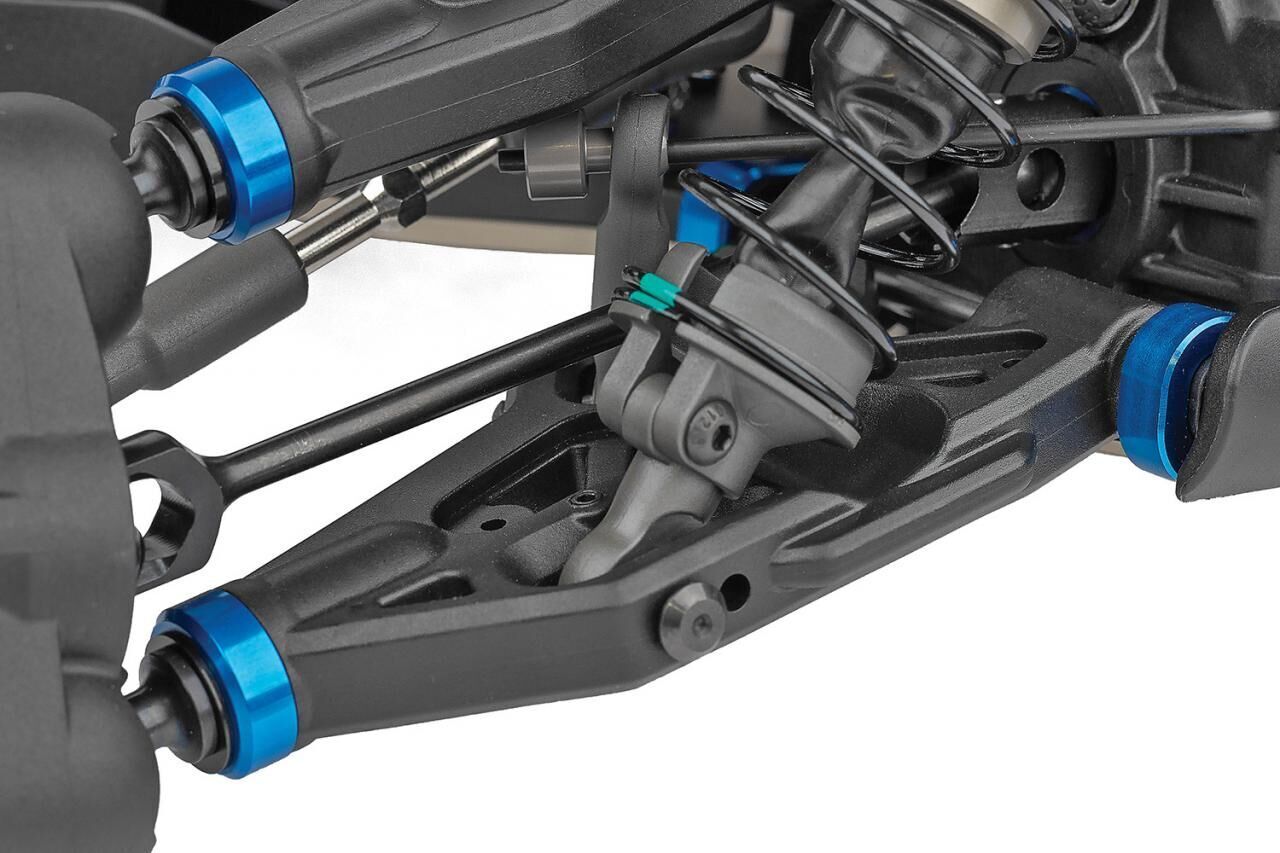

New offset wheel hubs are combined with updated rear suspension arms designed around the revised hub geometry. The suspension updates provide additional setup possibilities while maintaining the durability required for demanding 1/8 scale competition.

At the heart of the Euro Edition is Team Associated’s new V2 FWB chassis. The forward weight-bias configuration is particularly suited to high-speed and high-grip circuits, helping provide responsive steering and predictable chassis behaviour through fast direction changes.

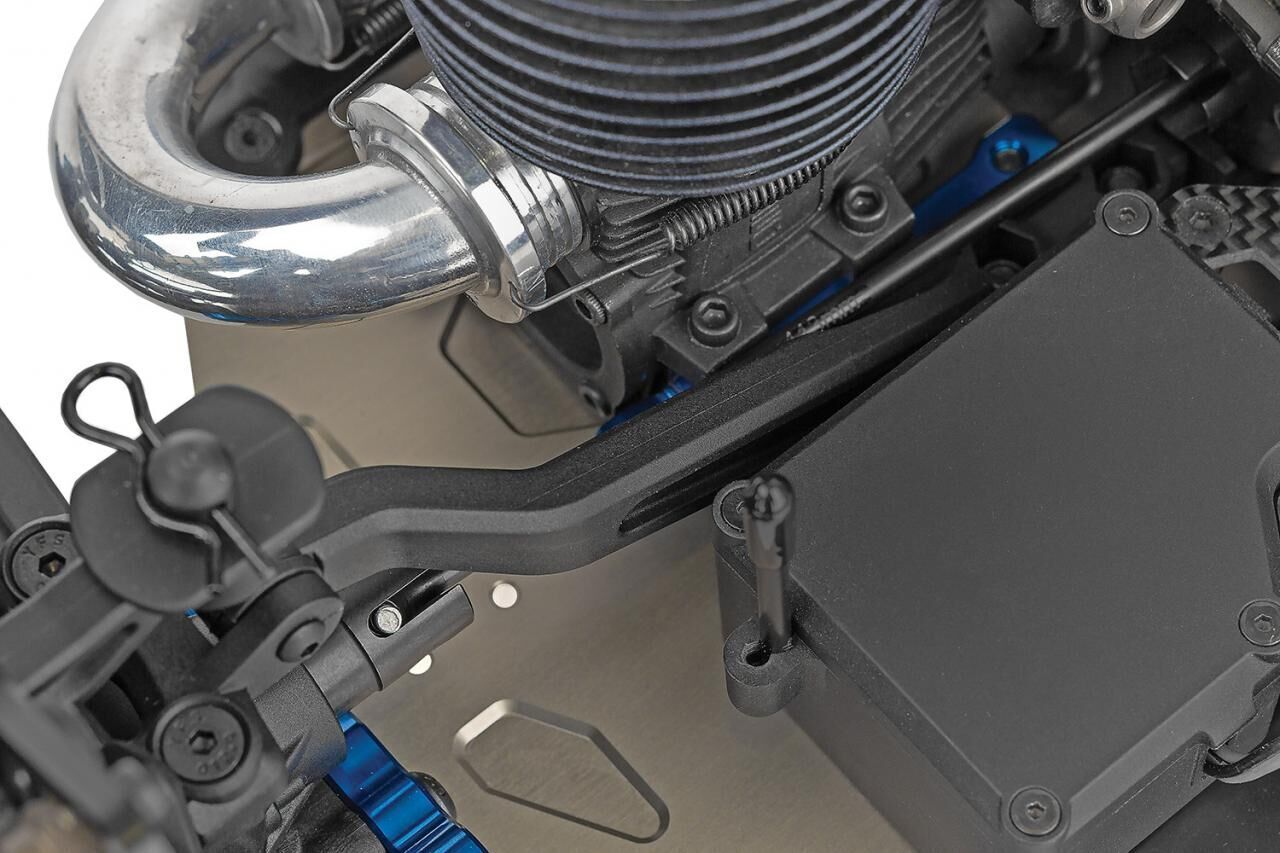

New long chassis brace options provide another important tuning tool. Racers can alter chassis flex characteristics to influence steering response, traction and stability, allowing the buggy to be adapted to different track conditions.

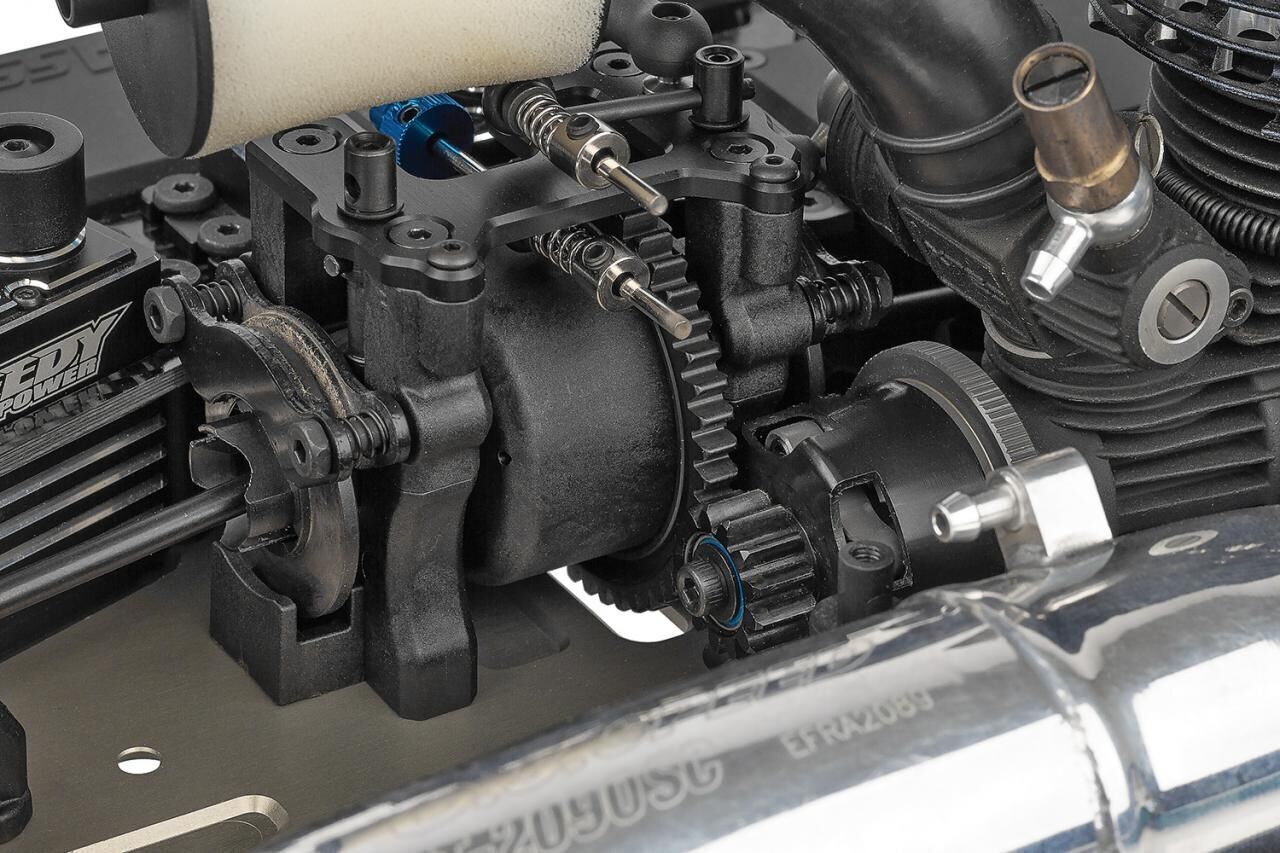

The RC8B4.2 also features a new high-volume centre differential. The increased oil capacity helps maintain more consistent differential performance as temperatures change during longer races, providing predictable power delivery from the beginning of a run through to the final laps.

The drivetrain uses proven 44/13 ring and pinion gear sets, together with 92mm universal driveshafts and 17mm outdrives. These heavy-duty components are designed to efficiently transfer the power produced by modern competition .21 nitro engines.

A 20mm HTC internal differential gear set is supplied, providing the smooth and predictable differential action required for high-level competition.

Suspension components use Team Associated’s soft-blend composite material, providing the controlled flex characteristics required for off-road racing. 8-degree KPI steering blocks are also included, giving racers additional control over steering feel and front-end response.

Factory Team hard-anodised aluminium shock bushings are now supplied as standard equipment, complementing the competition-grade 16mm oil-filled shock absorbers and providing smooth, consistent suspension operation.

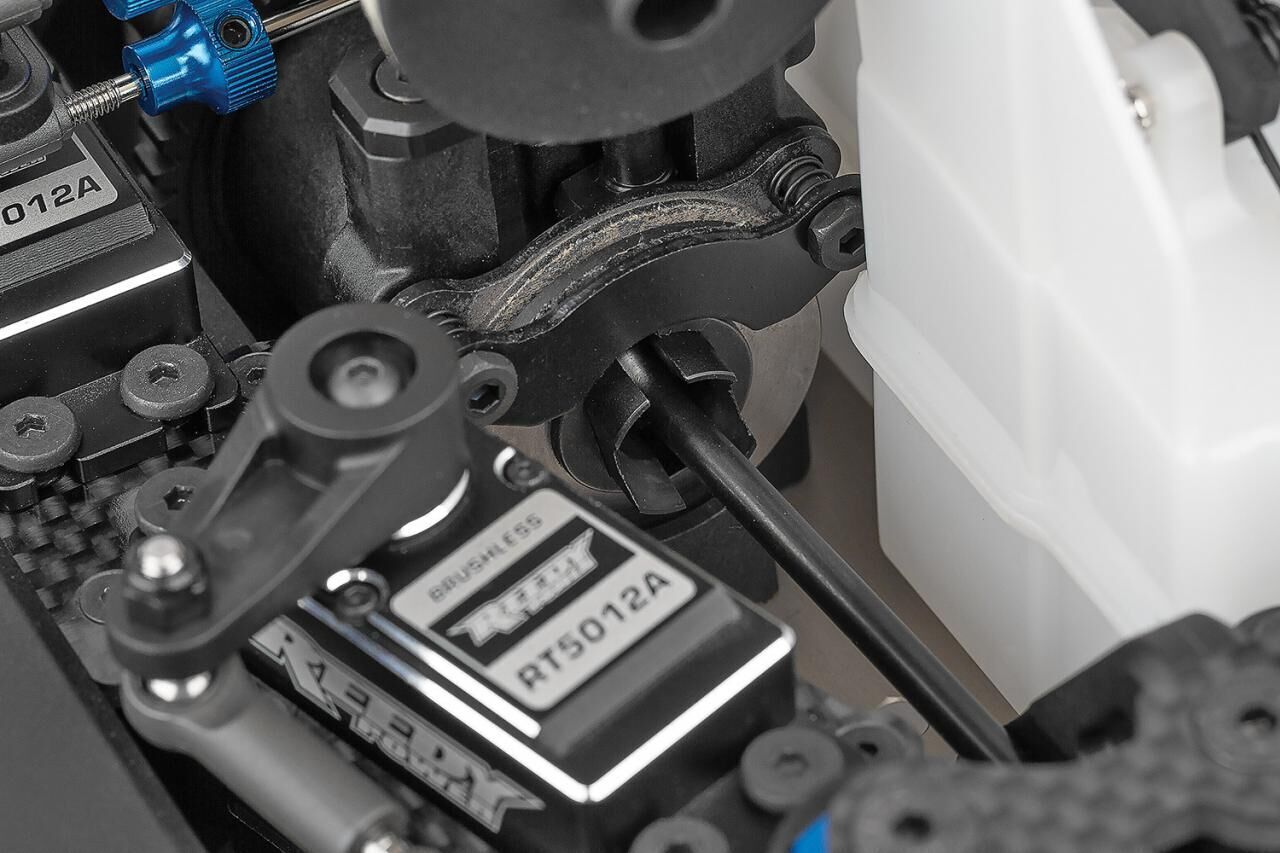

The braking system has also been updated with revised brake pad material and a new brake spring. These changes are designed to provide more consistent braking performance and improved feel during demanding race conditions.

A new high-downforce rear wing helps improve rear stability at speed and provides additional aerodynamic grip through fast sections and over large jumps.

As expected from a Team Associated Team Kit, extensive adjustment is available throughout the buggy. Suspension geometry, differential setup, gearbox height, chassis flex, ride height, shock settings, camber, toe and other parameters can all be tuned to suit the track and individual driving style.

The RC8B4.2 Euro Edition is supplied as a professional competition assembly kit, allowing racers to select their preferred .21 nitro engine, exhaust system, servos, radio equipment, wheels and tyres.

With its V2 forward weight-bias chassis, height-adjustable gearboxes, high-volume centre differential and Euro-specific setup, the RC8B4.2 Team Kit Euro Edition is designed for serious racers looking for maximum performance on fast, high-grip 1/8 scale off-road circuits.

Features:

• Professional 1/8 scale nitro competition buggy
• RC8B4.2 Team Kit Euro Edition
• Developed by Associated Electrics Area 51
• Euro Edition optimised for high-speed and high-grip tracks
• 4WD shaft-driven drivetrain
• New V2 FWB forward weight-bias chassis
• New moulded height-adjustable front gearbox
• New moulded height-adjustable rear gearbox
• New offset wheel hubs
• Updated rear suspension arms
• Revised rear hub geometry
• New high-volume centre differential
• New long chassis brace options
• New high-downforce rear wing
• Updated brake pad material
• Updated brake spring
• Soft-blend composite suspension arms
• 8-degree KPI steering blocks included
• 44/13 ring and pinion gear sets
• 92mm universal driveshafts
• 17mm outdrives
• 20mm HTC internal differential gear set
• Factory Team hard-anodised aluminium shock bushings
• Competition 16mm oil-filled shock absorbers
• Extensive suspension geometry adjustment
• Adjustable gearbox heights
• Adjustable chassis flex characteristics
• Multiple differential tuning options
• Competition-grade drivetrain
• Designed for modern .21 nitro racing engines
• Extensive setup possibilities for serious competition
• Optimised setup for European-style high-grip tracks

Specifications:

• Brand: Team Associated
• Product Code: ASS80956 / 80956
• Model: RC8B4.2 Team Kit Euro Edition
• Scale: 1/8
• Vehicle Type: Competition Nitro Buggy
• Power Source: Nitro
• Drive System: 4WD
• Configuration: Team Kit / Assembly Kit
• Chassis: V2 Forward Weight Bias (FWB)
• Ring & Pinion: 44/13
• Driveshafts: 92mm Universal
• Outdrives: 17mm
• Internal Differential Gears: 20mm HTC
• Steering Blocks: 8-Degree KPI
• UPC: 784695809567

Requires to Complete:

• .21 competition nitro engine
• Suitable tuned exhaust pipe and manifold
• Engine air filter equipment as required
• Steering servo
• Throttle/brake servo
• Transmitter and receiver
• Receiver battery
• 1/8 buggy wheels
• 1/8 buggy tyres and inserts
• Nitro fuel
• Glow igniter / starting equipment
• Polycarbonate body paint
• Personal transponder if required for racing
• Assembly tools

Please Note:

The Team Associated RC8B4.2 Euro Edition is supplied as an unassembled professional competition kit. Engine, exhaust, electronics, radio equipment, wheels, tyres and other running equipment are required separately. Assembly and body painting are required before use.
