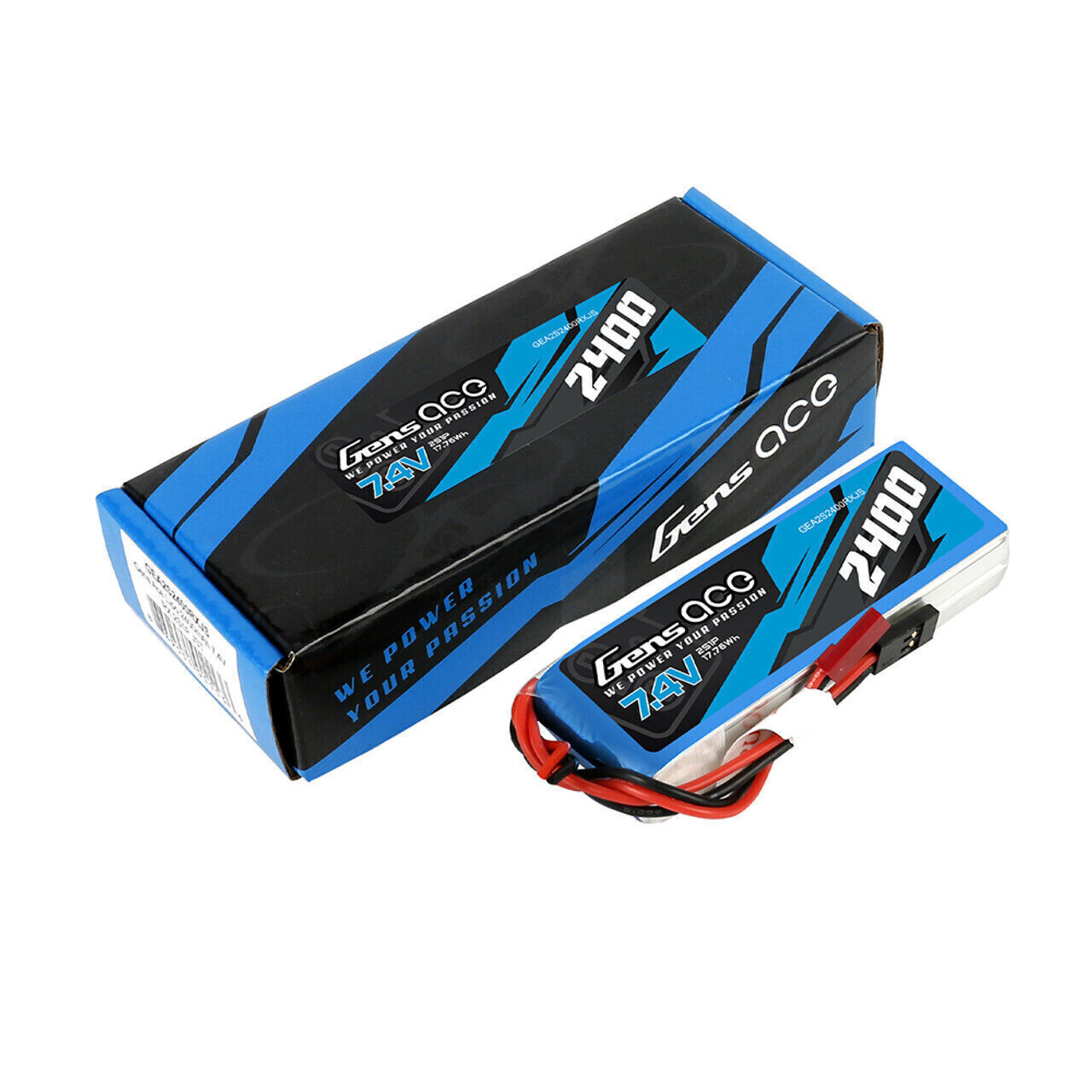

Gens Ace 2400mAh 7.4V 2S LiPo Receiver Battery with JST Plug – GEA2S2400RXJS

The Gens Ace 2400mAh 7.4V 2S LiPo Receiver Battery provides a dedicated rechargeable power supply for compatible RC receiver and servo systems. Its compact, flat profile and soft-case construction make it a practical option for models with limited battery compartment space.

Designed for receiver applications, this pack combines 2400mAh capacity, a two-cell LiPo configuration and a JST-SYP power connector. It is suitable for a new installation or as a replacement receiver battery where voltage, connector and compartment dimensions match.

2400mAh Capacity

The battery’s 2400mAh capacity provides a useful power reserve for your model’s radio equipment. Operating time depends on servo quantity, servo load and the power consumption of other connected electronics. Monitor battery condition throughout use to maintain dependable control.

7.4V Two-Cell LiPo Configuration

The 2S1P configuration delivers a nominal voltage of 7.4V. A fully charged standard 2S LiPo reaches 8.4V, so receivers, servos and switches must support this voltage when powered directly.

For equipment requiring a lower supply voltage, use a suitable regulator rated for both the battery voltage and your system’s current requirements.

Compact Soft-Case Design

Measuring approximately 88 × 29 × 17mm and weighing approximately 94g, the pack offers a slim shape for compatible receiver battery compartments. Allow additional room for wiring and connectors when checking installation space.

Secure the battery inside a protected compartment to prevent movement and keep the soft case clear of sharp edges.

JST-SYP Power Connector

The fitted JST-SYP connector suits compatible power leads, switches and receiver power systems. Check connector polarity and ensure the complete wiring arrangement can handle the current demanded by your servos.

Key Features

• 2400mAh capacity for receiver power applications.

• 7.4V nominal voltage from a standard 2S LiPo configuration.

• Compact flat profile for suitable battery compartments.

• Soft-case construction.

• JST-SYP main power connector.

• Approximately 94g weight.

• Suitable as a replacement or spare for compatible receiver battery systems.

Specifications

Compatible Applications

Suitable for RC models using a separate receiver battery, including compatible nitro-powered cars and aircraft. Compatibility depends on battery compartment space, connector arrangement, current requirements and the voltage ratings of every connected component.

Package Contents

• 1 × Gens Ace 2400mAh 7.4V 2S LiPo receiver battery with JST-SYP power connector.

Required for Use

• Compatible receiver and servo power system.

• LiPo balance charger supporting standard 2S LiPo batteries.

• Suitable charging lead and balance connection.

• Voltage regulator if required by your electronics.

Charging Note: Use the charger’s standard 2S LiPo programme and follow the instructions supplied with the battery.
