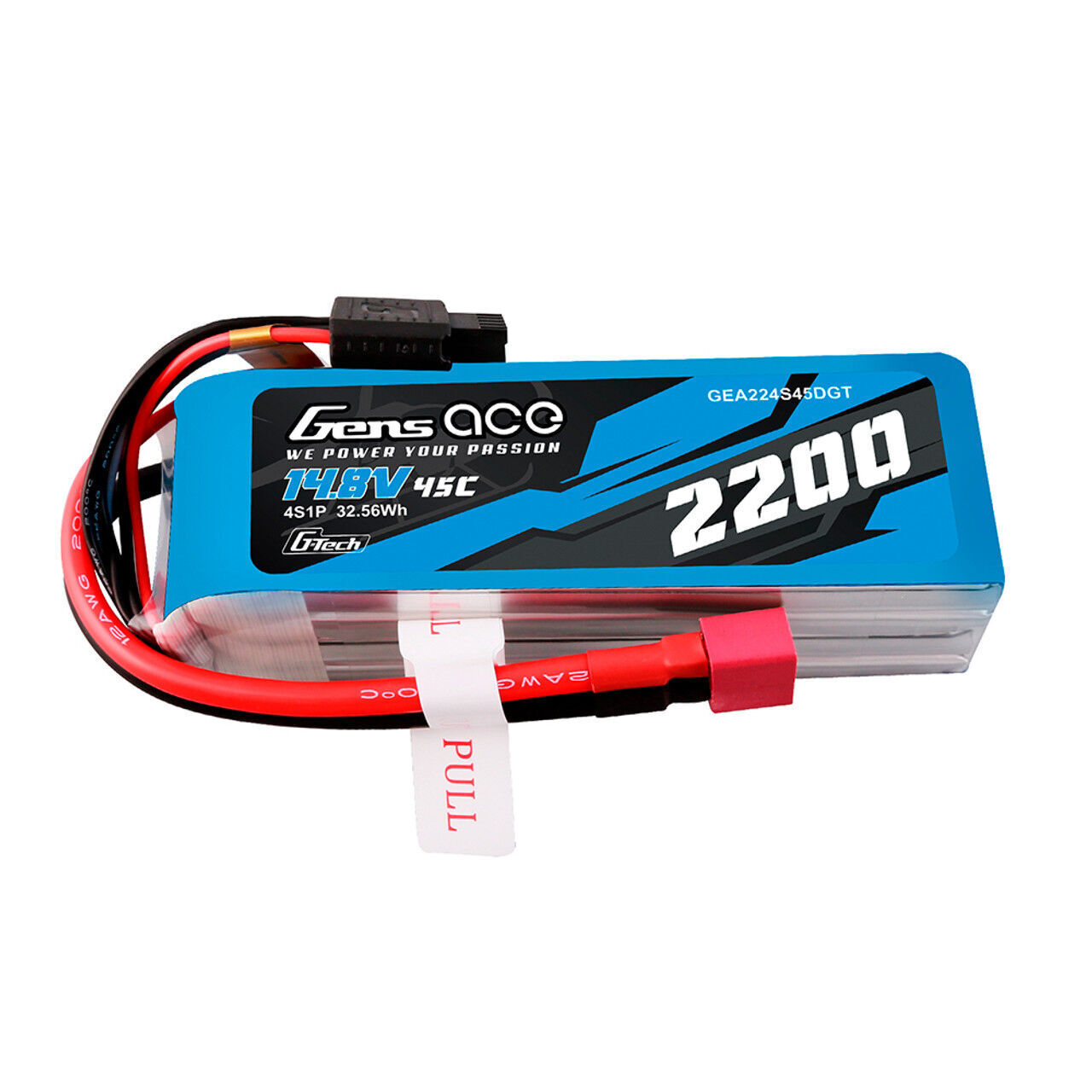

The Gens Ace G-Tech 2200mAh 4S 14.8V 45C LiPo Battery delivers strong and consistent power for compatible electric RC aircraft, EDF jets, FPV models and other applications requiring a compact 4S battery.

Its 45C continuous discharge rating and 90C maximum burst rating provide responsive performance during acceleration and other high-load conditions. Stable cell-stacking technology and carefully matched cells help maintain reliable voltage throughout operation.

The battery features a lightweight soft-case construction, a pre-installed Deans-style T-plug and a G-Tech five-pin balance connector. When connected to a compatible Gens Ace G-Tech charger, the battery can be automatically recognised and its charging parameters configured. It may also be charged with a conventional LiPo balance charger using the appropriate lead and manual settings.

Key Features

• 2200mAh capacity

• Standard 4S 14.8V LiPo chemistry

• 45C continuous discharge rating

• 90C maximum burst discharge rating

• Compact soft-case construction

• Deans-style T-plug power connector

• G-Tech five-pin balance connector

• Automatic identification with compatible G-Tech chargers

• Stable cell-stacking technology

• Reliable power for compatible electric aircraft

Specifications

• Brand: Gens Ace

• Series: Air Classic

• Product code: GEA224S45DGT

• Manufacturer part number: GA-B-45C-2200-4S1P-Deans-GT

• Barcode: 889551118774

• Battery chemistry: Lithium Polymer

• Capacity: 2200mAh

• Configuration: 4S1P

• Cell count: 4 cells

• Nominal voltage: 14.8V

• Fully charged voltage: 16.8V

• Continuous discharge rating: 45C

• Maximum burst discharge rating: 90C

• Main connector: Deans-style T-plug

• Balance connector: G-Tech 5-pin

• Case type: Soft case

• Dimensions: Approximately 106 × 34 × 30mm

• Weight: Approximately 262g

• Power-wire gauge: 12AWG

• Power-wire length: Approximately 120mm

Suitable Applications

Subject to battery-compartment, connector and power-system compatibility:

• 3D HobbyShop 48-inch foam aircraft

• 64mm EDF jets

• Selected 70mm EDF jets

• Compatible F-16 and F-15 models

• Dynam Devil 3D 1015mm

• Gee Bee Y 1270mm

• Supermarine Spitfire 1200mm

• Compatible FPV aircraft

• Other RC models requiring a 4S 2200mAh battery with a Deans connector

Package Contents

• 1 × Gens Ace G-Tech 2200mAh 4S 14.8V 45C LiPo Battery with Deans Plug

Important Compatibility Information

This is a standard 4S LiPo battery, not a LiHV battery. Charge only with a suitable LiPo balance charger configured for a standard 4S battery, with a maximum fully charged voltage of 16.8V.

Confirm that your model’s electronic speed controller, motor and other electronics support 4S power. Check the battery-compartment dimensions, Deans-style connector and required discharge capability before purchase.
