UDIRC Snow Leopard UCX2405PRO 1/24 4WD Brushless Rock Crawler RTR

The UDIRC Snow Leopard UCX2405PRO packs an impressive amount of crawler technology into a compact 1/24 scale 4WD platform.

Designed for technical crawling, trail driving and indoor or outdoor adventures, the UCX2405PRO combines a smooth brushless power system, selectable 4-wheel steering, a 3-speed mechanical transmission, metal drivetrain components and oil-filled shocks.

Its compact dimensions make it easy to take anywhere, while the sophisticated drivetrain and steering system give it the manoeuvrability and control needed to tackle challenging terrain.

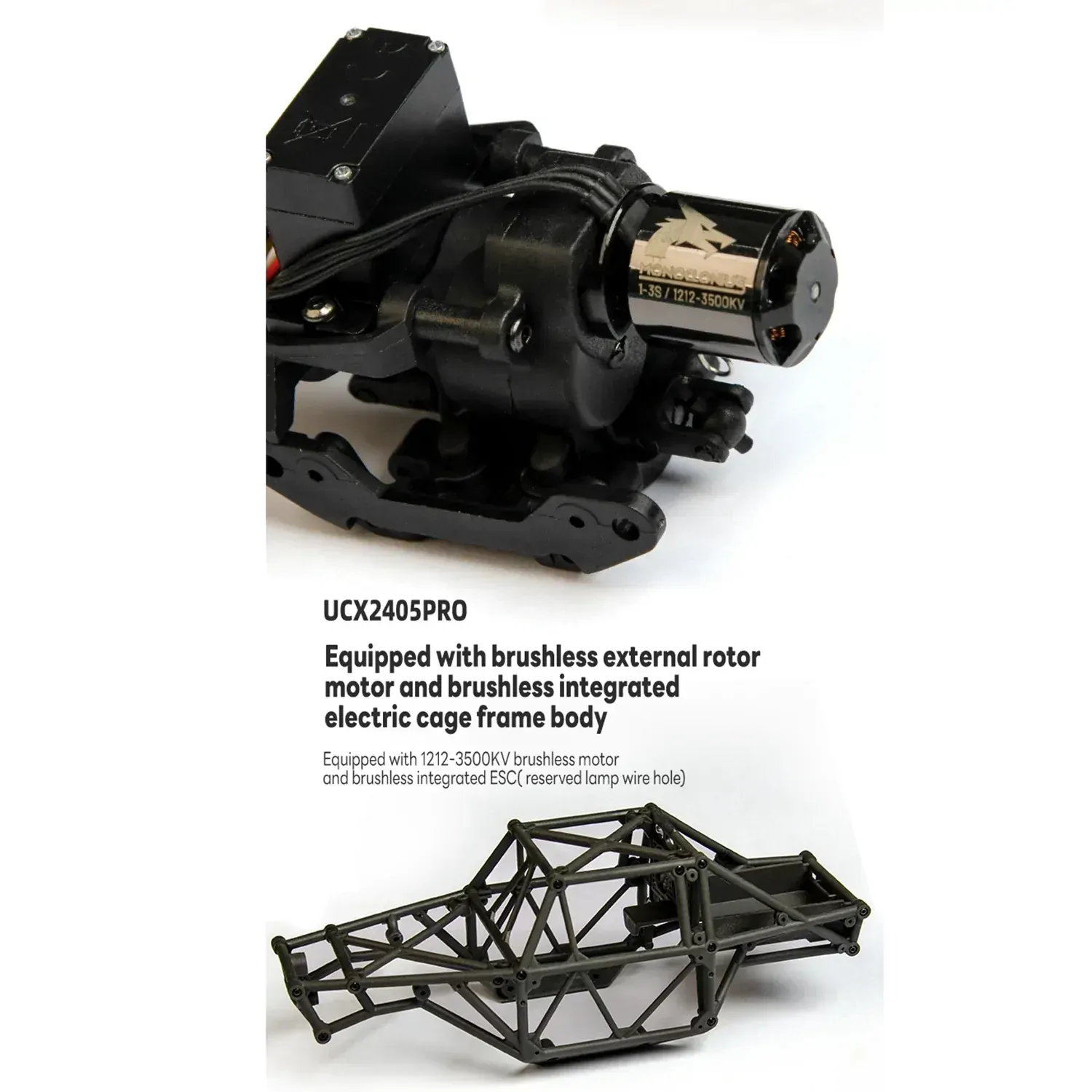

Brushless Power System

The UCX2405PRO features a high-efficiency brushless outrunner motor paired with an integrated electronic speed controller.

The brushless system delivers smooth and precise throttle response with excellent low-speed control – particularly important when crawling over rocks and technical obstacles.

It also provides plenty of performance when the transmission is shifted into its higher gear.

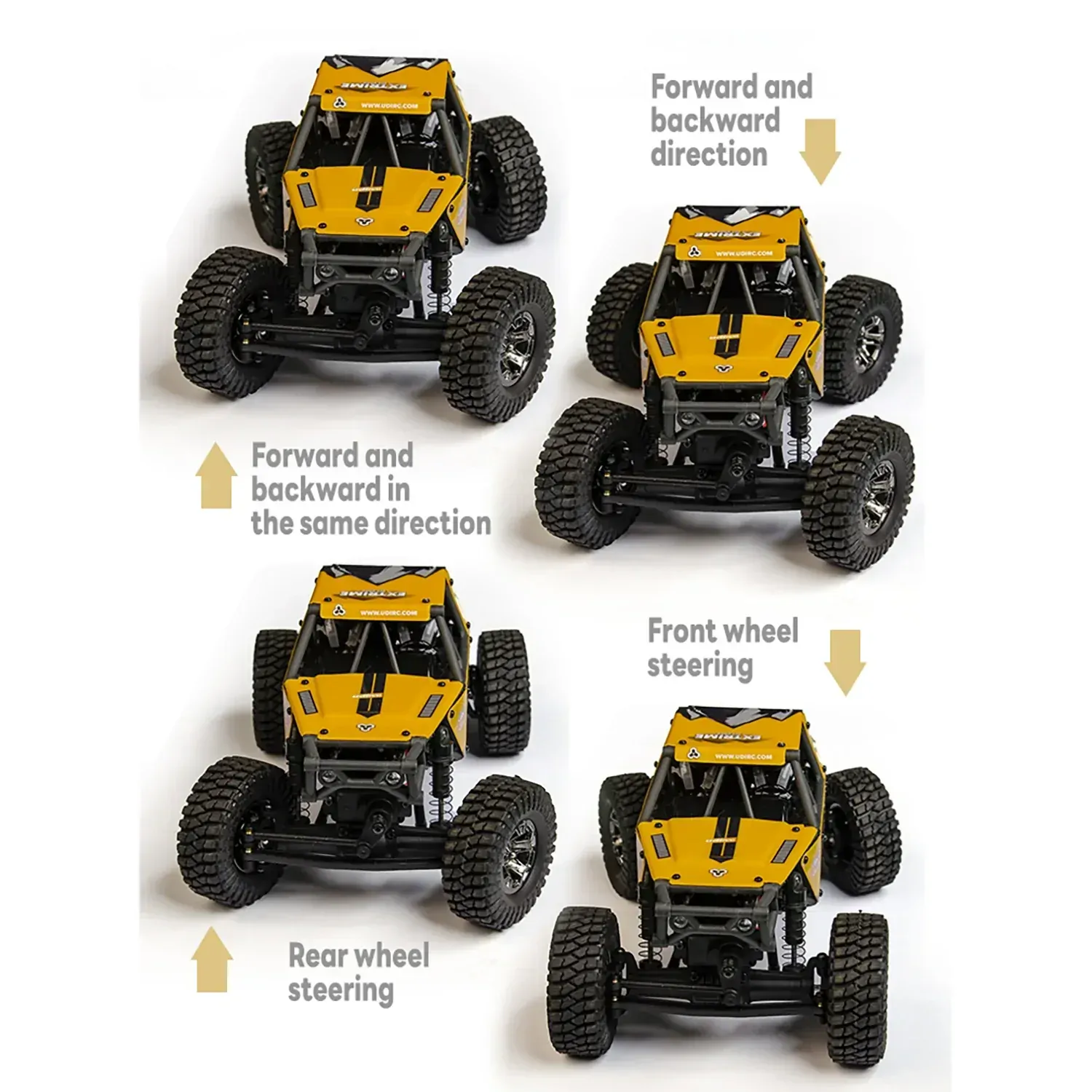

4-Wheel Steering – 4 Selectable Modes

One of the standout features of the UCX2405PRO is its 4-wheel steering system.

Both the front and rear axles can steer, providing exceptional manoeuvrability for such a small crawler.

Four steering modes are available:

• Front Wheel Steering – conventional steering for normal driving
• Rear Wheel Steering – allows the rear axle to steer independently
• Opposite 4-Wheel Steering – front and rear wheels turn in opposite directions for an extremely tight turning radius
• Synchronized 4-Wheel Steering – front and rear wheels turn in the same direction for crab-style movement

The ability to change steering modes makes the UCX2405PRO particularly capable when negotiating tight technical crawling courses.

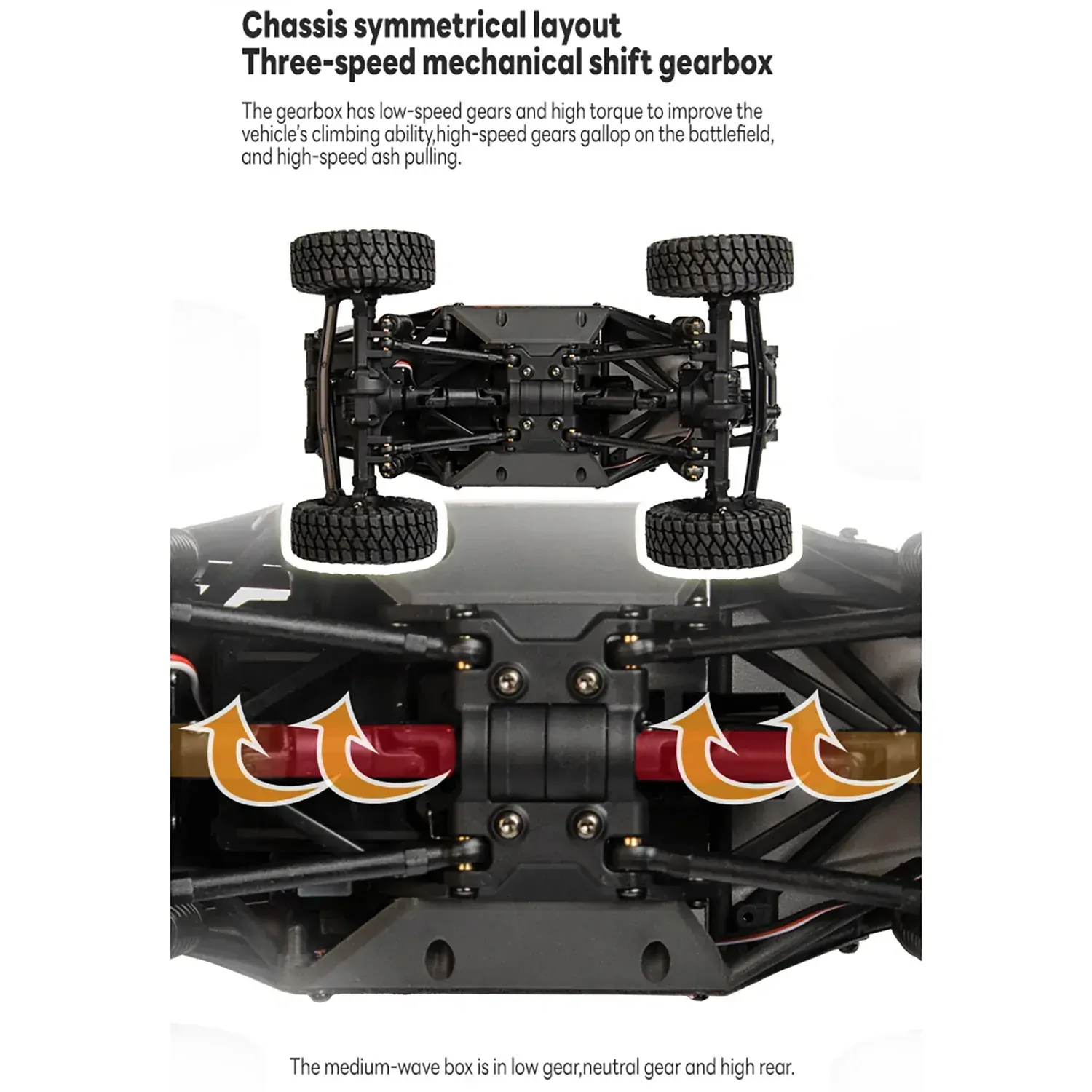

3-Speed Mechanical Transmission

The UCX2405PRO features a centre-mounted 3-speed mechanical transmission.

The transmission provides:

• Low Gear – maximum control and torque for technical crawling
• Neutral – allows the vehicle to free roll
• High Gear – increased speed for trail driving and open terrain

This gives the Snow Leopard considerably more versatility than a conventional single-speed mini crawler.

Full-Time 4WD

Power is delivered to all four wheels through the UCX2405PRO's capable 4WD drivetrain.

Combined with the large crawler tyres and solid axles, the four-wheel-drive system provides excellent traction across:

• Rocks
• Dirt
• Gravel
• Indoor crawling courses
• Backyard trails
• Uneven terrain
• Technical obstacles

All-Metal Drivetrain

The PRO model features an extensive selection of metal drivetrain components for improved strength and durability.

Metal components include:

• 16T powder-metal motor gear
• Metal transmission gears
• Metal input gears
• Metal axle gears
• Metal driveshaft
• Metal centre transmission components

The robust drivetrain is designed to handle the torque produced by the brushless power system while providing reliable power transfer to all four wheels.

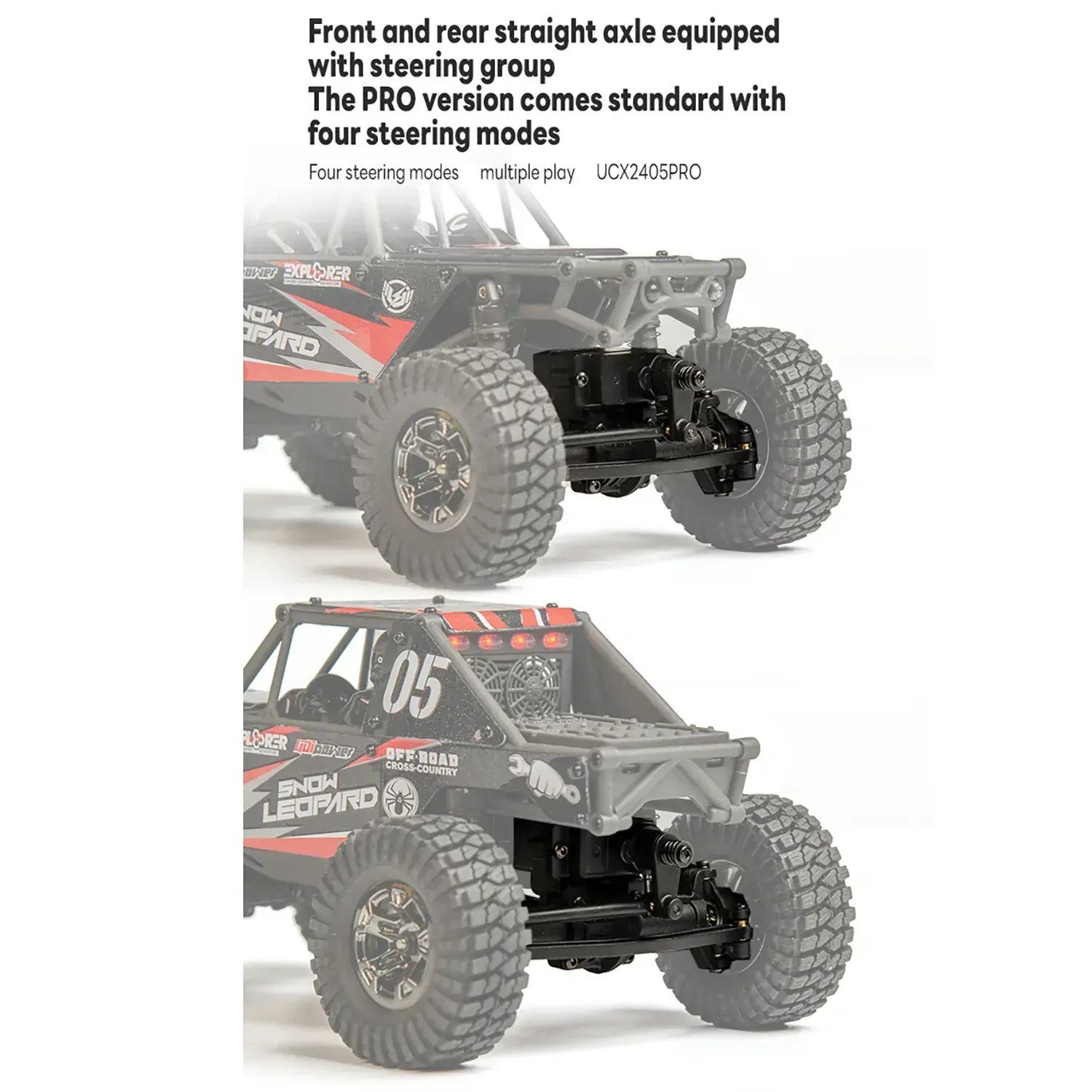

Front & Rear Solid Axles

The UCX2405PRO features solid front and rear axles, providing the articulation and durability required for technical crawling.

The rear axle also incorporates the additional steering mechanism required for the 4-wheel steering system.

Oil-Filled Shock Absorbers

The Snow Leopard comes equipped with oil-filled shock absorbers.

UDIRC specifies 300cst shock oil, providing controlled suspension movement and improved damping over rough terrain.

The suspension helps keep the tyres in contact with the surface while crawling across rocks and uneven obstacles.

27mm Ground Clearance

Despite its compact 1/24 scale dimensions, the UCX2405PRO provides approximately 27mm of ground clearance.

Combined with its large 55mm crawler tyres, this gives the Snow Leopard excellent obstacle clearance for a vehicle of its size.

Rugged Tube Frame Body

The UCX2405PRO uses a distinctive tube-frame body design inspired by full-size purpose-built rock crawlers.

The lightweight structure helps keep vehicle weight down while providing protection around key components.

A detailed driver compartment adds to the realistic competition crawler appearance.

55mm Crawler Tyres

Large 55 × 20.5mm crawler tyres provide the grip required for technical terrain.

The aggressive tread pattern and large diameter help the Snow Leopard climb over obstacles while maintaining traction on loose and uneven surfaces.

Front LED Headlights

Integrated front LED headlights are fitted as standard.

The lights add to the realistic appearance of the Snow Leopard and make the crawler particularly enjoyable for indoor or low-light trail driving.

7.4V 350mAh 2S LiPo Battery

The UCX2405PRO is supplied with a compact 7.4V 350mAh 2S LiPo battery.

The battery uses an XH2.54-3P connector and is designed specifically to fit the compact UCX2405PRO chassis.

Compact 1/24 Scale

The Snow Leopard measures only 191mm long, making it small enough to enjoy almost anywhere.

Build an indoor crawler course using household obstacles or take it outside onto rocks, dirt and trails.

Its compact size also makes the UCX2405PRO easy to transport and store.

Key Features

• UDIRC Snow Leopard UCX2405PRO
• Product Code: UDI-UCX2405PRO
• 1/24 scale
• 4WD rock crawler
• Brushless outrunner motor
• Integrated ESC / receiver
• 4-wheel steering
• Four selectable steering modes
• Front steering
• Rear steering
• Opposite 4WS
• Synchronized 4WS / crab steering
• 3-speed mechanical transmission
• Low gear
• Neutral
• High gear
• Front and rear solid axles
• Metal transmission gears
• Metal axle gears
• Metal driveshaft
• 16T powder-metal motor gear
• Oil-filled shock absorbers
• 300cst shock oil
• Metal chassis girder
• 5g copper gear digital steering servo
• 55mm crawler tyres
• 27mm ground clearance
• Tube-frame crawler body
• Driver compartment
• Front LED headlights
• 7.4V 350mAh 2S LiPo battery

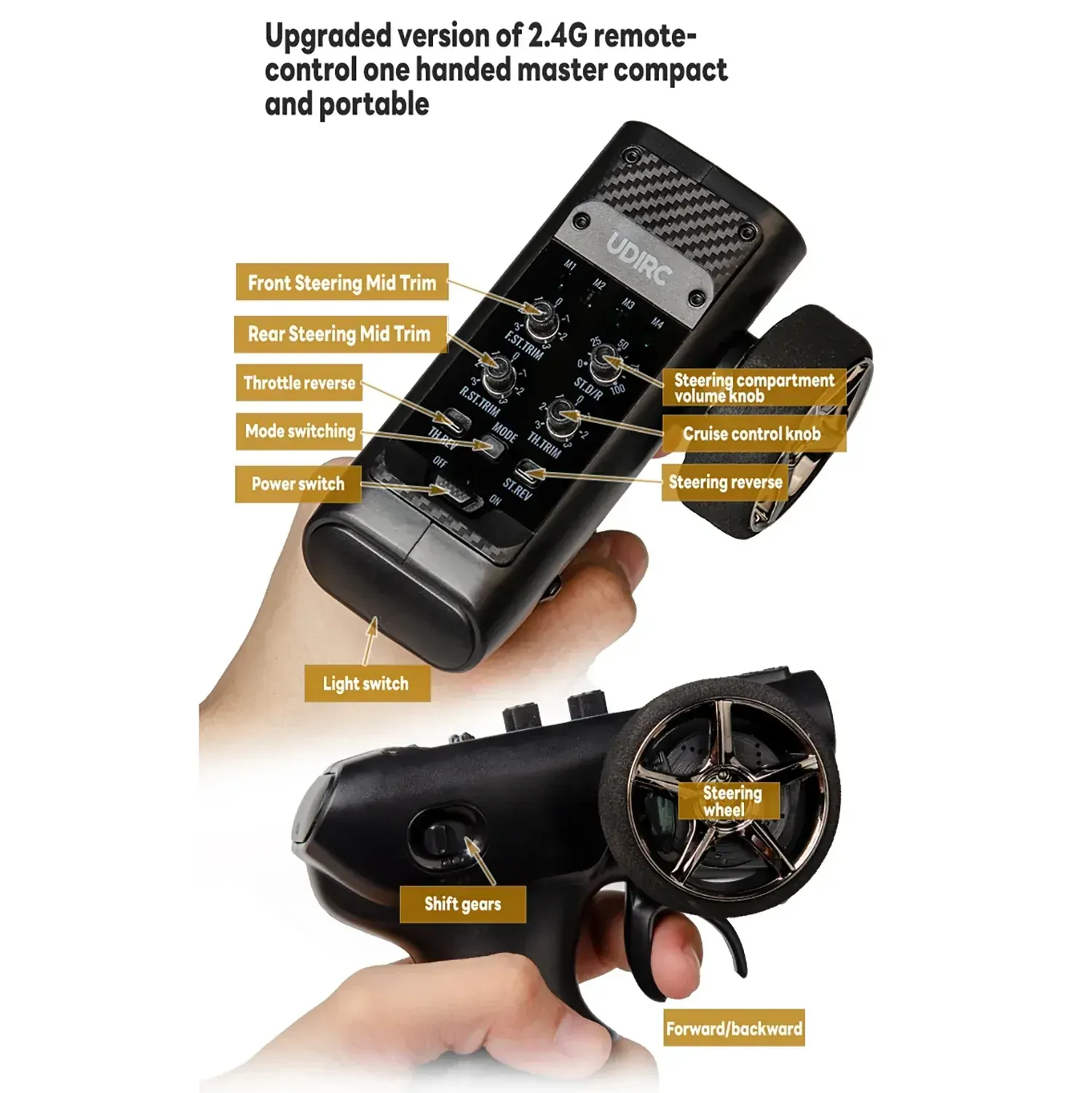

• 2.4GHz radio system
• RTR – Ready to Run

Specifications

• Brand: UDIRC / UDI RC
• Model: Snow Leopard UCX2405PRO
• Product Code: UDI-UCX2405PRO
• Scale: 1/24
• Vehicle Type: Rock Crawler
• Drive: 4WD
• Steering: 4-Wheel Steering
• Steering Modes: 4
• Motor: Brushless
• ESC/Receiver: 2-in-1
• Transmission: 3-Speed Mechanical
• Motor Gear: 16T Powder Metal
• Transmission Gears: Metal
• Input Gears: Metal
• Axle Gears: Metal
• Driveshaft: Metal
• Steering Servo: 5g Copper Gear Digital
• Battery: 7.4V 350mAh 2S LiPo
• Battery Connector: XH2.54-3P
• Shocks: Oil-Filled
• Shock Oil: 300cst
• Body: PVC Tube-Frame Style
• Chassis Girder: Metal
• Axles: High-Quality Nylon
• Wheel Hex: High-Quality Nylon

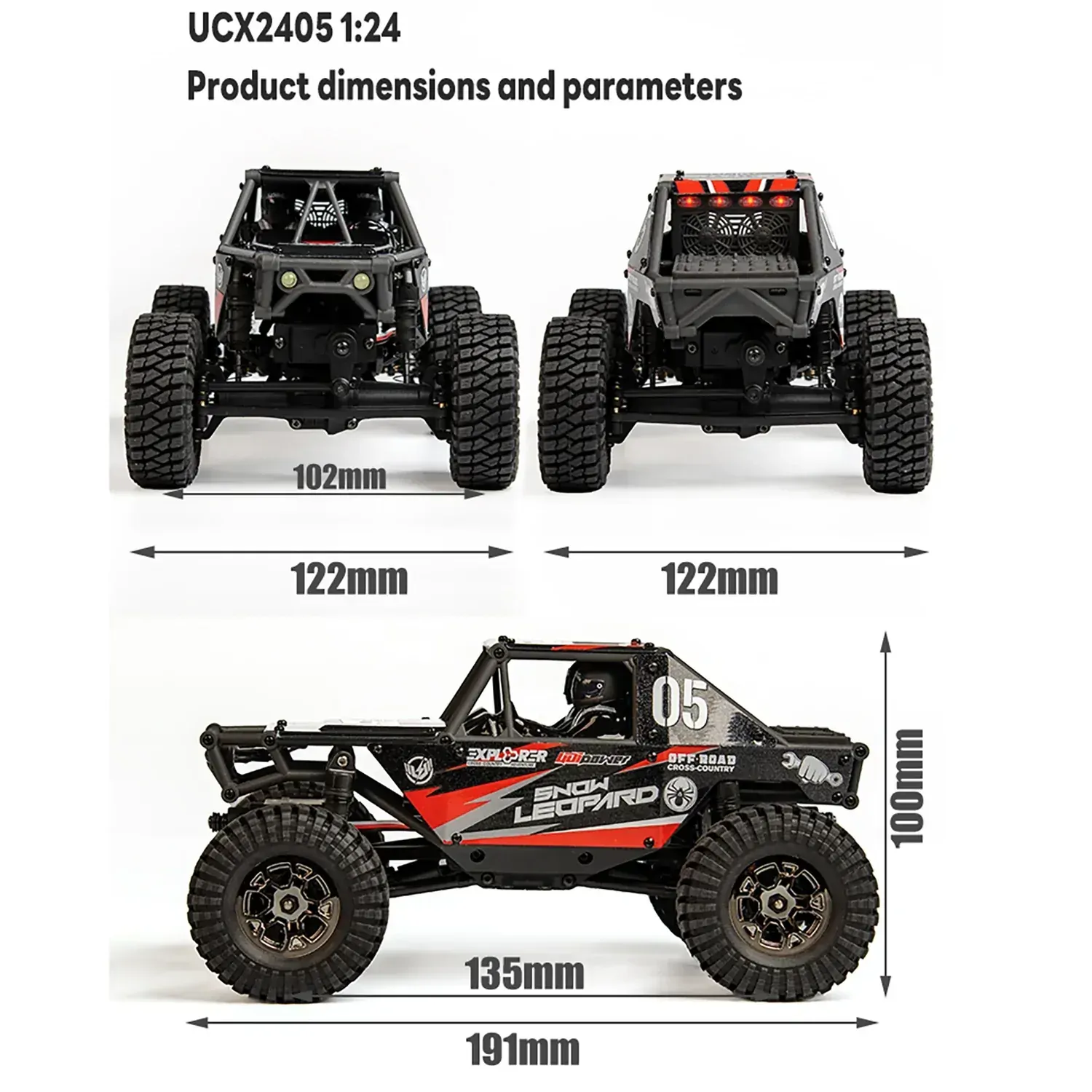

• Length: 191mm
• Width: 122mm
• Height: 100mm
• Wheelbase: 135mm
• Wheel Track: 102mm
• Ground Clearance: 27mm
• Tyre Size: 55 × 20.5mm
• Vehicle Weight: Approximately 313g without battery
• Radio System: 2.4GHz
• Completion Level: Ready-to-Run

What's Included

• UDIRC Snow Leopard UCX2405PRO
• Brushless motor
• Integrated ESC / receiver
• Front and rear steering system
• Digital steering servos
• 2.4GHz transmitter
• 7.4V 350mAh 2S LiPo battery
• Charging equipment
• Oil-filled shocks
• Front LED headlights
• Wheels and crawler tyres
• Basic tools
• Instruction manual

Required to Run

Transmitter batteries are required.

Serious Crawling Performance in 1/24 Scale

The UDIRC Snow Leopard UCX2405PRO is much more than a basic mini crawler.

Its combination of brushless power, 4-wheel steering, 3-speed transmission, solid axles, metal drivetrain and oil-filled suspension provides an impressive level of control and versatility from such a compact platform.

Whether you're building an indoor technical course or heading outside onto the rocks, the UCX2405PRO offers plenty of capability straight from the box.
