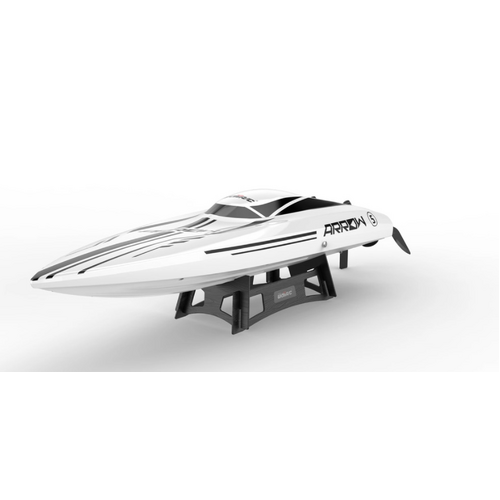

UDIRC UDI005 Arrow Brushless High Speed RC Boat RTR

The UDIRC UDI005 Arrow is a high-speed 2.4GHz brushless RC boat designed for exciting performance on the water. With a powerful water-cooled brushless motor, 3S LiPo power and speeds of up to approximately 50km/h, the Arrow delivers plenty of performance for RC boating enthusiasts.

The boat features a deep-V hull, water-cooled electronics, self-righting capability and a built-in navigation rudder, making it easy to control while providing excellent stability at speed.

Powerful Water-Cooled Brushless Motor

The Arrow is equipped with a KV1800 water-cooled brushless motor, delivering the power required to reach speeds of approximately 40–50km/h when running on the supplied 3S LiPo battery.

The motor uses a dedicated water-cooling system to help manage operating temperatures during high-speed runs.

Water-Cooled Brushless ESC

The marine ESC features an integrated water-cooling system and heat sink to help maintain operating temperatures.

The ESC also incorporates:

• Low-voltage battery detection
• Thermal overload protection
• Waterproof design
• Water cooling
• 3S LiPo compatibility

3S LiPo Battery Included

The Arrow includes a 11.1V 2200mAh LiPo battery, along with the required charging equipment.

The supplied battery provides the power needed to achieve the boat's advertised performance without having to purchase a battery separately.

Deep-V Hull

The Arrow features a rigid deep-V hull designed for stability and performance on the water.

The hull has a 23-degree deadrise angle, helping the boat cut through the water while providing stability during high-speed operation.

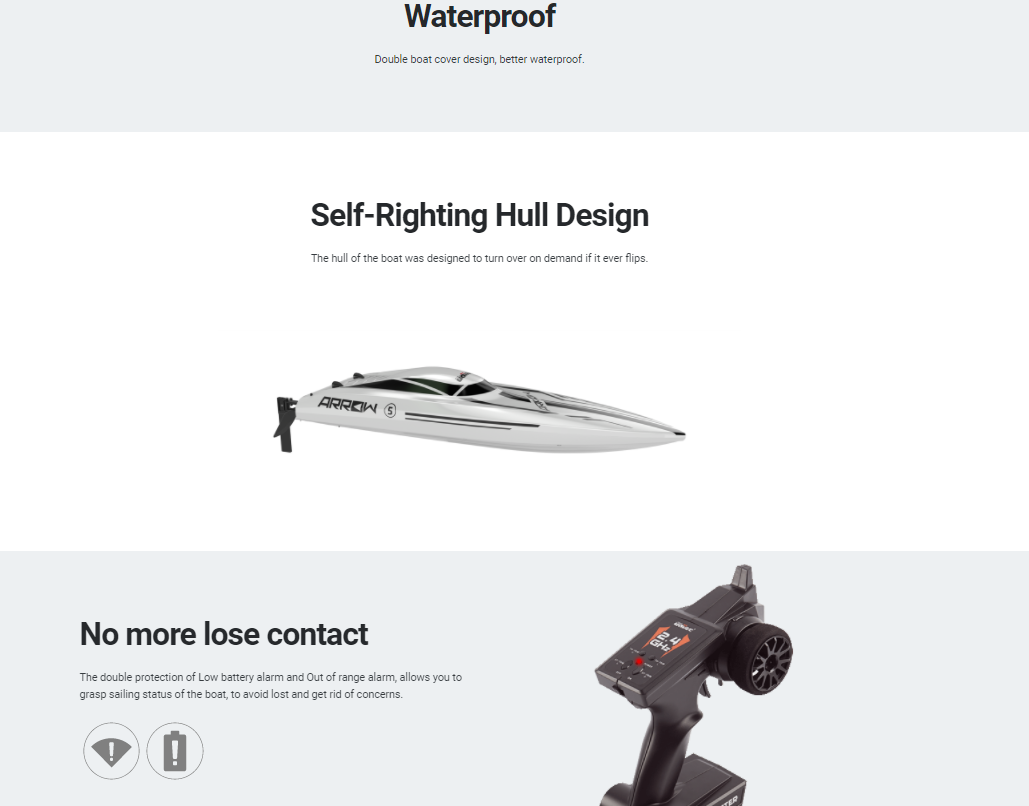

Self-Righting Design

If the boat flips over while operating, the self-righting hull design allows it to return to an upright position, helping you get back on the water without manually retrieving the boat.

High-Speed Performance

The UDI005 Arrow can reach approximately 40–50km/h depending on operating conditions, battery condition and water conditions.

With its brushless power system and streamlined hull, the Arrow is designed for fast and exciting RC boating.

2.4GHz Radio System

The Arrow includes a 2.4GHz radio system providing reliable control without the interference associated with older radio systems.

The transmitter provides approximately 120 metres of control range under suitable conditions.

Built-In Navigation Rudder

A dedicated navigation rudder helps provide responsive steering control.

The boat supports:

• Forward
• Reverse
• Left
• Right
• High/low speed modes

Low Battery & Out-of-Range Alerts

The electronics include warning functions to help alert the operator when the battery is running low or the boat approaches the limits of the radio control range.

Key Features

• UDIRC UDI005 Arrow
• High-speed brushless RC boat
• 2.4GHz radio system
• Water-cooled brushless motor
• KV1800 brushless motor
• Water-cooled marine ESC
• 3S LiPo powered
• 11.1V 2200mAh LiPo battery included
• Speeds up to approximately 50km/h
• Deep-V hull
• 23° deadrise
• Self-righting hull design
• Built-in navigation rudder
• Low-battery warning
• Out-of-range warning
• High/low speed modes
• Forward/reverse operation
• Water-cooled electronics

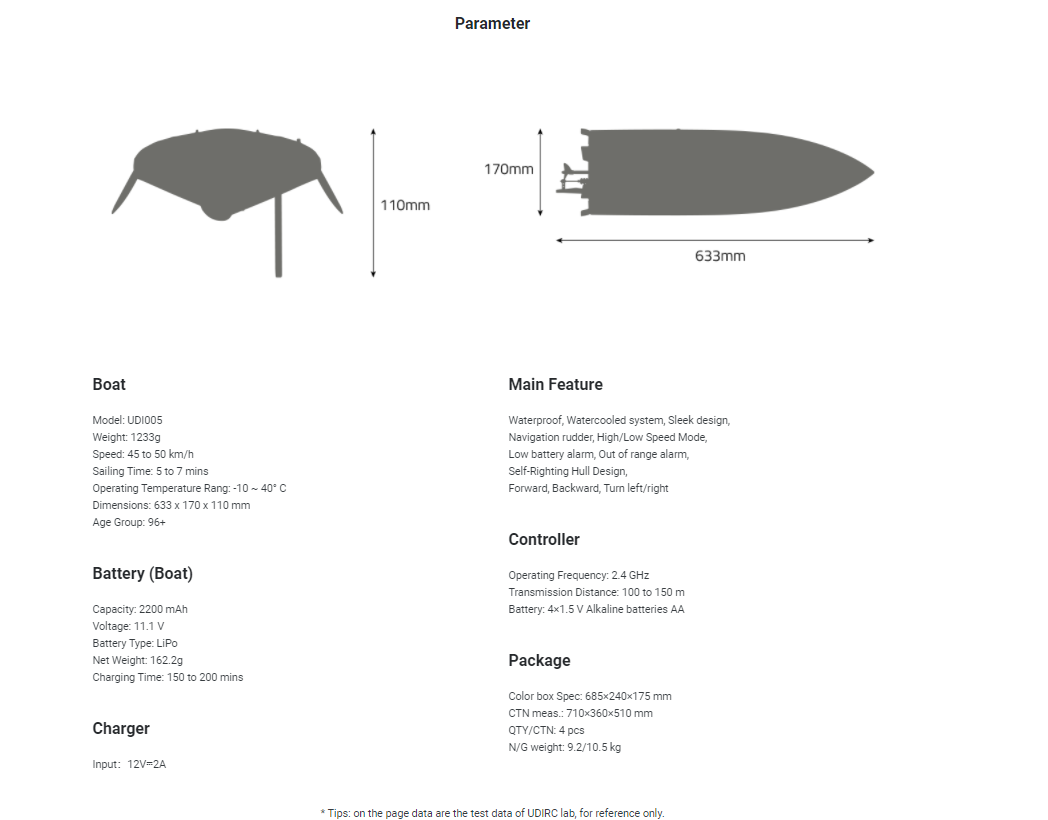

Specifications

• Brand: UDIRC
• Model: Arrow
• Product Code: UDI-005 / UDI005
• Type: Brushless High-Speed RC Boat
• Scale: Not specified
• Drive: Single propeller
• Motor: KV1800 Brushless
• Motor Cooling: Water Cooled
• ESC: Water Cooled Brushless ESC
• Battery: 3S LiPo
• Battery Voltage: 11.1V
• Battery Capacity: 2200mAh
• Top Speed: Approximately 40–50km/h
• Hull Type: Deep-V
• Deadrise: 23°
• Length: Approximately 645mm
• Width: Approximately 170mm
• Height: Approximately 110mm
• Weight: Approximately 1.23kg
• Radio Frequency: 2.4GHz
• Control Range: Approximately 120m
• Run Time: Approximately 7 minutes
• Charging Time: Approximately 190 minutes

What's Included

• UDIRC UDI005 Arrow RC boat
• Water-cooled brushless motor
• Water-cooled ESC
• 2.4GHz transmitter
• 11.1V 2200mAh LiPo battery
• LiPo balance charger
• AC/DC adaptor
• Propeller
• Maintenance tools
• Boat stand
• User manual

Required

• 4 × AA batteries for the transmitter

The transmitter batteries are not included.

Ready to Run

The UDIRC Arrow comes largely assembled and includes the radio system, brushless power system, battery and charger, making it a convenient choice for anyone looking to get into high-speed RC boating.

Simply charge the supplied battery, install the transmitter batteries and follow the instructions before heading out onto the water.

Please note: Always operate the boat in a suitable body of water away from swimmers, boats, obstacles and other hazards. Operating time and maximum speed will vary depending on conditions, battery condition and driving style.
