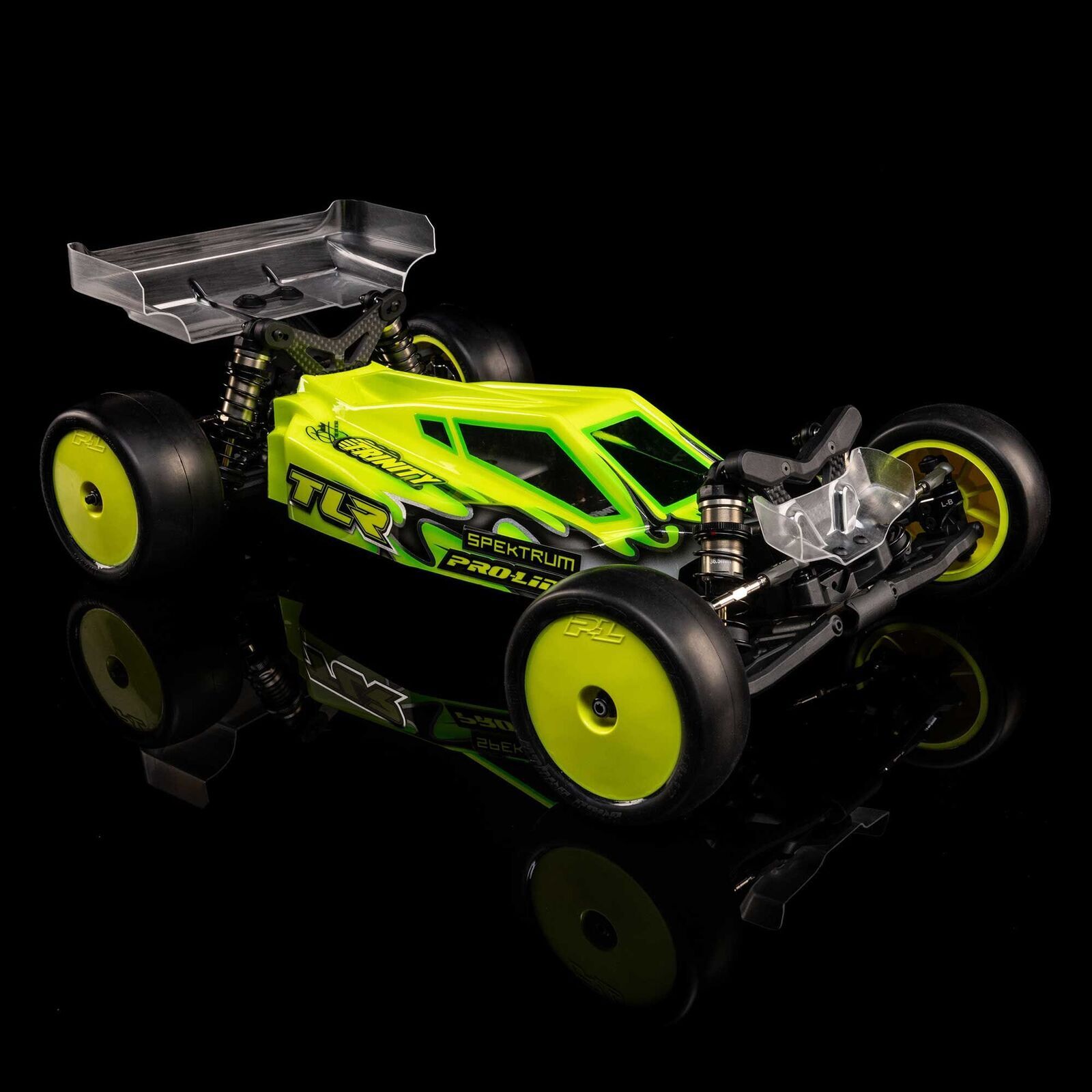

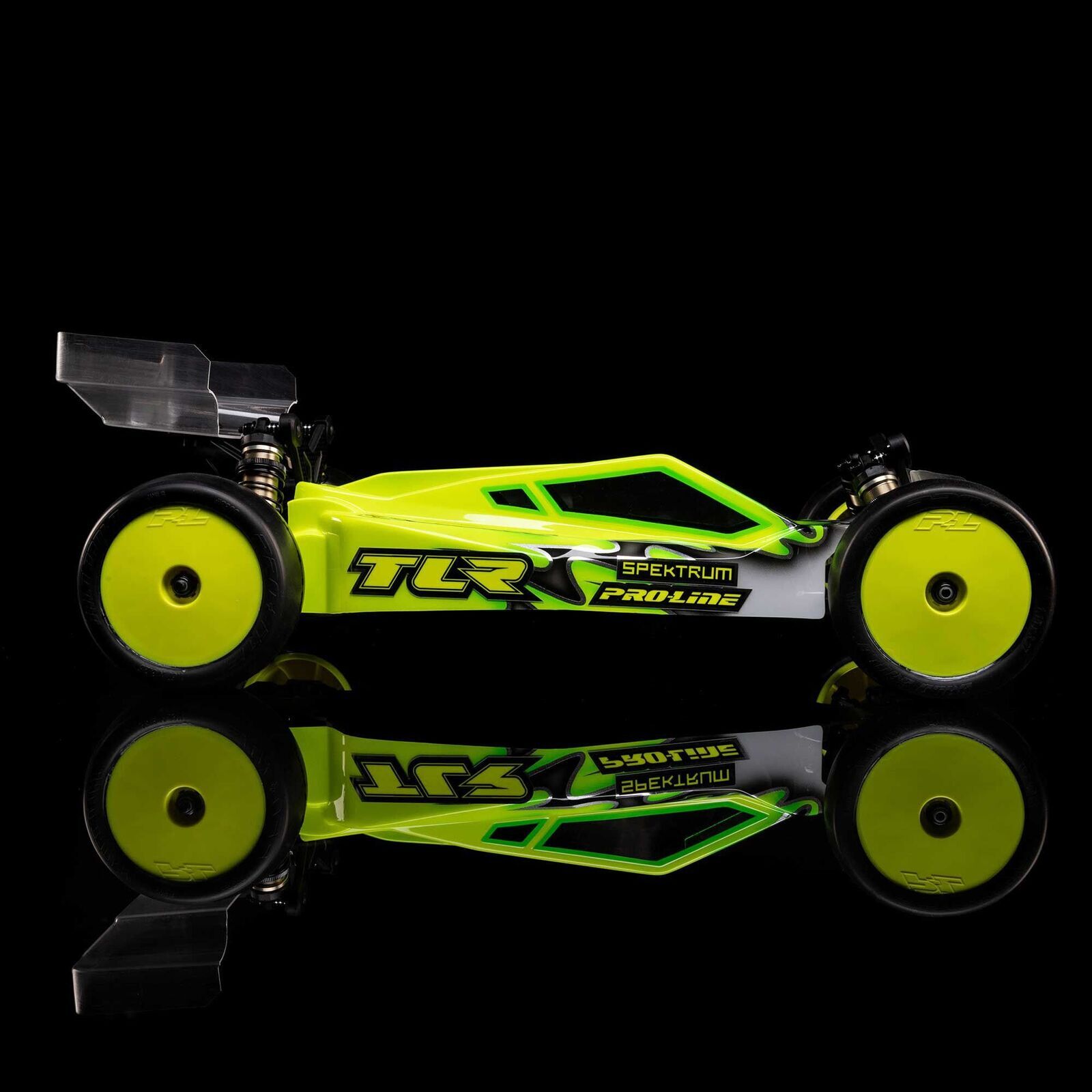

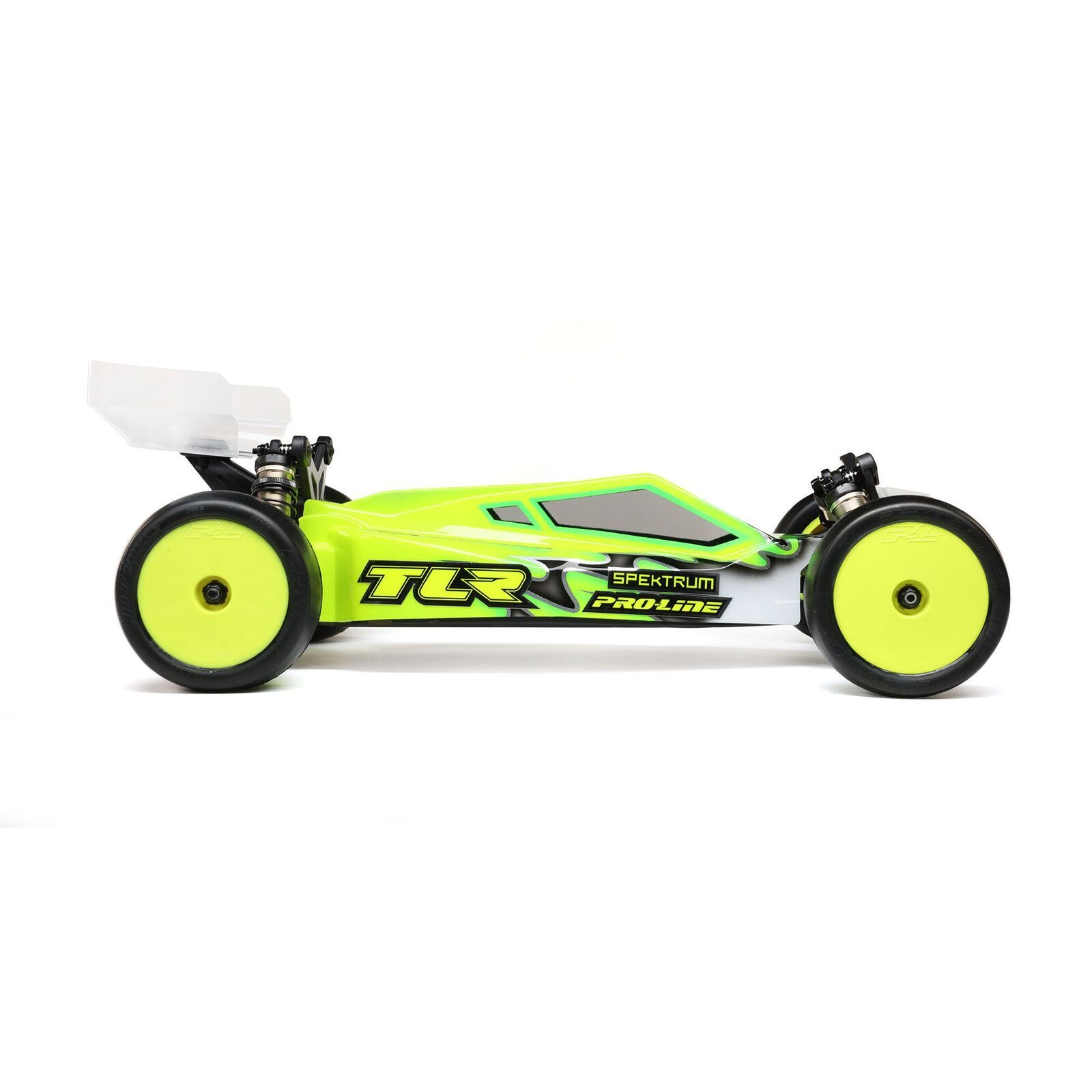

Team Losi Racing 1/10 22X DC 2WD RC Buggy Race Kit, Dirt/Clay Overview

In 2010, Team Losi Racing introduced the revolutionary 22 — a completely new 2WD platform that jump-started the electric buggy racing scene, launching a series of TLR 22 vehicles with top-level performance.

Now, a new era of domination begins with the 1/10 scale 22X DC 2WD Race Buggy Kit. TLR started with lessons learned from the World Championship-winning 22, and from years of further 22 platform development plus valuable racer feedback. The result is a brand new buggy design that's easier to maintain and comes optimized for dirt and clay tracks, with a ton of adjustability that makes it easier to drive faster on today's high-grip surfaces.

If you're ready for the podium, the 22X DC 2WD kit is equipped to take you there. Key improvements include a hard-anodized 2mm 7075-T6 aluminum chassis that's lengthened and optimized for today's higher grip tracks, plus larger 13mm big-bore shocks with 13mm springs for plush landings and quick cornering.

Two front caster block and spindle options let you tune the steering feel to what you want and need on different surfaces; options for wide or narrow king pin locations are available. The wide location provides a more linear feel and keeps the buggy flatter through the corners. For a more aggressive steering feel, you can choose the narrow king pin location.

The TLR 22X DC 2WD kit also has a new laydown gearbox design with an easy-access differential and idler gear. You'll be able to maintain the differential and idler gear quickly without disassembling the entire gear box — a big advantage given that the suspension uses the gearbox for all of its mounting points.

TLR includes many option items with the 22X DC race kit to offer the maximum amount of tunability right out of the box. After all, the demands of 2WD electric racing have changed, as the tracks have changed from traditional loose-grip dirt to high-grip clay, carpet, and astroturf. With the TLR 22X DC, you can adapt to any track and be fast and successful anywhere.

Product Details

In The Box
  • (1) Team Losi Racing 22X DC 1/10 Scale 2WD Race Buggy Kit
  • (1) Pro-Line Sector 22X Body
  • (1) Pro-Line Air Force 7” Wing
  • (1) Pro-Line Front Wing
  • (1) Product Manual



Needed to Complete
  • (1) ESC
  • (1) 540 Size Motor
  • (1) 2S LiPo Shorty Battery
  • (1) LiPo Battery Charger
  • (1) Receiver
  • (1) Transmitter
  • (1) Servo
  • (1) 48-Pitch Pinion Gear
  • (1) 30 x 30mm Motor Fan (Optional)
  • (4) 2.2” Buggy Wheels (2WD Fronts, Buggy Rears)
  • (4) 2.2” Buggy Tires (2WD Fronts, Buggy Rears)
  • Polycarbonate Paint

Product Specs

Approximate Assembly Time

3-5 Hours

Body

Pre-cut

Chassis

7075-T6 Aluminum Milled Plate 2mm thick

Completion Level

Kit

Differential

Ball

Drivetrain

2WD

Front Track

9.8" (250mm)

Gear Pitch

48-Pitch

Internal Gear Ratio

2.6:1

LiPo Compatibility

2S

Max Battery Dimensions

25.1mm x 47mm x 96mm

Power Type

Electric

Product Height

5.8" (147 mm)

Product Length

14.6" (371 mm)

Rear Track

9.8" (250mm)

Scale

1/10

Shock Type

13mm big-bore shocks

Spur Gear

78

Vehicle Size

Standard

Vehicle Type

Buggy

Wheel Hex Size

12mm

Wheelbase

11.2" (284 mm)

Read More
Specifications
SKU TLR-1233
Brand TLR
