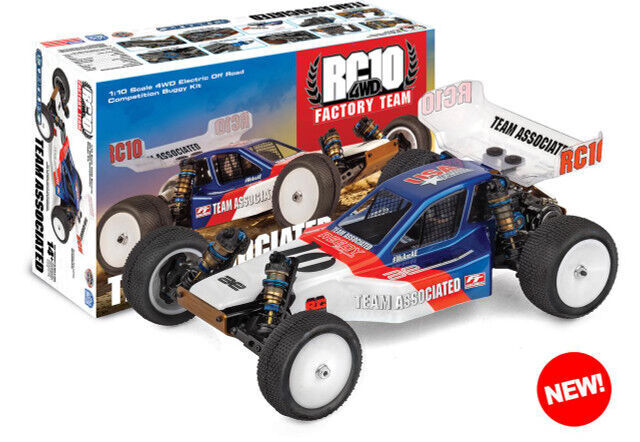

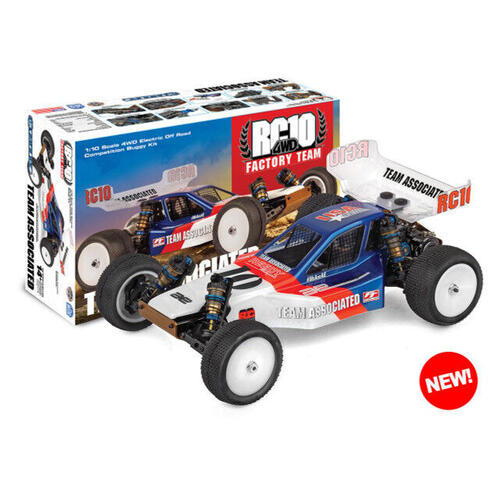

Team Associated RC10 4WD Factory Team Kit – ASS6055

The Team Associated RC10 4WD Factory Team Kit brings the legendary RC10 platform into a modern 1/10 scale 4WD competition buggy package. Developed by Team Associated's AREA 51 Factory Team, it combines classic RC10 heritage with modern Factory Team components and race-focused geometry.

The ASS6055 features a distinctive bronze anodised 6061-T6 aluminium monocoque tub chassis, Kashima-coated 13mm Big Bore shocks, carbon fibre shock towers, Stealth transmissions and a low-friction centre belt drivetrain.

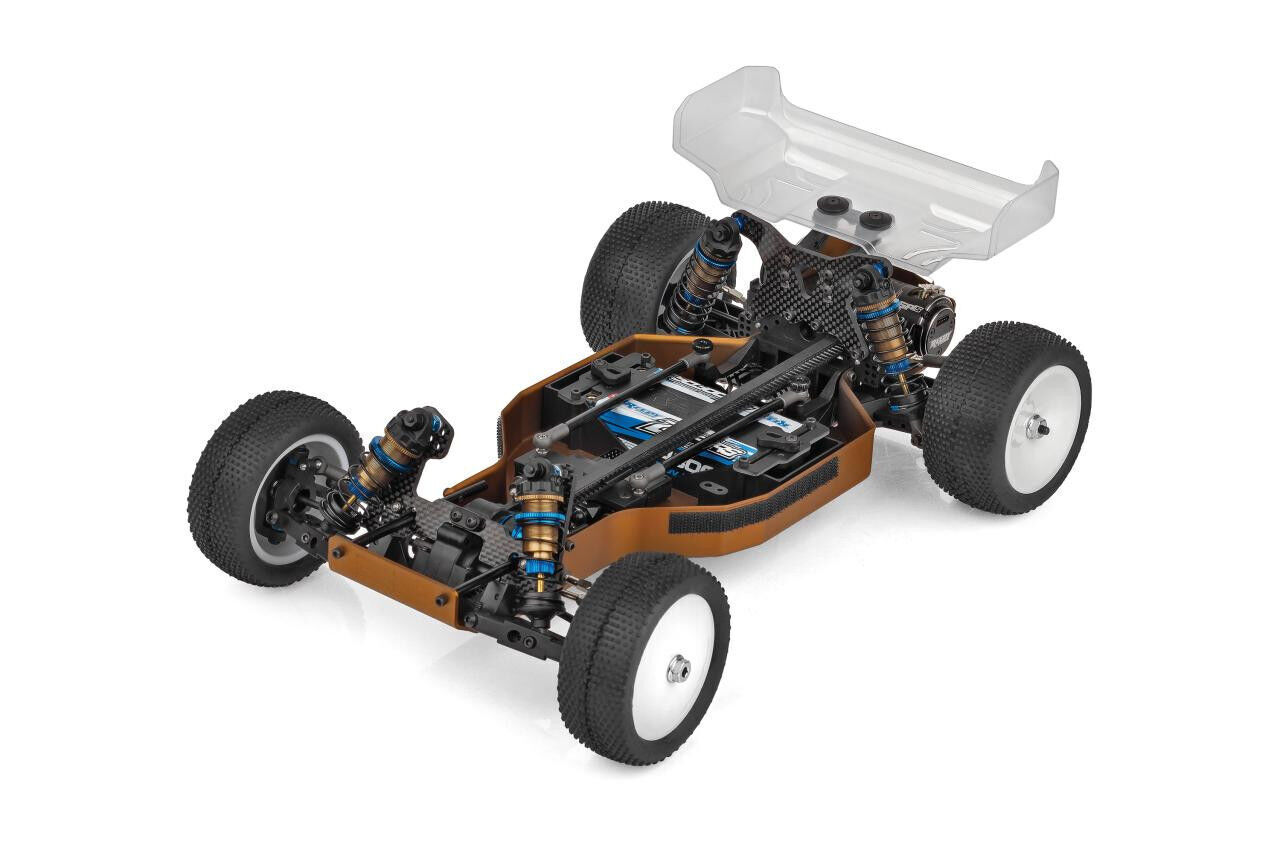

Factory Team Aluminium Chassis

At the heart of the RC10 4WD is a 6061-T6 aluminium monocoque tub chassis, finished in distinctive bronze anodising.

The chassis is complemented by a bronze anodised nose plate and motor plate, black anodised chassis stiffeners and exclusive black anodised nose tubes.

4WD Belt-Drive System

Power is transferred through a low-friction centre belt system with an adjustable tensioning arrangement.

Front and rear Stealth transmissions use adjustable ball differentials, while the race-proven V2 slipper clutch helps manage power delivery and provides additional drivetrain protection.

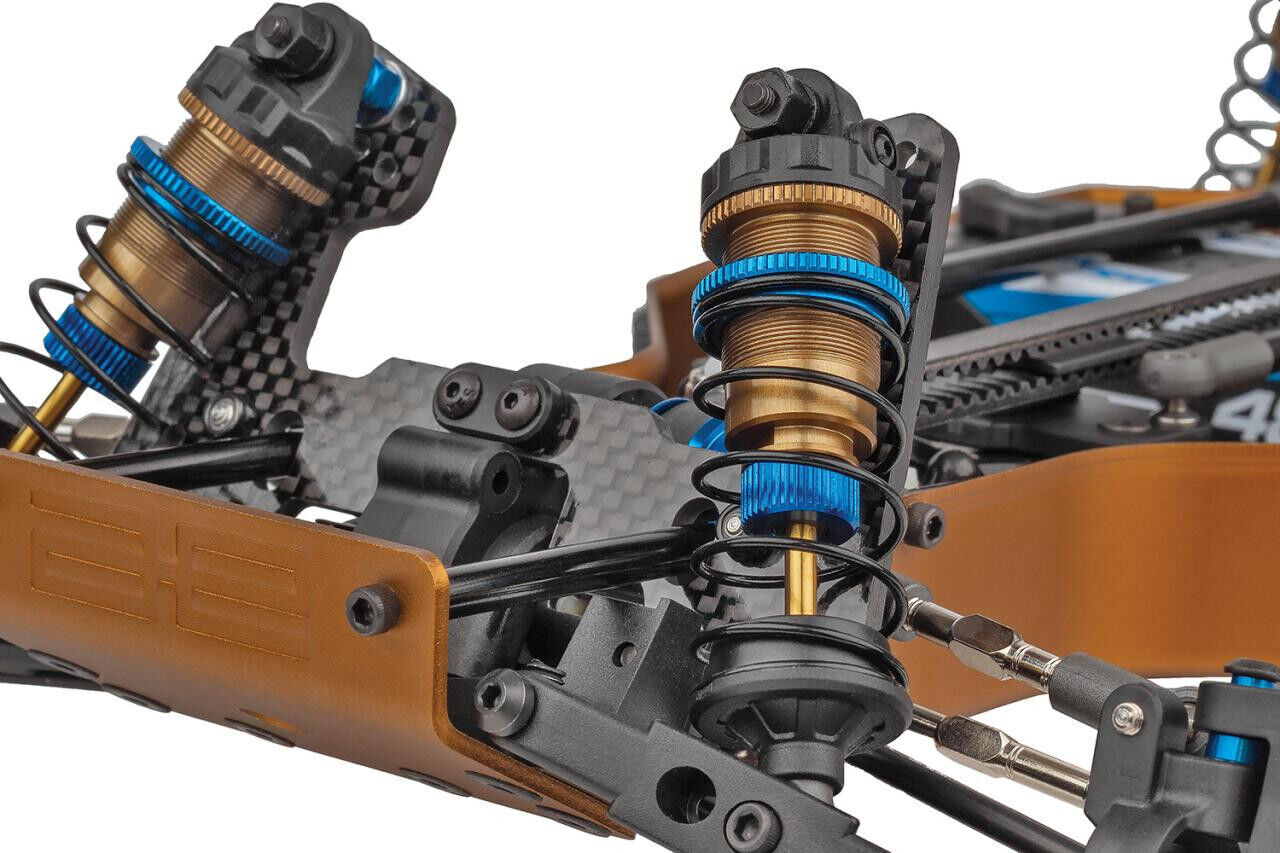

Factory Team 13mm Big Bore Shocks

Premium Kashima-coated 13mm Big Bore Factory Team shocks are included as standard.

They're paired with new low-CG carbon fibre front and rear shock towers, providing a modern competition suspension package while maintaining the character of the RC10 platform.

Carbon Fibre Components

A range of Factory Team carbon fibre components are included throughout the buggy.

These include carbon fibre steering plates, transmission brace and front and rear shock towers, helping reduce weight while providing the rigidity required for precise competition handling.

Fully Adjustable Suspension

The RC10 4WD features fully adjustable four-wheel independent suspension with heavy-duty 3.5mm turnbuckles and ball cups.

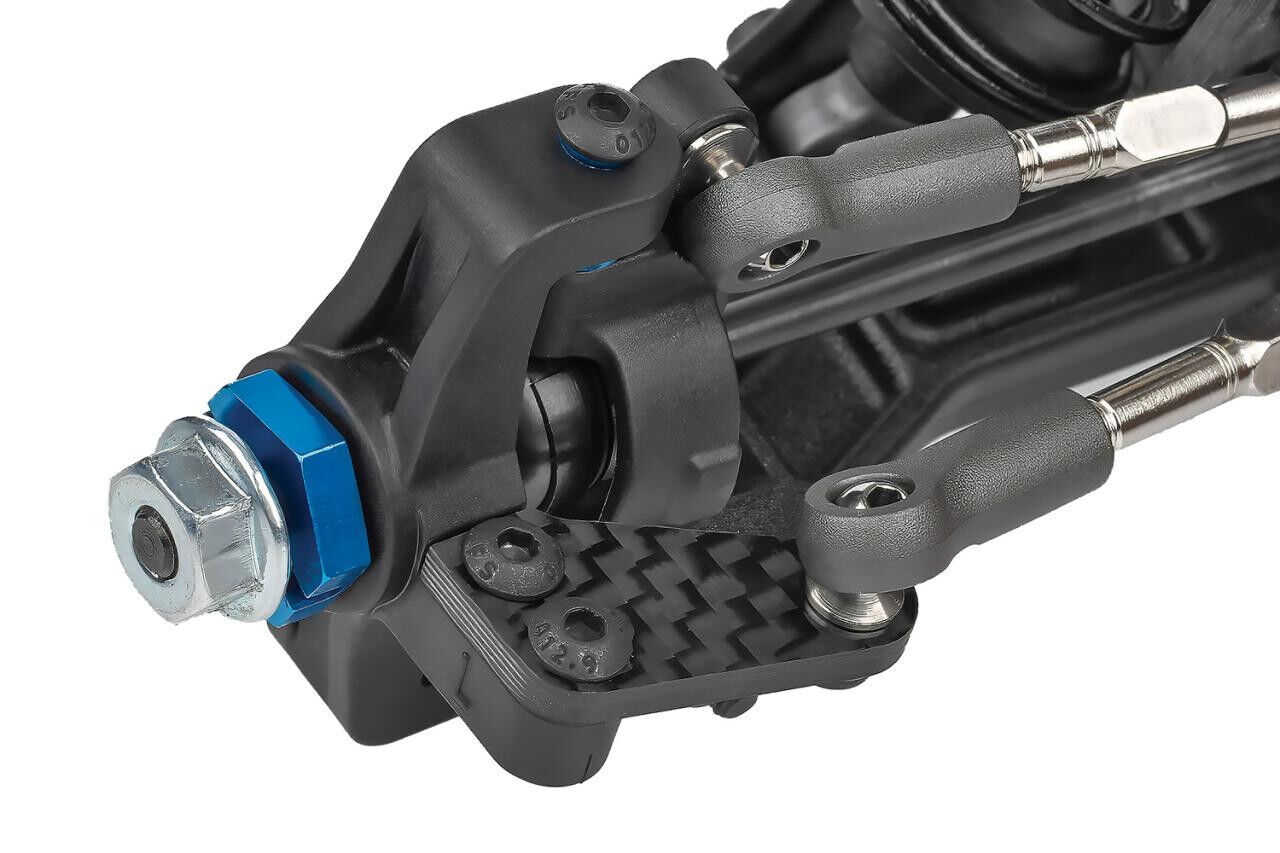

Long front arm geometry works with a new RC10 4WD-specific front caster and spindle assembly, while an updated rear bulkhead and chassis stiffener further refine the handling package.

Factory Team CVA Drivetrain

Front and rear Factory Team CVA driveshafts provide smooth and efficient power delivery.

The buggy also features 12mm hexes front and rear, making it compatible with modern competition wheel fitments. White B84 12mm hex wheels are included with the kit.

Mirage Pro Body & B7 Wing

The kit includes a new Mirage Pro clear Lexan body together with a Team Associated B7 rear wing.

The body requires trimming and painting, allowing racers to finish the buggy in their preferred colour scheme.

Key Features

• Team Associated RC10 4WD Factory Team
• Part Number: ASS6055 / 6055
• 1/10 scale competition buggy
• 4WD belt-drive drivetrain
• Bronze anodised 6061-T6 aluminium monocoque tub chassis
• Bronze anodised nose plate and motor plate
• Black anodised aluminium chassis stiffeners
• Exclusive black anodised nose tubes
• All-black composite components
• Kashima-coated 13mm Big Bore Factory Team shocks
• Low-CG carbon fibre front and rear shock towers
• Carbon fibre steering plates
• Carbon fibre transmission brace
• Front and rear Stealth transmissions
• Adjustable front and rear ball differentials
• V2 slipper clutch
• Low-friction centre belt and tensioning system
• Front and rear CVA driveshafts
• 12mm wheel hexes front and rear
• B84 white 12mm hex wheels included
• Heavy-duty 3.5mm turnbuckles
• Factory Team captured hinge pins
• Precision bearings throughout
• CNC blue anodised pulley flanges
• New servo mount and belt guide system
• Updated rear bulkhead
• HD metric ball studs
• New 4WD Worlds-style bellcrank steering system
• Mirage Pro clear Lexan body
• B7 rear wing included
• Competition-level kit requiring assembly

Specifications

Brand: Team Associated
Part Number: ASS6055 / 6055
Model: RC10 4WD Factory Team
Scale: 1/10
Vehicle Type: Off-Road Buggy
Drive: 4WD
Power: Electric
Chassis: 6061-T6 Aluminium Monocoque Tub
Drivetrain: Centre Belt / Stealth Transmissions
Differentials: Adjustable Ball Differentials – Front & Rear
Slipper: V2 Slipper Clutch
Shocks: 13mm Big Bore, Kashima Coated
Shock Towers: Carbon Fibre
Driveshafts: Front & Rear CVA
Wheel Hex: 12mm Front & Rear
Body: Clear Mirage Pro Lexan
Rear Wing: B7
Completion Level: Kit / Assembly Required

What's Included

• Team Associated RC10 4WD Factory Team Kit
• Bronze anodised aluminium chassis
• Factory Team 13mm Big Bore shocks
• Front and rear Stealth transmissions
• Adjustable ball differentials
• V2 slipper clutch
• CVA driveshafts
• Carbon fibre components
• White B84 12mm hex wheels
• Clear Mirage Pro body
• B7 rear wing
• Kit hardware and components
• Instruction manual

Required to Complete

The RC10 4WD Factory Team is a competition kit, not an RTR vehicle. You'll need:

• Electric motor
• ESC
• Steering servo
• 2-channel radio system
• Suitable battery
• Battery charger
• 1/10 buggy tyres
• Polycarbonate body paint
• Assembly tools and accessories

Classic RC10 Heritage with Modern Factory Team Performance

The RC10 4WD Factory Team is much more than a simple vintage re-release. Team Associated has combined the unmistakable character of the RC10 with modern competition components developed to make the car genuinely capable on today's tracks.

With its bronze aluminium tub chassis, belt-driven 4WD system, Stealth transmissions, Kashima 13mm shocks, carbon fibre components and modern suspension geometry, ASS6055 is an excellent choice for RC10 enthusiasts who want classic styling without giving up modern race performance
