Team Associated RC10 Model 24 Classic 1/24 2WD Buggy Kit – ASS20200

The Team Associated RC10 Model 24 Classic takes one of the most influential RC racing buggies ever produced and recreates it as an incredibly detailed 1/24 scale hobby-grade kit.

Released in 2026, ASS20200 isn't simply a miniature display model. Team Associated has engineered it as a fully functional RC racing buggy with a gold-anodised aluminium monocoque chassis, independent suspension, oil-filled aluminium shocks, adjustable slipper clutch, gear differential and full ball bearings.

For RC10 enthusiasts, collectors and anyone wanting a genuinely high-quality micro RC project, the Model 24 delivers classic RC10 engineering in a remarkably compact package.

Authentic RC10 Classic in 1/24 Scale

The Model 24 has been designed as an authentic miniature recreation of the legendary original Team Associated RC10.

Rather than simply copying the shape of the original buggy, Team Associated has scaled down many of the mechanical features that made the RC10 famous, including its aluminium tub chassis, independent suspension and rear-mounted transmission.

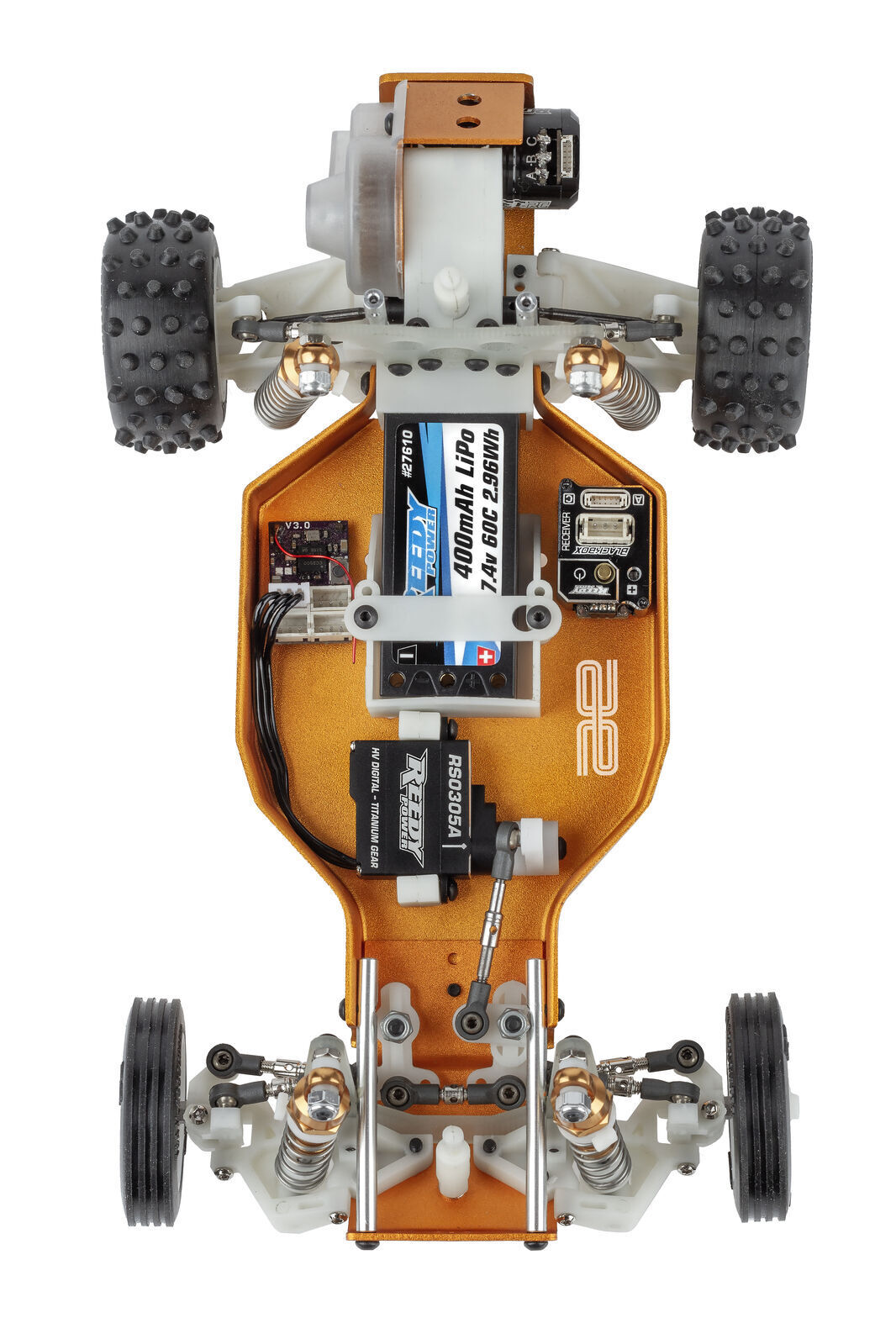

Gold-Anodised Aluminium Monocoque Chassis

One of the standout features is the beautiful gold-anodised aluminium monocoque tub chassis.

The chassis is laser etched and closely follows the construction style of the full-size RC10 Classic. It gives the Model 24 genuine RC10 character while providing a strong and rigid foundation for the tiny racing buggy.

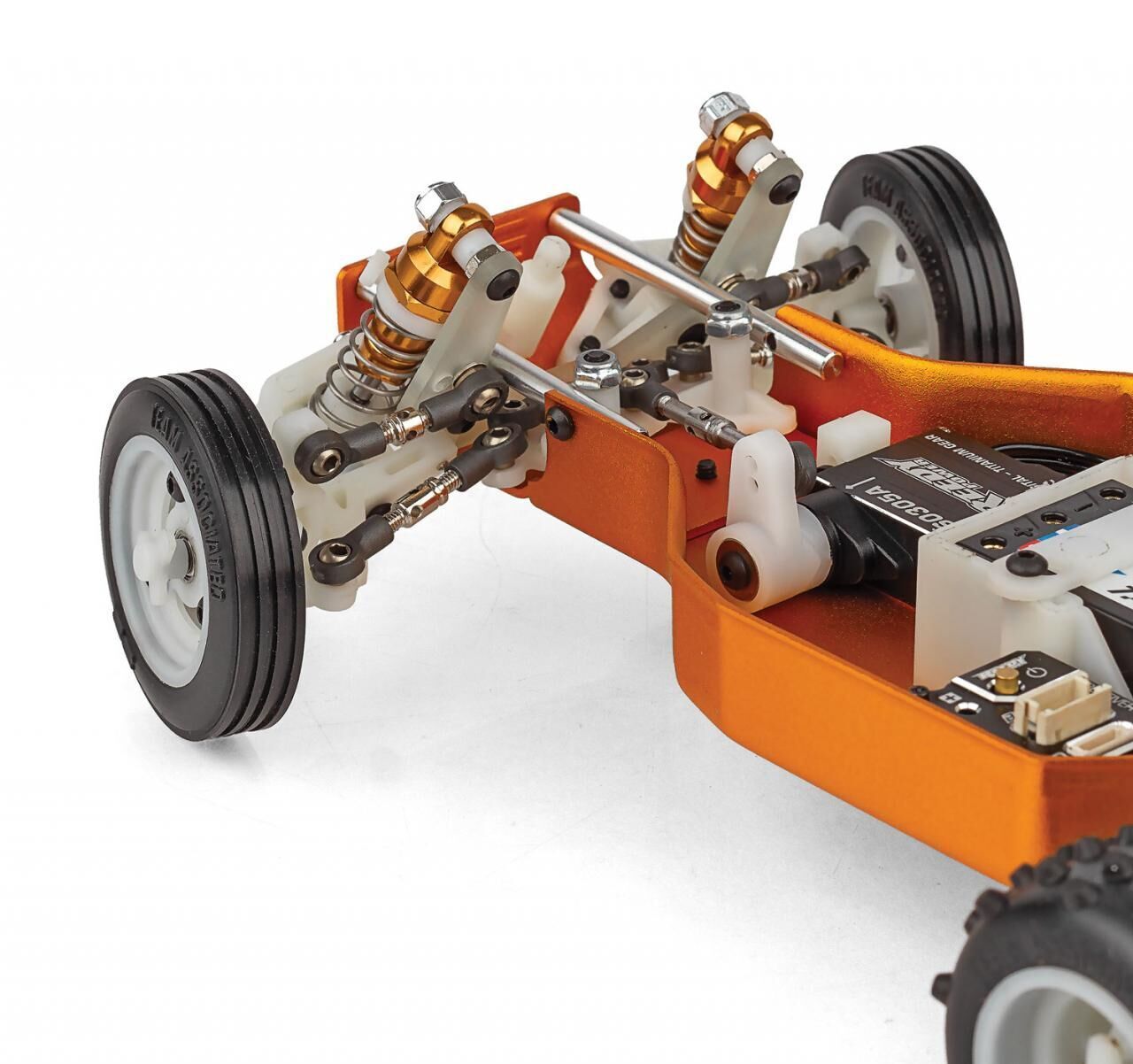

Fully Independent Adjustable Suspension

Despite its tiny dimensions, the Model 24 features fully adjustable four-wheel independent suspension.

Its A-arm suspension design allows adjustment of camber, ride height and spring rates, giving owners genuine setup options rather than the fixed suspension commonly found on small-scale RC vehicles.

Aluminium Oil-Filled Racing Shocks

Team Associated hasn't compromised on the dampers either.

The Model 24 comes with long-travel, fluid-filled gold-anodised aluminium coilover shocks, providing smooth and controlled suspension movement.

This is a particularly impressive feature for a 1/24 scale vehicle and reinforces the Model 24's position as a genuine hobby-grade RC kit rather than a toy-grade micro buggy.

Sealed 3-Gear Transmission

Power is transferred through a sealed three-gear transmission equipped with a fully adjustable slipper system.

The slipper allows power delivery to be tuned while also helping protect the miniature drivetrain from sudden shock loads.

A high-torque gear differential provides smooth power distribution to the rear wheels and can also be adjusted to suit different track conditions and setups.

Hardened Steel Drivetrain Components

Despite its small scale, Team Associated has equipped the Model 24 with hardened steel outdrives and dogbones.

Combined with full metal ball bearings throughout, these components give the buggy a drivetrain specification much closer to a conventional hobby-grade race buggy than a typical micro RC car.

Classic Three-Piece Racing Wheels

The Model 24 includes three-piece racing wheels with dedicated front and rear tyres.

They reproduce the unmistakable look of the classic RC10 while remaining fully functional for running the vehicle.

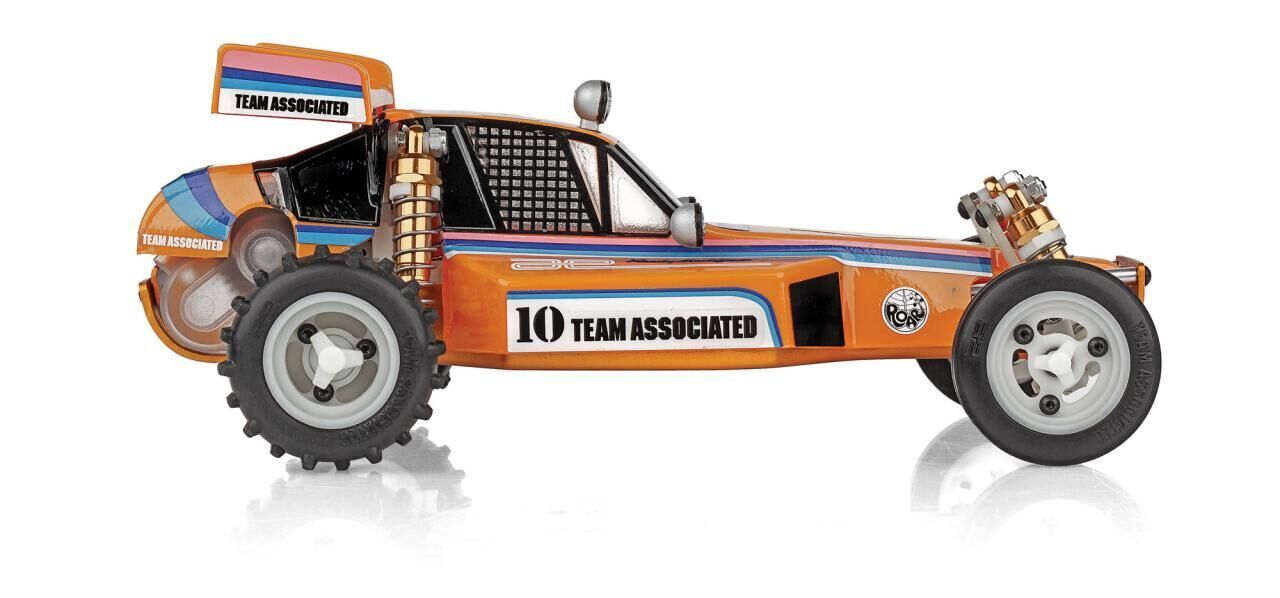

Clear Protech Body, Wing & Driver

A clear micro Protech body, rear wing and driver figure are supplied with the kit.

The included classic livery decal sheet allows builders to recreate the traditional RC10 appearance, while the clear body also provides plenty of opportunity for a completely custom paint scheme.

Fibreglass Shock Towers

Front and rear fibreglass shock towers add another authentic competition-style component to the Model 24.

Together with the aluminium shocks and adjustable suspension, they contribute to a surprisingly sophisticated suspension package for such a small RC buggy.

Reedy Micro Electronics Compatible

The Model 24 is supplied as a builder's kit without electronics, allowing you to select your own power and radio equipment.

Team Associated designed the chassis to be compatible with existing Reedy 1/24 and 1/28 scale micro electronics. Current compatible options include Reedy micro brushless motors, micro ESC, micro servo and 2S LiPo battery systems.

Key Features

• Team Associated RC10 Model 24 Classic
• Part Number: ASS20200 / 20200
• Authentic 1/24 scale RC10 Classic
• Hobby-grade RC assembly kit
• Rear-wheel drive / 2WD
• Gold-anodised laser-etched aluminium monocoque tub chassis
• Hardened steel outdrives and dogbones
• Fully adjustable four-wheel independent suspension
• Adjustable camber, ride height and spring rates
• Long-travel fluid-filled aluminium coilover shocks
• Gold-anodised shock bodies
• Sealed 3-gear transmission
• Fully adjustable slipper system
• High-torque gear differential
• Three-piece racing wheels
• Dedicated front and rear tyres
• Clear micro Protech body
• Clear rear wing
• Driver figure
• Classic RC10 livery decal sheet
• Fibreglass shock towers
• Full metal ball bearings
• Metric hardware throughout
• Excellent ground clearance
• Low centre of gravity
• Compatible with Reedy micro 1/24 and 1/28 electronics
• Full replacement parts support

Specifications

Brand: Team Associated
Part Number: ASS20200
Manufacturer Number: 20200
Model: RC10 Model 24 Classic
Scale: 1/24
Vehicle Type: Off-Road Racing Buggy
Drive: 2WD / Rear-Wheel Drive
Chassis: Gold-Anodised Aluminium Monocoque Tub
Suspension: Fully Independent
Shocks: Fluid-Filled Aluminium Coilover
Transmission: Sealed 3-Gear
Slipper: Adjustable
Differential: High-Torque Gear Differential
Driveshafts: Hardened Steel Dogbones
Bearings: Full Metal Ball Bearings
Body: Clear Micro Protech
Motor: Not Included
ESC: Not Included
Servo: Not Included
Radio: Not Included
Battery: Not Included
Completion Level: Assembly Kit

What's Included

• Team Associated RC10 Model 24 Classic kit
• Gold-anodised aluminium chassis
• Gold-anodised aluminium oil-filled shocks
• 3-gear transmission
• Adjustable slipper system
• Gear differential
• Front and rear suspension components
• Three-piece racing wheels
• Front and rear tyres
• Clear Protech body
• Clear rear wing
• Driver figure
• Classic livery decal sheet
• Assembly hardware and instructions

Required to Complete

You'll need:

• 2-channel surface transmitter and receiver
• Micro steering servo – Reedy #27175 or suitable equivalent
• Micro ESC
• Micro electric motor
• Suitable 2S LiPo battery
• LiPo-compatible charger
• Transmitter batteries
• Polycarbonate body paint
• CA tyre glue
• Thread-locking compound

Team Associated currently lists several compatible Reedy Sonic 1525 micro brushless motors, ranging from 2500kV through to 6800kV, as well as the Reedy 400mAh 60C 7.4V 2S battery.

A Proper RC10 – Just Much Smaller

What makes the ASS20200 RC10 Model 24 Classic particularly interesting is that Team Associated hasn't treated it as a novelty micro car.

Features such as the aluminium tub chassis, oil-filled aluminium shocks, adjustable suspension, slipper clutch, gear differential, steel drivetrain and ball bearings are features you'd normally associate with much larger competition RC cars.

The result is a miniature RC10 that should appeal equally to collectors who remember the original RC10 and enthusiasts who actually want to build, tune and drive it.

Team Associated announced the RC10 Model 24 Classic on 11 February 2026, and it remains part of the company's current RC10 range.
