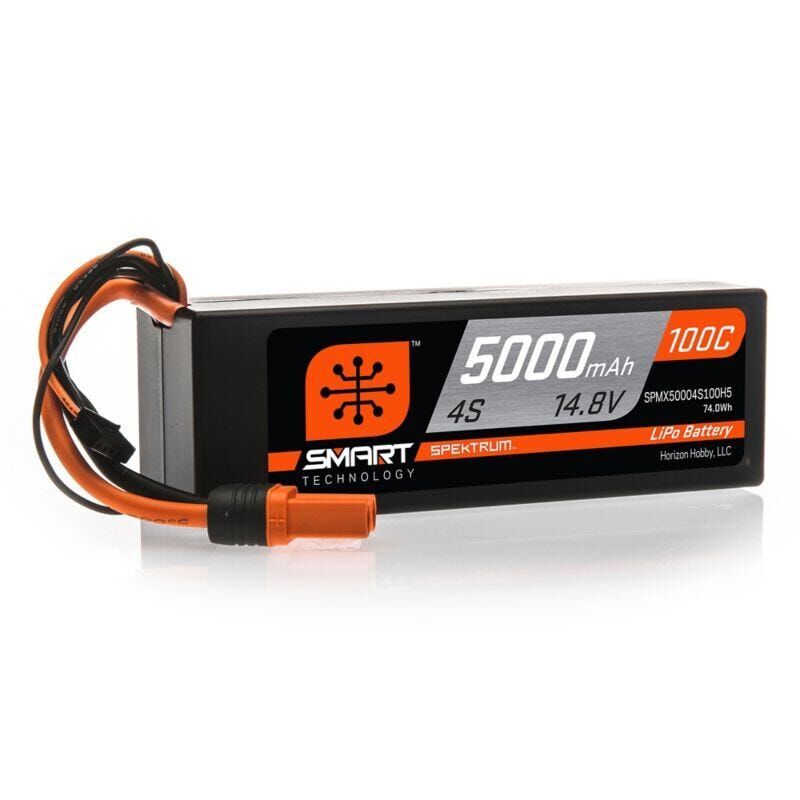

Spektrum 5000mAh 4S 14.8V 100C Smart Hardcase LiPo Battery IC5 – SPMX50004S100H5

The Spektrum 5000mAh 4S 14.8V 100C Smart Hardcase LiPo Battery (SPMX50004S100H5) is a high-performance battery designed for demanding RC car, truck and boat applications. With a 100C continuous discharge rating, durable hardcase construction and Spektrum Smart technology, it delivers the power required for high-performance brushless systems while making battery management and charging easier.

The battery comes factory fitted with a Spektrum IC5 connector and heavy-duty 12AWG wiring, making it ideal for high-current applications.

Spektrum Smart Technology

An integrated Smart microchip stores important information about the battery, including its capacity, cell count, chemistry, C rating, individual cell voltage, temperature and charge/discharge cycle history.

When connected to a compatible Spektrum Smart charger, this information is automatically communicated to the charger, simplifying setup and allowing important battery information to be viewed without manually entering all of the charging parameters.

Automatic Smart Storage Discharge

One of the major advantages of Spektrum Smart LiPo technology is programmable automatic storage discharge.

If the battery remains fully charged and unused for a predetermined period, it can automatically begin discharging towards a safer storage voltage. This helps reduce the time a LiPo spends sitting fully charged and can help improve its usable lifespan.

100C High-Performance Output

With a 5000mAh capacity and 100C continuous discharge rating, this battery is designed for vehicles requiring high current and strong acceleration.

Its 4S configuration provides a nominal 14.8V, making it suitable for compatible high-performance 4S vehicles or for applications that use a pair of matching 4S packs for an 8S power system. Spektrum specifically lists this battery as a surface application pack.

Durable Hardcase Construction

The cells are protected inside an impact-resistant ABS hardcase, providing additional protection against the knocks and impacts commonly encountered in RC cars and trucks.

The relatively compact 138 x 47 x 40mm dimensions also make the pack suitable for a variety of battery trays, provided the vehicle is designed to accept a 4S hardcase battery of this size.

Features

• Genuine Spektrum Smart LiPo battery
• 5000mAh capacity
• 4S / 14.8V configuration
• High-performance 100C continuous discharge rating
• Integrated Spektrum Smart microchip
• Stores important battery parameters and operating history
• Automatic Smart charging setup with compatible chargers
• Programmable automatic storage discharge
• Impact-resistant ABS hardcase
• Factory-installed IC5 connector
• IC5 compatible with EC5 device connectors
• Heavy-duty 12AWG wiring
• JST-XH balance connector
• Up to 3C maximum charge rate
• Designed for high-performance surface applications

Specifications

• Brand: Spektrum
• Part Number: SPMX50004S100H5
• Battery Type: Smart LiPo
• Capacity: 5000mAh
• Voltage: 14.8V
• Cell Count: 4S
• Configuration: 4S1P
• Continuous Discharge Rating: 100C
• Maximum Charge Rate: 3C
• Connector: IC5
• Balance Connector: JST-XH
• Wire Gauge: 12AWG
• Case: Hardcase
• Length: 138mm
• Width: 47mm
• Height: 40mm
• Weight: 495g
• Application: Surface
• UPC: 605482418390

Suitable Applications

This battery is suitable for compatible 4S RC cars, trucks and boats requiring a 5000mAh hardcase battery with an IC5 connection. It can also be used as a matched pair in compatible 8S applications.

For example, Spektrum/Pro Boat specifies this battery for compatible high-performance boats such as the Blackjack 42, where two matching 4S batteries are used.

What's Included

• 1 x Spektrum 5000mAh 4S 14.8V 100C Smart Hardcase LiPo Battery with IC5 Connector

Please Note

Always confirm your vehicle's battery voltage, physical battery tray dimensions and connector type before use.

This is a 4S 14.8V LiPo battery and should only be charged using a LiPo-compatible charger. To take full advantage of its Smart features, use a compatible Spektrum Smart charger.

The IC5 connector is backwards compatible with compatible EC5 device connectors, although the additional Smart functionality requires compatible Spektrum Smart electronics.
