Skyrc E4Q Dc Quattro Charger (2-4S Lipo) - Sk-100141

Specifications
e4Q
This product is a special LiPo battery balance plug charger, which can charge 2S/3S/4S LiPo battery in 4 channals simultaneously. The main power supply is DC input, the port adopts XT60 type, the output port adopts special design interface, and the three kinds of batteries do not need Transfer board. Can be plugged in directly.

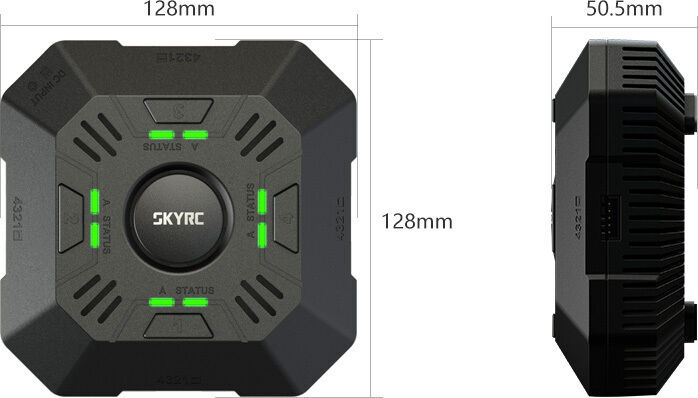

Size and Weight

Dimension ¼š128x128x50.5mm
Net Weight ¼š280g

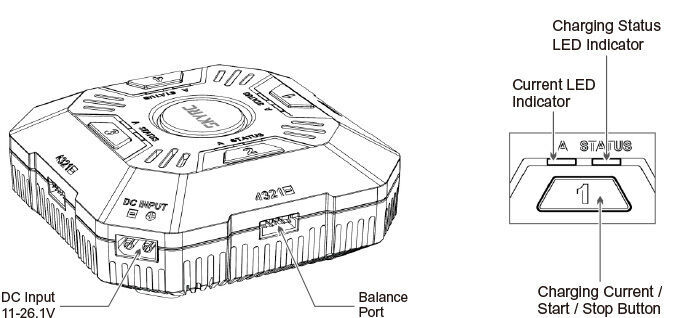

Buttons And Port
The e4Q multi-function charger uses four completely independent but identical circuits with a power output of 50W per power. It is designed for charging 2-4 LiPo batteries. Insert the battery into the right connector of each port, charge The appliance will also charge 4 battery times. The charging current can be adjusted by pressing the button 2A / 3A / 5A The charging capacity can show the charging current in the LED indicator through the color change

Power
DC Input: 11-26.1V
Charge Circuit Power: 4 x 50W ±10%
Charging model: balance charging
Charge Current Range: 2A/3A/5A
Charge saturation voltage:4.20V ±0.02V/CELL
Balance current :Max 400mA/CELL
