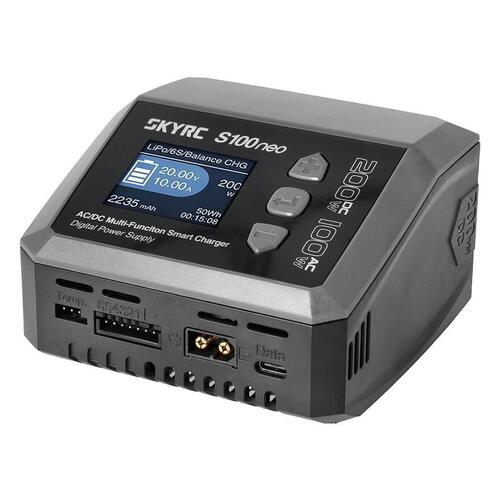

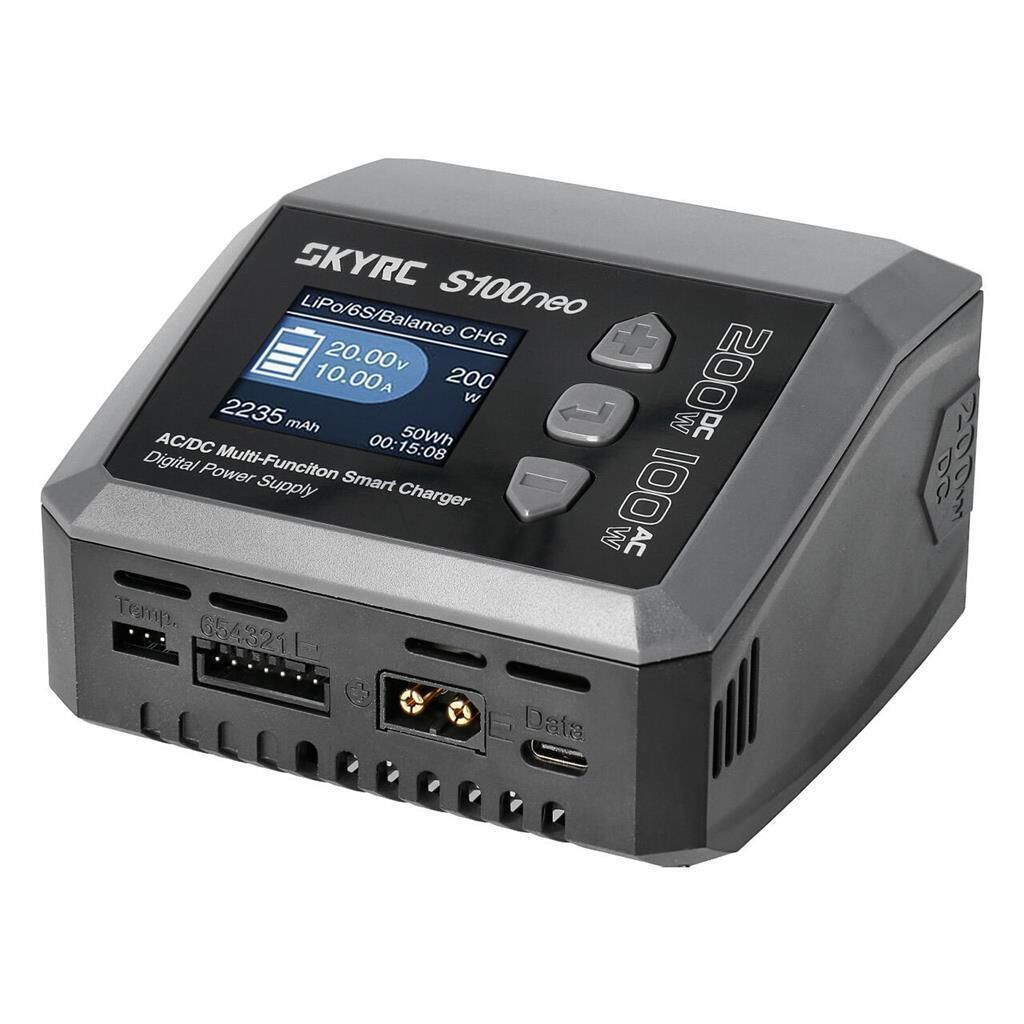

The SkyRC S100neo Smart Balance Charger combines powerful charging performance, broad battery compatibility and an intuitive colour display in one compact unit.

When connected directly to mains power, the S100neo provides up to 100W of charging power. For faster charging at the track or in the field, connect a suitable external DC power source to unlock up to 200W and 12A of charging performance.

Compatible with LiPo, LiHV, LiFe, Li-Ion, NiMH, NiCd and lead-acid batteries, the S100neo is an excellent all-round charger for RC cars, aircraft, boats and other hobby applications. Its high-capacity balance circuit provides up to 1000mA of balancing current, helping lithium battery cells reach the correct voltage efficiently.

A bright 1.77-inch colour LCD screen and straightforward menu system make it easy to select charging, balance, storage and discharge programs. Additional functions include a battery voltage checker, adjustable CC/CV digital power supply and brushed-motor run-in mode.

The charger delivers up to 100W from AC power or 200W from a suitable DC supply and supports charge currents of up to 12A.

Key Features

• Single-channel AC/DC smart balance charger

• Up to 100W charging power using AC input

• Up to 200W charging power using DC input

• Adjustable charge current up to 12A

• Compatible with multiple battery chemistries

• Supports lithium batteries from 1S to 6S

• Powerful 1000mA lithium balancing current

• Up to 20W discharge power with the balance port connected

• 1.77-inch colour LCD screen

• Balance charge, standard charge, discharge and storage modes

• Battery voltage and individual-cell checker

• Adjustable CC/CV digital power-supply mode

• Brushed-motor run-in function

• USB-C connection for firmware updates and Charger Master software

• Short-circuit, over-temperature, capacity, timeout and over-voltage protection

• Compact and lightweight design

Specifications

• Brand: SkyRC

• Model: S100neo

• Product Code: SK-100202

• Channels: Single Channel

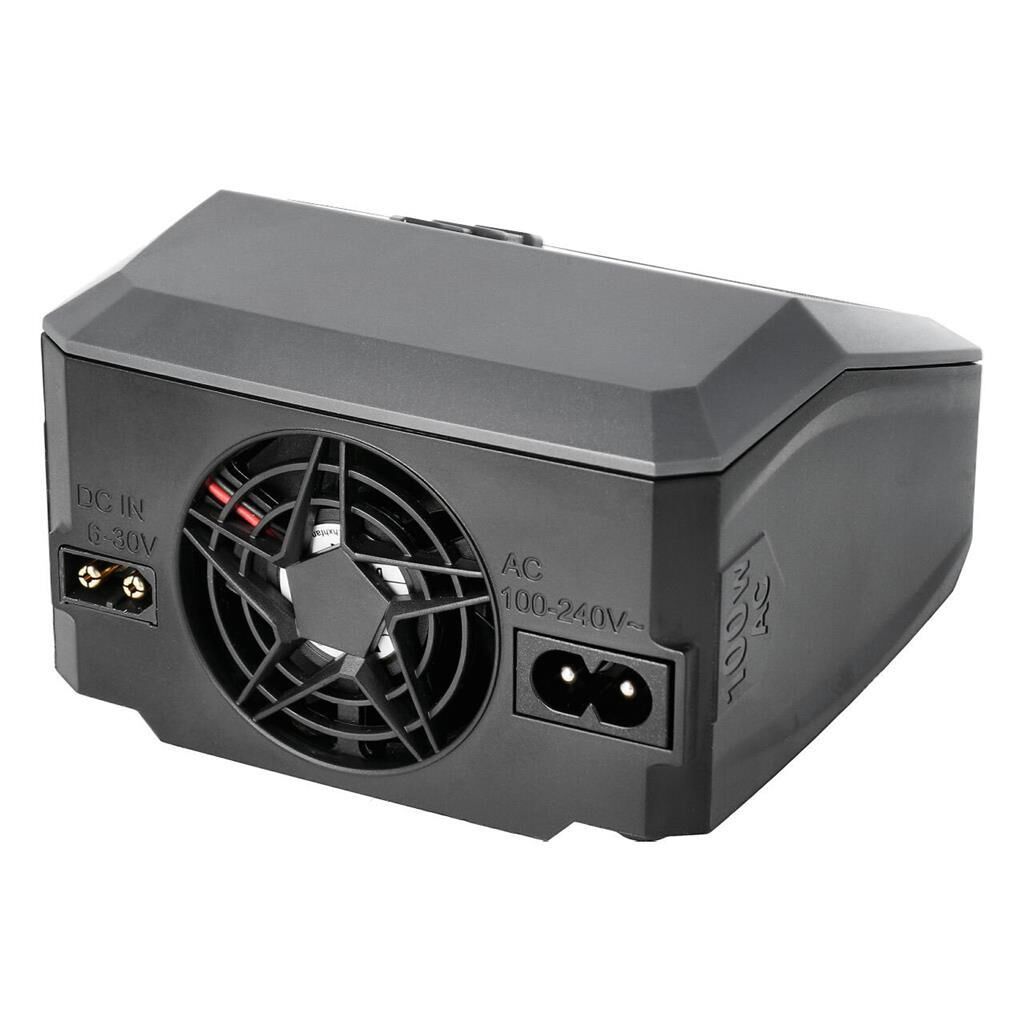

• AC Input: 100–240V AC, 50/60Hz

• DC Input: 6–30V DC

• Maximum AC Charge Power: 100W

• Maximum DC Charge Power: 200W

• Charge Current: 0.1–12.0A

• Discharge Current: 0.1–2.0A

• Maximum Discharge Power: 20W with balance port connected

• Maximum Balance Current: 1000mA

• Display: 1.77-inch TN Colour LCD

• Display Resolution: 128 × 160 pixels

• Case Material: Flame-retardant PC-ABS

• Dimensions: 105 × 105 × 62mm

• Weight: Approximately 340g

Supported Batteries

• LiPo: 1–6S

• LiHV: 1–6S

• LiFe: 1–6S

• Li-Ion: 1–6S

• NiMH: 1–15 cells

• NiCd: 1–15 cells

• Lead Acid: 3S, 6S or 12S

The manufacturer confirms lithium battery support from 1S–6S, NiMH/NiCd support from 1–15 cells and multiple lead-acid charging modes.

Charging Programs

• Lithium balance charge

• Lithium standard charge

• Lithium storage charge

• Battery discharge

• NiMH and NiCd charge/discharge

• NiMH and NiCd cycle modes

• Lead-acid normal and standard charging

• AGM battery charging and discharging

• Low-temperature lead-acid charging

Additional Functions

• Battery voltage meter

• Individual lithium-cell voltage display

• Adjustable digital power supply

• Automatic CC/CV operation

• Brushed-motor run-in

• PC and Mac connectivity

• Firmware updates through USB-C

Package Contents

• SkyRC S100neo AC/DC Smart Balance Charger

• AC mains power lead

• Instruction manual

Important Compatibility Information

A battery charging lead may be required separately to suit your battery’s connector. Always select the correct battery chemistry, cell count, charge current and terminal voltage before beginning a charge.

The optional SkyRC temperature sensor is not included and is currently intended for thermal cut-off protection when charging NiMH and NiCd batteries.
