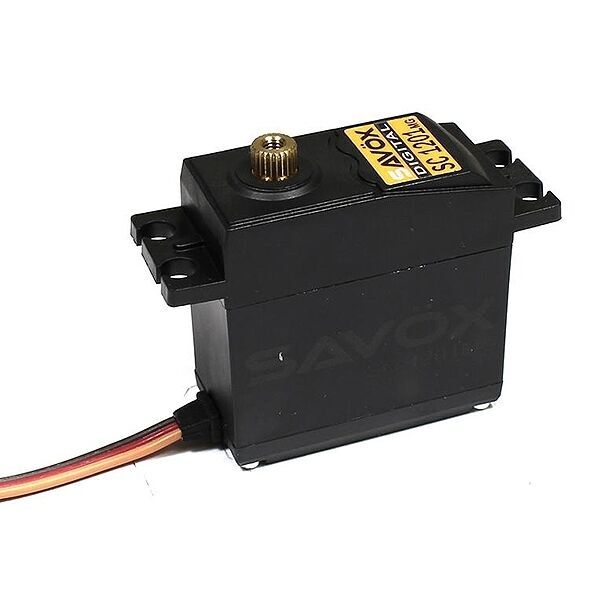

Specifications torque @ 4. 8v - 20. 0kg/278. 0oz-in torque @ 6v - 25. 0kg/347. 0oz-in speed @ 4. 8v - 0. 19 sec/60 deg speed @ 6v - 0. 16 sec/60 deg dimensions l x w x h (mm): 40. 7 x 20. 0 x 42. 4 weight: 69. 0g technical details operating temperature: 14° - 122°f (-10° - 50°c) running current (no load): 300ma @4. 8v, 350ma @6. 0v stall current (at locked): 8000ma @4. 8v, 10,000ma @6. 0v idle current: 5ma @4. 8v, 5ma @6. 0v wire length: 300 +/- 5mm output gear spline: 25 tooth bearings: 2bb operating travel: 120° (1000 ? 2000 µ second) neutral position: 1500 µ second pulse width range: 800 ? 2200 µ second maximum travel: appx 164° (800 ? 2200 µ second) refresh rate: 333 hz motor type: coreless (sav-sc1201mg)
