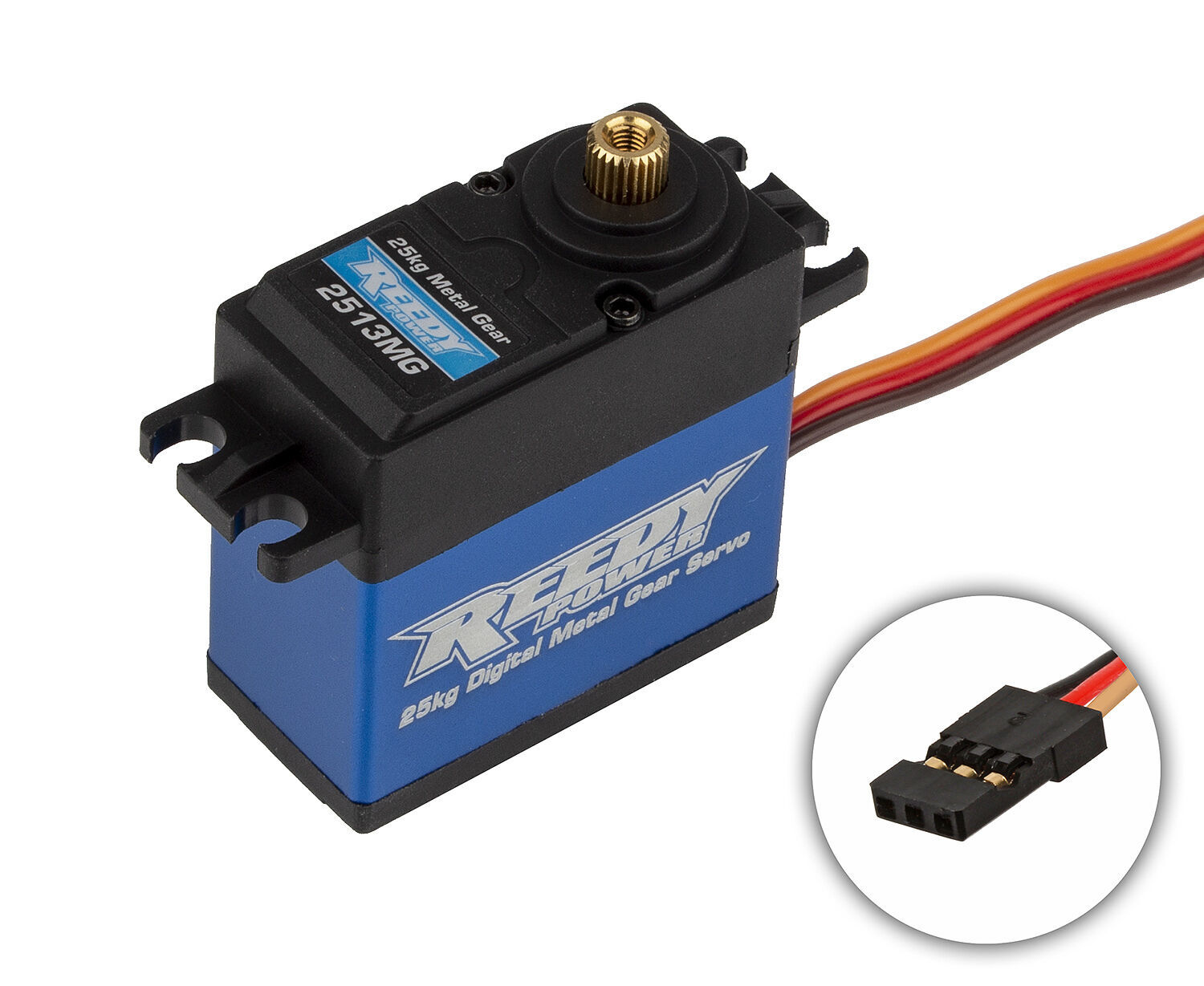

The Reedy 2513MG Digital Metal Gear Servo (ASS27152) is a strong, reliable high-torque servo designed as an excellent upgrade for Team Associated RTR vehicles and other compatible 1/10 scale RC applications. Associated Electrics currently lists part 27152 as the Reedy 2513MG Digital Metal Gear Servo.

Offering up to 25.0kg-cm of torque at 7.4V, the 2513MG provides a significant improvement in steering authority while maintaining a quick 0.12 sec/60° transit speed.

Strong Metal Gear Drivetrain

The 2513MG features a full precision metal gear set, providing the strength and durability required for demanding off-road vehicles and heavier RC models.

Dual ball bearings support the output system for smooth operation, while the robust construction makes this servo particularly well suited to monster trucks, short course trucks, buggies and general-purpose RTR upgrades.

CNC Machined Centre Case

A CNC-machined aluminium centre case assists with heat dissipation during demanding use. This is combined with high-impact case components to provide a good balance between strength, weight and operating temperature.

Water-Resistant Construction

The 2513MG features water-resistant construction, making it well suited to off-road RC vehicles that may encounter dirt, moisture and other challenging running conditions.

Features

• Digital high-torque servo
• Precision full metal gear set
• CNC-machined centre case
• High-impact case construction
• Dual ball bearings
• Water-resistant design
• Reliable high-torque motor
• Up to 25.0kg-cm torque
• Fast 0.12 sec/60° transit speed at 7.4V
• Suitable for a wide variety of RC vehicles
• Excellent upgrade for compatible Team Associated RTR models
• Strong combination of performance, durability and value

Specifications

• Brand: Reedy Power
• Part Number: ASS27152 / ASC27152 / 27152
• Model: 2513MG
• Type: Digital Metal Gear Servo
• Operating Voltage: 5.0–7.4V
• Speed @ 5.0V: 0.14 sec/60°
• Speed @ 7.4V: 0.12 sec/60°
• Torque @ 5.0V: 21.2kg-cm / 294.4oz-in
• Torque @ 7.4V: 25.0kg-cm / 347.2oz-in
• Dimensions: 40 x 20 x 40.5mm
• Weight: 67g
• Gears: Metal
• Bearings: Dual Ball Bearing
• Construction: Water Resistant

Suitable Applications

The Reedy 2513MG is an excellent choice for compatible:

• 1/10 Monster Trucks
• 1/10 Short Course Trucks
• 1/10 Buggies
• 1/10 On-Road Cars
• Trail Trucks
• General RTR steering upgrades

Team Associated also recommends the 2513MG for its RIVAL MT10 Factory Team and Classic kits, making it a particularly suitable steering servo for the MT10 platform.

What's Included

• 1 x Reedy 2513MG Digital Metal Gear Servo

Please Note

A servo horn mounting screw is required separately. Always check the servo dimensions, spline compatibility, receiver/BEC voltage and mounting dimensions for your particular vehicle before installation.
