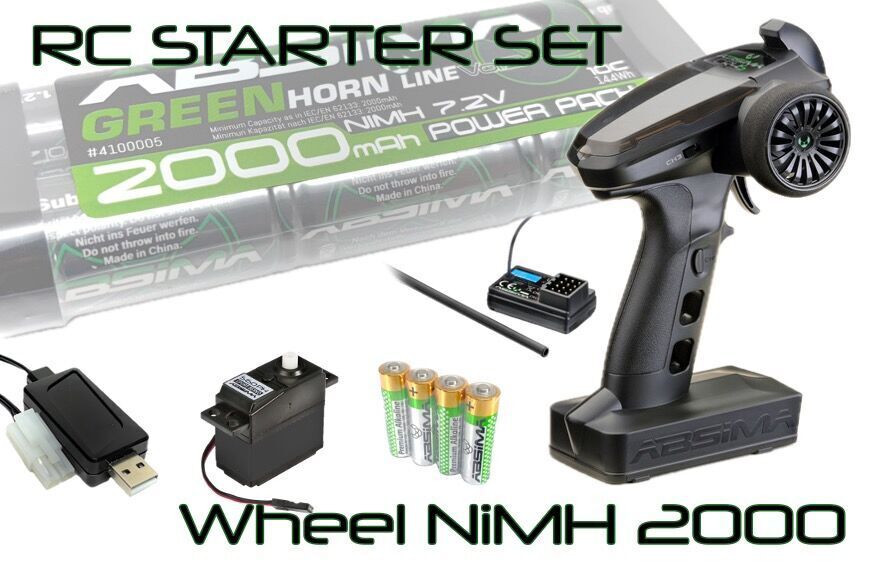

Absima AB2200012 RC Starter Set “Wheel NiMH 2000” – CR4S-V2 Radio, Servo, 2000mAh Battery & Charger

The Absima AB2200012 RC Starter Set “Wheel NiMH 2000” is a convenient electronics package designed to complete many 1/10 scale RC car kits that are supplied without radio equipment, steering servo, battery or charger.

Building on the Wheel Basic package, this version includes the CR4S-V2 4-channel 2.4GHz wheel transmitter and receiver, S60PH 6kg steering servo, plus a 7.2V 2000mAh NiMH battery and USB-A charger. Four AA batteries for the transmitter are also included.

CR4S-V2 4-Channel 2.4GHz Radio

The included CR4S-V2 is a pistol-grip wheel transmitter designed for RC cars and other surface vehicles. Its 2.4GHz system provides reliable control without the need for frequency crystals.

Useful adjustment features include:

• Steering and throttle trim
• Steering and throttle reverse
• Dual Rate adjustment
• Steering travel limiting
• Speed limiting
• Beginner Mode
• Failsafe function

A compact waterproof mini receiver is supplied with the transmitter.

S60PH 6kg Steering Servo

The included S60PH steering servo provides up to 6kg of steering torque and operates from 4.8–6.0V.

It features plastic gears and a 25T output spline, making it a practical steering servo for many entry-level and recreational 1/10 RC car builds.

2000mAh 7.2V NiMH Battery

Unlike the AB2200010 Wheel Basic set, the AB2200012 includes a 7.2V 2000mAh NiMH stick battery.

The battery uses the common standard-size configuration found in many 1/10 RC cars and measures approximately 135 × 46 × 25mm. It is fitted with 12AWG silicone cable and a Tamiya connector.

NiMH technology also makes this package particularly suitable for beginners looking for a straightforward battery solution for compatible brushed RC kits.

USB-A NiMH Charger

A matching USB-A charger is included for charging the supplied NiMH battery.

The charger features:

• Up to 2A / 5V charging input
• Designed for use with a suitable 10W USB power supply
• Red/green status LEDs
• Multiple protection modes
• Time-out protection
• Tamiya charging connector

Features

• Complete starter electronics package for RC car kits
• CR4S-V2 4-channel wheel transmitter
• 2.4GHz radio system
• Waterproof mini receiver
• Steering and throttle trim
• Steering and throttle reversing
• Dual Rate adjustment
• Steering angle and speed limiting
• Beginner Mode
• Failsafe function
• S60PH 6kg steering servo
• 7.2V 2000mAh NiMH battery
• Standard-size stick battery
• Tamiya battery connector
• USB-A NiMH charger
• Four AA transmitter batteries included
• Ideal for many 1/10 RC car kits

Specifications

• Brand: Absima
• Part Number: AB2200012
• Manufacturer Part Number: 2200012
• Product: RC Starter Set “Wheel NiMH 2000”
• Transmitter: CR4S-V2
• Transmitter Type: Pistol Grip / Wheel
• Channels: 4
• Frequency: 2.4GHz
• Receiver: Waterproof Mini Receiver
• Servo: S60PH
• Servo Torque: 6kg
• Servo Voltage: 4.8–6.0V
• Servo Gears: Plastic
• Servo Spline: 25T
• Battery Chemistry: NiMH
• Battery Voltage: 7.2V
• Battery Capacity: 2000mAh
• Battery Dimensions: Approx. 135 × 46 × 25mm
• Battery Cable: 12AWG Silicone
• Battery Connector: Tamiya
• Charger: USB-A NiMH Charger
• Transmitter Batteries: 4 × AA LR06 Alkaline
• EAN / Barcode: 4250650964856

What's Included

• 1 × Absima CR4S-V2 4-Channel 2.4GHz Wheel Transmitter
• 1 × Waterproof Mini Receiver
• 1 × Absima S60PH 6kg Steering Servo
• 1 × 7.2V 2000mAh NiMH Battery with Tamiya Connector
• 1 × USB-A NiMH Battery Charger
• 4 × AA LR06 Alkaline Transmitter Batteries

Please Note

This starter set does not include a drive motor or electronic speed controller (ESC). These will still be required if they are not supplied with your RC kit.

The included battery is a standard-size stick pack suitable for many 1/10 vehicles, but the battery compartment dimensions and connector type should be checked before use.
