Absima AB2200010 RC Starter Set “Wheel Basic” – CR4S-V2 2.4GHz Radio, Receiver & 6kg Servo

The Absima AB2200010 RC Starter Set “Wheel Basic” is a convenient electronics package designed to help complete an RC car kit that is supplied without radio equipment or steering electronics.

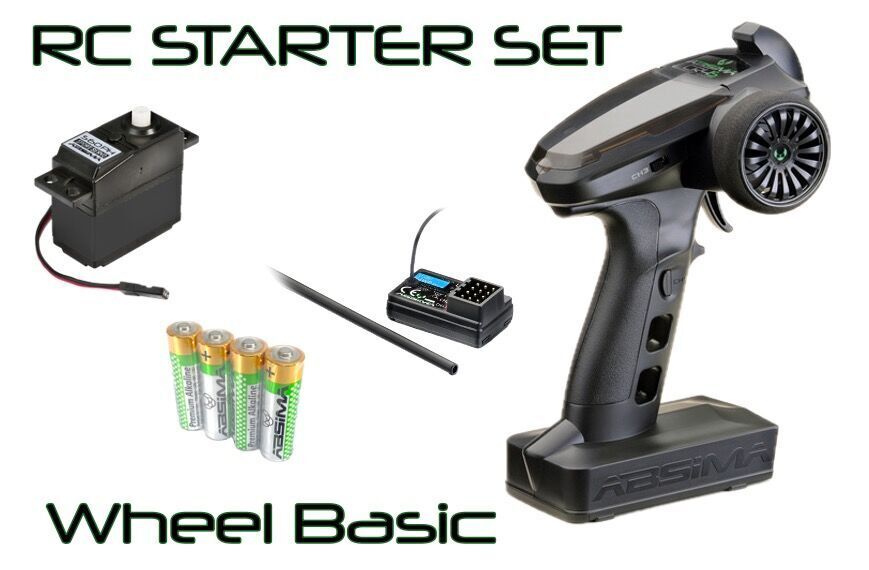

The set combines Absima's CR4S-V2 4-channel 2.4GHz wheel transmitter, a waterproof mini receiver, S60PH 6kg steering servo, and four AA transmitter batteries. It's an ideal starting point for builders who need the essential radio and steering components for a new RC car kit.

CR4S-V2 4-Channel 2.4GHz Radio System

The included CR4S-V2 is a pistol-grip wheel transmitter designed for RC cars, trucks and other surface vehicles.

Its secure 2.4GHz transmission system provides reliable control without the need to manage traditional frequency crystals. The radio includes the essential adjustments needed to set up a vehicle correctly, including throttle and steering trim and reversing functions.

The transmitter also features Dual Rate adjustment, allowing the maximum steering travel and vehicle speed to be limited. This can be particularly useful when setting up a vehicle for a new or younger driver.

Beginner Mode & Failsafe

A built-in Beginner Mode provides an easy way to reduce vehicle performance while learning to drive.

The system also incorporates a failsafe function, adding an important layer of protection should the radio signal be interrupted.

Waterproof Mini Receiver

The supplied compact receiver is waterproof, making it well suited to the varied conditions encountered by RC cars and trucks.

Its small dimensions also make installation easier in vehicles where radio-box or chassis space is limited.

S60PH 6kg Steering Servo

Also included is the Absima S60PH steering servo, providing up to 6kg of steering torque.

The servo operates from 4.8–6.0V and uses plastic internal gears with a 25T output spline, making it suitable for many entry-level and recreational RC car applications.

Features

• Complete starter radio and steering electronics package
• Ideal for completing RC car kits supplied without electronics
• CR4S-V2 4-channel wheel transmitter
• Secure 2.4GHz radio system
• Steering and throttle trim adjustment
• Steering and throttle reverse functions
• Dual Rate adjustment
• Ability to limit steering travel
• Ability to limit vehicle speed
• Beginner Mode
• Failsafe function
• Compact waterproof receiver
• S60PH 6kg steering servo
• 4.8–6.0V servo operating voltage
• 25T servo output spline
• Four AA alkaline transmitter batteries included
• Suitable for a wide variety of RC car and truck kits

Specifications

• Brand: Absima
• Part Number: AB2200010
• Manufacturer Part Number: 2200010
• Product: RC Starter Set “Wheel Basic”
• Radio: CR4S-V2
• Radio Type: Wheel / Pistol Grip
• Channels: 4
• Frequency: 2.4GHz
• Receiver: Waterproof Mini Receiver
• Servo: S60PH
• Servo Torque: 6.0kg
• Servo Voltage: 4.8–6.0V
• Servo Gears: Plastic
• Servo Output Spline: 25T
• Transmitter Batteries: 4 × AA LR06 Alkaline
• EAN / Barcode: 4250650964832

What's Included

• 1 × Absima CR4S-V2 4-Channel 2.4GHz Wheel Transmitter
• 1 × Waterproof Mini Receiver
• 1 × Absima S60PH 6kg Steering Servo
• 4 × AA LR06 Alkaline Batteries

Please Note

This Basic starter set does not include a drive motor, electronic speed controller, main vehicle battery or charger. These components will need to be purchased separately if they are not already included with your RC kit.

For customers wanting a more complete package including a vehicle battery, Absima also produces the Wheel NiMH 2000 starter set (AB2200012).
