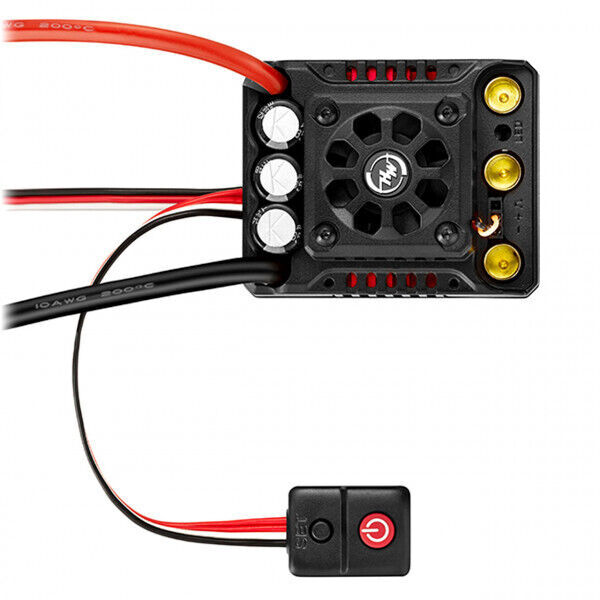

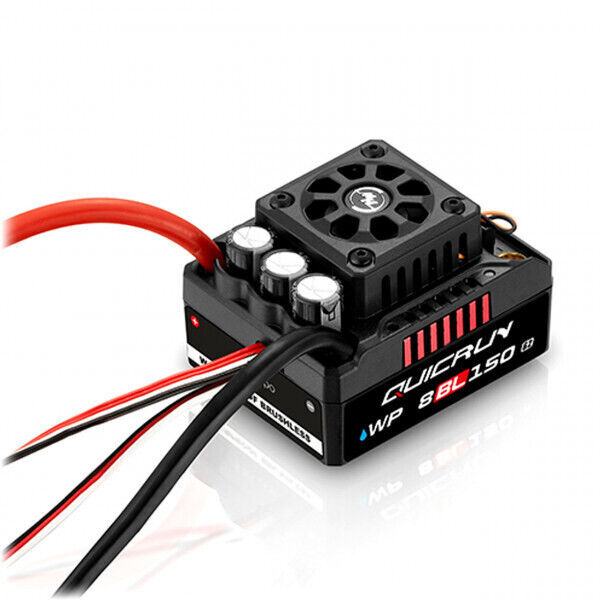

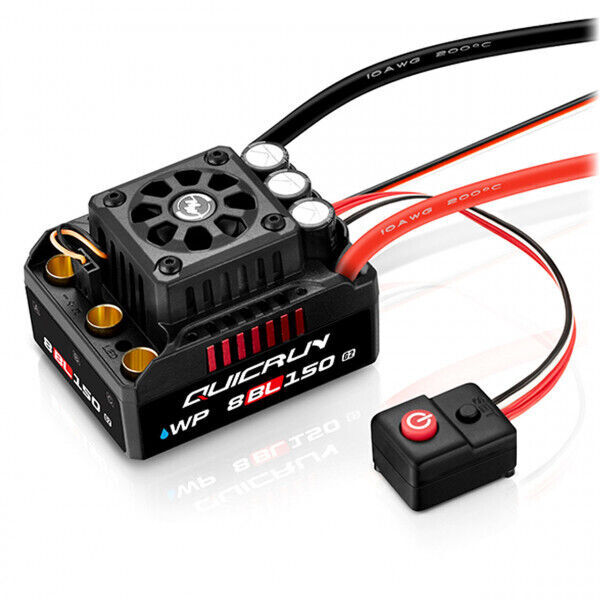

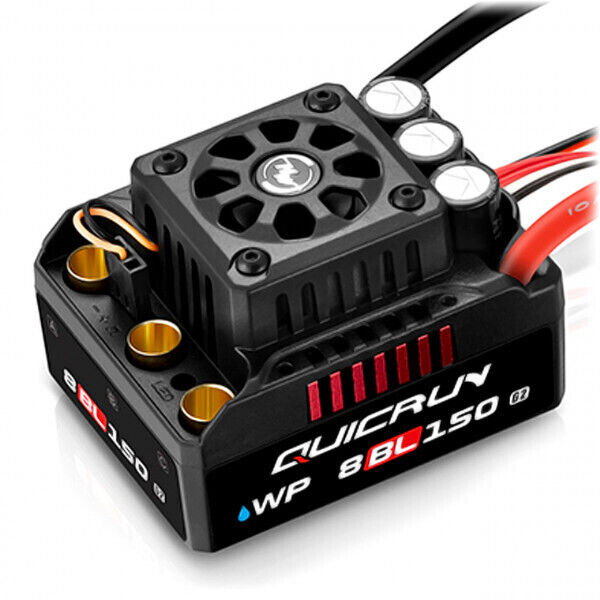

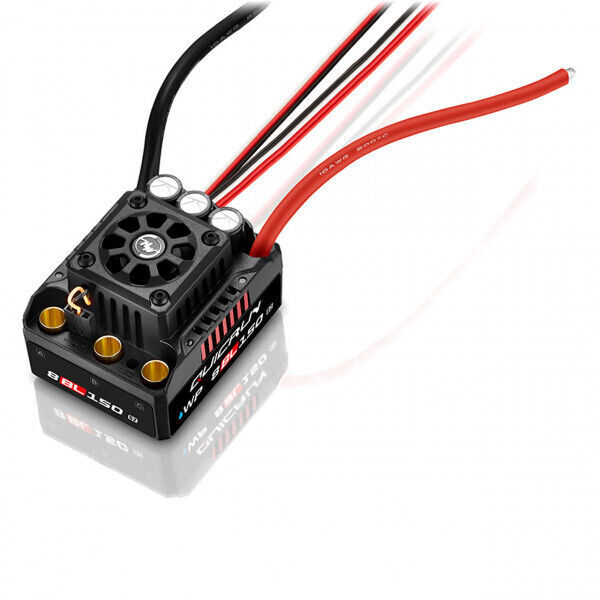

Product information ""Hobbywing QuicRun WP8BL150 G2 brushless controller 150A 3-6s for 1:8"" The second generation QuicRun WP 8BL150 controller demonstrates greater efficiency at low temperatures than its predecessor thanks to intelligent freewheeling technology. But an expected increase in performance is not everything with this G2 controller. The main focus was primarily on the further development of the BEC. Previously only 6V at 3A, now switchable with 6V or 7.4V at a whopping 6A. The maximum current can even reach up to 12 amps. The BEC thus ensures that the controller can now also be used together with high-voltage servos. The power board inside the controller is covered with a patented copper heat conduction rail to achieve rapid dissipation of the resulting internal heat. In addition, the built-in fan creates an extremely reliable cooling system that ensures that the controller always has a safe operating temperature. The integrated overheating protection function for the 2040uF capacitors can also effectively prevent the regulator from major damage due to overload. Characteristics Protected against dust and splash water according to IP67 Programmable high performance switching mode BEC Suitable for various powerful and high voltage steering servos 9 different acceleration programs from “soft” to very “aggressive” can be selected depending on the model and route. Proportional brake with adjustable maximum braking force and automatic brake Various protection functions, for example: - Undervoltage caused by the battery - Thermal overheating - Loss of gas signal - Capacitor overheating Independent programming port - no need to pull the throttle cable out of the receiver beforehand Technical data Type: Brushless sensorless Current (continuous/short): 150A/950A Number of cells: 3-6S LiPo BEC: 6V/7.4V with 6A (switch mode) Waterproof: Yes (IP67) Exit: 6.5mm gold (socket) Programming: - LCD programming box G2 - LED programming card - programming interface Dimensions: 60x48x40.4mm Weight: 169.5g Mission: 1/8 truck, monster truck Delivery Quircun WP 8BL150 regulator Instructions (English) (HW30109003)
