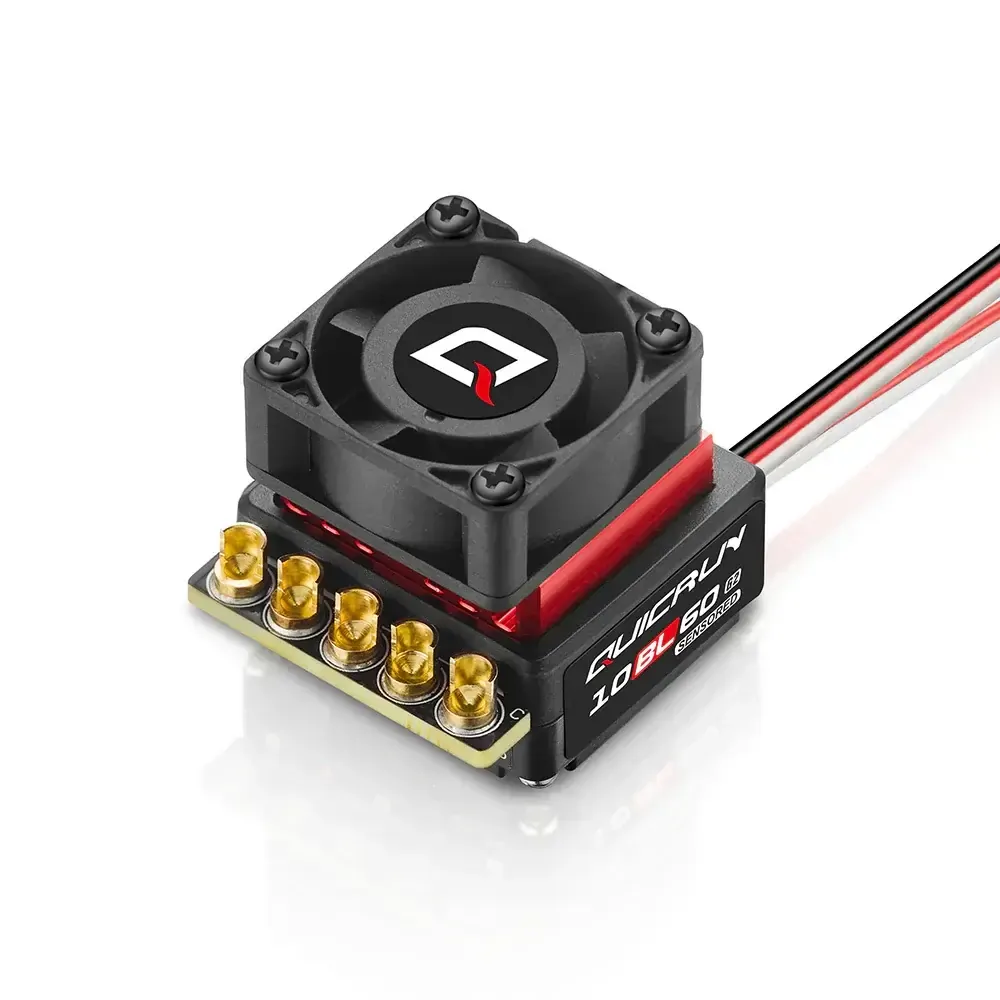

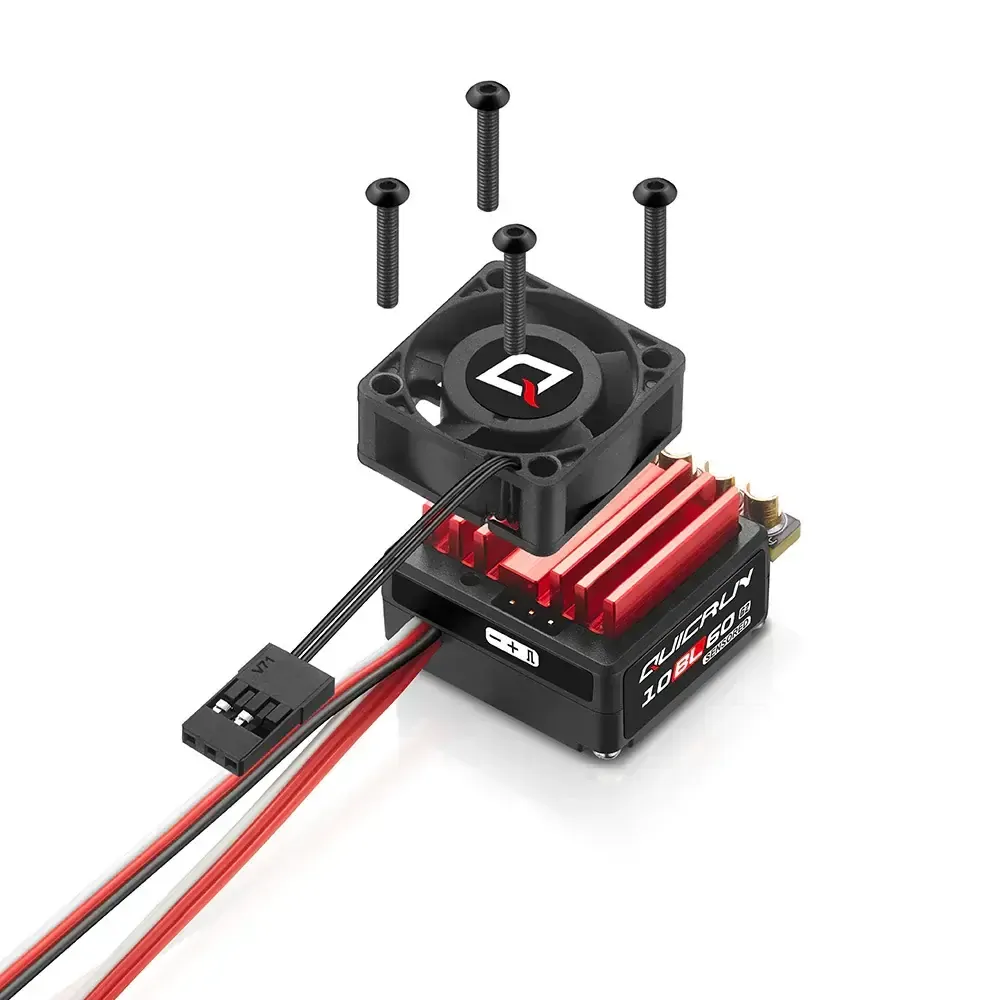

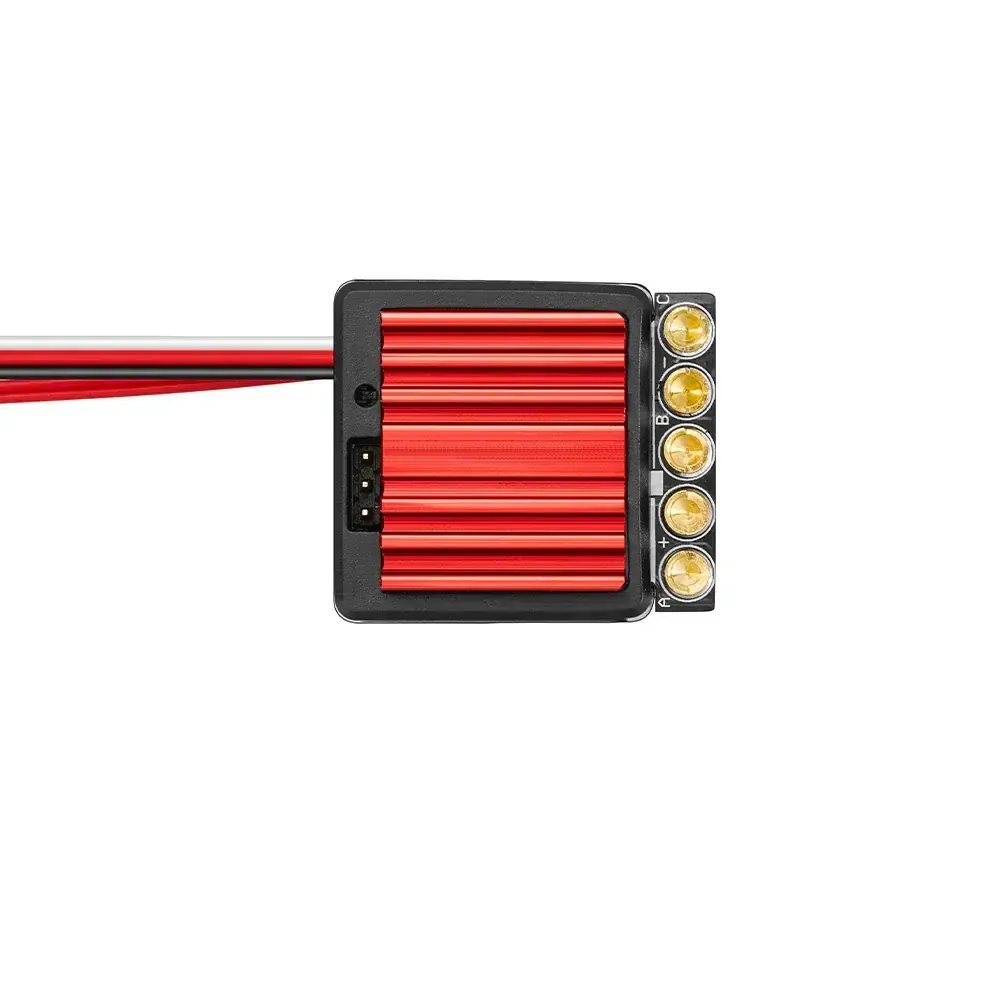

Product Name QUICRUN 10BL60 SENSORED G2 Product Number 30108001 Type Scale 1/10th Brushed/Brushless Brushless Sensored/Sensorless Sensored Waterproof NO Specifications Cont./Peak Current 60A/200A Input Voltage 2S Lipo BEC BEC Output Switch Mode 6V/7.4V @4A Wires & Connectors Input Wires Black--14AWG-175mm*1 Red--14AWG-175mm*1 Output Wires Blue-14AWG-175mm*1?Yellow-14AWG-175mm*1?Orange-14AWG-175mm*1 Input Connectors No Output Connectors No ESC Programing via SET Button on ESC Supported LED Program Box Supported LCD G2 Program Box Supported LCD PRO Supported OTA Programmer Not Supported Program Port Shared with fan port Data Recording Extreme value Not Supported Real-time Data Not Supported Historical data (Graph) Not Supported Firmware Firmware Upgrade Not Supported Size & Weight Size 35.0*31*30.8mm Weight 66.5g (Included wires&connectors) Applications Motors Sensored/Sensorless Brushless motor Vehicles 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles KV Rating/T Count QUICRUN 3650 SD G2 Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or troubleshooting. Powerful built-in BEC Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience. Support Boost/Turbo timing technology With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed. High reliability and durability Continuous current 60A, Peak Current 200A. A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability. Support multiple programming methods The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease. Support Motor Rotation Adjustment This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups. Specifications: Scale: 1/10th Brushed/Brushless: Brushless Sensored/Sensorless: Sensored Waterproof: NO Relevant Parameters: Cont./Peak Current: 60A/200A Input Voltage: 2S Lipo BEC BEC Output: Switch Mode 6V/7.4V @4A Wires & Connectors: Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1 Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1 Input Connectors: No Output Connectors: No ESC Programing via: SET Button on ESC: Supported LED Program Box: Supported LCD G2 Program Box: Supported LCD PRO: Supported OTA Programmer: Not Supported Program Port: Shared with Fan port Data Recording: Extreme value: Not Supported Real-time Data: Not Supported Historical data (Graph): Not Supported Firmware Upgrade: Not Supported Size & Weight: Size: 35.0*31*30.8mm Weight: 66.5g (Included wires & connectors) Applications: Motors: Sensored/Sensorless Brushless motor Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles KV Rating/T Count: QUICRUN 3650 SD G2 Package total weight: 130.00 grams (incl. packaging) Package size: 9.00 x 12.50 x 7.00cm Factory description: Hobbywing QUICRUN 10BL60-SENSORED G2 Brushless ESC (HW30108001)
