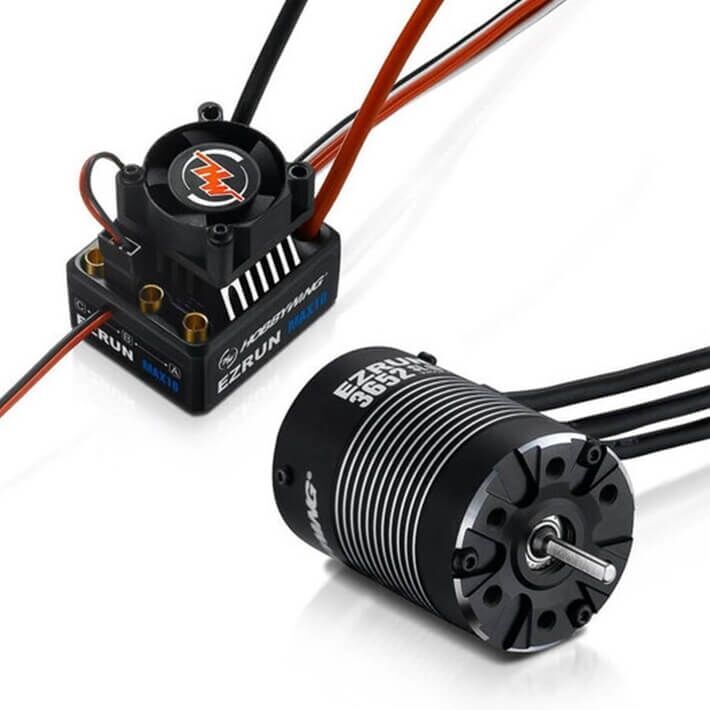

Hobbywing EZRUN MAX10 G2S 140A ESC & 3665SD G3 2400KV Sensored Brushless Motor Combo – HW38010209

The Hobbywing EZRUN MAX10 G2S 140A & 3665SD G3 2400KV Combo (HW38010209) is a powerful sensored brushless system designed as a premium upgrade for 1/10 scale trucks, monster trucks and other heavier high-performance RC vehicles. This combination pairs the more powerful MAX10 G2S 140A ESC with Hobbywing's larger 3665SD G3 2400KV sensored brushless motor.

With support for 2S to 4S LiPo when paired with the supplied 2400KV motor, this combo provides plenty of flexibility. Run 2S or 3S for a more manageable setup, or take advantage of 4S capability where appropriate for considerably stronger acceleration and overall performance.

Powerful MAX10 G2S 140A ESC

The 140A version of the MAX10 G2S is designed for applications requiring considerably more power than the smaller 80A version. It's particularly well suited to heavier 1/10 trucks and monster trucks where additional current capacity and a larger 3665-size motor are beneficial.

The system retains the smooth sensored operation of the MAX10 G2S range, providing excellent throttle control at low speeds while delivering strong acceleration as the throttle is opened.

Built-In Bluetooth

One of the major upgrades of the new MAX10 G2S platform is integrated Bluetooth connectivity.

The Bluetooth module is incorporated into the ESC's power switch, allowing direct connection to Hobbywing's HW LINK App without requiring an additional Bluetooth programming module.

Through the app, users can adjust ESC parameters, access data logs and perform firmware updates directly from a compatible smartphone.

3665SD G3 2400KV Sensored Motor

The included EZRUN 3665SD G3 2400KV is a larger sensored brushless motor designed specifically for higher-load applications.

Compared with the 3652 motors supplied with the 80A MAX10 G2S combos, the 3665 motor's larger physical size makes it better suited to heavier trucks and monster trucks where increased torque and sustained power are important.

The 2400KV version is particularly versatile because Hobbywing rates this exact combo for 2S–4S LiPo operation.

Sensored Performance

The sensored ESC and motor combination provides smooth communication between the motor and ESC, resulting in predictable throttle response and excellent low-speed control.

This makes the system enjoyable for general bashing as well as applications where smooth throttle response is important, while still providing the aggressive performance expected from a modern brushless setup.

IP67 Protection

The MAX10 G2S system is designed with IP67-rated water and dust protection, making it well suited to trucks and off-road vehicles that regularly encounter dirt, dust and wet conditions.

Features

• Hobbywing EZRUN MAX10 G2S 140A ESC
• EZRUN 3665SD G3 2400KV sensored brushless motor
• 2S–4S LiPo compatibility with supplied 2400KV motor
• Full sensored brushless system
• Designed for high-performance 1/10 trucks and monster trucks
• Excellent low-speed throttle response
• Strong torque and acceleration
• Built-in Bluetooth connectivity
• Direct connection to Hobbywing HW LINK App
• Smartphone ESC programming
• Data logging capability
• Firmware update support
• IP67 water and dust protection
• Larger 3665-size motor for heavier vehicles
• Multiple protection functions
• Ideal upgrade from many factory RTR brushless systems

Specifications

• Brand: Hobbywing
• Part Number: HW38010209 / 38010209
• Series: EZRUN MAX10 G2S
• ESC: MAX10 G2S 140A
• ESC Type: Sensored Brushless
• Motor: EZRUN 3665SD G3
• Motor KV: 2400KV
• Motor Type: Sensored Brushless
• Battery Compatibility: 2S–4S LiPo
• Application: 1/10 Scale
• Recommended Vehicle Type: Truck / Monster Truck
• Programming: Built-In Bluetooth / HW LINK App
• Protection Rating: IP67
• Battery Connector: XT60
• EAN / GTIN: 6938994407809

Recommended Applications

The HW38010209 is particularly suited to compatible:

• 1/10 Monster Trucks
• 1/10 Stadium Trucks
• 1/10 Short Course Trucks
• Larger/heavier 1/10 Buggies
• High-performance RTR upgrades
• General-purpose 2S, 3S and 4S bashers

Hobbywing specifically describes this MAX10 G2S 140A/3665 combination as a premium RTR upgrade for 1/10 trucks and monster trucks.

What's Included

• 1 x Hobbywing EZRUN MAX10 G2S 140A Sensored Brushless ESC with XT60 connector
• 1 x Hobbywing EZRUN 3665SD G3 2400KV Sensored Brushless Motor
• Support accessories / double-sided mounting tape

Please Note

The HW38010209 is specifically the 2400KV version of the MAX10 G2S 140A combo and is rated by Hobbywing for 2S–4S LiPo operation.

This distinguishes it from the other 140A combinations:

HW38010209 – 2400KV – 2S to 4S
HW38010210 – 3200KV – 2S to 3S
HW38010211 – 4000KV – 2S to 3S

Correct gearing should always be selected for the vehicle, tyre diameter, vehicle weight and battery voltage. When moving to 4S, start with conservative gearing and regularly monitor motor and ESC temperatures.
